Business Data Solution Using Clustering, Linear Programming, and Neural Net

1

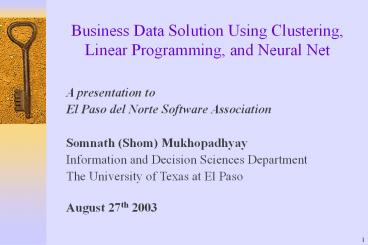

Business Data Solution Using Clustering, Linear
Programming, and Neural Net

• A presentation to
• El Paso del Norte Software Association
• Somnath (Shom) Mukhopadhyay
• Information and Decision Sciences Department
• The University of Texas at El Paso
• August 27th 2003

2
Outline of Presentation

• Data Mining Definition
• Introduction of Neural Net
• - Physiological flavor
• - General framework
• - Classes of PDP models
• - Sigma-PI units
• - Conclusion

3
Outline of Presentation (Continued)

• Examples of real-world application problems
• Organization of theoretical concepts
• - Three methods used for classification
• - A new LP based method for classification
  problem.
• - Application to a fictitious problem with four
  classes.
• - Comparing LP method results with the results
  from a neural network method
• - QA

4
Data Mining - definition

• - Exploring relationships in large amount of data
• - Should generalize
• - Should be empirically validated
• Examples
• - Customer Relationship Management (CRM)
• - Credit Scoring
• - Clinical decision support

5
PDP Models and Brain

• Physiological Flavor
• Representation and Learning in PDP models
• Origins of PDP
• - Jackson (1869) and Luria (1966)
• - Hebb (1950)
• - Rosenblatt (1959)
• - Grossberg (1970)
• - Rumelhart (1977)

6
General Framework for PDP

• A set of processing units
• A state of activation
• An output function of each unit
• A pattern of connectivity among units
• A propagation rule
• An activation rule
• A learning rule
• An operating environment

7
The Basic Components of a PDP system
8
Classes of PDP models

• Simple Linear Models
• Linear Threshold Units
• Brain State in a Box (BSB) by J. A. Anderson
• Thermodynamic models
• Grossberg
• Connectionist modeling

9
Sigma-PI Units
10
A few real-world applications of interest to
organizations and individuals

• Breast cancer detection
• Heart disease diagnosis
• Enemy sub-marine detection
• Mortgage delinquency prediction
• Stock market prediction
• Japanese Character recognition and conversion

11
(No Transcript)
12
What is classification?

• Identification of a set of certain mutually
  exclusive classes
• Identify a set of meaningful attributes that
  discriminate among the classes
• Illustrations
• Using a meaningful set of attributes, can we
  differentiate between frequent and infrequent
  occurrence?

13
Decision Boundaries of a typical classification
problem
14
Three Methods for Classification

• Identifying decision boundaries for each class
  region
• Linear discriminant (Glover at al., 1988)
• Linear programming (Roy and Mukhopadhyay, 1991)
• Neural Networks (Rumelhart, 1986)

15
A new LP based method for classification problem

• Step 1. Identify and discard outliers using
  Clustering
• Step 2. Form decision boundaries for each class
  region by using LP

16
Step 2 Form Decision Boundaries

• Development of Boundary Functions
• Use convex functions to calibrate the boundary.

One example function f(x) ?ai Xi ?bi Xi2
? ?cij Xi Xj d   where j i 1
17
Step 2 Form Decision Boundaries (Contd.)

• One instance of the general function.

fA(x) a1 X1 a2 X2 b1 X12 b2 X22 d

18
Step 2 Form Decision Boundaries (Contd.)

• LP formulation of the previous problem instance

Minimize e s.t. fA(x1) gt e fA(x8) gt e fA(x9)
lt -e ... fA(x18) lt -e egt a small positive
constant.
Minimize e s.t. a2 b2 d gt e for pattern
x1 a1 b1 d gt e for pattern x2 - a2 b2 d
gt e for pattern x3 - a1 b1 d gt e for
pattern x4 . a1 a2 b1 b2 d lt - e for
pattern x15 a1 - a2 b1 b2 d lt - e for
pattern x16 - a1 - a2 b1 b2 d lt - e for
pattern x17 - a1 a2 b1 b2 d lt - e for
pattern x18 egt a small positive constant.
19
Step 2 Form Decision Boundaries (Contd.)

• Solution of this LP formulation gives decision
  boundaries.

Specifically we get, a1 0, a2 0, b1 -1, b2
-1, d 1e   Therefore, the boundary
function fA(x) a1 X1 a2 X2 b1 X12 b2 X22
d   translates into fA(x) 1 - X12 - X22 e
20
Step 2 Form Decision Boundaries (Contd.)

• Putting this result into picture we have the
  following decision boundary

21
Step 2 Form Multiple Decision Boundaries

• A class does not have to be neatly packed within
  one boundary.
• For problems requiring multiple decision
  boundaries, the algorithm can find multiple
  disjointed regions for the same class. For
  example, a class called corner seats in a
  soccer stadium is scattered into four disjointed
  regions.

22
An example of a decision space of a fictitious
problem (It has four classes A, B, C, D)
23
Decision Boundary Identification Process for
Class D only
24
Six Decision Boundaries found for Class B
25
Constructing MLP from masksMasking functions put
on a network to exploit parallelism.
26
Neural Networks Method for Classification

• Neural networks
• develops non-linear functions to associate inputs
  with outputs
• no assumptions about distribution of data
• handles missing data well (graceful degradation)
• Supervised neural networks
• Estimating and testing the model
• Construct a training sample and a holdout sample
• Estimate model parameters using training sample
• Test the estimated models classification ability
  using holdout sample

27
Comparison between LP and NN performance for
three real-world problem


28
Future Research

• - Autonomous Learning
• learn without outside interventions
• does class dependent feature selection
• derives simple if-then type classification rules
  that humans can understand
• develops non-linear functions to associate inputs
  with outputs

29
Q A

• Thank you.
