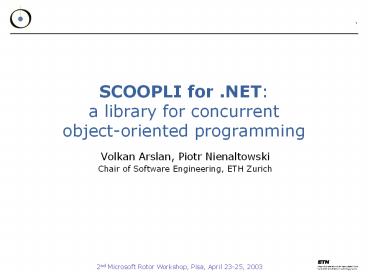

SCOOPLI for .NET: a library for concurrent object-oriented programming

1
SCOOPLI for .NETa library for
concurrentobject-oriented programming

• Volkan Arslan, Piotr Nienaltowski
• Chair of Software Engineering, ETH Zurich

2
Overview

• Motivation
• The SCOOP model for concurrent OO programming
• SCOOPLI library
• Implementation for .NET
• Conclusions

3
Motivation

• Extend a pure, strongly typed, object-oriented
  language with a simple, general and powerful
  concurrency and distribution model

4
The SCOOP model

• Simple Concurrent Object-Oriented Programming
• High-level concurrency mechanism
• Full use of inheritance and other object-oriented
  techniques (genericity, agents, )
• Applicable to many physical setups
  multiprocessing, multithreading, distributed
  execution, etc.
• Minimal extension of Eiffel
• one new keyword separate
• Based on Design by Contract
• new semantics for preconditions

5
Two-level implementation of SCOOP

• SCOOP can be implemented in several environments
• Microsoft .NET is our reference platform

6
Asynchronous calls

• Fundamental scheme of the O-O computation
  feature call x.f (a)
• Caller and callee handled by different processors
• Asynchronous semantics

7
Processors

• Processor is an autonomous thread of control
  capable of supporting the sequential execution of
  instructions on one or more objects
• Principal new concept introduced by SCOOP
• Not to be confused with a physical CPU!It can be
  implemented as
• piece of hardware (computer, CPU),
• process,
• thread,
• AppDomain,
• etc.

8
Access control policy

• Target of a separate call must be a formal
  argument of the enclosing routine
• store (buffer separate BUFFER value INTEGER)
  is
• -- Store value in buffer.
• do
• buffer.put (value)
• end
• ...
• buf separate BUFFER
• create buf.make
• store (buf, 10) -- instead of buf.put (10)
• In order to obtain exclusive access to a separate
  object, use the attached entity as an argument of
  the corresponding call, as in store (buf, 10).

9
From preconditions to wait-conditions

• Contracts in Eiffel
• store (buffer BUFFER value INTEGER) is
• -- Store value in buffer.
• require
• buffer_not_full not buffer.is_full
• do
• buffer.put (value)
• ensure
• buffer_not_empty not buffer.is_empty
• end
• ...
• store (buf, 10)
• If buffer is separate, correctness condition
  buffer_not_full becomes wait condition

10
Synchronization

• No special mechanism is required for a client to
  resynchronize with its supplier after a separate
  call.
• The client will wait if and only if it needs
• x.f
• x.g (a)
• y.f
• ...
• value  x.some_query
• This mechanism is called wait by necessity.

11
SCOOPLI library

• The library relies on two concepts
• separate client
• separate supplier
• Separate client is handled by a different
  processor than each of its separate suppliers.
• SCOOPLI uses multiple inheritance to provide
  separateness

12
Use of SCOOPLI (1/2)
SCOOP SCOOPLI
x separate X x X -- class X is separate x SEPARATE_X -- SEPARATE_X inherits from X and -- SEPARATE_SUPPLIER
r (x, y) -- x and y are separate r (x separate X y separate Y) is require not x.is_empty y.count gt 5 i gt 0 -- i non-separate do ... end separate_execute (x, y, agent r (x, y), agent r_precondition) r_precondition BOOLEAN is do Result not x.is_empty and y.count gt 5 end -- separate_execute defined in -- class SEPARATE_CLIENT -- client class inherits from -- class SEPARATE_CLIENT
13
Feature separate_execute of SEPARATE_CLIENT

• separate_execute (requested_objects TUPLE
  SEPARATE_SUPPLIER
• action PROCEDURE ANY, TUPLE
• wait_condition FUNCTION ANY, TUPLE, BOOLEAN)
• Formal arguments
• requested_objectsDenotes the (tuple of) objects
  on which exclusive locks should be acquired
  before calling action.
• actionDenotes the routine to be called on the
  separate client object action corresponds to the
  routine that wraps separate calls
• wait_conditionDenotes the boolean function
  representing the wait condition for the call

14
Use of SCOOPLI (1/2)
SCOOP SCOOPLI
x separate X x X -- class X is separate x SEPARATE_X -- SEPARATE_X inherits from X and -- SEPARATE_SUPPLIER
r (x, y) -- x and y are separate r (x separate X y separate Y) is require not x.is_empty y.count gt 5 i gt 0 -- i non-separate do ... end separate_execute (x, y, agent r (x, y), agent r_precondition) r_precondition BOOLEAN is do Result not x.is_empty and y.count gt 5 end -- separate_execute defined in -- class SEPARATE_CLIENT -- client class inherits from -- class SEPARATE_CLIENT
15
Use of SCOOPLI (2/2)
SCOOP SCOOPLI
x.f (a) -- a is expanded separate_routine (x, agent x.f (a))
res x.g (a) -- g is function and returns -- reference value -- res is non-separate res ? separate_value (x, agent x.g (a))
i x.h (a) -- h is function and returns -- expanded value -- res is non-separate i separate_integer_value (x, agent x.h (a)) -- use function corresponding to returned type -- boolean_value, integer_value, real_value, -- double_value, char_value
if x.count gt 0 then ... if separate_integer_value (x, agent x.g (a)) gt 0 then ...
16
Feature separate_routine of SEPARATE_CLIENT

• separate_routine (supplier SEPARATE_SUPPLIER p
  rocedure PROCEDURE ANY, TUPLE)
• Formal arguments
• supplierDenotes the separate supplier object on
  which the separate call to procedure is made
• procedureDenotes the routine to be called on the
  separate supplier object

17
Use of SCOOPLI (2/2)
SCOOP SCOOPLI
x.f (a) -- a is expanded separate_routine (x, agent x.f (a))
res x.g (a) -- g is function and returns -- reference value -- res is non-separate res ? separate_value (x, agent x.g (a))
i x.h (a) -- h is function and returns -- expanded value -- res is non-separate i separate_integer_value (x, agent x.h (a)) -- use function corresponding to returned type -- boolean_value, integer_value, real_value, -- double_value, char_value
if x.count gt 0 then ... if separate_integer_value (x, agent x.g (a)) gt 0 then ...
18
Feature separate_value of SEPARATE_CLIENT

• separate_value (supplier SEPARATE_SUPPLIER
  function FUNCTION ANY, TUPLE, ANY) ANY
• Formal arguments
• SupplierDenotes the separate supplier object on
  which the separate call to function is made.
• FunctionDenotes the function to be evaluated.
• Return value is of type ANY

19
Use of SCOOPLI (2/2)
SCOOP SCOOPLI
x.f (a) -- a is expanded separate_routine (x, agent x.f (a))
res x.g (a) -- g is function and returns -- reference value -- res is non-separate res ? separate_value (x, agent x.g (a))
i x.h (a) -- h is function and returns -- expanded value -- res is non-separate i separate_integer_value (x, agent x.h (a)) -- use function corresponding to returned type -- boolean_value, integer_value, real_value, -- double_value, char_value
if x.count gt 0 then ... if separate_integer_value (x, agent x.count) gt 0 then ...
20
SCOOPLI for .NET

• Mapping of SCOOP concepts to .NET constructs
• Processors ? AppDomains
• Namespace System.Runtime.Remoting
• Use of multithreading
• Single feature calls on separate objects, thus
  one thread per AppDomain
• Namespace System.Threading
• ThreadPool

21
Distributed execution

• Processors (AppDomains) located on different
  machines
• .NET takes care of the dirty work
• Marshalling
• Minimal cost of inter-AppDomain calls

Computer1
Computer3
AppDomain1
AppDomain3
o1.g
o1
o2
o4
o5
o4.f
Computer2
AppDomain4
o8.g
o9.f
o6.f(o3)
AppDomain2
o6
o7
o8
o3
o9
22
CCF Concurrency Control File

• Location of processors does not need to be
  specified at compile time
• On-the-fly specification with CCF
• creation
• local_nodes
• system
• "susi" (1) "c\prog\appl1\appl1.exe"
• "ruth" (1) "c\prog\appl2\appl2.dll"
• "schlemmer" (2) "c\prog\appl3\appl3.dll"
• end

23
Conclusions

• SCOOP model is simple yet powerful
• Full concurrency
• Full use of object-oriented techniques
• One keyword separate
• Based on Design by Contract
• Several platforms
• SCOOPLI library
• SCOOP-based syntax
• Separate clients, separate suppliers
• .NET as reference platform
• Processors mapped to AppDomains
• Distributed execution with .NET Remoting

24
Future research

• Extension of access control policy
• multiple locking of separate objects based on the
  concept of pure functions
• SCOOP for real-time systems
• specifying timing constraints
• adding priorities to the duel mechanism
• Implementation
• Use of agents and delegates
• Porting of SCOOPLI to .NET CF using threads

25
Questions ?

• Thank you !
