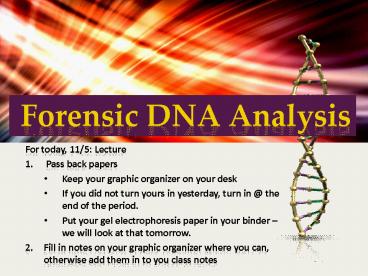

Title: Forensic DNA Analysis


1
Forensic DNA Analysis
  • For today, 11/5 Lecture
  • Pass back papers
  • Keep your graphic organizer on your desk
  • If you did not turn yours in yesterday, turn in _at_
    the end of the period.
  • Put your gel electrophoresis paper in your binder
    we will look at that tomorrow.
  • Fill in notes on your graphic organizer where you
    can, otherwise add them in to you class notes

2
  • Objectives of Forensic DNA Testing
  • To link an individual to a crime scene/criminal
    act
  • To exonerate suspects
  • To identify victims of mass disasters
  • http//www.innocenceproject.org/
  • Site with interesting lessons on DNA analysis
    http//www.nfstc.org/pdi/Subject00/pdi_s00.htm

3
Terms to know
  • in vitro
  • Refers to a life process occurring outside of a
    living organism or cell, typically in a test tube
    or petri dish
  • PCR (polymerase chain reaction)
  • An in vitro method for replicating/copying DNA
  • Thermocycler
  • A piece of equipment used in PCR to heat and cool
    the samples

4
Terms to know contd
  • Restriction enzyme
  • An enzyme that cuts DNA at or near a specific
    sequence of nucleotides
  • Power of discrimination/exclusion
  • Power of a test to eliminate a certain of the
    population from being biologically related to an
    individual
  • If a paternity test using blood typing has a
    power of exclusion of 30, only 30 of the male
    population could be eliminated from being the
    father of said child
  • Loci
  • Specific location of a gene or DNA sequence on a
    chromosome

5
Early 1980s- mid 1990s Restriction Fragment
Length Polymorphism (RFLP)
  • DNA sample is exposed to restriction enzymes that
    cut at specific sequences around VNTRs
  • Fragments are different lengths due to the of
    repeats
  • These fragments are sorted using DNA
    electrophoresis
  • http//www.pbs.org/wgbh/nova/education/body/create
    -dna-fingerprint.html
  • Power of discrimination in the range of 106-108
    for a six probe analysis

Sir Alec Jeffreys
6

Mechanisms for RFLPs
7
Mid-1980s The Colin Pitchfork Case
  • Two young women raped and murdered in Narborough,
    England
  • 5,000 local men are asked to provide blood/saliva
    samples
  • 1st exoneration and conviction on forensic DNA
    evidence

8
RFLPs contd
  • Benefits
  • Drawbacks
  • High power of exclusion (gt or 99.99)
  • Reaches high power of exclusion while only
    needing to analyze a few (6) loci
  • Requires large samples of blood
  • Long strands of bases (1000bp) and tend to be
    broken or damaged
  • Can take up to 8 weeks for analysis
  • DNA evidence at a crime scene is typically of a
    small quantity and degraded

9
PCR To The Rescue!
  • Enabled DNA replication in vitro so sample
    sizes from a crime scene could be amplified
  • First forensic application DQa locus,
  • Advanced applications are multi-plexed with
    Polymarker loci using dot-blot detection method
  • Works with lower quantity (1-2ng), lower quality
    samples
  • Power of discrimination goes from 102-106...not
    good enough for databasing

Dr. Kary Mullis
10
The Current Method of Choice STRs (short tandem
repeats)
  • Non-coding, tetranucleotide sequences (3-7 bases
    long) which vary greatly from person to person in
    the number of repeating units
  • Requires lt1ng of DNA to type 13-15 STR loci
  • The of repeats of STRs at 13 different,
    distinct locations on the chromosomes
  • Human Genome Project uses STRs

11
The Process In a Nutshell
  • Amplified DNA samples are injected into a
    capillary
  • Fluorescent tags on the DNA fragments are excited
    by a laser
  • As they pass a window in the capillary, the
    fluorescence is recorded by a camera, and this
    signal is converted into a peak by the computer
    software.
  • http//www.dnalc.org/view/15983-Today-s-DNA-profil
    e.html

12
STRs contd
  • Benefits
  • Drawbacks
  • Small and easily amplified through PCR
  • Can detect biological relationships to both
    mother and father
  • High power of discrimination
  • 1014-1023 (world population is 109)
  • Creation of CODIS
  • See p. 328 in text, Table 9.1 for STRs used in
    CODIS
  • Newer, still refining

13
The Combined DNA Index System (CoDIS)
  • A database of DNA profiles from violent felons
    and crime scene samples
  • Laws concerning who is eligible for the database
    vary from state to state
  • Database currently contains about 2,038,470
    felons and 93,956 crime scene profiles (19,00
    hits so far)

14
(No Transcript)
15
The Dark Side of CODIS(What the FBI doesnt want
you to know.)
  • DNA mixtures and degraded DNA profiles have lead
    to spurious matches
  • Stringent laws explicitly prohibit databasing
    innocent people
  • Adding arrestees to database violates presumption
    of innocence
  • However, the prosecution rate on case to offender
    matches is shockingly low! (10)

16
LAPD CoDIS Statistics
  • 177/142 Case-to-Offender matches
  • 100 Case-to-Case hits with 42 as yet unidentified
    suspects
  • 28 DA rejects
  • 9 Convictions charges filed in 28 more 4
    defendants plead guilty

17
Specialized PCR-based systems
  • mtDNA
  • Y-STRs
  • SNPs

18
Mitochondrial DNA (mtDNA)

19
mtDNA contd
  • Benefits
  • Drawbacks
  • Single-cell sensitivity because each cell
    contains 1000 mitochondria
  • Especially useful for shed hairs, burnt remains
  • Can be used to establish kinship directly because
    entire complement of mtDNA is maternally
    inherited
  • Single-cell sensitivity because each cell
    contains 1000 mitochondria very high
    contamination risk!
  • Lower power of discrimination - maternal
    relatives all share the same mtDNA

20
Y-STRs
  • Problem
  • 99 of violent crimes are committed by men
  • DNA Mixtures of male suspect and female victim
    can pose an analytical challenge, especially when
    the female contribution is much greater than the
    male preferential amplification
  • Solution
  • Test for markers found only on the Y-chromosome.
    Only male DNA is amplified!

21
(No Transcript)
22
Y-STRs
  • Khan Argument
  • Lower power of discrimination
  • Paternal relatives all share the same Y-STR
    haplotype (Wicked Uncle Ernie Defense)
  • 10 of Central Asian males share the same Y-STR
    haplotype, thought to belong to Genghis Khan

23
SNPs (Single Nucleotide Polymorphisms)
  • Point mutations (base substitutions) found in 1
    or more of the population
  • 1.8 million identified in human genome
  • Detected on micro-array plates with fluorescent
    tags (all or nothing response)
  • 50 SNPs provides same power of discrimination as
    13 STR loci
  • Certain SNPs used as predictors of
    ancestry/ethnicity by a private sector lab (DNA
    Witness)

24

SNP Flaws
  • Privacy issues - unlike STRs, SNPs can be
    correlated with susceptibility/resistance to
    diseases
  • Requires a relatively large quantity of DNA for
    robust assay
