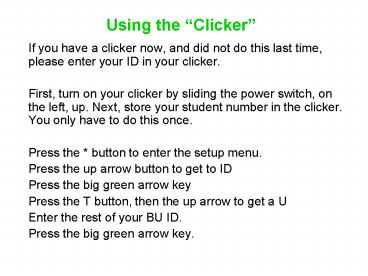

Using the Clicker
  • If you have a clicker now, and did not do this
    last time, please enter your ID in your clicker.
  • First, turn on your clicker by sliding the power
    switch, on the left, up. Next, store your student
    number in the clicker. You only have to do this
    once.
  • Press the button to enter the setup menu.
  • Press the up arrow button to get to ID
  • Press the big green arrow key
  • Press the T button, then the up arrow to get a U
  • Enter the rest of your BU ID.
  • Press the big green arrow key.

2
Magnetic flux
  • Magnetic flux is

3
Magnetic flux
  • Magnetic flux is a measure of the number of
    magnetic field lines passing through something,
    such as a loop. If we define the area of the loop
    as a vector, with its direction perpendicular to
    the plane of the loop, the magnetic flux is given
    by
  • where ? is the angle between the magnetic field
    and the area vector.
  • The unit of magnetic flux is the weber. 1 Wb 1
    T m2.

4
Magnetic flux
  • The more field lines pass through an area, the
    larger the flux.
  • Lots of flux. No flux.
  • Some flux.

5
Magnetic flux from a bar magnet
  • A bar magnet passes from right to left through a
    loop of wire. Flux is positive when the field
    lines pass one way through the loop, and negative
    when they go in the opposite direction. What, if
    anything, is wrong with the graph of magnetic
    flux for this situation?
  • There's nothing wrong
  • with it.
  • 2. There is something
  • wrong with it (you
  • specify what it is)

6
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction.
The magnet is moved away from the coil.
The magnet is moved toward the coil again, but more slowly.
The magnet is held at rest near the coil.
The magnet is held at rest and the coil is moved toward the magnet.
7
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil.
The magnet is moved toward the coil again, but more slowly.
The magnet is held at rest near the coil.
The magnet is held at rest and the coil is moved toward the magnet.
8
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above.
The magnet is moved toward the coil again, but more slowly.
The magnet is held at rest near the coil.
The magnet is held at rest and the coil is moved toward the magnet.
9
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly.
The magnet is held at rest near the coil.
The magnet is held at rest and the coil is moved toward the magnet.
10
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly. Same as the first case, but needle deflects less.
The magnet is held at rest near the coil.
The magnet is held at rest and the coil is moved toward the magnet.
11
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly. Same as the first case, but needle deflects less. Needle deflects a little bit to the left.
The magnet is held at rest near the coil.
The magnet is held at rest and the coil is moved toward the magnet.
12
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly. Same as the first case, but needle deflects less. Needle deflects a little bit to the left.
The magnet is held at rest near the coil. ??
The magnet is held at rest and the coil is moved toward the magnet.
13
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly. Same as the first case, but needle deflects less. Needle deflects a little bit to the left.
The magnet is held at rest near the coil. ?? Nothing!
The magnet is held at rest and the coil is moved toward the magnet.
14
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly. Same as the first case, but needle deflects less. Needle deflects a little bit to the left.
The magnet is held at rest near the coil. ?? Nothing!
The magnet is held at rest and the coil is moved toward the magnet. Same as the first case.
15
Observations with a magnet, coil, and galvanometer
  • Lets make a few observations, using a magnet
    near a coil connected to a galvanometer (a
    sensitive current meter). The magnets north pole
    points at the coil.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is moved toward the coil. No basis for prediction. Needle deflects to the left.
The magnet is moved away from the coil. Opposite to the above. Needle deflects to the right.
The magnet is moved toward the coil again, but more slowly. Same as the first case, but needle deflects less. Needle deflects a little bit to the left.
The magnet is held at rest near the coil. ?? Nothing!
The magnet is held at rest and the coil is moved toward the magnet. Same as the first case. Needle deflects to the left.
16
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil.
The magnet is moved away from the coil.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil.
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
17
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil.
The magnet is moved away from the coil.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil.
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
18
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil.
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
19
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil.
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
20
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil.
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
21
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil. Same as the south pole at the other end?
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
22
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil. Same as the south pole at the other end? The needle deflects to the right.
The magnet is moved away from the coil.
The magnet is rotated back and forth near the end of the coil
23
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil. Same as the south pole at the other end? The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the previous.
The magnet is rotated back and forth near the end of the coil
24
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil. Same as the south pole at the other end? The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the previous. The needle goes left.
The magnet is rotated back and forth near the end of the coil
25
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil. Same as the south pole at the other end? The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the previous. The needle goes left.
The magnet is rotated back and forth near the end of the coil The needle goes back and forth, too.
26
Observations with a magnet, coil, and galvanometer
  • Lets make a few more observations.

Situation Predict what the galvanometer needle does. What the needle actually does.
The magnet is reversed, so the south pole points at the coil. The magnet is moved toward the coil. Opposite to when the north pole was pointed at the coil. The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the above. The needle goes left.
The magnet is taken to the other end of the coil, and the north pole is closer to the coil. The magnet is moved toward the coil. Same as the south pole at the other end? The needle deflects to the right.
The magnet is moved away from the coil. Opposite to the previous. The needle goes left.
The magnet is rotated back and forth near the end of the coil The needle goes back and forth, too. What we said.
27
Faradays Law
  • Faraday's Law ties all of our observations into
    one neat package. It says that the voltage
    induced in a coil of N turns is given by the rate
    of change of the magnetic flux in the coil
  • Faraday's Law
  • This has an incredible number of practical
    applications, particularly in the generation and
    distribution of electricity.
  • We call the voltage induced by a changing
    magnetic flux an induced emf. This is because
    changing magnetic flux acts like a battery in a
    coil or loop, which is why there is a current
    when there's a complete circuit.

28
Graphs of flux and induced emf
  • In this situation, a bar magnet is moved at
    constant speed v toward a coil until the left end
    of the magnet is at the center of the coil. The
    magnet is held stationary for 3 seconds, and then
    moved to the right away from the coil with a
    speed v.
  • What does the graph of magnetic flux as a
    function of time look like? Assume positive flux
    corresponds to field lines passing through the
    coil to the left.
  • What does the graph of induced emf as a function
    of time look like?

29
Lenzs Law
  • Exposing a coil or loop to a changing magnetic
    flux will generate a current if the circuit is
    complete. The direction of the current is given
    by Lenz's Law
  • Lenz's Law A changing magnetic flux induces an
    emf that produces a current which sets up a
    magnetic field that tends to oppose whatever
    produced the change.
  • Coils and loops don't like to change, and they
    will try to counteract any changes in magnetic
    flux imposed on them. They are not successful -
    the change can be made, but the coil or loop
    tries to oppose the change while the change is
    taking place. This tendency to oppose is why
    there is a minus sign in Faraday's Law.

30
A pictorial approach to Lenzs Law
  • An easy way to approach Lenzs Law situations, to
    figure out the direction of an induced current,
    it to draw a set of three pictures.
  • First, some review. In which direction is the
    magnetic field inside a loop if the loop has a
    counter-clockwise current? What if the current is
    clockwise?

31
A pictorial approach to Lenzs Law
  • An easy way to approach Lenzs Law situations, to
    figure out the direction of an induced current,
    it to draw a set of three pictures.
  • First, some review. In which direction is the
    magnetic field inside a loop if the loop has a
    counter-clockwise current? What if the current is
    clockwise?

32
A pictorial approach to Lenzs Law
  • Example A wire loop in the plane of the page is
    in a uniform magnetic field directed into the
    page. Over some time interval, the field is
    doubled. What direction is the induced current in
    the loop while the field is changing?
  • Step 1 Draw a Before picture, showing the
    field passing through the loop before the change
    takes place.
  • Step 2 Draw an After picture, showing the
    field passing through the loop after the change.
  • Step 3 Draw a To Oppose picture, showing the
    direction of the field the loop creates to oppose
    the change.
  • Step 4 Use the right-hand rule to determine
    which way the induced current goes in the loop to
    create that field.

33
A pictorial approach to Lenzs Law
  • Example A wire loop in the plane of the page is
    in a uniform magnetic field directed into the
    page. Over some time interval, the field is
    doubled. What direction is the induced current in
    the loop while the field is changing?
  • Step 1 Draw a Before picture, showing the
    field passing through the loop before the change
    takes place.

34
A pictorial approach to Lenzs Law
  • Example A wire loop in the plane of the page is
    in a uniform magnetic field directed into the
    page. Over some time interval, the field is
    doubled. What direction is the induced current in
    the loop while the field is changing?
  • Step 2 Draw an After picture, showing the
    field passing through the loop after the change.

35
A pictorial approach to Lenzs Law
  • Example A wire loop in the plane of the page is
    in a uniform magnetic field directed into the
    page. Over some time interval, the field is
    doubled. What direction is the induced current in
    the loop while the field is changing?
  • Step 3 Draw a To Oppose picture, showing the
    direction of the field the loop creates to oppose
    the change.
  • Step 4 Use the right-hand rule to determine
    which way the induced current goes in the loop to
    create that field.
  • One field line is enough for the To Oppose
    picture - that's enough to determine the
    direction of the induced current.

36
Lenzs Law example 1
A wire loop is located near a long straight
current-carrying wire. The current in the wire is
directed to the right. With the current held
constant in the long straight wire, the loop is
moved up, away from the wire. In what direction
is the induced current in the loop? 1. The
induced current is clockwise. 2. The induced
current is counter-clockwise. 3. There is no
induced current.
37
Lenzs Law example 1
  • The flux through the loop decreases, so the loop
    tries to add field lines that are directed out of
    the page to oppose the change. The induced
    current must go counter-clockwise to produced the
    required field.

38
Lenzs Law example 2
With the current held constant in the long
straight wire, the loop is moved parallel to the
wire. In what direction is the induced current in
the loop? 1. The induced current is clockwise.
2. The induced current is counter-clockwise. 3.
There is no induced current.
39
Lenzs Law example 2
  • The flux through the loop is constant, so there
    is no change to oppose, and no induced current.

40
Lenzs Law example 3
The loop is now placed directly on the wire with
the wire bisecting the loop. If the current in
the wire is increasing, in what direction is the
induced current in the loop? 1. The induced
current is clockwise. 2. The induced current is
counter-clockwise. 3. There is no induced
current.
41
Lenzs Law example 3
  • The net flux through the loop is always zero, so
    there is no change to oppose, and no induced
    current.

42
Lenzs Law example 4
A loop of wire, in the plane of the page, has an
area of 0.5 m2 and a resistance of R 0.1 O.
There is a uniform magnetic field of B 1.0 T
passing through the loop into the page. In what
direction is the induced current in the loop? 1.
The induced current is clockwise. 2. The induced
current is counter-clockwise. 3. There is no
induced current.
43
Lenzs Law example 4
  • Nothing is changing, so there is no induced
    current.

44
Lenzs Law example 4, continued
A loop of wire, in the plane of the page, has an
area of 0.5 m2 and a resistance of R 0.1 O.
There is a uniform magnetic field of B 1.0 T
passing through the loop into the page. Now the
magnetic field is reduced steadily from 1.0 T to
0 over a 10 second period. In what direction is
the induced current in the loop? 1. The induced
current is clockwise. 2. The induced current is
counter-clockwise. 3. There is no induced
current.
45
Lenzs Law example 4, continued
  • The pictorial method tells us that the field from
    the loop must be into the page, requiring a
    clockwise current.

46
Lenzs Law example 4, continued
  • A loop of wire, in the plane of the page, has an
    area of 0.5 m2 and a resistance of R 0.1 O.
    There is a uniform magnetic field of B 1.0 T
    passing through the loop into the page. Now the
    magnetic field is reduced steadily from 1.0 T to
    0 over a 10 second period. In what direction is
    the induced current in the loop?
  • What is the magnitude of the induced current in
    the loop?

47
Lenzs Law example 4, continued
  • A 0.5 m2 R 0.1 O Bi 1.0 T
  • Now the magnetic field is reduced steadily from
    1.0 T to 0 over a 10 second period.
  • First, apply Faradays law to find the induced
    emf (voltage)

48
Lenzs Law example 4, continued
  • A 0.5 m2 R 0.1 O Bi 1.0 T
  • Second, apply Ohms law to find the current

49
Lenzs Law example 4, continued
  • If we'd kept the magnetic field constant, what
    other ways could we have induced the same current
    (magnitude and direction) in the loop?

50
Lenzs Law example 4, continued
  • If we'd kept the magnetic field constant, what
    other ways could we have induced the same current
    (magnitude and direction) in the loop?
  • By changing the field we reduced the flux to zero
    over a 10 second period. Two other ways to do
    that are
  • reduce the area to zero over a 10 second interval
  • rotate the loop by 90 over a 10 second interval

51
Lenzs Law example 4, continued
  • What if, instead of reducing the field to zero in
    10 seconds, we reduced it to zero in 2 seconds?
    Would anything change? Would anything stay the
    same?

52
Lenzs Law example 4, continued
  • What if, instead of reducing the field to zero in
    10 seconds, we reduced it to zero in 2 seconds?
    Would anything change? Would anything stay the
    same?
  • The current would still be clockwise, but it
    would be 5 times as large. So, we'd get five
    times the current for 1/5 of the time. The
    product of current and time would be the same,
    but that represents the total charge. The same
    total charge flows every time.

53
Graphs of flux and induced current
  • A square conducting loop moves at a constant
    velocity of 1 m/s to the right. At t 0, its
    right side is at x -6 m. A region of uniform
    magnetic field directed into the page is located
    between x  -4 m and x 0. A second region of
    uniform magnetic field directed out of the page
    is located between x 0 and x 4 m. The field
    in the two regions has the same magnitude and the
    field is zero everywhere else. Assume the
    velocity of the loop is constant throughout its
    motion. Simulation

54
Graphs of flux and induced current
  • A square conducting loop moves at a constant
    velocity of 1 m/s to the right. At t 0, its
    right side is at x -6 m. A region of uniform
    magnetic field directed into the page is located
    between x  -4 m and x 0. A second region of
    uniform magnetic field directed out of the page
    is located between x 0 and x 4 m. Plot graphs
    of the magnetic flux through the loop, and the
    induced current in the loop, as a function of
    time. Define into the page as positive for flux,
    and clockwise to be positive for current.

55
The flux graph
  • Remember that flux is a measure of the number of
    field lines passing through the loop, with
    positive for, in this case, field lines into the
    page.

56
The graph of induced current
  • What is the connection between the graphs?

57
The graph of induced current
  • What is the connection between the graphs? The
    current graph is proportional to the negative
    slope of the flux graph.

58
Whiteboard
Write a Comment
User Comments (0)
About PowerShow.com
