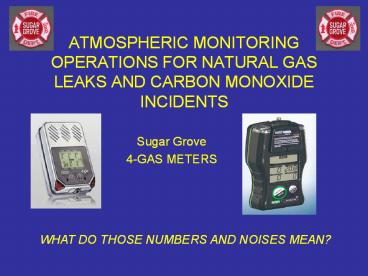

ATMOSPHERIC MONITORING OPERATIONS FOR NATURAL GAS
LEAKS AND CARBON MONOXIDE INCIDENTS

• Sugar Grove
• 4-GAS METERS

WHAT DO THOSE NUMBERS AND NOISES MEAN?
2
TRAINING OBJECTIVES

• OSFM Hazardous Materials Technician A
• 24-6.2 Identify the types of monitoring equipment
  used to determine the following hazards. (NFPA
  472 4-2.1.3.2)
• b. Flammability
• d. Oxygen deficiency
• 24-6.3 Given examples of various hazardous
  materials and the following monitoring equipment,
  select the appropriate monitoring equipment to
  identify and quantify the materials. (NFPA 472
  4-2.1.3.4)
• a. Carbon monoxide meter
• c. Combustible gas meter
• d. Oxygen meter

3
DIGITAL NUMBERS AND SPONTANEOUS BEEPS

• It is important to understand what you are
  monitoring for but also what the numbers indicate
  throughout your investigations process
• Do not wait for the monitor to exhibit an audible
  alarm for you to realize you are in a bad place
• Understanding what the digital numbers indicate
  are integral to everyday monitoring operations we
  may encounter during carbon monoxide incidents or
  natural gas leak investigations

4
INSPECTION PROCEDURES

• Pre-Use Inspection
• The Pre-Use Inspection should be done each
  morning during the engines daily inspection
• Remove the unit into a fresh outside air
  environment
• Turn the monitor on by depressing the on/off
  button
• The monitor will perform its warm up operation

5
INSPECTION PROCEDURES

• Pre-Use Inspection
• Perform the Fresh Air Set-Up (in fresh air)
• On the Industrial scientific follow prompt
• On the MSA when starting up the ZERO square will
  flash.
• While flashing press and hold the RESET button
  until the ZERO stays on.
• Once the Zero disappears it will be ready for use
• Allow the monitor to obtain its readings
• Shut the monitor off by depressing the on/off
  button when finished
• Be sure all normal values are restored before
  shutting off

6
PRE-USE INSPECTION

• Visual Check
• Ensure there is no damage to the outer case of
  the device
• Inspect the sensor filters to ensure they are
  intact and free of obstruction (on Industrial
  scientific quad gas and co monitors)
• Inspect the top of the MSA monitors for dirt or
  thread damage.

7
PRE-USE INSPECTION

• The DO NOTs of Pre-Use Inspection
• Never turn on the device in the vicinity of
  apparatus that is running
• Never intentionally expose the device to
  hazardous or toxic substances (ie exhaust from
  diesel motor or natural gas stove burner)
• Never shut off the device unless you are in a
  fresh air environment

8
PURPOSE OF MONITORING

• In the event of a suspected or confirmed
  hazardous atmosphere, the process of atmospheric
  monitoring shall be used to
• Begin Baseline Monitoring
• Establish Operational Zones
• Protect Responders and Public
• Identify Chemical or Chemical Family
• Observe Incident Mitigation Progress

9
MONITORING CONSIDERATIONS

• To gain better results while engaged in
  monitoring, the firefighter must adhere to
  following considerations while using the device
• What you are attempting to monitor
• Source of the hazardous atmospheric condition
• Vapor Density Awareness

10
MONITORING CONSIDERATIONS

• What you are attempting to monitor
• What information was given at time of dispatch?
• What information has the occupant made available
  upon arrival at the scene?
• Is the information consistent with what you
  believe to be the problem?

11
MONITORING CONSIDERATIONS

• Common Sources to Investigate for CO
• Furnaces
• Hot water heaters
• Fireplaces
• Kerosene heaters

12
MONITORING CONSIDERATIONS

• Common Sources to Investigate for CO
• Gasoline engines running inside garages or
  basements
• BBQ grills
• Faulty flues or exhaust pipes

13
MONITORING CONSIDERATIONS

• Common Sources to Investigate for Flammable Gas
• Furnaces
• Hot water heaters
• Fireplaces
• Kerosene heaters

14
MONITORING CONSIDERATIONS

• Vapor Density Awareness
• Remember that you are more than likely monitoring
  the atmosphere for a substance that has taken the
  state of matter commonly known as a gas
• Gases have the tendency to lie or rise in areas
  that correlate with their vapor density
• When monitoring, be cognizant of the devices
  position in relation to the substances vapor
  density

15
GENERAL MONITORING CONSIDERATIONS

• Common Monitoring Errors
• Wrong monitoring equipment
• Activating the monitoring device once entry has
  been made into the hazardous environment
• Monitoring technique is too fast
• Not monitoring according to physical property of
  actual substance

16
MONITORING TECHNIQUES

• To gain better results while engaged in
  monitoring, the firefighter must adhere to
  following techniques while using the device
• X and Y Axis Monitoring

17
MONITORING TECHNIQUES

• X and Y Axis Monitoring
• Within the room you are monitoring, place an
  imaginary X and Y axis directly in front of you
  and spot the device where the lines intersect

18
MONITORING TECHNIQUES

• X and Y Axis Monitoring
• Move the device from side to side on the X axis
  and up and down on the Y axis

19
MONITORING TECHNIQUES

• X and Y Axis Monitoring
• As you move over the lines on the axis, move
  slowly allowing the device to sample and
  interpret the atmospheric counts

LEL O2 0 20.3 CO H2S 0 0
20
WHAT CAN BE MONITORED

• Capabilities of the Monitoring Device
• CO Carbon Monoxide
• O2 Oxygen
• H2S Hydrogen Sulfide
• LEL
• Conversion Charts available for various
  combustible gases, MSA ORION Operators Manual
  Pages 7-3.

21
MEASURING COMBUSTIBLE GAS CONCENTRATIONS

• The Multi-gas Detectors are equipped to detect
  combustible gases in the atmosphere
• Alarms sound when concentrations reach
• Alarm Set point
• 100 LEL (Lower Explosive Limit), 5 CH4(methane)

22
MEASURING COMBUSTIBLE GAS CONCENTRATIONS

• When the combustible gas indication reaches the
  Alarm Set point
• Alarm sounds
• Alarm lights flash
• To silence the alarm, press the RESET button
• NOTE The alarm will stay silent only if the
  alarm condition has cleared.
• When the combustible gas indication reaches 100
  LEL or 5 CH4, the LockAlarm circuit locks the
  combustible gas reading and alarm and
• Alarm sounds
• Alarm lights flash
• 100 appears on the display and flashes
• This alarm cannot be reset with the RESET button

23
MEASURING COMBUSTIBLE GAS CONCENTRATIONS

• The LEL Number
• Lower Explosive Level (LEL) and Upper Explosive
  Level (UEL) comprise what is known as the
  flammable range
• The UEL variable is what a fire company must
  understand and be prepared to interpret
• UEL is dangerous being that it is the minimum
  variable in the flammable range

24
MEASURING COMBUSTIBLE GAS CONCENTRATIONS

• The LEL Number
• When the device monitors for LEL, it is
  calibrated to interpret pentane
• When the monitor displays its reading it will
  present as a percentage ()
• The percentage is a percentage of the overall LEL

25
MEASURING COMBUSTIBLE GAS CONCENTRATIONS

• EXAMPLE
• Engine 3 is monitoring for gasoline vapors.
  Gasolines LEL is 1.4. During the monitoring
  operation, it is noted the LEL reads 4. Being
  that our monitors are calibrated to pentane, a
  conversion needs to be computed. Per the MSA
  ORION Operators Manual Cross Reference chart,
  the responder must multiply the LEL reading by
  1.3. So, multiply 0.04 x 1.3. The result should
  equate to 0.05. This means there is 5 percent
  of the total 1.4 in the ambient atmosphere.

26
MEASURING COMBUSTIBLE GAS CONCENTRATIONS
INSTURMENT WITH ACTIVATED LEL DISPLAY
27
MEASURING TOXIC GAS CONCETRATIONS

• The Multi-gas Detectors are equipped to detect
• Carbon Monoxide (CO)
• Hydrogen Sulfide (H2S)
• When the alarm set point is reached for Carbon
  Monoxide (CO) and Hydrogen Sulfide (H2S)
• Alarm Sounds
• Alarm Lights flash

28
MEASURING TOXIC GAS CONCETRATIONS

• Carbon Monoxide is measured in parts per
  million (PPM)
• PPM is the dose per million units of volume
• In this case, PPM refers the dose of CO per
  million units of air

29
MEASURING TOXIC GAS CONCETRATIONS

• Example
• 1 PPM 1/1,000,000 particle per volume
• 1 PPM is 0.0001 of the atmosphere by volume

1 PPM
1,000,000 PPM
30
MEASURING TOXIC GAS CONCETRATIONS

• Example
• Engine 3 is dispatched for a carbon monoxide
  investigation. While monitoring the atmosphere,
  the device indicates there is 42 PPM of CO.
• If we take 42/1,000,000 we calculate that as
  0.000042 or 0.042
• 0.042 of the atmosphere is comprised of CO

31
MEASURING TOXIC GAS CONCETRATIONS

• Be cognizant that Carbon Monoxide has a Threshold
  Limit Value (TLV) of 35 PPM
• The 35 PPM variable represents conditions under
  which it is believed a firefighter may be exposed
  day after day with no adverse effect
• The 35 PPM is only an exposure guideline not a
  standard
• If you suspect you are going to be exposed to any
  level of CO, it is advisable to protect your
  respiratory tract by donning SCBA

32
MEASURING COMBUSTIBLE TOXIC GAS CONCENTRATIONS
INSTURMENT WITH ACTIVATED TOXIC GAS DISPLAY
33
CO INCIDENT RESPONSE GUIDELINES
34
CO INCIDENT RESPONSE GUIDELINES

• CO Investigation with no Illness
• Still Engine
• Non-emergency response
• CO Investigation with Illness
• Full Still
• Engine and Ambulance
• Emergency response

35
CO INCIDENT OPERATIONS GUIDELINES
36
CO INCIDENT OPERATIONS GUIDELINES

• Carbon Monoxide Incidents
• Remove the unit into a fresh outside air
  environment
• Turn the monitor on by depressing the on/off
  button
• The monitor will perform its warm up operation
• Perform the Fresh Air Set-Up (in fresh air)
• On the Industrial scientific follow prompt
• On the MSA when starting up the ZERO square will
  flash.
• While flashing press and hold the REST button
  until the ZERO stays on.
• Once the Zero disappears it will be ready for use

37
CO INCIDENT OPERATIONS GUIDELINES

• Carbon Monoxide Incidents
• Allow the monitor to obtain its readings
• Begin the investigation within the occupancy
• Bring the device to a fresh air environment and
  allow all readings to return to normal
• H2S, CO, and LEL should all indicate 0 PPM
• O2 should indicate between 19.5 and 23.5
• Shut the monitor off by depressing the on/off
  button when finished

38
CO INCIDENT OPERATIONS GUIDELINES

• CO without illness
• Ensure firefighter and resident safety
• Investigate the occupancy for the presence of CO
• Monitor the present level of CO
• Determine a source or location of the CO release

39
CO INCIDENT OPERATIONS GUIDELINES

• CO without illness
• Discontinue the release of CO
• Ventilate appropriately
• Re-monitor the occupancy and note any
  improvement, worsening, or unchanged CO levels
• Document the incident accordingly

40
CO INCIDENT OPERATIONS GUIDELINES

• CO with illness
• Immediately remove the person(s) from the
  suspected potential exposures
• Triage and assess the patients
• Treat per SFV EMS System Protocols
• Transport if necessary
• Observe use of proper personal protective
  equipment
• Level D structural firefighting gear
• Investigate the occupancy for the presence of CO
• Monitor the present level of CO

41
CO INCIDENT OPERATIONS GUIDELINES

• CO with illness
• Determine a source or location of the CO release
• Discontinue the release of CO
• Ventilate appropriately
• Re-monitor the occupancy and note any
  improvement, worsening, or unchanged CO levels
• Document the incident accordingly

42
NATURAL GAS LEAK INCIDENT RESPONSE GUIDELINES
43
NATURAL GAS LEAK INCIDENT RESPONSE GUIDELINES

• Outside Inside gas leak
• Full Still Engine, Squad, ARFF961, Command,
  Ambulance.
• Emergency response

44
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES
45
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Natural Gas Leak Incidents
• Remove the unit into a fresh outside air
  environment
• Turn the monitor on by depressing the on/off
  button
• The monitor will perform its warm up operation
• Perform the Fresh Air Set-Up (in fresh air)
• On the Industrial scientific follow prompt
• On the MSA when starting up the ZERO square will
  flash.
• While flashing press and hold the REST button
  until the ZERO stays on.
• Once the Zero disappears it will be ready for
  use.

46
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Natural Gas Leak Incidents
• Allow the monitor to obtain its readings
• Begin the investigation within the occupancy
• Bring the device to a fresh air environment and
  allow all readings to return to normal
• H2S, CO, and LEL should all indicate 0 PPM
• O2 should indicate between 19.5 and 23.5
• Shut the monitor off by depressing the on/off
  button when finished

47
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Outside Gas Leak
• Observe use of proper personal protective
  equipment
• Level D structural firefighting gear
• Isolate area
• Ensure firefighter and resident safety
• Investigate the occupancy for the presence of gas
• Make suppression considerations if exposures
  exist
• Monitor the present level of combustible gas
• Determine a source or location of the gas release

48
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Outside Gas Leak
• Discontinue the release of gas
• Ventilate appropriately
• Re-monitor the occupancy and note any
  improvement, worsening, or unchanged gas levels
• Notify NiCor
• Document the incident accordingly

49
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Inside Gas Leak
• Isolate area
• Immediately remove the person(s) from the
  suspected potential exposures
• Triage and assess the patients
• Treat per SFV EMS System Protocols
• Transport if necessary

50
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Inside Gas Leak
• Observe use of proper personal protective
  equipment
• Level D structural firefighting gear
• Determine the need for water supply
• Investigate the occupancy for the presence of gas
• Monitor the present level of gas

51
NATURAL GAS LEAK INCIDENT OPERATIONS GUIDELINES

• Inside Gas Leak
• Determine a source or location of the gas release
• Discontinue the release of gas
• Ventilate appropriately
• Re-monitor the occupancy and note any
  improvement, worsening, or unchanged gas levels
• Document the incident accordingly
