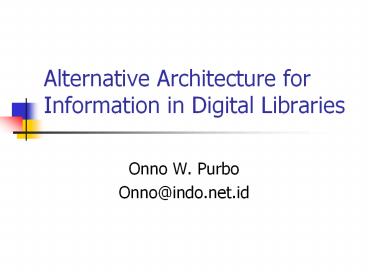

Alternative Architecture for Information in Digital Libraries

1
Alternative Architecture for Information in
Digital Libraries

• Onno W. Purbo
• Onno_at_indo.net.id

2
Reference

• http//www.dlib.org/dlib/february97/cnri/02arms1.h
  tml
• William Y. Arms, Christophe Blanchi, Edward A.
  Overly, An Architecture for Information in
  Digital Libraries, Corporation for National
  Research Initiatives Reston, Virginia, February
  1997.

3
The Structure of Information

• Digital data ? digital library.
• Digital objects
• Metadata
• Unique identifier (handle).
• Group of digital objects ? set of digital
  objects.
• Different type of material ? categories.

4
Components of Comp System
5
Work Flow Example

• Search
• Z.39.50 list of digital objects identified by
  handle.
• Select
• Retrieval
• Resipository Access Protocol (RAP)
• Display

6
Information Architecture
7
Structure of Info in Digi Lib

• Relationship (chapter, index)
• Format (SGML, HTML)
• Version
• Right Permission
• Computer System Network (dialup vs. broadband).

8
Basic Principles

• User app. Program must be flexible.
• Collections must be straightforward to manage.
• The information archirectire must reflect
  economic, social legal framework.

9
Data type, structural metadata

• Data type technical properties of data, format
  processing.
• Structural metadata type, version, relationship
  of digital material.
• Meta-object reference to a set of digital
  object.

10
Guidelines for all categories

• All data is given an explicit data type
• All metadata is encoded explicitly
• Handles are given to individual items of
  intellectual property
• Meta-objects are used to aggregate digital
  objects
• Handles are used to identify items listed in
  meta-objects

11
An Example of the Use of Meta-objects

• Scanned photographs
• Digital objects for a scanned photograph
• Digital objects for individual versions
• Meta-object
• Handles for scanned photographs
• Depositing a scanned photograph

12
Digital objects for a scanned photograph

• Low resolution thumbnail
• High resolution reference image

13
Digital objects for individual versions

• Key metadata.
• used to manage the object in a networked
  environment. It includes the handle, and the
  rights and permissions associated with the
  digital object.
• Structural metadata.
• includes fields for description, owner, handle of
  meta-object, data size, data type (e.g., "jpg"),
  version number, description, date deposited, use
  (e.g., "thumbnail"), and the date of last
  revision.
• Image data.
• This is the image data.

14
Meta-object

• Key metadata.
• includes the handle, and the rights and
  permissions associated with the digital object.
• Structural metadata.
• includes a description, the owner, the number of
  versions, the date deposited, the use
  ("meta-object"), and the date of last revision.
• Data about each version.
• For each of the three scanned versions (e.g., the
  thumbnail), there is a package of information
  including the handle of the version, and the
  relationship among the versions.

15
Handles for scanned photographs

• control identifier - 3a16116r.jpg
• replace the control identifiers by handles, which
  provide a unique, persistent, location
  independent name for each item -
  loc.ndlp.amrlp/3a16116
• Terminology to describe handles
• "loc.ndlp.amrlp" is the naming authority
• "3a16116" is a locally unique string
• For convenience in processing, use sequence
  numbers
• loc.ndlp.amrlp/3a16116.1
• loc.ndlp.amrlp/3a16116.2

16
Meta object identifies 2 image
17
Depositing a scanned photograph

• Human
• machine

18
Depositing a scanned photograph - human

• Selection of the material that will be made into
  each digital object.
• Specification of the metadata for those fields
  that require judgment.

19
Depositing a scanned photograph - machine

• Creation of the meta-object and the links to
  other digital objects.
• Depositing the digital objects in the repository.

• Registering the handles in the handle system.

20
Access to a scanned photograph

• Bibliographic entries in search systems refer to
  the scanned photograph by the handle of the meta-
  object.
• If a user requests a summary of the photograph,
  the "thumbnail" image is provided.
• If the user requests access to the photograph
  without specifying which version, the "access"
  image is provided.

21
Technical Information
22
Digital Object
23
Digital Object

• Key-metadata
• The key-metadata is the information stored in the
  digital object that is needed to manage the
  digital object in a networked environment -- for
  example to store, replicate, or transmit the
  object without providing access to the content.
  This includes terms and conditions, and the
  handle.
• Digital material
• The digital material (or data) comprises a set of
  sequences of bits.

24
Digital Objects Internal Structure

• An element is a bit sequence comprising an
  elementary unit of information. An element has
  its own ID.
• A package is a collection of elements and other
  packages, with its own ID.
• A digital object is a package with key-metadata
  for use in a networked environment. The ID is a
  handle.

25
Data Element
26
Data Element

• Data element
• A data element is any bit-sequence.
• Element ID
• The element ID is the internal identifier of the
  element within the digital object. Unlike a
  handle, which is unique and known publicly, the
  element ID is of local importance only.
• Attributes
• Attributes are the information that is needed to
  process the element. They include a role, which
  defines the function of the element (such as
  "DTD" in the SGML world), and a type, which
  includes technical information (such as "jpeg").

27
A Package
28
Packages

• Packages are used to group or associate elements
  and other packages.
• A package has a package ID.
• If the package is a digital object, the package
  ID is a handle. Otherwise, it is the internal
  identifier of the package within the digital
  object. Unlike a handle, which is unique and
  known publicly, such a package ID is of local
  importance only. The content of a package
  consists of elements and other packages.

29
Handle Handle System
30
Handle Handle System

• The digital library is assembled from a great
  variety of components. They include people,
  computers, networks, repositories, databases,
  search systems, Web servers, digital objects,
  elements of objects, bibliographic records, and
  many more. Keeping track of these components
  requires a systematic approach to identification.
• http//www.handle.net

31
Typical handle record
32
Handle record for web
33
Handle System

• To resolve a handle is to present a handle to the
  handle system and receive as a reply information
  about the item identified.
• The handle system is a distributed computer
  system, with many computers distributed across
  the world. CNRI manages a global handle registry
  and there are local handle services operated by
  other organizations, e.g. http//www.handle.net/

34
Naming Authority

• Handles are created by naming authorities,
  administrative units that are authorized to
  create and edit handles.

35
The Repository
36
Structure of a Repository

• A repository is a system for networked based
  storage and access to digital objects.
• All interaction with the repository uses a simple
  protocol, known as the Repository Access Protocol
  (RAP). RAP has a small number of fundamental
  operations, such as "deposit", which stores a
  digital object in the repository, and "access",
  which provides access to a digital object.
• Thus RAP provides a clearly defined, open
  interface for the repository that allows others
  to write clients and higher level interfaces.

37
Structure of Repository
38
Structure of Repository

• Repository shell
• The repository shell is the part of the
  repository that interfaces with the outside
  world. It implements the RAP protocol
• Persistent store
• Information in the repository is held in the
  persistent store. The persistent store is
  completely hidden from the outside.
• Object management layer
• The object management layer provides an interface
  between the services provided by the persistent
  store and the object oriented functions required
  by the repository shell.

39
The Repository Access Protocol (RAP)

• VerifyHandle. Confirm that a handle has been
  registered in the handle system.
• AccessRepoMeta. Access the repository metadata.
• Verify_DO. Confirm that a repository stores a
  digital object with a specified handle.
• AccessMeta. Access the metadata for a specified
  digital object.
• Access_DO. Access the digital object.
• Deposit_DO. Deposit a digital object in a
  repository.
• Delete_DO. Deletes a digital object from a
  repository.
• MutateMeta. Edit the metadata for a digital
  object.
• Mutate_DO. Edit a digital object.

40
Handle system to access DO
41
Example RAP Work Flow

• The handle "loc.ndlp/1234" is sent to the handle
  system. It resolves to data type "handle" (HDL),
  value "loc/repos1". This is interpreted as
  information that the digital object is stored in
  the repository identified by the given handle.
• The handle "loc/repos1" is sent to the handle
  system. It resolves to information of type "RAP".
  This is information that the repository
  implements RAP. The corresponding data is a
  reference to a CORBA Object Request Broker (ORB).
• The command "Access_DO (loc.ndlp/1234)" is now
  sent to the repository.

42
Benefit Using Handle

• Since the digital object is identified by a
  handle, if it is moved to another repository the
  only change required is to alter the data in the
  first of the handle records in the figure. Since
  the repository is identified by a handle, if the
  repository is moved to a different computer or
  otherwise changed, but its handle remains the
  same, altering the single data item in the second
  handle record in the figure is the only change
  needed, for all the digital objects stored in the
  repository.

43
User Interface
44
User Interface System
45
Client via CGI-BIN
46
DO sets as hierarchies
47
Hierarchies

• Level 0
• contains the digitized image, sound, text, or
  other data.
• Level 1
• is a parent of digital objects of Level 0. Upon
  encountering a digital object of this type, the
  digital object browser extracts the content of
  the all the child Level 0 digital objects and
  displays them in an indexed list to the user.
  This type has been used to display indexes of
  thumbnail images.
• Level 2
• is a parent of digital objects of Level 1.
