1

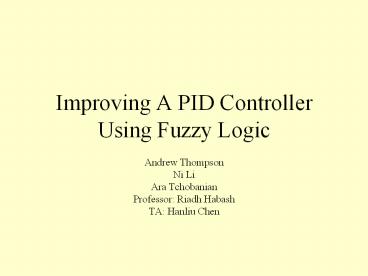

Improving A PID Controller Using Fuzzy Logic
  • Andrew Thompson
  • Ni Li
  • Ara Tchobanian
  • Professor Riadh Habash
  • TA Hanliu Chen

2
Problem
  • Although PID controllers are able to provide
    adequate control for simple systems, they are
    unable to compensate for disturbances.
  • We will use Fuzzy Logic controllers to improve
    the PID controllers ability to handle
    disturbances.

3
Hypothesis
  • We feel like all the designs for the fuzzy
    compensator will be an improvement upon the PID
    controller and will have greater ability to deal
    with disturbances.

4
IEEE Papers
5
Group Contribution
  • Andrew Thompson
  • Research and development of Fuzzy precompensator
    design and rules
  • Research and development of PID Controller
  • Ni Li
  • Research and development of various Fuzzy logic
    compensator (PD, PI) designs and rules
  • Ara Tchobanian
  • Research and modeling of DC motor
  • Research and development of PID Controller

6
Procedure
  • We first needed to decide upon a system which we
    could control using a PID controller as well as
    be able to introduce a disturbance.
  • We chose to model a basic DC motor.

7
DC Motor
  • We used the following values for the model of the
    DC Motor
  • moment of inertia of the rotor
  • J 0.01 kg.m2/s2
  • damping ratio of the mechanical system b 0.1
    Nms
  • electromotive force constant K 0.01 Nm/Amp
  • electric resistance R 1 ohm
  • electric inductance L 0.5 H
  • input V Source Voltage
  • output T Speed of motor

8
DC Motor Model
9
Step 2
  • We next had to design a PID controller to control
    the speed of the motor.

10
PID Controller
  • We wanted the PID controller to satisfy the
    following criteria
  • Settling time less than 2 seconds
  • Overshoot less than 5
  • Steady-state error less than 1
  • By using trial and error, and examining the step
    response we obtained the following gains
  • Kp 100, Ki 200, Kd 10

11
PID Model
12
Step 3
  • The final step in the development of our
    controllers was to design various forms Fuzzy
    logic compensators in order to improve the
    performance of the PID controller and to allow it
    to account for the disturbance.
  • We designed three types of Fuzzy logic
    Compensators
  • Fuzzy PI
  • Fuzzy PD
  • Fuzzy Precompensated

13
Fuzzy logic Introduction
  • Fuzzy logic is a problem-solving control system
    methodology that lends itself to implementation
    in systems ranging from simple, small, embedded
    micro-controllers to large, networked,
    multi-channel PC or workstation-based data
    acquisition and control systems. It can be
    implemented in hardware, software, or a
    combination of both.

Inputs
Rules
Output
14
Fuzzy Precompensated PID
Membership Functions, and Fuzzy Rule Sets
15
Surface and Rule Sets
16
Fuzzy Precompensated PID Model
17
Fuzzy logic Equation for the fuzzy PI
  • KpX KiY Z

The output for the fuzzy
Y example input for Ki
The gain for Ki
X example input for Kp
The gain for Kp
18
Membership functions for the PI component.
Optical
A)
High
Low
L
B)
  • (a) Input membership functions.
  • (b) Output membership functions.

19
Fuzzy Logic Rules for the PI
  • The P is Low and I is Low then output is R
  • The P is Low and I is Optimal then output is
    (RS)/2
  • The P is Low and I is High then output is -S
  • The P is Optimal and I is Low then output is
    (RS)/2
  • The P is Optimal and I is Optimal then output is
    0
  • The P is Optimal and I is High then output is
    (R-S)/2
  • The P is High and I is Low then output is S
  • The P is High and I is optimal then output is
    (RS)/2
  • The P is High and I is High then output is R

Where RL1KiL2Kp SL2KpL1Ki
20
Linear Fuzzy PI Control Table
Output Low ( D) Optimal ( D ) High ( D )
Low ( P ) -R -(RS)/2 -S
Optimal ( P ) -(R-S)/2 0 (R-S)/2
High ( P ) S (RS)/2 R
Surface Viewer
21
Fuzzy PI Model
22
Fuzzy PD
Membership Functions
23
Fuzzy PD Model
24
Simulation Results
Step Response
Fuzzy Precompensated
PID
FuzzyPI
Fuzzy PD
25
Simulation Results
Step Response with sine disturbance
Fuzzy Precompensated
PID
FuzzyPI
Fuzzy PD
26
Simulation Results
Step Response with Gaussian Noise disturbance
Fuzzy Precompensated
PID
FuzzyPI
Fuzzy PD
27
Simulation Results
Sine Input
Fuzzy Precompensated
PID
FuzzyPI
Fuzzy PD
28
Simulation Results
Sine Input with sine disturbance
Fuzzy Precompensated
PID
FuzzyPI
Fuzzy PD
29
Simulation Results
Sine Response with Gaussian Noise disturbance
Fuzzy Precompensated
PID
FuzzyPI
Fuzzy PD
