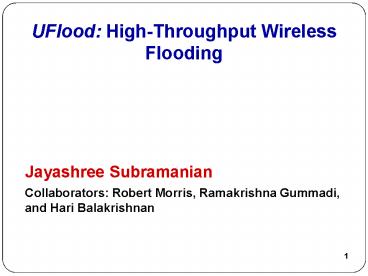

UFlood: High-Throughput Wireless Flooding

1
UFlood High-Throughput Wireless Flooding
Jayashree Subramanian Collaborators Robert
Morris, Ramakrishna Gummadi, and Hari Balakrishnan
2
Goal of this work

• To design a flooding protocol for wireless
  multi-hop networks
• Application Real-time video distribution
• What is a good flooding protocol?
• Use least transmissions
• Provide high-throughput for the nodes

3
Challenge in Wireless Flooding

• Every transmission is broadcast (Opportunistic
  Receptions!)
• Reception is probabilistic

6
4
A
B
Delivery probability from Src to B
0.1
src
D
1
1
1
2
1
2
2
2
3
4
5
6
1
2
3
C
5
6
3
4
Challenge in Wireless Flooding contd

• Challenge
• Who should transmit next?
• What packet to transmit?
• UFloods claim Select best sender to minimize
  total transmissions to complete flooding

5
Contribution of this work

• UFlood Choosing best sender for every
  transmission maximizes throughput
• UFlood performance
• Achieves 2x higher throughput than controlled
  flooding
• Performs close to the benchmark - ExOR unicast
  routing (multihop transfer to a single receiver)

6
Outline of this talk

• Existing Solutions
• Key Idea of UFlood
• Design of UFlood protocol
• Evaluation

7
Related Work

• Flooding in routing
• Controlled flooding (AODV, DSR)
• Does not maximize throughput
• Tree-based flooding
• MCDS, LESS
• Does not consider opportunism
• Gossip-based flooding

1. Tree-based flooding (static decision)

0.1
Wasted transmission!
8
Related Work contd

• Gossip-based flooding (dynamic
  decision)
• Trickle, Deluge
• Does not choose best sender

Bad sender choice means more transmissions!
9
Outline of this talk

• Existing Solutions
• Key Idea of UFlood
• Design of UFlood protocol
• Evaluation

10
Key Idea
Select the best sender - to maximize Useful
Receptions
Select the best sender - to maximize throughput
1
4
6
1
A
B
0.9
Packet availability
Delivery probability
0.1
src
D
6
1
2
3
4
5
3
1
C
6
5
3
1
2
11
Calculating Useful Receptions
U(B,1)0
U(A,4) 0.90.40.61.8
1
4
6
1
A
B
0.9
0.4
src
D
0.6
6
1
2
3
4
5
3
1
C
6
5
3
1
2
12
To Flood a Single Packet using UFlood
U(S)1.7
U(S)0.7
S
0.5
0.5
A
U(A)1.5
B
1
0.2
0.3
U(D)0.8
D
0.5
C
To flood multiple packets calculate utility for
every packet!s
13
UFlood is a Local Heuristic

• Difficulty Knowing the packet availability at
  all nodes
• Solution Local heuristic- Every node knows only
  about its neighbors (nodes whose packets it can
  hear!)
• Good news Possibility of spatial reuse!

14
Outline of this talk

• Existing Solutions
• Key Idea of UFlood
• Design of protocol
• Evaluation

15
Design of UFlood

• Information required
• Node states - packets available with the
  neighbors
• Delivery probabilities of all node pairs in the
  network

16
Knowing Node States

• Node states
• Ni- number of neighbors of i
• P packets flooded
• node-state matrix NixP
• Method
• Maintain local version
• Gossip packet availability using periodic status
  packets

Packet
3
2
1
3
2
1
Node
0
1
1
1
1
1
1
0
1
0
2
1
0
2
0
0
0
3
0
0
3
17
Computing Delivery Probabilities

• Delivery probabilities
• For all N nodes in the network
• Delivery prob matrix NxN
• Method offline experiment
• Each node broadcasts continuous probes and rest
  of the nodes compute

18
Computing Packet Utility
Node states
Delivery probabilities
19
Pseudo code of UFlood

• Source Node floods all packets
• All nodes periodically broadcast status packet
• On reception of a new data or status packet
• Update node-state matrix
• Calculate utility
• Transmit in burst all packets whose utility is
  greater than neighbors utility
• CSMA handles contention (Listen then send or back
  off)

20
Batching in UFlood

• The packets are sent in batches
• To reduce overhead
• To limit the size of the status packet
• Current design considers single batch!

21
Outline of this Talk

• Existing Solutions
• Key Idea of UFlood
• Design of UFlood protocol
• Evaluation

22
20-Node Indoor Test-bed
200 feet
250 feet
Source Node
23
Implementation

• Meraki mini, 802.11b/g
• 2dbi Omni-directional antenna
• Transmit power 60mW
• Bit rate 24Mbps
• CLICK software router toolkit
• Carrier Sense on

24
Performance Comparison

• Method Flood a single batch of 5000-1500B packet
• Comparison
• UFlood Vs. Controlled Flooding
• UFlood Vs. Unicast routing

25
UFlood Vs. Controlled Flooding

• Used in routing protocols like AODV and DSR
• Method
• Source broadcasts all packet
• Every node rebroadcasts only once
• Why we used?
• Aim to quickly send the route information

26
Throughput of UFlood 2x Throughput of
Controlled Flooding
No Choice of Sender!
27
UFlood Vs. Estimated Unicast

• Why unicast?
• Multihop transfer to
• one receiver Vs many receivers
• Method
• Setup independent unicast sessions to send a
  batch of packets from source (node 4) to each
  node

28
ExOR
packet
packet
packet
packet
A
B
src
dst
packet
packet
packet
packet
packet
C

• Decide who forwards after reception
• Goal only closest receiver should forward

29
Throughput of UFlood Throughput of Estimated
ExOR
30
Why does UFlood Perform good?
Second best node transmits!
UFlood is a local heuristic Occasional errors!
Best node transmits!
31
Future Work

• Implement network-coding, bit-rate adaptation,
  and batching
• UFlood vs. existing high-throughput flooding
  protocols

32
Conclusion

• UFloods Key Idea Choosing best sender for
  every transmission maximizes throughput
• UFloods Performance
• Achieves 2x higher throughput than controlled
  flooding
• Performs close to the benchmark - ExOR unicast
  routing
