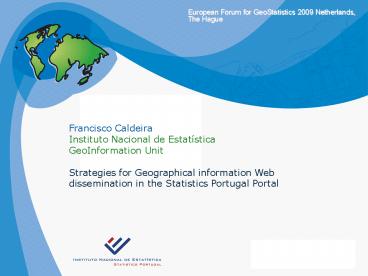

Francisco Caldeira Instituto Nacional de
Estatística GeoInformation Unit Strategies for
Geographical information Web dissemination in
the Statistics Portugal Portal
2
Topics

1. Portuguese Small statistical areas
2. Geographical information in the statistical
   Portal
3. MapServices experience

3

1. Portuguese Small statistical areas

4
Small statistical areas
Census 2001 Geographical information

• Administrative levels
• District
• Municipality
• Parish
• Statistical levels
• Secção
• Subsecção

District Municipality Parish
5
Small Statistical areas Census 2001 -
Two levels of small statistical areas Division
of parish Secções and Subsecções Estatísticas

• SECÇÃO ESTATÍSTICA continuous area of a
  single parish - 300 households

• SUBSECÇÃO ESTATÍSTICA The smallest homogeneous
  area for construction or not, within the secção


• blocks in urban areas
• all or part of a village in rural areas
• Residual areas

6
Small statistical areas
7
Small statistical areas
Urban areaLisbon downtown
8
Small statistical areas examples
Rural area
9
The evolution of the small statistical areas
through the census
Census Number of Small areas Secções Number of Small areas Subsecções 100 Portugal Digital formal Street centerline Buildings
1981 ? Major cities ? Major cities No No No No
1991 13 705 106 626 Yes Yes No No
2001 16 094 177 893 Yes Yes Yes With some street names Partial 400 000
2011 20 000 400 000 Yes Yes Yes, with street names, door numbers and postal code Yes 4 000 000
10
Small statistical areas

• Buildings On the census 2001 for the NUTS II
  of Alentejo the enumerators marked on the census
  maps the position and code number of the
  buildings About 400 000 buildings were
  identified in 2001The 2011 Census will identify
  about 4 000 000 and cover 100 of the country
  1/3 of the Portugal surface

11
Small statistical areas

• 2001 census map

12
Small statistical areas

• 2001 Census Buildings for the city of Évora

13
Small statistical areas

• Population Grid (1 Km)

14
Small statistical areas
Census 2001 Geographical information

• Several large collections of
• Images
• More than 4 000 images
• Municipality maps
• 11 000, up to 15 000 scales
• Army topographic maps
• 125 000 scale

15
Small statistical areas
Census 2001 Geographical information The
challenge

• How to publish this data on the web?
• Is there anyway to link GIS and the statistical
  indicators database to produce thematic maps?
• What is the more efficient way for downloading
  the geographic information?

16

• 2. Geographical information in the statistical
  Portal

17
Geographical information in the statistical Portal
About the Portal (in production in June 2007)

• Web application that Focus on the user needs of
  statistical information
• Access to information is universal, free and
  without registration needed
• Among the tools available on the website stands
  out the statistical database, a dynamic database
  that supports more than a thousand indicators,
  and its on permanent updating

18
Geographical information in the statistical Portal
About the Portal (in production in June 2007)

• Change tables, save and export
• Metadata
• on-line Surveys
• Subscribe RSS to receive alerts and updates on
  data
• And of course MAPS
• http//www.ine.pt
• Really simple sindication

19
Geographical information in the statistical Portal
Census 2001 Geographical information The
Strategy

• Follow the K.I.S.S. rule (Keep it simple)
• Visualization, MapServices and point editing use
  ArcIms or Map Server
• Advanced Editing (polygons, lines), complex
  database operations (link the Statistical and GIS
  dabase) ArGisServer

Application Technology In production?
Download page ArcGis Server No
Territorial structure Visualize all data ArcIms Yes
Thematic map ArcGis Server Yes
SIOU Editing points ArcIms Yes
Censos 2011 Editing Lines and polygons ArcGis Server Yes
20
Geographical information in the statistical Portal
Visualization page

• Territorial Structure
• Major goal -gt Browse ALL the data
• Includes some statistical information
• Make a selection or Identify the population,
  number of families and households for each layer
  and export it to xls excel format
• Technology
• ArcIms
• In production
• http//sig.ine.pt

21
Visualization page
22
Geographical information in the statistical Portal
Thematic Map page

• Thematic Maps
• Major goal -gt Produce thematic maps with the
  statistical indicators of the portal
• The portal identifies if a Statistical indicator
  has a spatial representation.
• The ArcGisServer application creates the map
  on-the-fly
• Some features
• The user can customize the maps, i.e. change the
  number of classes, colors, the calculation
  method, breakdown the level

23
Geographical information in the statistical Portal
Thematic Map page

• Linking the GIS and the Statistical databases
• The application receives from the portal a set of
  parameters that include Statistical indicator
  code, time reference and spatial reference
• http//maps.ine.pt/MapsPortal/default.aspx?VAR_CD
  0000387V_DIM_1S7A2007NIVEL3LINGUAEN
• with the parameters a search is carried out to
  the Statistical database
• Perform a virtual join on the geographical layer
  with the result of the search

24
Geographical information in the statistical Portal
Thematic Map page

• Technology
• ArcGisServer
• In production
• http//www.ine.pt

25
Geographical information in the statistical Portal
Download page

• Download Page
• Major goal -gt Allow the download of subsecções
• Not a simple download link
• Most of the requests are for small areas like
  district, parish
• To avoid unnecessary traffic the user could
  select on the map what he wants or make a
  selection by attributes
• Technology
• ArcGisServer
• Format -gt Zipped shapefile including metadata
• Not in production

26
Geographical information in the statistical Portal
Donwload page
27

• 3.Map Services experience

28
Map Services
Definition

• A web map service is a standard protocol for
  serving georeferenced map images over the
  Internet or LAN that are generated by a map
  server using data from a GIS database
• On the client side, these services can
• be used to access maps and GIS data through
• internet via desktop GIS or and application

29
Map Services
Definition
30
Map Services
Advantages of Map services

• Security
• The user only has access to a snapshot of the
  data
• Performance
• Delivering a small image (size on disk) , they
  are fast and easy to use
• Visualization of the data
• The map service enables the access to the content
  of a map document Defines symbology, scale
  ranges
• Can be easily used or view in a Web Application,
  or desktop GIS including most of the open source
  Gis applications

31
MapServices
Users
User Type Goals Consumed by
DGITA - Ministry of Finance ArcIms Image Create and update Municipal Tax using Subsecções Estatísticas ArcGis Server
DGS - National Health Service ArcIms Image Studies on disease outbreak and dissemination INFLUENZA A (H1N1) ArcMap
DGV National Veterinary Service ArcIms Image Studies on disease outbreak and dissemination (Bird Flu) ArcMap
GCS - Internal Security Service ArcIms Image Relocate the police squads Security on the Euro 2004 ArcMap
AICEP - Agency for developing the international expansion of Portuguese companies ArcIms Image Uses Statistical indicators among other information to find possible best locations ArcGisServer
32
MapServices

• AICEP
• Agency for developing the international
  expansion of Portuguese companies

• http//globalfind.globalparques.pt/

33
