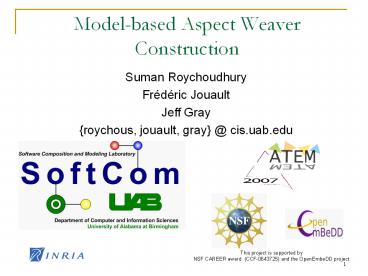

Model-based Aspect Weaver Construction

1
Model-based Aspect Weaver Construction
Suman Roychoudhury Frédéric Jouault Jeff
Gray roychous, jouault, gray _at_ cis.uab.edu
This project is supported by NSF CAREER award
(CCF-0643725) and the OpenEmbeDD project
2
Background - PT based Aspect Weaver

• Modified Source Program fweave (Source Program,
  Aspect Program)
• Using a Program Transformation Engine, one can
  write an Aspect Program in terms of rewrite rules

Example RSL rule
rule insert_trace_probe(stmtsstatement_seq)
function_body -gt function_body " \stmts "
-gt " printf("Entering Method")\stmts ".
3
Motivation Case Study A Delphi Weaver
Progress Meter Updating

1. Inc(TotalInserts)

if not ProcDlg1.Process(TotalInserts) then begin ProcDlg1.Canceled True Result True exit end // if not Process

• As several evolution tasks (e.g., deleting
  database triggers, compiling new stored
  procedures) were executed in the DB Schema
  manager utility, the processing dialog meter was
  required to be updated accordingly (appeared in
  62 different places in Schema manager utility)

Gray J, and Roychoudhury S, A Technique for
Constructing Aspect Weavers using a Program
Transformation Engine, AOSD 04, International
Conference on Aspect-Oriented Software
Development, Lancaster, UK, March 2004, pp. 36-45.
4
RSL Implementation of the Case Study(Rule based
aspect weaving)
default base domain ObjectPascal. pattern after_advice() statement_list "if not ProcDlg1.Process(TotalInserts) then begin ProcDlg1.Canceled True Result True exit end". rule IncCall() statement_list -gt statement_list Inc(TotalInserts) -gt Inc(TotalInserts) after_advice(). public ruleset progress_meter IncCall.
The above rule is written in RSL which is the
rewrite language in the DMS program
transformation engine
5
Challenges using PT Engines

• The rewrite rules used to modify base programs
  are difficult to compose, which makes it
  accessible to only language researchers
  (accidental complexities)
• The transformation rules are generally hard to
  comprehend by average software developers (need
  to know about the grammar)
• The entire weaver is rendered unusable if the
  base transformation engine is replaced with
  another one (interoperability problem)
• The PT engine may be proprietary, i.e., may not
  be available for use by all desired parties
  (e.g., DMS)

6
An Aspect Specification Front-enddecoupled from
PT engine
domain ObjectPascal aspect progress_meter pointcut()IncCall call(Inc(TotalInserts)) after() IncCall if not ProcDlg1.Process(TotalInserts) then begin ProcDlg1.Canceled True Result True exit end
Source Aspect Specification for Progress Meter
Dialog
7
Model-based Front-end Construction
RSL Metamodel
Aspect Metamodel

• Aspect Specification conforming to an Aspect
  Metamodel

• Rules Specification conforming to a Rules
  Metamodel

• Translation between aspect specification to rules
  specification is realized using ATL
  transformations (model transformation language)

8
Source Aspect Metamodel
KM3 specification (in AMMA)
Ecore metamodel as rendered in Eclipse Modeling
Editor
9
Target RSL Metamodel
KM3 specification (in AMMA)
Ecore metamodel as rendered in Eclipse Modeling
Editor
10
ATL Transformations
rule AfterAdvice2Pattern from s
Aspect!AfterAdvice to t Rsl!Pattern
( ptoken lt-'statement_list', ptext
lt- s.advStmt.stmt ... ),
...
rule Aspect2Rsl from s
Aspect!Aspect to t Rsl!Rsl (
domain lt- s.domain, pattern lt-
s.advice, rule lt- s.pointcut,
ruleset lt- rs ), rs Rsl!RuleSet (
rsname lt- s.aname, rname lt-
s.pointcut-gt collect(ee).pctname),
Core transformation library call, exec, set,
get, cflow, etc. (i.e., one transformation for
each type of pointcut)

• The transformations generate the corresponding
  RSL rule
• for the given aspect

11
Transformation Overview
Model-Driven Engineering (MDE) Technical Space
(TS)
Grammarware TS
Grammarware TS
M3
EBNF
EBNF
KM3
Aspect.gGrammar
Aspect Metamodel
RSL Metamodel
RSL.g Grammar
M2
Myaspect.ap AspectPascal
Myaspect Model
MyRsl Model
MyRsl.rsl RSL program
M1
Extraction
Aspect2RSL Transformation
Injection

• The megamodel showing the complete scenario how
  source aspect specification gets translated to
  target RSL specification using ATL transformation

M1 terminal model level M2 metamodel level
M3 meta-metamodel level
(demo http//localhost6885/gaspect )
12
Primary Benefits

• Since the rewrite rules are automatically
  generated (instead of manual coding) from the
  aspect specification, one need not be aware of
  the accidental complexities associated with them

• Also by decoupling the source aspect model from
  the target RSL model
• The source aspect model need not be altered even
  if the target is replaced with a different PT
  engine (e.g., the rewrite engine used by ASFSDF)
• Conversely, for every new language, one needs to
  add the appropriate metamodel extensions to the
  base aspect metamodel, but no change to the
  target metamodel is needed
• Another advantage is that both the aspect
  language (source) and rules language (target) can
  evolve independent of each other which leads to
  new features being added to the weaver

13
Future directions
Core Aspect Metamodel for OOL
Aspect Metamodel for Fortran
Delphi
Java
Fortran 2003
Fortran 77
Fortran 90
Java 1.4
Java 1.5

• Towards Generic Aspect Weaver Construction
• Extending the Aspect Metamodel (via Metamodel
  Extension) to support multiple languages
• Extending ATL Transformations (e.g., using rule
  inheritance, module superimposition)
• By adapting this technique we may also construct
  aspect weavers for domain-specific languages

14
Concluding Remarks - Summary

• The majority of research in this area mainly
  focuses on how aspects can be applied to MDE.
  This research illustrates how MDE can also assist
  in building aspect weavers
• The main advantage of this approach is the
  ability to modularize the weaver construction
  process by decoupling the source aspect language
  metamodel from the target PTE metamodel
• The source aspect metamodel need not be altered
  even if the target is replaced with a different
  PT engine
• Conversely, for every new language, we need to
  add the appropriate metamodel extensions to the
  base aspect metamodel, but no change to the
  target metamodel is needed (as part of future
  work)
• Nevertheless, one can still leverage the power of
  program transformation engines (avoid the
  associated accidental complexities ) to build
  weavers that are easy to modularize, evolve and
  maintain

15
Questions ?
http//www.cis.uab.edu/softcom/GenAWeave/
