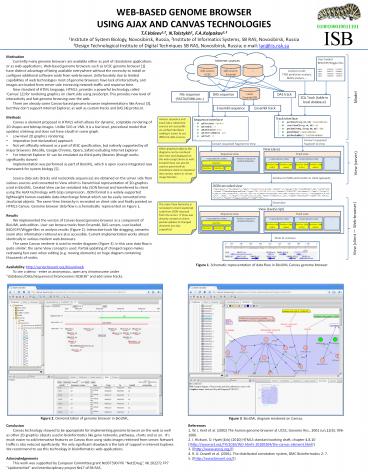

Web-based genome browserusing AJAX and canvas
technologies T.F.Valeev1,2, N.Tolstykh1,
F.A.Kolpakov1,3 1Institute of System Biology,
Novosibirsk, Russia, 2Institute of Informatics
Systems, SB RAS, Novosibirsk, Russia 3Design
Technological Institute of Digital Techniques SB
RAS, Novosibirsk, Russia e-mail lan_at_iis.nsk.su
Internet sources

• Motivation
• Currently many genome browsers are available
  either as part of standalone applications or as
  web-applications. Web-based genome browsers such
  as UCSC genome browser 1 have distinct
  advantage of being available everywhere without
  the necessity to install or configure additional
  software aside from web-browser. Unfortunately
  due to limited capabilities of web technologies
  most of genome browsers have lack of
  interactivity, and images are loaded from server
  side increasing network traffic and response
  time.
• New standard of HTML language, HTML5, provides a
  powerful technology called Canvas 2 for
  rendering graphics on client side using
  JavaScript. This provides new level of
  interactivity and fast genome browsing over the
  web.
• There are already some Canvas-based genome
  browser implementations like AnnoJ 3, but they
  dont support Internet Explorer, as well as
  custom tracks and DAS 4 protocol.
• Methods
• Canvas is element proposed in HTML5 which allows
  for dynamic, scriptable rendering of 2D shapes
  and bitmap images. Unlike SVG or VML it is a low
  level, procedural model that updates a bitmap and
  does not have a built in scene graph.
• Low-level 2D graphics rendering
• Imperative (not declarative) approach
• Not yet officially released as a part of W3C
  specification, but natively supported by all
  major browsers (Mozilla, Google Chrome, Opera,
  Safari) excluding Internet Explorer
• For Internet Explorer 6 can be emulated via
  third-party libraries (though works significantly
  slower)
• Implementation was performed as part of BioUML,
  which is open source integrated Java framework
  for system biology 5.
• Source data sets (tracks and nucleotide
  sequences) are obtained on the server side from
  various sources and converted to View which is
  hierarchical representation of 2D-graphics used
  in BioUML. Created View can be serialized into
  JSON format and transferred to client using the
  AJAX technology with Gzip compression. JSON
  format is a widely-supported lightweight
  human-readable data-interchange format which can
  be easily converted into JavaScript objects. The
  same View hierarchy is recreated on client side
  and finally painted on HTML5 Canvas. Genome
  browser data flow is schematically represented
  on Figure 1.
• Results
• We implemented the version of Canvas-based
  genome-browser as a component of BioUML web
  edition. User can browse tracks from Ensembl,
  DAS-servers, user-loaded BED/GFF/Wiggle files or
  analysis results (Figure 2). Interactive tools
  like dragging, semantic zoom sites information
  retrieval are also accessible. Current
  implementation works almost identically in
  various modern web-browsers.
• The same Canvas renderer is used to render
  diagrams (Figure 3). In this case data flow is
  quite similar the same View concept is used.
  Partial updating of changed region makes
  redrawing fast even when editing (e.g. moving
  elements) on huge diagram containing thousands of
  nodes.

User-loaded BED/GFF/Wiggle files chr1 233604
233639 chr1 559767 559802 chr1 742600
742635 chr1 742600 742635
DAS source UCSC
DAS source Ensembl

Analysis resultTFBS prediction analysis, MACS
analysis,
LocalEnsembl DB
DAS track
DAS sequence
File sequence (FASTA/EMBL/etc.)
Model
SQL Track (table in local database)
Ensembl track
Ensembl sequence
Various sequence and track (sites collection)
sources are accessible via unified interfaces
making it easier to use different data sources.
Convert requestedfragment to View
Convert requested fragment to View
Other graphical objects like diagrams can be
rendered into View and displayed on the web using
Canvas as well. Created View can also be used to
paint itself on standalone client or exported
into various raster or vector image formats.
View (server)
Serialize to JSON and transfer to client (gzipped)
JSON-encoded view"children""children""pen"
"color"0,0,0,255,"width"1,"height"54,"trac
kWidth"665,"width"669 ,"class""TrackBackgroundV
iew","type""0","y"10,"x"-2,"model""3596179",
"children""pen""color" 0,255,0,255,"width"
5,"y1"31,"y2"31,"class""LineView","x2"664,"t
ype""0","x1"1,"alignment"0,"te xt""...dust..
.","font""color"0,0,0,255,"font""Serif",0,1
2,"class""TextView","type""0","y"23, "x"313
,"class""CompositeView","type""20",...
Deserialize
The same View hierarchy is recreated in client
JavaScript code from JSON received from the
server. If View was already created on client,
partial updates of changed elements are
alsosupported.
View (client Web-browser)
Draw to ltcanvasgt
Figure 1. Schematic representation of data flow
in BioUML Canvas genome browser
Figure 2. Demonstration of genome browser in
BioUML.
Figure 3. BioUML diagram rendered on Canvas.
References 1. W. J. Kent et al. (2002) The human
genome browser at UCSC, Genome Res., 2002
Jun12(6) 996-1006. 2. I. Hickson, D. Hyatt
(Eds) (2010) HTML5 standard working draft,
chapter 4.8.10 http//www.w3.org/TR/2010/WD-html
5-20100304/the-canvas-element.html 3.
http//www.annoj.org/ 4. R. D. Dowell et al.
(2001). The distributed annotation system, BMC
Bioinformatics 2 7. 5. http//www.biouml.org/
Conclusion Canvas technology showed to be
appropriate for implementing genome browser on
the web as well as other 2D-graphics objects used
in bioinformatics like gene networks, pathways,
charts and so on. Its much easier to add
interactive features on Canvas than using static
images retrieved from server. Network traffic is
also reduced significantly. The only significant
drawback is the lack of support in Internet
Explorer. We recommend to use this technology in
bioinformatics web-applications. Acknowledgements
This work was supported by European Committee
grant ?037590 FP6 Net2Drug, ? 202272 FP7
LipidomicNet and interdisciplinary project ?17
of SB RAS.
