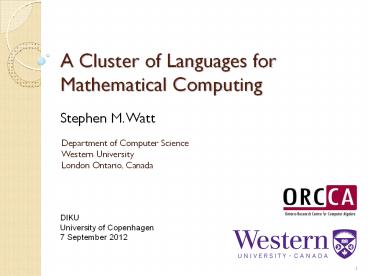

A Cluster of Languages for Mathematical Computing

- Stephen M. Watt
- Department of Computer ScienceWestern University

London Ontario, Canada

DIKU University of Copenhagen 7 September 2012

Moving Windows Around

- Add a border
- Add a scroll bar
- Respond to a button.
- Derp, derp,
- We have harderproblems now.

Declaration of Prejudices

- Key problem How to cascade efficient,

effective abstractions.

Mathematics as a Programming Language Canary

Why?

- Complex problems with many parts
- Complex interactions among the parts
- Many different levels of abstraction
- Precise definition
- Can tell if an answer is right or wrong

Examples

- Garbage collection
- Lisp ? underground ? Java etc
- Algebraic expressions
- Fortran
- Big integer
- Crypto
- Generics
- ? Java, C,

Computer Algebra

- Solve problems in terms of symbolic parameters,

rather than numerically. - Having the computer figure out the

formulasrather than using formulas given by

humans. - Algorithms computational mathematics
- Software mathematical computation

Computer Algebra

- Start with symbols and

compute with symbols gt - Exact results
- Hopefully, insightful results

Finding an Answer

- One day an individual went to the horse races.

Instead of counting the number of humans and

horses, she counted 74 heads and 196 legs. - How many humans and horses were there?
- humans horses 74 humans

2 horses 4 196

Finding an Answer

- One day an individual went to the horse races.

Instead of counting the number of humans and

horses, she counted 74 heads and 196 legs. - How many humans and horses were there?
- humans horses 74 humans

2 horses 4 196 - horses 24 humans 50

Finding an Answer

- One day an individual went to the horse races.

Instead of counting the number of humans and

horses, she counted H heads and L legs. - How many humans and horses were there?
- humans horses H humans 2

horses 4 L - horses ?H L/2 humans 2 H ? L/2

Computer Algebra

- A couple of research problems of personal

interest - Symbolic-numeric algorithms
- Symbolic exponents

Approximate Polynomials

Symbolic Exponents

Examples

- Maple
- Axiom
- Aldor
- MathML
- InkML
- Warning 3x too much stuff here.We will skip to

what the audience wants.

Language 1 Maple

- Waterloo 1980 on
- Geddes Gonnet initiators.
- University, then company. Collaboration.
- Dynamically typed, interpreted language for

scripting computer algebra programs.

(No Transcript)

(No Transcript)

(No Transcript)

(No Transcript)

(No Transcript)

(No Transcript)

(No Transcript)

An Example (small)

(No Transcript)

(No Transcript)

Maple

- Compiled kernel, interpreted library
- What was compiled was hand-chosen
- Support many students on shared 1980s hw
- Easy to lay down code, quick library growth
- Language not very structured, so limitations
- Commercially viable project
- Company focus education and CAE

Example 2 Axiom

- 1984 moved from Waterloo to IBM Research
- Scratchpad in-house research project
- Jenks and Trager initiators.
- 1991 released as commercial product by NAG

Axiom

- Main idea code re-use through abstraction
- Generic algorithms based on structures of modern

algebra (groups, rings, algebras, fields). - The language is the thing
- Compiled programming language for writing

libraries in the large - Syntactically similar, dynamically typed

interpreted language for scripting.

Type Inference in Interpreter

More Complicated Types

(No Transcript)

(No Transcript)

(No Transcript)

(No Transcript)

Axiom

- Great concept for building well-structured and

flexible libraries. - Not enough dogfooding.
- Top-level tried to hide types from user, but was

not sufficiently successful at doing that. - Powerful and flexible, but too complex for most

users. - Now open source.

Example 3 Aldor

- Re-design of Axiom language 1984 on.
- Initiator Watt.
- The language is the thing, writ large
- Efficiency, elegance, take no prisoners
- Nothing special about built-in types
- Dependent types everywhere
- Interoperability with C and Lisp

Aldor and Its Type System

- Types and functions are values
- May be created dynamically
- Provide representations of mathematical sets and

functions - The type system has two levels
- Each value belongs to a unique type, its domain,

known statically. - This is an abstract data type that gives the

representation. - The domains are values with domain Domain.
- Each value may belong to any number of subtypes

of its domain. - Subtypes of Domain are called categories.
- Categories
- specify what exports (operations, constants) a

domain provides. - fill the role of OO interfaces or abstract base

classes.

Why Two Levels?

- OO inheritance pb with multi-argument fns
- class SG (SG, SG) -gt SG DoubleFloat

extends SG ...Permutation extends SG ...x, y ?

DoubleFloat ? SGp, q ? Permutation ? SG - x y ?p q ?
- p y ? ??? Bad, Bad, Bad

Why Two Levels?

- OO inheritance pb with multi-argument fns
- SG ... (, ) -gt DoubleFloat SG

...Permutation SG ...x, y ? DoubleFloat ?

SGp, q ? Permutation ? SG - x y ?p q ?
- p y ?

Parametric Polymorphism

- PP is via category- and domain-producing

functions. - -- A function returning an integer.
- factorial(n Integer) Integer if n 0

then 1 else nfactorial(n-1) - -- Functions returning a category and a domain.
- Module(R Ring) Category Ring with (R,

) -gt - Complex(R Ring) Module(R) with
- complex (,)-gtR real -gtR imag -gtR

conj -gt ... - add
- Rep Record(real R, imag R) 0

1 (x ) (y ) ...

Dependent Types

- Give dynamic typing, e.g.f (n Integer, R

Ring, m IntegerMod(n)) -gt SqMatrix(n, R) - Recover OO through dependent productsprodl

List Record(S Semigroup, s S)

DoubleFloat, x, Permutation,

p, DoubleFloat, y - With categories, guarantee required operations

available - f(R Ring)(a R, b R) R ab ba

Multi-sorted Algebras

- Category signature as a dependent product type.
- ArithmeticModel Category with
- Nat IntegralDomain
- Rat Field
- / (Nat, Nat) -gt Rat

Aldor and Its Type System

- Type producing expressions may be

conditionalUnivariatePolynomial(R Ring)

Module(R) with - coeff (, Integer) -gt R
- monomial (R, Integer) -gt
- if R has Field then EuclideanDomain
- ...
- add
- ...
- Post facto extensions allow domains to belong to

new categories after they have been initially

defined.

Without Post Facto Extension forStructuring

Libraries

- DirectProduct(n Integer, S Set) Set with
- component (Integer, ) -gt S
- new Tuple S -gt
- if S has Semigroup then Semigroup
- if S has Monoid then Monoid
- if S has Group then Group
- ...
- if S has Ring then Join(Ring, Module(S))
- if S has Field then Join(Ring,

VectorField(S)) - ...
- if S has DifferentialRing then

DifferentialRing - if S has Ordered then Ordered
- ...
- add ...

Post Facto Extension forStructuring Libraries

- DirectProduct(n Integer, S Set) Set with
- component (Integer, ) -gt S
- new Tuple S -gt
- add ...
- extend DirectProduct(n Integer, S Semigroup)

Semigroup ... - extend DirectProduct(n Integer, S Monoid)

Monoid ... - extend DirectProduct(n Integer, S Group) Group

... - ...
- extend DirectProduct(n Integer, S Ring)

Join(Ring, Module(S)) ... - extend DirectProduct(n Integer, S Field)

Join(Ring, VectorField(S)) ... - ...
- extend DirectProduct(n Integer, S Field)

Join(Ring, VectorField(S)) ... - extend DirectProduct(n Integer, S

DifferentialRing) DifferentialRing ... - extend DirectProduct(n Integer, S Ordered)

Ordered ... - ...
- Normally these extensions would all be in

separate files.

Higher Order Operations

- E.g. Reorganizing constructions
- Polynomial(x) Matrix(n) Complex R Complex

Matrix(n) Polynomial(x) R - Slightly simpler example
- List Array String R String Array List R

Higher Order Operations

- Ag gt (S BasicType) -gt LinearAggregate S
- swap(XAg, YAg)(SBasicType)(xX Y S)Y X S

s for s in y for y in x - al Array List Integer array(list(ij-1 for i

in 1..3) for j in 1..3) - la List Array Integer swap(Array,

List)(Integer)(al)

Phew!

Using Genericity

- LinearOrdinaryDifferentialOperator(
- A DifferentialRing,
- M LeftModule(A) with differentiate -gt
- ) MonogenicLinearOperator(A) with
- D
- apply (, M) -gt M
- ...
- if A has Field then
- leftDivide (, ) -gt (quotient ,

remainder ) - rightDivide(, ) -gt (quotient ,

remainder ) - // rgcd, lgcd
- ...

Using Genericity

- LinearOrdinaryDifferentialOperator(
- A DifferentialRing,
- M LeftModule(A) with differentiate -gt
- ) ...
- SUP(A) add
- ...
- if A has Field then
- Op OppositeOperator(, A)
- DOdiv NonCommutativeOperatorDivisio

n(, A) - OPdiv NonCommutativeOperatorDivisio

n(Op,A) - leftDivide (a,b) leftDivide(a,

b)DOdiv - rightDivide(a,b) leftDivide(a,

b)OPdiv - ...

Design Principles I

- No compromises on flexibility
- No compromises on efficiency
- Use optimization to bridge the gap.
- Compilation. Separate compilation.
- Generated intermediate code is platform

independent, even though word-sizes, etc, vary. - Libraries can be distributed, if desired, as

binary only. - Be a good citizen in a multi-language framework.
- Call and be called by C/C/Fortran/Lisp/Maple
- Functional arguments
- Cooperating memory management

Design Principles II

- Language-defined types should have no privilege

whatsoever over application-defined types. - Syntax, semantics (e.g. in type exprs),

optimization (e.g. constant folding) - Language semantics should be independent of type.
- E.g. named constants overloaded, not functions
- Combining libraries should be easy, O(n), not

O(n2). - Should be able to extend existing things with new

concepts without touching old files or

recompiling. - Safety through optimization removing run-time

checks, not by leaving off the checks in the

first place.

The Compiler as an Artefact

- Written primarily in C (C too immature in 1990)
- 1550 files, 295 K loc C 65 K loc Aldor
- Intermediate code (FOAM)
- Primitive types booleans, bytes, chars, numeric,

arrays, closures - Primitive operations data access, control, data

operations - Runtime system
- Memory management
- Big integers
- Stack unwinding
- Export lookup from domains
- Dynamic linking
- Written in C and Aldor

Example of Optimization

- From the domain Segment(E OrderedAbelianMonoid)g

enerator(segSegment E)Generator E generate - (a, b) (low seg, hi seg)
- while a lt b repeat yield a a a 1
- From the domain List(S Set)
- generator(l List S) Generator S generate
- while not null? l repeat yield first l l

rest l - Client code
- client()
- ar array(...) li list(...)
- s 0
- for i in 1..ar for e in l repeat s s

ar.i e - stdout ltlt s

How Generators Work

- generator(segSegment Int)Generator Int

generate - a lo seg
- b hi seg
- while a lt b repeat yield a a a 1

- client()
- ar array(...)
- s 0
- for i in 1..ar repeat s s a.i
- stdout ltlt s

Example of Optimization (again)

- From the domain Segment(E OrderedAbelianMonoid)g

enerator(segSegment E)Generator E generate - (a, b) (low seg, hi seg)
- while a lt b repeat yield a a a 1
- From the domain List(S Set)
- generator(l List S) Generator S generate
- while not null? l repeat yield first l l

rest l - Client code
- client()
- ar array(...) li list(...)
- s 0 -- NOTE PARALLEL TRAVERSAL.
- for i in 1..ar for e in l repeat s s

ar.i e - stdout ltlt s

Inlined

B0 ar array(...) l list(...)

segment 1..ar lab1 B2 l2

l lab2 B9 s 0 goto

B1 B1 goto _at_lab1 B2 a segment.lo b

segment.hi goto B3 B3 if a gt b then

goto B6 else goto B4 B4 lab1 B5 val1

a goto B7 B5 a a 1 goto

B3 B6 lab1 B7 goto B7 B7 if lab1

B7 then goto B16 else goto B8 B8 i

val1 goto _at_lab2 B9 goto B10 B10 if

null? l2 then goto B13 else goto B11 B11 lab2

B12 val2 first l2 goto B14 B12

l2 rest l2 goto B10 B13 lab2 B14

goto B14 B14 if lab2 B14 then goto B16 else

goto B15 B15 e val2 s s ar.i e

goto B1 B16 stdout ltlt s

Clone Blocks for 1st Iterator

Dataflow

- lab1 B2, lab1 B5, lab1 B7

Resolution of 1st Iterator

Clone Blocks for 2nd Iterator

Resolution of 2nd Iterator

client() ar array(...) l

list(...) l2 l s 0 a

1 b ar if a gt b then goto

L2 L1 if null? l2 then goto L2 e first

l2 s s ar.a e a a 1

if a gt b then goto L2 l2 rest l2

goto L1 L2 stdout ltlt s

Aldor vs C (non-floating pt)

Aldor vs C (floating point)

Follow-on Research Projects

- Generic library inter-operability
- Localized garbage collection
- Dynamic abstract data types
- Performance analysis of generics
- Etc, etc

Lessons Learned

- It is possible to be elegant, abstract and

high-levelwithout sacrificing significant

efficiency. - Well-known optimization techniques can be

effectively adapted to the symbolic setting. - Optimization of generated C code is not enough.
- Procedural integration, dataflow analysis,

subexpression elimination and constant folding

are the primary wins. - Compile-time memory optimization, including data

structure elimination, is important. - Removes boxing/unboxing, closure creation,

dynamic allocation of local objects, etc. Can

move hot fields into registers.

Aldor Lessons

- Language design 20 years old.
- In the mean time, many of the ideas now

mainstream. - Many still are not.
- Mathematics is a valuable canary in the coal

mine of general purpose software. - The general world lags in recognizing needs.
- It has to be free.
- Free1 is the standard price.
- Free2 is required for engagement.

(No Transcript)

Example 4 MathML

- First XML application, ever.
- Language for exchange of mathematical data.
- Initially

Example 4 MathML

MathML

- OpenMath effort initiated 1993 for data exchange.
- Unfulfilled ltmathgt element in HTML 3.2 Jan 1997.
- Initial, unchartered Math WG defining microsyntax

for ltmathgt. - Internecine rivalry between syntax and semantics

camps coming from TeX, Mathematica and SGML.

MathML

- Convened HTML-native math group to form unified

proposal. - First ever XML application.
- XML proposed recommendation December 1997.
- MathML proposed recommendation February 1998.
- Supported in major browsers, computer algebra

systems, incorporated in HTML 5.

Example 5 InkML

- Ink Messaging
- Annotation
- Archival

Pen-Based Math

- Input for CAS and document processing.
- 2D editing.
- Computer-mediated collaboration.

Pen-Based Math

- Does not require learning a special language

\sum_i0r g_r-i Xi sum(gr-iXi, i

0..r)

Pen-Based Math

- Different than natural language recognition
- 2-D layout is a combination of writing and

drawing. - No fixed dictionary.
- Many similar few-stroke characters.
- Well segmented.
- Highly ambiguous

Digital Ink Formats

- Collected by surface digitizer or camera
- Sequence of (x,y) points sampled at some known

frequency - Possibly other info (angles, pressure, etc)
- Grouping into traces, letters, words labelling

(No Transcript)

InkML Concepts

- Traces, trace groups
- Device information sampling rate, resolution,

etc. - Pre-defined and application defined channels
- Trace formats, coordinate transformations
- Streaming and archival
- Annotation text and XML

InkML Evolution

- Started as low-level language for traces and

hardware description. Explicitly disavowed

semantics. - Wanted base language sufficiently rich to support

full range of digital ink applications. Semantic

grouping added, annotation, etc. - W3C Standard
- Built in to Microsoft Office 2010

Various Language Projects

- Reflex
- Alma
- Java/Aldor/C interop
- Abstract Objects
- Local GC
- WWW GC

Research Symbol Recognition

- Main idea Represent coordinate curves as

truncated orthogonal series. - Advantages
- Compact few coefficients needed
- Geometric the truncation order is a property

of the character set gives a natural metric on

the space of characters - Algebraic properties of curves can be computed

algebraically (instead of numerically using

heuristic parameters) - Device independent resolution of the device is

not important

Inner Product and Basis Functions

- Choose a functional inner product, e.g.
- lt f, ggt ? f(t) g(t) w(t) dt
- This determines an orthonormal basis in the

subspace of polynomials of degree d.Determine

using GS on 1, t, t2, t3, .... - Can then approximate functions in subspaces

a, b

Like Symbols form Clouds

Problems

- Want fast response how to work while trace is

being captured. - Low RMS does not mean similar shape.

Pb 1. On-Line Ink

- The main problem In handwriting recognition,

the human and the computer take turns thinking

and sitting idle. - We askCan the computer do useful work while the

user is writing and thereby get the answer faster

after the user stops writing? - We showThe answer is Yes!

On-Line Series Coefficients

- If we choose the right basis functions, then the

series coefficients can be computed on

line.GolubitskySMW CASCON 2008, ICFHR 2008 - The series coefficients are linear combinations

of the moments, which can be computed by

numerical integration as the points are received. - This is the Hausdorff moment problem (1921) ,

shown to be unstable by Talenti (1987). - It is just fine, however, for the orders we need.

Pb 2. Shape vs Variation

- The corners are not in the right places.
- Work in a jet space to force coords derivatives

close. - Use a Legendre-Sobolev inner product
- 1st jet space gt set µi 0 for i gt 1.Choose µ1

experimentally to maximize reco rate.Can be also

done on-line. - Golubitsky SMW 2008, 2009

Distance Between Curves

- Approximate the variation between curvesby some

fn of distances between points. - May be coordinate curvesor curves in a jet

space. - Sequence alignment
- Interpolation (resampling)
- Why not just calculate the area?
- This is very fast in ortho series representation.

Distance Between Curves

Comparison of Candidate to Models

- Use Euclidean distance in the coefficient space.
- Just as accurate as elastic matching.
- Much less expensive.
- Linear in d, the degree of the approximation.lt 3

d machine instructions (30ns) vs several

thousand! - Can trace through SVM-induced cells

incrementally. - Normed space for characters gives other

advantages.

Distance-Based Classification

Distance-Based Classification

Geometry

- Linear homotopies within a class

C (1? t) A t B

- Can compute distance of a sample to this line
- Convex hull of a set of models
- SVM separating planes

Distance-Based Classification

Distance-Based Classification

Error Rates as Fn of Distance

- SVM Convex Hull
- Error rate as fn of distance gives confidence

measure for classifiers MKM Golubitsky SMW

Recognition Summary

- Database of samples gt set of LS points
- Character to recognize gt
- Integrate moments as being written
- Lin. trans. to obtain one point in LS space
- Classify by distance to convex hull of k-NN.
- InkML allows natural representation of annotated

database and real-time input.

Overall Conclusions

- Mathematical problems provide excellent

challenges for language design. - Rich, complex, hard
- Well-defined
- Performance matters a lot!
- Dont be put off by the loud, confident

proclamations of mass-market language designers.

About PowerShow.com

PowerShow.com is a leading presentation/slideshow sharing website. Whether your application is business, how-to, education, medicine, school, church, sales, marketing, online training or just for fun, PowerShow.com is a great resource. And, best of all, most of its cool features are free and easy to use.

You can use PowerShow.com to find and download example online PowerPoint ppt presentations on just about any topic you can imagine so you can learn how to improve your own slides and presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

You can use PowerShow.com to find and download example online PowerPoint ppt presentations on just about any topic you can imagine so you can learn how to improve your own slides and presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

Recommended

«

/ »

Page of

«

/ »

Promoted Presentations

Related Presentations

Page of

Home About Us Terms and Conditions Privacy Policy Presentation Removal Request Contact Us Send Us Feedback

Copyright 2018 CrystalGraphics, Inc. — All rights Reserved. PowerShow.com is a trademark of CrystalGraphics, Inc.

Copyright 2018 CrystalGraphics, Inc. — All rights Reserved. PowerShow.com is a trademark of CrystalGraphics, Inc.

The PowerPoint PPT presentation: "A Cluster of Languages for Mathematical Computing" is the property of its rightful owner.

Do you have PowerPoint slides to share? If so, share your PPT presentation slides online with PowerShow.com. It's FREE!
