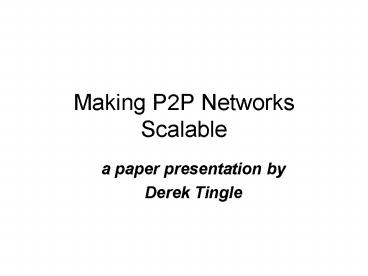

Making P2P Networks Scalable

1
Making P2P Networks Scalable

• a paper presentation by
• Derek Tingle

2
P2P Basics

• Files stored on clients machines
• Typically read only
• Search mechanism
• Download mechanism
• Wildly popular

3
Gnutella

• Decentralized
• Unstructured
• Flood search
• Routing Table

4
(No Transcript)
5
Gnutella

• Decentralized
• Unstructured
• Flood search
• Routing table
• DANGER!
• Not scalable

6
Design Goals

• Allow the Gnutella-like p2p to handle higher
  amount of queries
• Make it scalable
• Utilize heterogeneity of machines

7
Search Protocol

• GIA search is based on random walks
• Like floods, but less messages
• But because random walks are blind, there are
  scaling issues
• So GIA uses biased walks
• Toward high degree or high capacity?

8
High degree AND high capacity

• Using a dynamic topology adaptation algorithm
• Ensures
• high capacity nodes have a high degree
• low capacity nodes are close to high capacity
  nodes
• Level of satisfaction S
• Measures how close the sum of capacities of a
  node's neighbors normalized by degrees is to that
  node's own capacity
• The lower the satisfaction level, the shorter the
  adaptation interval

9
To add a node n...

• Accept if num_nabr is still lt max_nbrs
• Select the node with the highest degree out of
  the subset of neighbors with a capacity less than
  that of n
• Only drop that node if it has less neighbors than
  n

10
One-hop replication

• Each node records an index of neighbor nodes'
  content
• Ensures that high capacity nodes can respond to a
  greater number of queries

11
Flow control

• To avoid overloading a node
• Only can direct queries to a neighbor if the
  neighbor is ready
• Node uses tokens to signify it can handle queries
• Node gives out tokens at the rate it can process
  queries
• If queries are being queued, decrease allocation
  rate
• Weights the allocation of tokens for capacity
• If a node isn't using tokens, they are allocated
  to other neighbors
• Can be piggy backed

12
Search Protocol (again)?

• Biased random walks aren't random
• Send queries to highest capacity neighbor with
  tokens
• Time To Live decremented at each node
• Book-keeping limits same path traversal
• MAX_RESPONSES decremented for each found answer
• Append address of owning node to the forwarded
  query

13
Query Resilience

• Can't let a query die with a node
• Keep-alive messages
• query responses
• dummy query responses
• Originator can resend query if no keep-alive
  messages arrive for a while
• When the topology adapts, the previous
  connections are maintained for a while

14
Simulations

• GIA compared to
• Flood
• Random Walks over Random Topologies
• Supernode mechanisms
• queries only flooded between supernodes

15
Assumptions

• All nodes produce queries at same rate
• Capacity number of messages processed per unit
  time
• queues have infinite length
• specific keyword searches
• min_alloc min(C/num_nbrs) 4
• For Flood and Super
• average diameter is 7
• TTL is 10
• Look at relative performance, not absolute

16
Metrics

• Success rate fraction of queries issued that
  reach the file
• hop-count
• delay time taken from query's start to finish
• Collapse Point (CP) node query rate at point
  beyond which success rate drops below 90
• Average hop-count before collapse

17
Performance Comparison

• Search terminates after finding a single answer
• 5000 and 10,000 nodes for each system
• .01, .05, .1, .5, 1 replication rates

18
Performance results

• RWRT better than Flood at high replication, equal
  at low replication
• GIA has higher hop counts than Flood and Super
• GIA hop counts lower as replication goes up
• Flood and Super aren't scalable... duh.

19
Multiple Search Responses

• Same tests, MAX_RESPONSES 1, 10, 20
• Flood and Super unchanged
• GIA and RWRT decline as M_R increases

20
(No Transcript)
21
Node Failure model

• Force nodes to fail at a uniformly random time
  between 0 and MAXLIFETIME
• MAXLIFTIME 10s, 100s, 1000s, forever
• Even at 10s, GIA is 2-4 orders of magnitude
  better than RWRT, Super, and Flood when they
  aren't fialing.

22
Types of P2P searching

• Centralized (Napster)?
• Based on user provided file lists
• Decentralized
• Queries are distributed to peers
• Unstructured (Gnutella)?
• Structured (Chord)?

23
Distributed Hash Tables

• Pros
• Scalable
• Quick lookup
• O(log n) steps
• O(n) steps for Gnutella
• Can find needles

• Cons (why not DHTs)
• P2P Clients are transient
• Require O(log n) repair operations after each
  failure
• DHTs only support exact match searches
• P2Ps look for hay
• (Not really a con)?

24
Analysis and Comparison of P2P Search Models

• Dimitrios Tsoumakos
• Nick Roussopoulos

25
Blind

• Gnutella (flood)?
• Modified-BFS
• Iterative Deepening
• Random Walks

26
Informed

• Gnutella2 (Super-peer)?
• Intelligent-BFS
• APS
• Local Indices
• Routing Indices
• Distributed Resource Location Protocol
• Gnutella with Shortcuts
• GIA

27
Gnutella2

• Uses super-peers (hubs)?
• They act as local servers for their peers
• Hubs are connected
• Queries the hubs sequentially

28
Intelligent-BFS

• Query similarity metric to find similar queries
• Forwards to neighbors most likely to answer that
  query
• Focuses on object discovery rather than message
  reduction
• Increased number of hits
• Does not handle node departures well
• Assumes a node specializes in one file type

29
APS

• Uses indices to weight random walks
• Each index value represents a query for a
  specific object directed toward a specific node
• Index value is raised or lowered based on outcome
  of query
• Optimistic and pessimistic update approaches
• Originating node sends query to all neighbors,
  those neighbors send query to one neighbor

30
Local Indices

• Each node indexes objects stored on nodes within
  a radius r and can answer queries for them
• A BFS like search is performed
• Queries hop a distance of 2r1 nodes
• Accuracy and hits are very high
• Decreases actual processing time
• Floods the network with messages
• Churn is very costly b/c flooding is used to
  update the repository for all joins/leaves

31
Routing Indices

• Files are assumed to fall into themes
• Each node stores the number of files of each
  theme reachable from each outgoing path
• Three functions used to determine best outgoing
  path
• Queries forwarded to best outgoing path
• Flooding is used for creation and update, so
  serious issues with dynamic networks
• Bloom filters...

32
Distributed Resource Location Protocol

• Initially, random flooding is used to find
  objects
• When an object is discovered, the query
  backtracks, storing the location of the found
  object on those nodes
• If a node knows where a queried object is
  located, it can directly contact that node
• Depending on specificity of queries, only one
  replica of a certain object is ever found
• In a dynamic network, much flooding

33
Gnutella with Shortcuts

• Uses standard flooding initially
• If a peer provides an answer, it is indexed on
  the requesting nodes
• Nodes forward queries to the ranked shortcuts
  first, then flood if necessary
• Shortcuts ranked by success rate
• Very high success rate
• Works well when users make related queries

34
Results

• All algorithms that implement flooding in some
  fashion have high success rates
• Systems that use shortcuts aren't hurt as badly
  by departures as expected, because the more flood
  searches utilized, the more accurate the
  shortcuts
• GIA is middle of the pack
• No collapse point test
