Virtual Reconstruction of Medieval Architecture

1

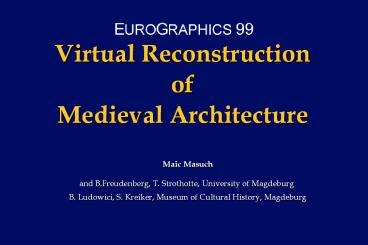

Virtual Reconstruction of Medieval Architecture
Maic Masuch and B.Freudenberg, T. Strothotte,
University of Magdeburg B. Ludowici, S.
Kreiker, Museum of Cultural History, Magdeburg
2
The Excavation in Magdeburg
Photograph of the excavation site in 1966
Excavation overview
3
The Excavation in Magdeburg
Derived foundation plan
Excavated foundations

4
Reconstruction data

• Information sources for the reconstruction
• excavation data
• deductions
• analogies
• assumptions

certainty
decreasing
5
The Visualization
6
Non-Photorealistic Images
Sketch-like rendition
Emphasizing elements with specific line styles
7
Hybrid Images
Combination of photo, line drawing and rendering
Combination of photo and line drawing
8
Photorealistic Images
Column hall of the ground floor
Surroundings of the main palace
9
Reconstruction Data Findings
Some masonry remains serve as example ...
... for the appearance of the outside walls.
10
Reconstruction Data Deductions
... gives the overall shape and height of the
ground level.
The width of the foundation grid supporting the
column hall ...
11
Reconstruction Data Analogies
... serves as model for the upper floor.
Floor tiling from a nearby excavated ottonian
cathedral ...
12
Reconstruction Data Assumptions
Contemporary paintings suggest oil lamps as
illumination source ...
... particularly in the ground hall, which had
only 2 small windows.
13
The Animation
Here comes the video ...
14
Conclusion

• Choose a visualization method that fits your
  communicative goal best
• non-photorealistic
• hybrid
• photorealistic
• Future work
• non-photorealistic visualization system
• interactive walkthrough
