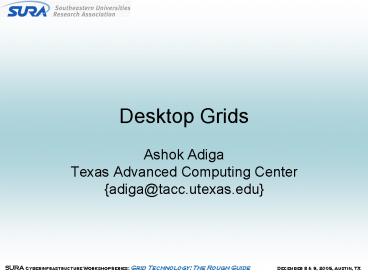

Desktop Grids

1
Desktop Grids

• Ashok Adiga
• Texas Advanced Computing Center
• adiga_at_tacc.utexas.edu

2
Topics

• What makes Desktop Grids different?
• What applications are suitable?
• Three Solutions
• Condor
• United Devices Grid MP
• BOINC

3
Compute Resources on the Grid

• Traditional SMPs, MPPs, clusters,
• High speed, Reliable, Homogeneous, Dedicated,
  Expensive (but getting cheaper)
• High speed interconnects
• Upto 1000s of CPUs
• Desktop PCs and Workstations
• Low Speed (but improving!), Heterogeneous,
  Unreliable, Non-dedicated, Inexpensive
• Generic connections (Ethernet connections)
• 1000s-10,000s of CPUs
• Grid compute power increases as desktops are
  upgraded

4
Desktop Grid Challenges

• Unobtrusiveness
• Harness underutilized computing resources without
  impacting the primary Desktop user
• Added Security requirements
• Desktop machines typically not in secure
  environment
• Must protect desktop program from each other
  (sandboxing)
• Must ensure secure communications between grid
  nodes
• Connectivity characteristics
• Not always connected to network (e.g. laptops)
• Might not have fixed identifier (e.g. dynamic IP
  addresses)
• Limited Network Bandwidth
• Ideal applications have high compute to
  communication ratio
• Data management is critical to performance

5
Desktop Grid Challenges (contd)

• Job Scheduling heterogeneous, non-dedicated
  resources is complex
• Must match application requirements to resource
  characteristics
• Meeting QoS is difficult since program might have
  to share the CPU with other desktop activity
• Desktops are typically unreliable
• System must detect recover from node failure
• Scalability issues
• Software has to manage thousands of resources
• Conventional application licensing is not set up
  for desktop grids

6
Application Feasibility

• Only some applications map well to Desktop grids
• Coarse-grain data parallelism
• Parallel chunks relatively independent
• High computation-data communication ratios
• Non-Intrusive behavior on client device
• Small memory footprint on the client
• I/O activity is limited
• Executable and data sizes are dependent on
  available bandwidth

7
Typical Applications

• Desktop Grids naturally support data parallel
  applications
• Monte Carlo methods
• Large Database searches
• Genetic Algorithms
• Exhaustive search techniques
• Parametric Design
• Asynchronous Iterative algorithms

8
Condor

• Condor manages pools of workstations and
  dedicated clusters to create a distributed
  high-throughput computing (HTC) facility.
• Created at University of Wisconsin
• Project established in 1985
• Initially targeted at scheduling clusters
  providing functions such as
• Queuing
• Scheduling
• Priority Scheme
• Resource Classifications
• And then extended to manage non-dedicated
  resources
• Sandboxing
• Job preemption

9
Why use Condor?

• Condor has several unique mechanisms such as
• ClassAd Matchmaking
• Process checkpoint/ restart / migration
• Remote System Calls
• Grid Awareness
• Glideins
• Support for multiple Universes
• Vanilla, Java, MPI, PVM, Globus,
• Very simple to install, manage, and use
• Natural environment for application developers
• Free!

10
Typical Condor Pool
ClassAd Communication Pathway
11
Condor ClassAds

• ClassAds are at the heart of Condor
• ClassAds
• are a set of uniquely named expressions each
  expression is called an attribute
• combine query and data
• semi-structured no fixed schema
• extensible

12
Sample ClassAd

• MyType "Machine"
• TargetType "Job"
• Machine "froth.cs.wisc.edu"
• Arch "INTEL"
• OpSys "SOLARIS251"
• Disk 35882
• Memory 128
• KeyboardIdle 173
• LoadAvg 0.1000
• Requirements TARGET.Owner"smith"
  LoadAvglt0.3 KeyboardIdlegt1560

13
Condor Flocking

• Central managers can allow schedds from other
  pools to submit to them.

Collector
Negotiator
Submit Machine
Central Manager (CONDOR_HOST)
Pool-Foo Central Manager
Pool-Bar Central Manager
Schedd
14
Example POVray on UT Grid Condor
Was 2h 17 min
5-8 min

5-8 min
Now 15 min
15
Parallel POVray on Condor

• Submitting POVray to Condor Pool Perl Script
• Automated creation of image slices
• Automated creation of condor submit files
• Automated creation of DAG file
• Using DAGman for job flow control
• Multiple Architecture Support
• Executable povray.(OpSys).(Arch)
• Post processing with a C-executable
• Stitching image slices back together into one
  image file
• Using xv to display image back to user desktop
• Alternatively transferring image file back to
  users desktop

16
POVray Submit Description File

• Universe vanilla
• Executable povray.(OpSys).(Arch)
• Requirements (Arch "INTEL" OpSys
  "LINUX") \
• (Arch "INTEL"
  OpSys "WINNT51") \
• (Arch "INTEL" OpSys
  "WINNT52")
• transfer_files ONEXIT
• Input glasschess_0.ini
• Error Errfile_0.err
• Output glasschess_0.ppm
• transfer_input_files glasschess.pov,chesspiece1.
  inc
• arguments glasschess_0.ini
• log glasschess_0_condor.log
• notification NEVER
• queue

17
DAGman Job Flow

A1
A0
An
A2
A3
A4
A5
PARENT
Pre-processing prior to executing Job B
CHILD
B
18
DAGman Submission Script
condor_submit_dag povray.dag

• Filename povray.dag
• Job A0 ./submit/povray_submit_0.cmd
• Job A1 ./submit/povray_submit_1.cmd
• Job A2 ./submit/povray_submit_2.cmd
• Job A3 ./submit/povray_submit_3.cmd
• Job A4 ./submit/povray_submit_4.cmd
• Job A5 ./submit/povray_submit_5.cmd
• Job A6 ./submit/povray_submit_6.cmd
• Job A7 ./submit/povray_submit_7.cmd
• Job A8 ./submit/povray_submit_8.cmd
• Job A9 ./submit/povray_submit_9.cmd
• Job A10 ./submit/povray_submit_10.cmd
• Job A11 ./submit/povray_submit_11.cmd
• Job A12 ./submit/povray_submit_12.cmd
• Job B barrier_job_submit.cmd
• PARENT A0 CHILD B
• PARENT A1 CHILD B
• PARENT A2 CHILD B
• PARENT A3 CHILD B

!/bin/sh /bin/sleep 1
!/bin/sh ./stitchppms glasschess gt
glasschess.ppm 2gt /dev/null rm _.ppm .ini Err
.log povray.dag. /usr/X11R6/bin/xv 1.ppm
19
United Devices Grid MP

• Commercial product that aggregates unused cycles
  on desktop machines to provide a computing
  resource.
• Originally designed for non-dedicated resources
• Security, non-intrusiveness, scheduling,
• Screensaver/graphical GUI on client desktop
• Support for multiple clients
• Windows, Linux, Mac, AIX, Solaris clients

20
How Grid MP Works

• Authenticates users and devices
• Dispatches jobs based on priority
• Monitors and reschedules failed jobs
• Collects job results

• Advertises capability
• Launches job
• Secure job execution
• Returns result
• Caches data for reuse

• Submits jobs
• Monitors job progress
• Processes results

• Web browser interface
• Command Line Interface
• XML Web services API

Administrator
21
UD Management Features

• Enterprise features make it easier to convince
  traditional IT organizations and individual
  desktop users to install software
• Browser-based administration tools allow local
  management/policy specification to manage
• Devices
• Users
• Workloads
• Single click install of client on PCs
• Easily customizable to work with software
  management packages

22
Grid MP Provisioning Example
Device Group X
Device Group Administrator
User Group B
Device Group Y
Grid MP Services
Device Group Z
Root Administrator
User Group A
Device Group Administrator(s)
23
Application Types Supported

• Batch jobs
• Use mpsub command to run single executable on
  single remote desktop
• MPI jobs
• Use ud_mpirun command to run MPI job across a set
  of desktop machines
• Data Parallel jobs
• Single job consists of several independent
  workunits that can be executed in parallel
• Application developer must create program modules
  and write application scripts to create workunits

24
Hosted Applications

• Hosted Applications are easier to manage
• Provides users with managed application
• Great for applications that are run frequently
  but rarely updated
• Data Parallel applications fit best in hosted
  scenario
• Users do not have to deal with the application
  maintenance only developer does.
• Grid MP is optimized for running hosted
  applications
• Applications and data are cached at client nodes
• Affinity scheduling to minimize data movement by
  re-using cached executables and data.
• Hosted application can be run across multiple
  platforms by registering executables for each
  platform

25
Example Reservoir Simulation

• Landmarks VIP product benchmarked on Grid MP
• Workload consisted of 240 simulations for 5 wells
• Sensitivities investigated include
• 2 PVT cases,
• 2 fault connectivity,
• 2 aquifer cases,
• 2 relative permeability cases,
• 5 combinations of 5 wells
• 3 combinations of vertical permeability
  multipliers
• Each simulation packaged as a separate piece of
  work.
• Similar Reservoir simulation application has been
  developed at TACC (with Dr. W. Bangerth,
  Institute of Geophysics)

26
Example Drug Discovery

• Think LigandFit applications
• Internet Project in partnership with Oxford
  University Model interactions between proteins
  and potential drug molecules
• Virtual screening of drug molecules to reduce
  time-consuming, expensive lab testing by 90
• Drug Database of 3.5 billion candidate molecules.
• Over 350K active computers participating all over
  the world.

27
Think

• Code developed at Oxford University
• Application Characteristics
• Typical Input Data File lt 1 KB
• Typical Output File lt 20 KB
• Typical Execution Time 1000-5000 minutes
• Floating-point intensive
• Small memory footprint
• Fully resolved executable is 3Mb in size.

28
Grid MP POVray Application Portal
29
BOINC

• Berkeley Open Infrastructure for Network
  Computing (BOINC)
• Open source follow-on to SETI_at_home
• General architecture supports multiple
  applications
• Solution targets volunteer resources, and not
  enterprise desktops/workstations
• More information at http//boinc.berkeley.edu
• Currently being used by several internet projects

30
Structure of a BOINC project
Ongoing tasks - monitor server correctness -
monitor server performance - develop and
maintain applications
31
BOINC

• No enterprise management tools
• Focus on volunteer grid
• Provide incentives (points, teams, website)
• Basic browser interface to set usage preferences
  on PCs
• Support for user community (forums)
• Simple interface for job management
• Application developer creates scripts to submit
  jobs and retrieve results
• Provides sandbox on client
• No encryption uses redundant computing to
  prevent spoofing

32
Projects using BOINC

• Climateprediction.net study climate change
• Einstein_at_home search for gravitational signals
  emitted by pulsars
• LHC_at_home improve the design of the CERN LHC
  particle accelerator
• Predictor_at_home investigate protein-related
  diseases
• Rosetta_at_home help researchers develop cures for
  human diseases
• SETI_at_home Look for radio evidence of
  extraterrestrial life
• Cell Computing biomedical research (Japanese
  requires nonstandard client software)
• World Community Grid advance our knowledge of
  human disease. (Requires 5.2.1 or greater)

33
SETI_at_home

• Analysis of radio telescope data from Arecibo
• SETI search for narrowband signals
• Astropulse search for short broadband signals
• 0.3 MB in, 4 CPU hours, 10 KB out

34
Climateprediction.net

• Climate change study (Oxford University)
• Met Office model (FORTRAN, 1M lines)
• Input 10MB executable, 1MB data
• Output per workunit
• 10 MB summary (always upload)
• 1 GB detail file (archive on client, may upload)
• CPU time 2-3 months (can't migrate)
• trickle messages
• preemptive scheduling

35
Why use Desktop Grids?

• Desktop Grid solutions are typically complete
  standalone
• Easy to setup and manage
• Good entry vehicle to try out grids.
• Use existing (but underutilized) resources
• Number of desktops/workstations on campus (or in
  an enterprise) is typically an order of magnitude
  greater than traditional compute resources.
• Power of grid grows over time as new, faster
  desktops are added
• Typical (large) numbers of resources on desktop
  grids enable new approaches to solving problems
