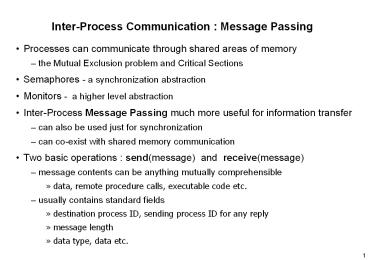

Inter-Process Communication Message Passing

Processes can communicate through shared areas of
memory
the Mutual Exclusion problem and Critical
Sections
Semaphores - a synchronization abstraction
Monitors - a higher level abstraction
Inter-Process Message Passing much more useful
for information transfer
can also be used just for synchronization
can co-exist with shared memory communication
Two basic operations send(message) and
receive(message)
message contents can be anything mutually
comprehensible
data, remote procedure calls, executable code
etc.
usually contains standard fields
destination process ID, sending process ID for
any reply
message length
data type, data etc.

Fixed-length messages
simple to implement - can have pool of
standard-sized buffers
low overheads and efficient for small lengths
copying overheads if fixed length too long
can be inconvenient for user processes with
variable amount of data to pass
may need a sequence of messages to pass all the
data
long messages may be better passed another way
e.g. FTP
copying probably involved, sometimes multiple
copying into kernel and out
Variable-length messages
more difficult to implement - may need a heap
with garbage collection
more overheads and less efficient, memory
fragmentation
more convenient for user processes

Communication links between processes
not concerned with physical implementation e.g.
shared memory, processor bus, network etc.
rather with issues of its logical implementation
Issues
how are links established?
can a link be associated with more than two
processes?
how many links can there be between every pair of
processes?
what is the capacity of a link?
i.e. buffer space and how much
fixed v. variable length messages
unidirectional v. bidirectional ?
can messages flow in one or both directions
between two linked processes
unidirectional if each linked process can either
send orreceive but not both and each link has at
least one receiver process connected to it

Naming of links - direct and indirect
communications
Direct
each process wanting to communicate must
explicitly name the recipient or sender of the
communication
send and receive primitives defined
send ( P, message ) send a message to process
P
receive ( Q, message ) receive a message from
process Q
a link established automatically between every
pair of processes that want to communicate
processes only need to know each others identity
link is associated with exactly two processes
link is usually bidirectional but can be
unidirectional
Process A Process B while (TRUE) while
(TRUE) produce an item receive ( A,
item ) send ( B, item ) consume
item

Asymmetric addressing
only the sender names the recipient
recipient not required to name the sender - need
not know the sender
send ( P, message ) send message to process
P receive ( id, message ) receive from any
process, id set to sender
Disadvantage of direct communications
limited modularity - changing the name of a
process means changing every sender and receiver
process to match
need to know process names
Indirect communications
messages sent to and received from mailboxes (or
ports)
mailboxes can be viewed as objects into which
messages placed by processes and from which
messages can be removed by other processes
each mailbox has a unique ID
two processes can communicate only if they have a
shared mailbox

send ( A, message ) send a message to mailbox
A receive ( A, message ) receive a message
from mailbox A
a communications link is only established between
a pair of processes if they have a shared mailbox
a pair of processes can communicate via several
different mailboxes if desired
a link can be either unidirectional or
bidirectional
a link may be associated with more than two
processes
allows one-to-many, many-to-one, many-to-many
communications
one-to-many any of several processes may
receive from the mailbox
e.g. a broadcast of some sort
which of the receivers gets the message?
arbitrary choice of the scheduling system if many
waiting?
only allow one process at a time to wait on a
receive
many-to-one many processes sending to one
receiving process
e.g. a server providing service to a collection
of processes
file server, network server, mail server etc.
receiver can identify the sender from the message
header contents

many-to-many
e.g. multiple senders requesting service and a
pool of receiving servers offering service - a
server farm
Mailbox Ownership
process mailbox ownership
only the process may receive messages from the
mailbox
other processes may send to the mailbox
mailbox can be created with the process and
destroyed when the process dies
process sending to a dead processs mailbox will
need to be signalled
or through separate create_mailbox and
destroy_mailbox calls
possibly declare variables of type mailbox
system mailbox ownership
mailboxes have their own independent existence,
not attached to any process
dynamic connection to a mailbox by processes
for send and/or receive

Buffering - the number of messages that can
reside in a link temporarily
Zero capacity - queue length 0
sender must wait until receiver ready to take the
message
Bounded capacity - finite length queue
messages can be queued as long as queue not full
otherwise sender will have to wait
Unbounded capacity
any number of messages can be queued - in virtual
space?
sender never delayed
Copying
need to minimise message copying for efficiency
copy from sending process into kernel message
queue space and then into receiving process?
probably inevitable in a distributed system
advantage that communicating processes are kept
separate
malfunctions localised to each process

direct copy from one process to the other?
from virtual space to virtual space?
message queues keep indirect pointers to message
in process virtual space
both processes need to be memory resident i.e.
not swapped out to disc, at time of message
transfer
shared virtual memory
message mapped into virtual space of both sender
and receiver processes
one physical copy of message in memory ever
no copying involved beyond normal paging
mechanisms
used in MACH operating system
Aside Machs Copy-on-Write mechanism (also used
in Linux forks)
single copy of shared material mapped into both
processes virtual space
both processes can read the same copy in physical
memory
if either process tries to write, an exception to
the kernel occurs
kernel makes a copy of the material and remaps
virtual space of writing process onto it
writing process modifies new copy and leaves old
copy intact for other process

Synchronized versus Asynchronous Communications
Synchronized
send and receive operations blocking
sender is suspended until receiving process does
a corresponding read
receiver suspended until a message is sent for it
to receive
properties
processes tightly synchronised - the rendezvous
of Ada
effective confirmation of receipt for sender
at most one message can be outstanding for any
process pair
no buffer space problems
easy to implement, with low overhead
disadvantages
sending process might want to continue after its
send operation without waiting for confirmation
of receipt
receiving process might want to do something else
if no message is waiting to be received

Asynchronous
send and receive operations non-blocking
sender continues when no corresponding receive
outstanding
receiver continues when no message has been sent
properties
messages need to be buffered until they are
received
amount of buffer space to allocate can be
problematic
a process running amok could clog the system with
messages if not careful
often very convenient rather than be forced to
wait
particularly for senders
can increase concurrency
some awkward kernel decisions avoided
e.g. whether to swap a waiting process out to
disc or not
receivers can poll for messages
i.e. do a test-receive every so often to see if
any messages waiting
interrupt and signal programming more difficult
preferable alternative perhaps to have a blocking
receive in a separate thread

Other combinations
non-blocking send blocking receive
probably the most useful combination
sending process can send off several successive
messages to one or more processes if need be
without being held up
receivers wait until something to do i.e. take
some action on message receipt
e.g. a server process
might wait on a read until a service request
arrived,
then transfer the execution of the request to a
separate thread
then go back and wait on the read for the next
request
blocking send non-blocking receive
conceivable but probably not a useful combination
in practice, sending and receiving processes will
each choose independently
Linux file access normally blocking
to set a device to non-blocking (already opened
with a descriptor fd)
fcntl ( fd, F_SETFL, fcntl ( fd, F_GETFL)
O_NDELAY )

Missing messages ?
message sent but never received
receiver crashed?
receiver no longer trying to read messages?
waiting receiver never receives a message
sender crashed?
no longer sending messages?
Crashing processes
kernel knows when processes crash
can notify waiting process
by synthesised message
by signal
terminate process

Time-outs
add a time-limit argument to receive
receive ( mailbox, message, time-limit )
if no message received by time-limit after
issuing the receive
kernel can generate an artificial synthesised
message saying time-out
could signal receiver process with a
program-error
allows receiver to escape from current program
context
sending process can also be protected using a
handshake protocol
sender
send (mailbox, message) receive (ackmail,
ackmess, time-limit)
receiver
receive (mailbox, message, time-limit) if (
message received in time ) send (ackmail, ackmess)

Lost messages
particularly relevant in distributed systems
OSs need to be resilient i.e. not crash either
the kernel or user processes
options
kernel responsible for detecting message loss and
resending
need to buffer message until receipt confirmed
can assume unreliability and demand receipt
confirmation within a time limit
sending process responsible for detecting loss
receipt confirmation within time-limit and
optional retransmit
kernel responsible for detecting loss but just
notifies sender
sender can retransmit if desired
long transmission delays can cause problems
something delayed a message beyond its time limit
but still in transit
if message retransmitted, multiple messages
flying about
need to identify messages e.g. serial numbers,
and discard any duplicates
scrambled message - checksums etc.
see Communications module!

Message Queuing order
first-come-first served
the obvious, simple approach
may not be adequate for some situations
e.g. a message to a print server from device
driver saying printer gone off-line
could use signals instead
a priority system
some types of message go to head of the queue
e.g. exception messages
user selection
allow receiving process to select which message
to receive next
e.g. from a particular process, to complete some
comms protocol
to select a message type
e.g. a request for a particular kind of service
(different mailbox better?)
to postpone a message type
an inhibit request (implemented in EMAS)
Authentication
of sending and receiving processes - signatures,
encryption etc.

17
Process Synchronization using Messages

A mailbox can correspond to a semaphore
non-blocking send blocking receive
equivalent to
signal (V) by sender wait (P) by receiver
Mutual Exclusion
initialize
create_mailbox (mutex) send (mutex,
null-message)
for each process
while (TRUE) receive (mutex,
null-message) critical section send
(mutex, null-message)
mutual exclusion just depends on whether mailbox
is empty or not
message is just a token, possession of which
gives right to enter C.S.

Producer / Consumer problem using messages
Binary semaphores one message token
General (counting) semaphores more than one
message token
message blocks used to buffer data items
scheme uses two mailboxes
mayproduce and mayconsume
producer
get a message block from mayproduce
put data item in block
send message to mayconsume
consumer
get a message from mayconsume
consume data in block
return empty message block to mayproduce mailbox

parent process creates message slots
buffering capacity depends on number of slots
created
slot empty message capacity buffering
capacity create_mailbox ( mayproduce
) create_mailbox ( mayconsume ) for (i0
iltcapacity i) send (mayproduce, slot) start
producer and consumer processes
producer
while (TRUE) receive (mayproduce,
slot) slot new data item send
(mayconsume, slot)
consumer
while (TRUE) receive (mayconsume,
slot) consume data item in slot send
(mayproduce, slot)

properties
no shared global data accessed
all variables local to each process
works on a distributed network in principle
producers and consumers can be heterogeneous
written in different programming languages - just
need library support
run on different machine architectures - ditto
Examples of Operating Systems with message
passing
EMAS - Edinburgh Multi-Access System
all interprocess comms done with messages
even kernel processes
system calls used messages
signals to processes used messages

QNX Real-Time Op. Sys.
tightly synchronised send and receive
after send, sending process goes into
send-blocked state
when receiving process issues a receive
message block shared between the processes
no extra copying or buffering needed
sending process changed to reply-blocked state
had the receiver issued a receive before sender
issued a send, receiver would have gone into
receive-blocked state
when receiver has processed the data, it issues a
reply, which unblocks the sender and allows it to
continue
which process runs first is left to the scheduler
in error situations, blocked processes can be
signalled
process is unblocked and allowed to deal with the
signal
may need an extra monitoring process to keep
track of which messages actually got through

MACH Op. Sys.
two mailboxes (or ports) created with each
process
kernel mailbox for system calls
notify mailbox for signals
message calls msg_send, msg_receive and msg_rpc
msg_rpc (remote procedure call) is a combination
of send and receive - sends a message and then
waits for exactly one return message
port_allocate creates a new mailbox
default buffering of eight messages
mailbox creator is its owner and is given receive
permission to it
can only have one owner at a time but ownership
can be transferred
messages copied into queue as they are sent
all with same priority, first-come-first-served
messages have fixed length header, variable
length data portion
header contains sender and receiver Ids
variable part a list of typed data items
ownership receive rights, task states, memory
segments etc.

when message queue full, sender can opt to
wait indefinitely until there is space
wait at most n milleseconds
do not wait at all, but return immediately
temporarily cache the message
kept in the kernel, pending
one space for one such message
meant for server tasks e.g. to send a reply to a
requester, even though the requestors queue may
be full of other messages
messages can be received from either one mailbox
or from one of a set of mailboxes
port_status call returns number of messages in a
queue
message transfer done via shared virtual memory
if possible to avoid copying
only works for one system, not for a distributed
system

Linux Op. Sys. IPC
shared files, pipes, sockets etc.
Shared files
one process writes / appends to a file
other process reads from it
properties
any pair of process with access rights to the
file can communicate
large amounts of data can be transferred
synchronisation necessary
Pipes
kernel buffers for info transfer, typically 4096
bytes long, used cyclically
e.g. used by command shells to pipe output from
one command to input of another ls wc -w
command shell forks a process to execute each
command
normally waits until sub-process terminates
before continuing
but continues executing if appended to
command line

include ltunistd.hgt include
ltstdio.hgt main() int fda2 // file
descriptors 0 read end, 1 write end char
buf1 // data buffer if ( pipe(fda) lt 0 )
error (create pipe failed\n) switch (
fork() ) // fork an identical
sub-process case -1 error (fork
failed\n) case 0 // child process is pipe
reader close ( fda1 ) // close write of
pipe read ( fda0, buf, 1 ) // read a
character printf (c\n, buf0
) break default // parent process is pipe
writer close ( fda0 ) // close read end
of pipe write (fda1, a, 1) // write a
character break
fork returns 0 to child process, sub-process ID
to parent
by default write blocks when buffer full, read
blocks when buffer empty

Aside I/O Redirection
used by a command shell
dup() system call duplicates a file descriptor
using first available table entry
example dup() file descriptor number 2
example on next slide ls wc -w
ls executed by child process, wc executed by
parent process
file descriptors manipulated with close() and
dup() so that pipe descriptors become standard
output to ls and standard input to wc
execlp replaces current process with the
specified command

file descriptors
open file descriptors
file descriptors
open file descriptors
0
0
1
1
2
2
3
3
27

include ltunistd.hgt include
ltstdio.hgt main() int fda2 // file
descriptors if ( pipe(fda) lt 0 ) error
(create pipe failed\n) switch ( fork() )
// fork an identical sub-process case -1
error (fork failed\n) case 0 // run ls in
child process close (1) // close
standard output dup ( fda1 ) //
duplicate pipe write end close ( fda1
) // close pipe write end close ( fda0
) // close pipe read end execlp (ls,
ls, 0) // execute ls command error
(failed to exec ls\n) // should not get
here break default // run wc in
parent close (0) // close standard
input dup (fda0 ) // duplicate pipe
read end close ( fda0 ) // close read
end of pipe close (fda1 ) // close
write end of pipe execlp (wc, wc, -w,
0) // execute wc command error (failed to
execute4 wc\n) break

redirection to file similarly
closing standard input and output descriptors
followed by opening the redirection files to
re-use the standard I/O descriptor numbers
example cat ltfile1 gtfile2
include ltstdio.hgt include ltsys/stat.hgt inc
lude ltfcntl.hgt define WRFLAGS (O_WRONLY
O_CREAT O_TRUNC) define MODE600 (S_IRUSR
S_IWUSR) main() close (0) // close
standard input if (open(file1, O_RDONLY)
-1) error(open input file failed\n) close
(1) // close standard output if
(open(file2, WRFLAGS, MODE600) -1)
error(open output failed\n) execlp (cat,
cat, 0) // execute cat command error(faile
d to execute cat\n)

FIFOs - Named Pipes
can be used by any set of processes, not just
forked from a common ancestor which created the
anonymous pipe
FIFO files have names and directory links
created with a mknod command or system call
define MYNODE (S_IFIFO S_IRUSR
S_IWUSR) mknod (myfifo, MYMODE, 0)
can be opened and used by any process with access
permission
same functionality as anonymous pipes with
blocking by default
concurrent writers are permitted
writes of up to 4096 bytes are guaranteed to be
atomic
System V Unix Compatibility
shared memory - shmget() creates a sharable
memory segment identified by an ID which can be
used by any other process by attaching it with a
shmat() system call
semaphores (extremely messy!) and messages also
available
see Advanced Programming in the UNIX
Environment by W.R. Stevens

Sockets
intended for communications across a distributed
network
uses the connectionless Internet Protocol and IP
addresses at the lowest level e.g. 129.215.58.7
datagram packets transmitted to destination IP
host
User Datagram Protocol (UDP) or Transmission
Control Protocol (TCP) at the application level
TCP is a connection based protocol, with order of
packet arrival guaranteed
a socket is a communication end-point
once a TCP-socket connection between two
processes is made, end-points made to act like
ordinary files, using read() and write() system
calls.

a Client-Server system
creating a socket
sd socket ( family, type, protocol )
binding to a local address
bind ( sd, IP address, addrlen ) // address
includes port number connection by client process
connect ( sd, IP address, addrlen ) // servers
IP address
server listens for client connection requests
listen ( sd, queuelen ) // number of requests
that can be queued
and accepts the request
newsd accept ( sd, IP address, addrlen )
accept() normally blocks if no client process
waiting to establish a connection
can be made non-blocking for server to enquire
whether any clients waiting
connectionless communication with UDP datagram
sockets also possible using sendto() and
recvfrom() system calls

// Server-side socket demo progaminclude
ltfcntl.hgtinclude ltlinux/socket.hgtinclude
ltlinux/in.hgtinclude lterrno.hgtvoid
close_socket(int sd) int cs if ((cs
close(sd)) lt 0) printf(close socket failed
s\n, strerror(errno)) exit(1) define
SERVER (129ltlt24 215ltlt16 58ltlt8 7)define
MESSAGELEN 1024define SERVER_PORT 5000void
main() int ssd, csdstruct sockaddr_in server,
clientint sockaddrlen, clientlen, cachar
messageMESSAGELENint messagelen sockaddrlen
sizeof(struct sockaddr_in)

// create socket if ((ssd socket (AF_NET,
SOCK_STREAM, 0)) lt 0) printf(socket create
failed s\n, strerror(errno)) exit(1)
else printf(server socket created, ssd d\n,
ssd) // bind socket to me server.sin_family
AF_INET server.sin_port htons(SERVER_PORT) /
/ big/little-endian conversion server.sin_addr.s_
addr htonl(SERVER) bzero(server.sin_zero,
8) if (bind(ssd, (struct sockaddr ) server,
sockaddrlen) lt 0) printf(server bind failed
s\n, strerror(errno)) exit(1) //
listen on my socket for clients if (listen(ssd,
1) lt 0) printf(listen failed s\n,
strerror(errno)) close_socket(ssd) exit(1)
// make socket non-blocking fcntl(ssd,
F_SETFL, fcntl(ssd, F_GETFL) O_NDELAY)

// accept a client (non-blocking) clientlen
sockaddrlen while ((csd accept(ssd, client,
clientlen)) lt 0) if (errno EAGAIN)
printf(no client yet\n) sleep(1) //
wait a sec else printf(accept failed
s\n, strerror(errno)) close_socker(ssd)
exit(1) ca ntohl(client.sin_addr.s_addr)
printf(client accepted, csd d, IP
d.d.d.d\n, csd, (cagtgt24)255,
(cagtgt16)255, (cagtgt8)255, ca255) // send
message to client sprintf(message, Server
calling client hi!\n) messagelen -
strlen(message)1 if (write(csd, message,
messagelen) ! messagelen) printf(write
failed\n) close_socket(ssd) exit(1)
else printf(message sent to client\n) //
receive message from client if (read(csd,
message, MESSAGELEN) lt 0) if (errno
EAGAIN)

printf(no client message yet\n) sleep(1)
else printf(read failed s\n,
strerror(errno)) close_socket(ssd) exit(1)
printf(client message was\ns,
message) close_socket(ssd)

// Client-side socket demo programinclude
ltfcntl.hgtinclude ltlinux/socket.hgtinclude
ltlinux/in.hgtinclude lterrno.hgtvoid
close_socket(int sd) int cs if ((cs
close(sd)) lt 0) printf(close socket failed
s\n, strerror(errno)) exit(1) define
SERVER (129ltlt24 215ltlt16 58ltlt8 7)define
MESSAGELEN 1024define SERVER_PORT 5000void
main() int ssd, csdstruct sockaddr_in server,
clientint sockaddrlen, clientlen, cachar
messageMESSAGELENint messagelen sockaddrlen
sizeof(struct sockaddr_in)

// server address server.sin_family
AF_INET server.sin_port htons(SERVER_PORT) s
erver.sin_addr.s_addr htonl(SERVER) for ()
//create socket if ((csd socket(AF_INET,
SOCK_STREAM, 0)) lt 0) printf(client socket
create failed s\n, strerror(errno)) exit(1)
else prinf(client socket create, csd
d\n, csd) // try to connect to server if
(connect(csd, (struct sockaddr ) server,
sockaddrlen) lt 0) printf(connect failed
s\n, strerror(errno)) // need to destroy
socket before trying to connect
again close_socket(csd) sleep(1) else
break
printf(connected to server\n) // make
socket non-blocking fcntl(csd, F_SETFL,
fcntl(csd, F_GETFL) O_NDELAY)

// receive a message from server while
(read(csd, message, MESSAGELEN) lt 0) if
(errno EAGAIN) printf(no server message
yet\n) sleep(1) else printf(read
failed s\n, strerror(errno)) close_socket(c
sd) exit(1) printf(server message
was\ns, message) // send a message to
server sprintf(message, Client calling server
ho!\n) messagelen strlen(message)1 if
(write(csd, message, messagelen) ! messagelen)
printf(write failed\n) close_socket(csd)
exit(1) else printf(message sent to
server\n) close_socket(csd)

Signals
the mechanism whereby processes are made aware of
events occurring
asynchronous - can be received by a process at
any time in its execution
examples of Linux signal types
SIGINT interrupt from keyboard
SIGFPE floating point exception
SIGKILL terminate receiving process
SIGCHLD child process stopped or terminated
SIGSEGV segment access violation
default action is usually for kernel to terminate
the receiving process
process can request some other action
ignore the signal - process will not know it
happened
SIGKILL and SIGSTOP cannot be ignored
restore signals default action
execute a pre-arranged signal-handling function
process can register a function to be called
like an interrupt service routine

when the handler returns, control is passed back
to the main process code and normal execution
continues
to set up a signal handler
include ltsignal.hgt include ltunistd.hgt void
(signal(int signum, void (handler)(int)))(int)
signal is a call which takes two parameters
signum the signal number
handler a pointer to a function which takes a
single integer parameter and returns nothing
(void)
return value is itself a pointer to a function
which
takes a single integer parameter and returns
nothing
example
gets characters until a newline typed, then goes
into an infinite loop
uses signals to count ctrl-cs typed at keyboard
until newline typed

include ltstdio.hgt include ltsignal.hgt include
ltunistd.hgt int ctrl_C_count 0 void (
old_handler)(int) void ctrl_c(int) main ()
int c old_handler signal (SIGINT, ctrl_c
) while ((c getchar()) !
\n) printf(ctrl_c count d\n,
ctrl_c_count) (void) signal (SIGINT,
old_handler)
for () void ctrl_c(int signum)
(void) signal (SIGINT, ctrl_c) // signals
are automatically reset ctrl_c_count
see also the POSIX sigaction() call - more
complex but better
