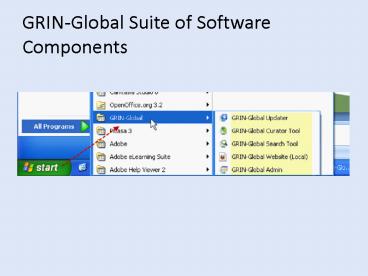

GRIN-Global Suite of Software Components

1
GRIN-Global Suite of Software Components
2
Updater
3
GRIN-Global Environment
4
Curator Tool
5
Search Tool
6
Public Website
7
Admin Tool
8
Alternative GG Configurations
More details on the next two slides
9
GG System Architecture Overview Distributed
Genebank AAA
Admin Tool
Genebank BBB
Middle Tier /Web services
Organization Central Location
Genebank CCC
Search Engine
Client SuiteUpdater,Curator Tool,Search Tool
Genebank DDD
10
GG System Architecture Overview One PC
Self-contained in a Personal Computer
GRIN-Global Tools
HTML
Curator Tool
XML
XML
Search Tool
GRIN-Global Tools
GG Lookup Tables
XML
Updater
MS SQL Server
Database Engines
gringlobal
AdministratorTool
MS SQL Server, MySQL, Oracle, PostgreSQL
11
Microsoft Components
12
