Data Abstraction and Encapsulation

1

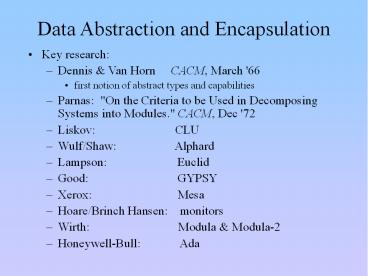

Data Abstraction and Encapsulation

• Key research
• Dennis Van Horn CACM, March '66
• first notion of abstract types and capabilities
• Parnas "On the Criteria to be Used in
  Decomposing Systems into Modules." CACM, Dec '72
• Liskov CLU
• Wulf/Shaw Alphard
• Lampson Euclid
• Good GYPSY
• Xerox Mesa
• Hoare/Brinch Hansen monitors
• Wirth Modula
  Modula-2
• Honeywell-Bull Ada

2
Parnas's Principles

• One must provide the intended user with all the
  information needed to use the module and nothing
  more.
• One must provide the implementer with all the
  information needed to complete the module and
  nothing more.

3
Data Abstraction

• Emphasis on behavior (operations capture
  behavior)
• Implementation is not important to user of
  abstraction
• In order to support data abstraction, language
  must provide
• linguistic construct
• permits abstraction to be implemented as a unit
• supports representation specification
• ways to limit access to object
• access should only be to defined operations
• no access to representation
• --gt clusters, modules, forms, packages,
  classes...

4
Simple - Data Only

• package earth is type continent is
  (Africa, Antarctica, Asia, Australia, Europe,
  NorthAmerica,
• SouthAmerica) radius constant float
  6.4e6 area constant array (continent) of
  float (30.3e9, 13.0e9, 43.3e9, 7.7e9,
  10.4e9, 24.9e9, 17.8e9) population array
  (continent) of integerend earth

Logical clustering
5
Information Hiding

• package trig is
• function sin(x float) return Float
• function cos(x float) return Float
• end trig
• package body trig is
• pi constant Float 3.14159
• function norm(x float) return float is
• ... - return x modulo 2pi
• function sin(x float) return float is
• ... --return the sine of norm(x)
• function cosine (x float) return float is
• ... --return the cosine of norm(x)
• end trig

6
Simple Objects
- Creates one directory - exports two procs that
can operate on directory - directory itself
hidden from access

• package directory_object is
• procedure insert(newname in Name
• newnumber in Number)
• procedure lookup(oldname in Name
• oldnumber out Number
• found out Boolean)
• end directory_object
• package body directory_object is
• type Dirnode
• type Dirptr is access Dirnode
• type Dirnode is record
• entryname Name
• entrynumber Number
• left, right Dirptr
• end record
• root dirptr

Implements a directory
7
(cont) Simple Objects

• procedure insert(newname in Name newnumber
  in Number) is
• ... -- add new newname, newnumber to the
  directory
• procedure lookup(oldname in Name
• oldnumber out Number
• found out Boolean)
• ... -- find oldname entry in directory
• begin
• ... -- initialize the directory
• end directory_object
• - - - - - - - - - - - - - - - - - -
• directory-object.insert (me, 41039)
• ...
• directory_object.lookup (me, mynumber, ok)

Operations user can perform on directory
8
Object Classes

• generic package directory_class is
• procedure insert(newname in Name newnumber
  in Number)
• procedure lookup(oldname in Name oldnumber
  out Number found out Boolean)
• end directory_class
• package body directory_class is
• type Dirnode
• type Dirptr is access Dirnode
• type Dirnode is record
• entryname Name
• entrynumber Number
• left, right Dirptr
• end record
• root dirptr

Describes an instance of a directory
9
(cont) Object Classes

• procedure insert(newname in Name newnumber
  in Number) is
• ... -- add new newname, newnumber to the
  directory
• procedure lookup(oldname in Name oldnumber
  out Number
• found out Boolean)
• ... -- find oldname entry in directory
• begin
• ... -- initialize the directory
• end directory_class
• - - - - - - - - - - - - - - - - - -
• package homedir is new directory_class
• package workdir is new directory_class
• workdir.insert (me, 41039)
• homedir.insert (me, 30570)
• workdir.lookup (me, mynumber, ok)

Derived objects
No notion of inheritance
10
Abstract Types - Motivation

• datatype rational rat of (int int)
• val zero rat (0, 1)
• and one rat (1, 1)
• fun op (rat(m1, n1) rational,
• rat(m2, n2) rational)
• rat (m1n2 m2n1, n1n2)
• - - - - - - - - - - - - - - - - - - - - - - -
• rat(3,2) --creates rational number 3/2
• rat(6,4) --creates rational number 6/4

11
Abs Types - (cont) Motivation
Wont test although it should

• if one rat(1,2) rat (6,4) then ... else ...
• rat(0,0) -- no corresponding
• rat(1,0) -- rational numbers!
• - - - - - - - - - - - - - - - - - - - - - - - -
• Have Rational rat(m,n) m,n integer
• Desire Rational rat(m,n) m,n integer ngt0
• m,n have no common factor
• -- a type based on a (representation)
  type that does not exist
• -- in common languages.
• abstract type based on a set of operations
  constants, functions and procedures -- values
  defined only indirectly.

12
Abstract Types - Example

• abstype rational rat of (int int)
• with
• val zero rat (0, 1)
• and one rat (1, 1)
• fun op // (m int, n int)
• if n ltgt 0
• then rat(m,n)
• else ... -- invalid rational
  number
• and op (rat(m1, n1) rational, rat(m2,
  n2) rational)
• rat (m1n2 m2n1, n1n2)

13
Abs Types (cont) Example

• and op (rat(m1, n1) rational, rat(m2, n2)
  rational)
• (m1n2 m2n1)
• and float (rat(m,n) rational)
• m / n
• end
• - - - - - - - - - - - - - - - - - - - - - - -
• val h 1//2 --creates rational number 1/2
• val i 6//4 --creates rational number 6/4
• if one h i then ... else ...
• -- now this works

14
Another Abstract Type

• package directory_type is
• type Directory is limited private
• procedure insert(dir in out Directory
  newname in Name
• newnumber in Number)
• procedure lookup(dir in Directory oldname
  in Name
• oldnumber out Number found out Boolean)
• private
• type Dirnode
• type Directory is access Dirnode
• type Dirnode is record ... end record
• end directory_type

Implementation details in a specification!
15
Another Abstract Type (cont)

• package body directory_type is
• procedure insert(dir in out Directory
  newname in Name
• newnumber in Number) is
• ... -- add new newname, newnumber to dir
• procedure lookup(dir in Directory oldname
  in Name
• oldnumber out Number found
  out Boolean)
• ... -- find oldname entry in dir
• end directory_type

16
Using directory_type

• use directory_type -- allows dropping dot
  notation
• homedir Directory
• workdir Directory
• . . .
• insert (workdir, me, 41039)
• insert (homedir, me, 97548)
• ...
• lookup (workdir, me, mynumber, ok)

17
Objects and Abstract Types

• Abstract types are similar to built-in types and
  have first-class status values of the type are
  first-class. Objects, in general, are not. In
  object example, homedir and workdir couldn't be
  passed as arguments, for e.g.
• Abstract type notation is more natural values
  and variables of the type are arguments rather
  than dot-notated prefixes.
• Abstract types work in all programming paradigms.
  Objects, being updatable entities, fit the
  imperative programming style.

18
Generics

• generic
• capacity in positive
• type Item is private
• package queue_class is
• procedure append(newitem in Item)
• procedure remove(olditem out Item)
• end queue_class

19
More Generics

• package body queue_class is
• items array (1..capacity) of Item
• size, front, rear Integer range 0..capacity
• procedure append(newitem in Item) is
• begin
• ... items(rear) newitem ...
• end
• procedure remove(olditem out Item) is
• begin
• ... olditem items(front) ...
• end
• end
• begin
• front 1 rear 0
• end queue_class

20
Using queue_class

• package line_buffer is new queue_class(120,
  Character)
• type Transaction is record ... end record
• package audit_trail is new queue_class(100,
  Transaction)
• T Transaction
• . . .
• line_buffer.append('')
• . . .
• audit_trail.remove(T)

21
Generics with Dependent Types

• generic
• type Item is private
• type Sequence is array (Integer range ltgt) of
  Item
• with function precedes (x,y Item) return
  Boolean
• package sorting is
• procedure sort(seq in out Sequence)
• procedure merge(seq1, seq2 in out Sequence
• seq out Sequence)
• end sorting

22
Sorting (body)

• package body sorting is
• procedure sort(seq in out Sequence) is
• begin
• ... if precedes(seq(i), seq(j)) then
  ... ...
• end
• procedure merge(seq1, seq2 in out Sequence
• seq out Sequence) is
• begin ... end
• end sorting

23
Using Generic

• type Float_sequence is array(Integer range ltgt) of
  Float
• package ascending is new sorting(Float,
  Float_sequence, "lt")
• package descending is new sorting(Float,
  Float_sequence, "gt")
• . . .
• type Trans_sequence is array(Integer range ltgt) of
  Transaction
• function earlier(t1, t2 Transaction) return
  Boolean is
• ... --return true if t1 precedes t2
• end earlier
• package transaction_sorting is new
  sorting(Transaction,
•
  Trans_sequence, earlier)

24
Arguments in Ada

• Procedure/Function Generic
• abstraction abstraction
• argument type
• First class value yes yes
• Reference to a variable yes yes
• Procedure/function abstraction no yes
• type no yes
• Oddity that Ada does not allow procedure/function
  arguments to procedures and functions.
• Not unusual to not allow type parameters to
  procedures/functions.
