Distributed Scheduling In Sombrero, A Single Address Space Distributed Operating System

1

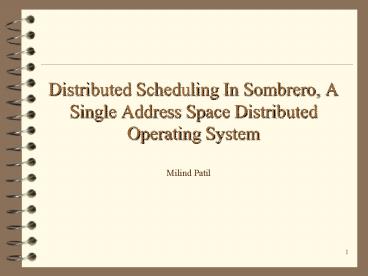

Distributed Scheduling In Sombrero, A Single
Address Space Distributed Operating System
Milind Patil
2
Contents

• Distributed Scheduling
• Features of Sombrero
• Goals
• Related Work
• Platform for Distributed Scheduling
• Distributed Scheduling Algorithm (Simulation)
• Scaling of the Algorithm (Simulation)
• Initiation of Porting to Sombrero Prototype
• Testing
• Conclusion
• Future Work

3
Distributed Scheduling

• A distributed scheduling algorithm provides for
  sharing as well as better usage of resources
  across the system.
• The algorithm will allow threads in the
  distributed system to be scheduled among the
  different processors in such a manner that CPU
  usage is balanced.

4
Features of Sombrero
Distributed scheduling in Sombrero takes
advantage of the distributed SASOS features

• The shared memory inherent to a distributed SASOS
  provides an excellent mechanism to distribute
  load information of the nodes in the system
  (information policy).
• The ability of threads to migrate in a simple
  manner across machines has a potentially
  far-reaching affect on the performance of the
  distributed scheduling mechanism.

5
Features of Sombrero (contd.)

• The granularity of migration is a thread not a
  process. This allows the distributed scheduling
  algorithm to have a flexible selection policy
  (determines which thread is to be transferred to
  achieve load balancing).
• This feature also reduces the software complexity
  of the algorithm.

6
Goals

• Platform for Distributed Scheduling
• Simulation of Distributed Scheduling Algorithm
• Scaling of the Algorithm (Simulation)
• Initiation of Porting to Sombrero Prototype

7
Related Work

• Load-Balancing Algorithms for
• Sprite
• PVM
• Condor
• UNIX

8
Requirements

• A working prototype of Sombrero is needed that
  has the ability to manage extremely large data
  sets across a network in a distributed single
  address space.
• A functional prototype is needed which implements
  essential features such as protections domains,
  Sombrero thread support, token tracking support,
  etc.
• The prototype is under construction and not
  available as development platform. Windows NT is
  used since the prototype is being developed on it.

9
Sombrero Node
Architecture of Sombrero Nodes
10
Sombrero Clusters
The Sombrero system is organized into hierarchies
of clusters for scalable distributed scheduling.
11
Sombrero Router
Architecture of Sombrero Routers
12
Inter-node Communication
Sombrero nodes communicate with each other
through the routers.
13
Router Tables
Router 0x1
14
Router Tables(contd.)
Router 0x3
15
Address Space Allocation
This project implements an address space
allocation mechanism to distribute the 264 bytes
address space amongst the nodes in the
system. Example- Consider a system of four
Sombrero nodes (A, B, C and D). The nodes come
online for the very first time in the order - A,
B , C and D.
16
Address Space Allocation(contd.)

• The address space allocated for the nodes when A
  is initialized will be
• A 0x0000000000000000 0xfffffffffffffff
• The address space allocated for the nodes when B
  is initialized will be
• A 0x0000000000000000 0x7fffffffffffffff
• B 0x8000000000000000 0xffffffffffffffff

17
Address Space Allocation(contd.)

• The address space allocated for the nodes when C
  is initialized will be
• A 0x0000000000000000 0x3fffffffffffffff
• B 0x8000000000000000 0xffffffffffffffff
• C 0x4000000000000000 0x7fffffffffffffff
• The address space allocated for the nodes when D
  is initialized will be
• A 0x0000000000000000 0x3fffffffffffffff
• B 0x8000000000000000 0xffffffffffffffff
• C 0x4000000000000000 0x5fffffffffffffff
• D 0x6000000000000000 0x7fffffffffffffff

18
Load Measurement

• A nodes workload can be estimated based on some
  measurable parameters
• Total number of threads on the node at the time
  of load measurement.
• Instruction mixes of these threads (I/O bound or
  CPU bound).

19
Load Measurement (contd.)
Work Load ?i (pi ? fi)
p ? processor utilization of a thread f ?
heuristic factor (adjusts the importance of
thread depending on how it is being used) The
heuristic factor f should have a large value
for I/O intensive threads and a small value for
CPU intensive threads. The values of the
heuristic factor can be empirically determined by
using a fully functional Sombrero prototype.
20
Load Measurement - Simulation

• In the simulation we assume that the processor
  utilization of all threads is the same
• This is sufficient to prove the correctness of
  the algorithm
• The measure of load at the node level is the
  number of Sombrero threads.
• A threshold policy has been defined
• high--number of Sombrero threads ? HIGHLOAD
• low--number of Sombrero threads lt MEDIUMLOAD
• medium--number of Sombrero threads lt HIGHLOAD and
  number of Sombrero threads ? MEDIUMLOAD

21
Load Tables

• Shared memory is used to distribute load
  information. (In Sombrero the shared memory
  consistency is managed by the token tracking
  mechanism)
• One load table is needed for each cluster.
• Thresholds of load have been established to
  minimize the exchange of load information in the
  network. Only threshold crossings are recorded in
  the load table.

22
Distributed Scheduling Algorithm
Highly loaded nodes in minority Sender Initiated
Algorithm
Lightly loaded nodes in minority Receiver
Initiated Algorithm
23
Distributed Scheduling Algorithm
The algorithm used is dynamic i.e. sender
initiated at lower loads and receiver initiated
at higher loads. 1. Nodes loaded in the medium
range do not participate in load balancing. 2.
The load balancing is not to be done if the node
belongs to the majority (larger of the groups of
highly or lightly loaded nodes).
24
Distributed Scheduling Algorithm

• 3. Load balancing is to be done if node belongs
  to the minority (smaller of the groups of highly
  or lightly loaded nodes).
• The node is heavily loaded and the algorithm is
  sender initiated- choose a lightly loaded node
  at random and the RGETTHREADS message protocol is
  followed for thread migration.
• The node is lightly loaded and the algorithm is
  receiver initiated- choose a highly loaded node
  at random and the GETTHREADS message protocol is
  followed for thread migration.

25
Scaling the Algorithm

• Aggregating the clusters provides scalability.
• Thresholds for clusters are defined as given
• high - no cluster members are lightly loaded
  and at least one member is highly loaded
• low - no cluster members are highly loaded and
  at least one member is lightly loaded
• medium - all other cases of loads where load
  balancing can occur within the cluster members or
  when all members of the cluster are medium loaded

26
Scaling the Algorithm
1. At any level of cluster only the nodes
belonging to the minority group at that level
will be active. 2. Load balancing at an nth
level cluster will be attempted every
(n?SOMECONSTANT) times the number of unsuccessful
attempts at the node level. 3. A suitable nth
level target cluster is found through the
corresponding load table and the TRANSFERREQUEST
message protocol is followed for thread migration.
27
Testing Eight Nodes
Cluster of highly loaded nodes, of medium
loaded nodes, of lightly loaded nodes
28
Testing Three Clusters
29
Testing Six Clusters at Two Levels
30
Conclusion

• The testing of distributed scheduling using the
  simulator verifies that the algorithm functions
  correctly.
• It is observed that the increase in number of
  messages is proportional to the increase in
  number of heavily loaded nodes.
• The number of messages required for load
  balancing at the first level and above is the
  same if the ratio of heavily and lightly loaded
  nodes is kept constant at both levels.

31
Conclusion (contd.)

• Only one additional load table is required per
  additional cluster. Hence, the required number of
  messages is expected to increase by a small
  constant factor as the level of clustering
  increases.
• It can be concluded that the algorithms
  complexity is O(n) where n is the number of
  highly loaded nodes.

32
Future Work

• Porting of code from NT to Sombrero for the
  Sombrero node - communication code.
• Changing definition of load measurement to the
  more general formula.
• Reuse code from the Sombrero router.
• Adaptive cluster forming algorithm.

33
Acknowledgements
Dr. Donald Miller Dr. Rida Bazzi Dr. Bruce
Millard Mr. Alan Skousen Mr. Raghavendra
Hebbalalu Mr. Ravikanth Nasika Mr. Tom Boyd
