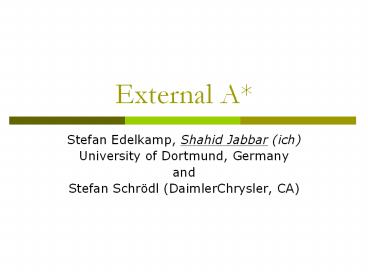

External A*

1
External A

• Stefan Edelkamp, Shahid Jabbar (ich)
• University of Dortmund, Germany
• and
• Stefan Schrödl (DaimlerChrysler, CA)

2
A Algorithm

• A.k.a Goal-directed dijkstra
• A heuristic estimate is used to guide the search.

• E.g. Straight line distance from the current node
  to the goal in case of a graph with a geometric
  layout.
• Reweighting
• w(u,v) w(u,v) h(u) h(v)

3
Problems (Its a big big world for a small small
memory)

• A needs to store all the states during
  exploration.
• A generates large amount of duplicates that can
  be removed using an internal hash table only if
  it can fit in the main memory.
• A do not exhibit any locality of expansion. For
  large state spaces, standard virtual memory
  management can result in excessive page faults.

4
A bit of History

• Munagala and Ranade
• Generated states flushed to the disk for every
  BFS level.
• No hash table.
• Duplicates are removed by sorting the nodes
  according to the indices and doing an scan and
  compaction phase.
• Before expanding a layer t, the nodes in the
  layer t-1 and t-2 are subtracted from t.
• O(V sort(V E)) I/Os.

5
A bit of History (contd)

• Further improved by Mehlhorn Meyer to
• O(v(V scan(V E)) sort(V E))
  I/Os.
• Korf presented External BFS for implicit graphs
  with the name Delayed duplicate detection for
  frontier search.
• Keep a level in the main memory until it exceeds
  a certain bound.
• If it does, sort it and flush to the disk.
• When a level is finished, merge the presorted
  buffers to get a sorted file and remove the
  duplicates

6
Restriction on the domain

• Implicit state space generated on the fly gt no
  adjacency list
• Unweighted
• Undirected
• Consistent Heuristic

7
Take a closer look
Ah ha! Its a Bucket of states
h

• Implicit, unweighted, undirected graphs
• Consistent
• heurisitc
• estimates.
• gt ?h -1,0,1

0 1 2 3 4 5 6






0
1
2
3
4
5
g
8
Bucket

• A Bucket is a set of states, residing on the
  disk, having the same (g, h) value,
• Where, g number of transitions needed to
  transform the initial state to the states of the
  bucket,
• and h Estimated distance of the buckets state
  to the goal
• No state is inserted again in a bucket that is
  expanded
• If Active (being read or written), represented
  internally by a small buffer.

9
External A

• Buckets represent temporal locality cache
  efficient order of expansion.
• If we store the states in the same bucket
  together we can exploit the spatial locality.
• Munagala and Ranades BFS and Korfs delayed
  duplicate detection for implicit graphs.

External A
10
External A - pseudocode

• Procedure External A
• Bucket(0, h(I)) ? I
• fmin ? h(I)
• while (fmin ? 8)
• g ? mini Bucket(i, fmin - i) ? ?
• while (gmin fmin)
• h ? fmin - g
• Bucket(g, h) ? remove duplicates from
  Bucket(g, h)
• Bucket(g, h) ? Bucket(g, h) \
• (Bucket(g - 1, h) U Bucket(g - 2, h)) //
  Subtraction
• A(fmin),A(fmin 1),A(fmin 2) ? N(Bucket(g,
  h)) // Generate Neighbours
• Bucket(g 1, h 1) ? A(fmin 2)
• Bucket(g 1, h) ? A(fmin 1) U
  Bucket(g 1, h)
• Bucket(g 1, h - 1) ? A(fmin) U Bucket(g
  1, h - 1)
• g ? g 1
• fmin ? mini j gt fmin Bucket(i, j) ? ? U
  8

11
Complexity Analysis

• Internal A gt Each edge is looked at most once.
• Duplicates Removal
• Sorting the green bucket having one state for
  every edge from the 3 black buckets.
• Scanning and compaction.
• O(sort(E))
• Subtraction
• Removing states of orange buckets (duplicates
  free) from the green one.
• O(scan(V) scan(E))

12
I/O Performance of External A

• Theorem The complexity of External A in an
  implicit unweighted and undirected graph with a
  consistent estimate is bounded by O(sort(E)
  scan(V)) I/Os.

13
15-Puzzle
1 3 2
4 5 6 7
8 15 10 11
12 13 14 9
1 2 3
4 5 6 7
8 9 10 11
12 13 14 15
14
Experimental Results Test Instances
S. No. Instance Init. Estimate Opt. Sol. Length
1 0 2 1 3 5 4 6 7 8 9 10 11 12 13 14 15 4 16
2 0 1 2 3 5 4 7 6 8 9 10 11 12 13 14 15 4 24
3 0 2 1 3 5 4 7 6 8 9 13 11 12 10 14 15 10 30
4 (12) 14 1 9 6 4 8 12 5 7 2 3 0 10 11 13 15 35 45
5 (16) 1 3 2 5 10 9 15 6 8 14 13 11 12 4 7 0 24 42
6 (14) 7 6 8 1 11 5 14 10 3 4 9 13 15 2 0 12 41 59
7 (60) 11 14 13 1 2 3 12 4 15 7 9 5 10 6 8 0 48 66
8 (88) 15 2 12 11 14 13 9 5 1 3 8 7 0 10 6 4 43 65
15
Test Run Generated states
16
Test Run - Duplicates
17
Exp. Results Generated nodes
S.No. IDA External A gain Space (GB)
4 546,344 493,990 9.58 0.003
5 17,984,051 5,180,710 71.2 0.039
6 1,369,596,778 297,583,236 78.3 2.2
7 3,337,690,331 2,269,240,000 32 16.91
8 6,009,130,748 2,956, 384,330 50.8 22
18
Cache-Efficient Behaviour
File on disk
Internal Buffers
CPU
19
Conclusion

• A for secondary storage with an I/O complexity
  of O(sort(E) scan(V)) .
• Given that Delayed Duplication Detection has to
  be performed, the bound is I/O optimal.
• File-based priority queue.
• Hash table replaced by Delayed Duplicate
  Detection.
• Successfully implemented to solve Korfs Largest
  instance in secondary memory.
• In case of non-uniformly weighted graphs with
  small integer weights in 1, , C.
• O(sort(E) C scan(V))
