Title: The search for continuous gravitational waves: analyses from LIGO

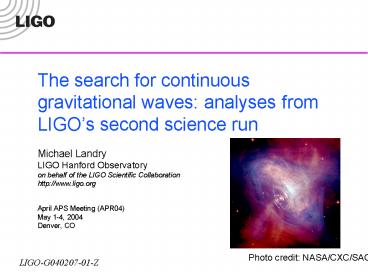

1
The search for continuous gravitational waves
analyses from LIGOs second science run Michael
LandryLIGO Hanford Observatoryon behalf of the
LIGO Scientific Collaborationhttp//www.ligo.org
April APS Meeting (APR04)May 1-4,
2004Denver, CO
Photo credit NASA/CXC/SAO
2
Talk overview
  • Introduction to continuous wave (CW) sources
  • CW search group analysis efforts
  • Review of first science run (S1) results, and a
    look at expectations of the S2 run
  • Time-domain analysis method
  • Injection of fake pulsars
  • Results

3
CW sources
  • Nearly-monochromatic continuous sources of
    gravitational waves include neutron stars with
  • spin precession at frot
  • excited oscillatory modes such as the r-mode at
    4/3 frot
  • non-axisymmetric distortion of crystalline
    structure, at 2frot
  • Limit our search to gravitational waves from a
    triaxial neutron star emitted at twice its
    rotational frequency (for the analysis presented
    here, only)
  • Signal would be frequency modulated by relative
    motion of detector and source, plus amplitude
    modulated by the motion of the antenna pattern of
    the detector

4
Source model
The expected signal has the form
PRD 58 063001 (1998)
  • F and Fx strain antenna patterns of the
    detector to plus and cross polarization, bounded
    between -1 and 1
  • Here, signal parameters are
  • h0 amplitude of the gravitational wave signal
  • y polarization angle of signal
  • i inclination angle of source with respect to
    line of sight
  • f0 initial phase of pulsar F(t0), and F(t)
    f(t) f0

Heterodyne, i.e. multiply by
so that the expected demodulated signal is then
Here, a a(h0, y, i, f0), a vector of the signal
parameters.
5
CW search group efforts
  • S2 Coherent searches
  • Time-domain method (optimal for parameter
    estimation)
  • Target known pulsars with frequencies (2frot) in
    detector band
  • Frequency-domain F-statistic method (optimal for
    blind detection)
  • All-sky, broadband search, subset of S2 dataset
  • Targeted searches (e.g. galactic core)
  • LMXB (e.g. ScoX-1) search
  • S2 Incoherent searches
  • Hough transform method
  • Powerflux method
  • Stackslide method
  • Future Implement hierarchical analysis that
    layers coherent and incoherent methods
  • Einstein_at_home initiative for 2005 World Year of
    Physics

not the F-statistic associated with statistical
literature (ratio of two variances), nor the
F-test of the null hypothesis (See PRD 58 063001
(1998))
6
First science run S1
  • S1 run 17 days (Aug 23-Sep 9 02)
  • Coincident run of four detectors, LIGO (L1, H1,
    H2), and GEO600
  • Two independent analysis methods
    (frequency-domain and time-domain) employed
  • Set 95 upper limit values on continuous
    gravitational waves from single pulsar PSR
    J19392134, using LIGO and GEO IFOs best limit
    from Livingston IFO
  • Accepted for publication in Phys Rev D 69, 082004
    (2004), preprint available, gr-qc/0308050

7
S2 expectations
  • Coloured spectra average amplitude detectable in
    time T (1 false alarm, 10 false dismissal
    rates)
  • Solid black lines LIGO and GEO science
    requirement, for T1 year
  • Circles upper limits on gravitational waves from
    known EM pulsars, obtained from measured spindown
    (if spindown is entirely attributable to GW
    emission)
  • Only known, isolated targets shown here

GEO
LIGO
8
Time-domain analysis method
  • Perform time-domain complex heterodyne
    (demodulation) of the interferometer
    gravitational wave channel
  • Low-pass filter these data
  • The data is downsampled via averaging, yielding
    one value (Bk) of the complex time series,
    every 60 seconds
  • Determine the posterior probability distribution
    (pdf) of the parameters, given these data (Bk)
    and the model (yk)
  • Marginalize over nuisance parameters (cosi, j0,
    y) to leave the posterior distribution for the
    probability of h0 given the data, Bk
  • We define the 95 upper limit by
  • a value h95 satisfying

1 PDF 0
Such an upper limit can be defined even when
signal is present
h95
strain
9
Bayesian analysis
  • A Bayesian approach is used to determine the
    posterior
  • distribution of the probability of the unknown
    parameters via the
  • Likelihood (assuming gaussian noise within our
    narrow band)

The posterior pdf is
likelihood
prior
posterior
model
10
Marginalizing over noise
  • As we estimate the noise level from the Bk no
    independent information is lost by treating it as
    another nuisance parameter over which to
    marginalize, i.e.
  • We assign Jeffreys prior to sigma, so that

giving a (marginalized) likelihood of
which can be evaluated analytically for gaussian
noise.
11
Analysis summary
Heterodyne, lowpass, average, calibrate Bk
Raw Data
Compute likelihoods
Model yk
uniform priors on h0(gt0), cosi, j0, y
Compute pdf for h0
Compute upper limits
12
S2 hardware signal injections
  • Performed end-to-end validation of analysis
    pipeline by injecting simultaneous fake
    continuous-wave signals into interferometers
  • Two simulated pulsars were injected in the LIGO
    interferometers for a period of 12 hours during
    S2
  • Fake signal is sum of two pulsars, P1 and P2
  • All the parameters of the injected signals were
    successfully inferred from the data

13
Preliminary results for P1
  • Parameters of P1
  • P1 Constant Intrinsic Frequency
  • Sky position 0.3766960246 latitude (radians)
  • 5.1471621319 longitude (radians)
  • Signal parameters are defined at SSB GPS time
  • 733967667.026112310 which corresponds to a
    wavefront passing
  • LHO at GPS time 733967713.000000000
  • LLO at GPS time 733967713.007730720
  • In the SSB the signal is defined by
  • f 1279.123456789012 Hz
  • fdot 0
  • phi 0
  • psi 0
  • iota p/2
  • h0 2.0 x 10-21

14
Preliminary results for P2
  • Parameters for P2

P2 Spinning Down Sky position 1.23456789012345
latitude (radians) 2.345678901234567890
longitude (radians) Signal parameters are defined
at SSB GPS time SSB 733967751.522490380, which
corresponds to a wavefront passing LHO at GPS
time 733967713.000000000 LLO at GPS time
733967713.001640320 In the SSB at that moment the
signal is defined by f1288.901234567890123 fdot
-10-8 phase2 pi (f dt1/2 fdot
dt2...) phi 0 psi 0 iota p/2 h0 2.0 x
10-21
15
Pulsar timing
  • Analyzed 28 known isolated pulsars with 2frot gt
    50 Hz.
  • Timing information has been provided using radio
    observations collected over S2/S3 for 18 of the
    pulsars (Michael Kramer, Jodrell Bank).
  • Timing information from the Australia Telescope
    National Facility (ATNF) catalogue used for 10
    pulsars
  • An additional 10 isolated pulsars are known with
    2frot gt 50 Hz but the uncertainty in their spin
    parameters is such that a search over frequency
    is warranted
  • Crab pulsar heterodyned to take timing noise into
    account

16
Preliminaryresults for PSR B0021-72L
  • Posterior probability density for PSR J1910-5959D
  • Flat prior for h0 (h0gt0), Jeffreys prior for s,
    i.e. p(s) ? 1/s

17
Preliminaryresults for the Crab pulsar
  • Posterior probability density for PSR B053121
  • Crab pulsar heterodyned to take timing noise into
    account
  • Flat prior for h0 (h0gt0), Jeffreys prior for s,
    i.e. p(s) ? 1/s

18
Preliminaryupper limits for 28 known pulsars
h0 UL range Pulsar
10-23-10-22 J19392134, B195132, J19131011, B053121
10-24-10-23 B0021-72C, B0021-72D, B0021-72F, B0021-72G, B0021-72L, B0021-72M, B0021-72N, J0711-6830, B1820-30A, J1730-2304, J1721-2457, J1629-6902, J1910-5959E, J2124-3358, J1910-5959C, J00300451, J1024-0719, J1910-5959D, J23222057, B151602A, J1748-2446C, J1910-5959B, J1744-1134, B1821-24
Blue timing checked by Jodrell Bank Purple ATNF
catalogue
19
Equatorial Ellipticity
  • Results on h0 can be interpreted as upper limit
    on equatorial ellipticity
  • Ellipticity scales with the difference in radii
    along x and y axes
  • Distance r to pulsar is known, Izz is assumed to
    be typical, 1045 g cm2

20
Preliminary ellipticity limits for 28 known
pulsars
? UL range Pulsar
10-2-10-1 B195132, J19131011, B053121
10-3-10-2 -
10-4-10-3 B1821-24, B0021-72D, J1910-5959D, B151602A, J1748-2446C, J1910-5959B
10-5-10-4 J19392134, B0021-72C, B0021-72F, B0021-72L, B0021-72G, B0021-72M, B0021-72N, B1820-30A, J0711-6830, J1730-2304, J1721-2457, J1629-6902, J1910-5959E, J1910-5959C, J23222057
10-6-10-5 J1024-0719, J2124-3358, J00300451, J1744-1134
Blue timing checked by Jodrell Bank Purple ATNF
catalogue
21
Summary and future outlook
  • S2 analyses
  • Time-domain analysis of 28 known pulsars complete
  • Broadband frequency-domain all-sky search
    underway
  • ScoX-1 LMXB frequency-domain search near
    completion
  • Incoherent searches reaching maturity,
    preliminary S2 results produced
  • S3 run
  • Time-domain analysis on more pulsars, including
    binaries
  • Improved sensitivity LIGO/GEO run
  • Oct 31 03 Jan 9 04
  • Approaching spindown limit for Crab pulsar
