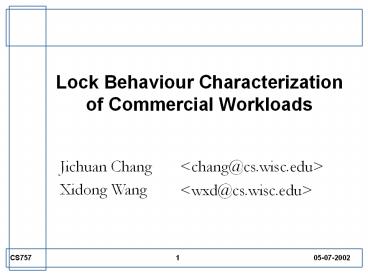

Lock Behaviour Characterization of Commercial Workloads

1
Lock Behaviour Characterization of Commercial
Workloads
ltchang_at_cs.wisc.edugt ltwxd_at_cs.wisc.edugt
Jichuan Chang Xidong Wang
2
Outline

• Motivation
• Methods
• Results
• Speculative Lock Elision Issues
• Conclusions

3
Motivation
Understanding the Synchronization Behavior
of Commercial Workloads (OLTP, Apache, SpecJBB)
Identifying Opportunities for Speculative Lock
Elision (performance, ease of programming)
4
Questions to Answer

• Lock related statistics
• Can hardware identify critical sections?
• Critical section size
• Lock-free section size
• Amount of lock contentions
• Hardware optimizations by speculation
• Context switching implications
• Resource requirements
• Other issues
• Realistic timing model
• Other synchronization (reader/writer, etc)

5
Methods

• Benchmarks
• OLTP, Apache, JBB, Barnes (for comparison)
• Full system simulation (tracing) using Simics
• Simple timing model - Simics tracer
• Ruby timing model - Simics Ruby
• Using instr (not cycle) as the measurement unit
• Set cpu_switch_time to 1, disable STC
• Validating our approach
• Using micro-benchmarks, to compare our stats with
  the result reported by kernel tools (lockstat)
• Tracing into disassembly code (kernel/user)

6
Lock Identification

• Basic idea from SLE
• Lock acquisition must use one atomic instruction.
• Silent store pair as a pair, the stores in lock
  acquisition and release operations are silent.
• SPARC v9 atomic instructions
• ldstub, swap, casa (compare-and-swap)

OLTP
JBB
Values
Values
casa l2 128,g4,g3 casa l2
128,l0,g4
ldstub o0 g0, o4 brnz,pn o4,
lt0x10034b98gt stbar stb g0, o0 12
0x0-gt0xff 0xff-gt0x0
0x1-gt0x8410f8bc 0x8410f8bc-gt0x1
7
Lock Identification Algorithm

• Starts with an atomic instruction
• that writes back a different value to the lock
• otherwise meaning unsuccessful lock acquisition
• Examine each following store made by the same CPU
• Until we meet a normal store
• that completes the silent store pair
• usually with the value of 0x0
• Other completion patterns
• Self-release (by the same CPU)
• using atomic instruction, pair-silently (JBB)
• using atomic instruction, not pair-silently
• Cross-release (by a different CPU)
• using atomic instruction
• Removed cant observe lock release (16K limited
  window).

8
Lock Frequency
9
Execution Phase Breakdown
10
Critical Section Size
11
Lock-free Section Size
12
Timing Models

• Adding Ruby doesnt change the size of critical
  section and lock-free section, but removes lock
  contentions.
• Why?
• Shrinking caused by less frequent memory
  accesses within critical sections
• or simulation effect?
• Guess more shrinking using Ruby and Opal

13
Lock Contention

• Waiting from the first try to successful
  acquisition
• Spinning ignore those have been waiting for more
  than 4K instructions.

14
Distinguishing wait and spin

• Why bother?
• Very few long-waiting events make big difference
  in the percentages of wasted instructions
• Easy if we can identify thread switching
• But the identification is not easy
• Waiting if spinning for too many instructions
• Using 4096 instructions as the limit
• 90 contentions are shorter than 4K instr
• It makes sense for different timing models.

15
Lock Contention Most Contended Locks
16
SLE on Commercial Workloads

• Context switching (later)
• Buffering requirement Not much
• Small critical sections dominate
• Except for Apache user locks (1-8K)
• Single shared buffer among threads on the same
  CPU
• Possible performance gain
• Not big if only counting num of instructions (1 -
  6)
• Critical section size already small
• Contention already infrequent
• Can be larger if lock spinning latency increases
• Can be smaller
• less lock contentions happen (as in Ruby case)
• Must throttle speculation (to avoid unnecessary
  rollbacks)

17
Context Switch

• Why bother?
• Needed to precisely quantify the amount of
  instructions spent on lock waiting (process and
  thread switching)
• Needed to correctly implement speculative lock
  elision (process switching only)
• Process Switching Identification
• Marker Demap TLB on context switch
• Apache (100 transactions, CPU 3)
• Average 210K instructions (Max 360K, Min
  160K)
• Process switching are infrequent, performance
  implication negligible
• Thread Switching Identification is hard
• No simple patterns to observe, No feedback to
  validate assumptions
• Not a good idea to provide separate buffer for
  each thread on a single processor. Hard to detect
  conflicts, thread switch need many buffers.

18
Other Synchronization Algorithms

• Hard to recognize complex synchronization
• Barriers, Read/writer locks, etc
• Mutual Exclusion implementation composed of the
  small critical sections
• pthread_mutex_lock(lock) acquires 3 lock
• Reader/writer lock use locks to maintain data
  structure (reader/writer queues, num of current
  reader, etc)

Serialized Execution (maintained by synch. algo.)
writer_enter()
writer_exit()
HW only sees two small critical sections
19
Conclusion

• Commercial workloads lock characterization
• Small critical sections dominate
• Infrequent lock contention
• User/kernel code have different behavior
• Kernel locks cant be ignored
• (Kernel) contented PCs predictable
• Performance Improvements
• SLE wont help as much

20
Thank You! Questions?
21
Backup Slides

• Thread switching details
• Critical section size using Ruby timing model
• Sparc Atomic Instructions
• Misc Issues
• Acknowledgement

22
Thread Switch Identification

• User thread scheduling
• Disassemble user thread library, Observe
  execution of scheduling methods (_disp, _switch).
  not always possible!!
• Kernel thread scheduling
• Involve a set of interleaved method invocations
  (resume, disp, swtch, _resume_from_idle..). Hard
  to identify starting and ending point of thread
  switch
• Impossible to identify kernel thread switch by
  only observing register window swap since it also
  happen in user thread switch
• No feedback from OS to validate our assumption
• Methodology Preliminary Observations
• Disassemble kernel code to build VA ? kernel
  method map. Observe the method control flow in
  Simics trace.
• resume may indicate a kernel thread switch
• user_rtt may indicate a user level thread switch.
• Conclusion Thread Switch Identification is a
  hard, unresolved issue

23
Critical Section Size (Ruby)
24
Sparc Atomic Instructions

• ldstub
• Write all 1 into a byte
• Swap
• Swap the value of the reg and the mem location
• Compare-and-swap
• Swap if (value in the 1st reg value in mem)
• Membar/stbar
• Usually follows such atomic instructions

25
Misc.

• Why Apache strange?
• Lock more frequent, few user lock (1-2)
• Large percentage of critical section instruction
• Nested Locks
• Intertwined Locks
• Critical sections in Barnes are more clustered
• Buffer size 29 30 1/3 64 Blocks
• The same as SLE

26
Acknowledgement

• Project suggested by Prof. Mark Hill
• Guiding and supporting
• Lots of discussion with and help from
• Min Xu, our TA
• Carl Mauer, Multifacet simulator expert
• Ravi Rajwar, SLE paper author
