EMPLOY AN M18A1 CLAYMORE MINE

1

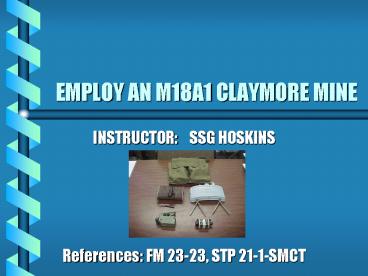

EMPLOY AN M18A1 CLAYMORE MINE

• INSTRUCTOR SSG HOSKINS
• References FM 23-23, STP 21-1-SMCT

2
EMPLOY AN M18A1 CLAYMORE MINE

• TASK Employ the M18A1 Claymore Mine
• CONDITIONS Given an M18A1 Claymore mine, an M57
  firing device, an M40 test set, and a firing wire
  with blasting cap, packed in an M57 bandoleer a
  designated installation site a firing position
  at least 16 meters from the installation site a
  sandbag and two wooden stakes.
• STANDARDS Install the Claymore facing the center
  mass of a kill zone. Perform a circuit test and
  installation of wire and blasting cap.

3
EMPLOY AN M18A1 CLAYMORE MINE

• The M18 Claymore, a directional
  fragmentation mine, is 8-1/2 inches long, 1-3/8
  inches wide, 3-1/4 inches high, and weighs 3-1/2
  pounds. The mine contains 700 steel spheres (10.5
  grains) and 1-1/2 pound layer of composition C-4
  explosive and is initiated by a No. 2 electric
  blasting cap. The M18 command-detonated mine may
  be employed with obstacles or on the approaches,
  forward edges, flanks and rear edges of
  protective minefields as close-in protection
  against a dismounted Infantry attack.

4
EMPLOY AN M18A1 CLAYMORE MINE

• The M18A1 mine is primarily a defensive
  weapon. It may be employed to a limited extent in
  certain phases of offensive operations. The M18A1
  has the same basic capabilities as antipersonnel
  mines and can be used in most situations where
  other types of antipersonnel mines are employed.
  In addition, the M18A1 has the capability of
  being sighted directionally to provide
  fragmentation over a specific area and does not
  necessarily rely upon chance detonation by the
  enemy. The M18A1 is adaptable for covering the
  ranges between maximum hand grenade throwing
  distance and the minimum safe distance of mortar
  and artillery supporting fires

5
EMPLOY AN M18A1 CLAYMORE MINE

• Inventory Inventory the M18A1 Claymore mine.
  Account for all accessories in the bandoleer.
  Items are as follows
• M7 Bandoleer
• Firing Wire w/M4 Blasting Cap
• M40 Test Set
• M57 Firing Device
• M18A1 Claymore mine

6
EMPLOY AN M18A1 CLAYMORE MINE
M40 TEST SET
M57 FIRING DEVICE
FIRING WIRE W/M4 BLASTING CAP
M18A1 CLAYMORE MINE
M7 BANDOLEER
7
EMPLOY AN M18A1 CLAYMORE MINE

• CONDUCT A CIRCUIT TEST
• Remove the electrical wire and accessories while
  leaving the mine in the bandoleer
• Remove the dust cover from the connector of the
  M57 firing device and from the female connector
  of the M40 test set
• Plug the test set into the firing device
• Position the firing device bail to the FIRE
  position

8
EMPLOY AN M18A1 CLAYMORE MINE

• NOTE The safety bail on the M57 electrical
  firing device has two positions. In the upper
  SAFE position, it acts as a block between the
  firing handle and the pulse generator. In the
  lower FIRE position, it is clear of the firing
  handle and allows the pulse generator to be
  activated.

9
EMPLOY AN M18A1 CLAYMORE MINE

10
EMPLOY AN M18A1 CLAYMORE MINE

• CONDUCT A CIRCUIT TEST cont
• Actuate the handle of the firing device with a
  firm, quick squeeze, observing the flash of light
  through the window of the test set
• NOTE The flashing light indicates that the
  M57 firing device and the M40 test set are
  functioning properly
• Remove the shorting plug cover from the connector
  of the firing wire and from the end of the test
  set

11
EMPLOY AN M18A1 CLAYMORE MINE

• Conduct a Circuit Test cont
• Plug the connector of the firing wire into the
  test set
• WARNING The blasting cap must be placed
  under a sandbag, behind a tree or in a hole in
  the ground to protect the person performing the
  circuit check in case the blasting cap detonates.

12
EMPLOY AN M18A1 CLAYMORE MINE
13
EMPLOY AN M18A1 CLAYMORE MINE

• Conduct a Circuit Check cont
• Place the M57 firing device bail in the fire
  position and actuate the firing handle
• NOTE The lamp in the window of the M40 test
  set should flash
• Place the firing device on SAFE, remove the M57
  firing device and M40 test set
• Place the shorting plug cover on the firing wire

14
EMPLOY AN M18A1 CLAYMORE MINE

• Install the M18A1 Claymore mine
• Tie the shorting plug end of the firing wire to a
  fixed object, such as a stake or tree at the
  firing position
• Place the bandoleer on your shoulder
• Unroll the firing wire to the selected
  installation position

15
EMPLOY AN M18A1 CLAYMORE MINE

• NOTE The firing wire is laid from the firing
  position to the mine installation site because
  the blasting cap end is on the inside of the
  firing wire spool.
• Aim the mine
• Remove the mine from the bandoleer
• Open both pair of legs to a 45 angle with two
  legs facing to the front and two legs facing to
  the rear of the mine

16
EMPLOY AN M18A1 CLAYMORE MINE
17
EMPLOY AN M18A1 CLAYMORE MINE

• Push the legs 1/3rd of the way into the ground
  with the mine facing in the desired direction of
  fire. In windy areas or when the legs cannot be
  pressed into the ground spread the legs as far as
  they will go so that the legs are to the front
  and rear of the mine and the mine will not tip
  over
• select an aiming point at ground level about 50
  meters (150 feet) in front of the mine
• Position one eye about 6 inches to the rear of
  the sight

18
EMPLOY AN M18A1 CLAYMORE MINE

• On a Knife-edge sight, align the two edges of the
  sight with the aiming point

19
EMPLOY AN M18A1 CLAYMORE MINE
20
EMPLOY AN M18A1 CLAYMORE MINE

• On a peep-type peep sight, align the groove of
  the sight in line with the aiming point that is
  2.5 meters (8 feet) off the ground

21
EMPLOY AN M18A1 CLAYMORE MINE
22
EMPLOY AN M18A1 CLAYMORE MINE

• Arm the Mine
• Secure the firing wire about 1 meter to the rear
  of the mine so the mine will not become
  misaligned if the firing wire is disturbed
• Unscrew one of the shipping plug priming adapters
  from the mine
• Slide the slotted end of the shipping plug
  priming adapter onto the firing wire of the
  blasting cap between the crimped connections and
  the blasting cap

23
EMPLOY AN M18A1 CLAYMORE MINE

• Pull the excess wire through the slotted end of
  the adapter until the top of the blasting cap is
  firmly seated in the bottom portion of the
  shipping plug priming adapter
• Screw the adapter, with the blasting cap, into
  the detonator well
• WARNING Ensure that the face of the mine marked
  Front Toward Enemy and the arrows on the mine
  point in the direction of the enemy

24
EMPLOY AN M18A1 CLAYMORE MINE

• Recheck the mine
• Camouflage the mine
• Bury the firing wire (if possible) from the mine
  back to the firing position

25
EMPLOY AN M18A1 CLAYMORE MINE
26
EMPLOY AN M18A1 CLAYMORE MINE

• NOTE To ensure that the mine will function
  properly after installation, retesting the firing
  circuit will check for any break in the wire may
  have occurred during installation
• NOTE Friendly troops within 250 meters to the
  front and sides and 100 meters to the rear of the
  mine must be under cover
• WARNING You must be behind cover or in a
  fighting position when retesting the circuit on a
  claymore mine with the blasting cap inserted in
  the detonation well

27
EMPLOY AN M18A1 CLAYMORE MINE

• Fire the Mine
• Remove the dust cover from the firing device and
  firing wire
• Connect the firing wire to the firing device
• Position the firing device safety bail in the
  fire position
• Actuate the firing device handle with a firm,
  quick squeeze
• Assume a prone position behind cover

28
EMPLOY AN M18A1 CLAYMORE MINE

• Questions ???
