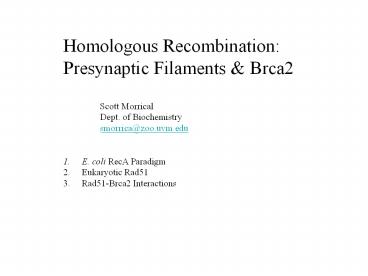

Homologous Recombination:

1

• Homologous Recombination
• Presynaptic Filaments Brca2
• Scott Morrical
• Dept. of Biochemistry
• smorrica_at_zoo.uvm.edu
• E. coli RecA Paradigm
• Eukaryotic Rad51
• Rad51-Brca2 Interactions

2
Literature
1 Bianco PR, Tracy RB, Kowalczykowski SC. DNA
strand exchange proteins a biochemical and
physical comparison. Front Biosci. 1998 Jun
173D570-603. Review. PMID 9632377 2 Story
RM, Weber IT, Steitz TA. The structure of the
E. coli recA protein monomer and polymer. Nature.
1992 Jan 23355(6358)318-25. Erratum in Nature
1992 Feb 6355(6360)567. PMID 1731246 3
Story RM, Steitz TA. Structure of the recA
protein-ADP complex. Nature. 1992 Jan
23355(6358)374-6. PMID 1731253 4 Story RM,
Bishop DK, Kleckner N, Steitz TA. Structural
relationship of bacterial RecA proteins to
recombination proteins from bacteriophage T4 and
yeast. Science. 1993 Mar 26259(5103)1892-6.
PMID 8456313 5 Conway AB, Lynch TW, Zhang Y,
Fortin GS, Fung CW, Symington LS, Rice PA.
Crystal structure of a Rad51 filament. Nat Struct
Mol Biol. 2004 Aug11(8)791-6. Epub 2004 Jul 4.
PMID 15235592 6 Pellegrini L, Yu DS, Lo T,
Anand S, Lee M, Blundell TL, Venkitaraman AR.
Insights into DNA recombination from the
structure of a RAD51-BRCA2 complex. Nature. 2002
Nov 21420(6913)287-93. Epub 2002 Nov 10. PMID
12442171
3
Holliday Model of Homologous Genetic Recombination
4
Mitotic Recombination Double-Strand Break Repair
Model
ZAP!!
Broken Chromosome
Nucleolytic Processing
3
3
DNA Strand Exchange (HR)
3
3
Undamaged Homologous Chromosome
DNA Synthesis (RDR)
Endonucleolytic Resolution Ligation
Repaired Chromosome
5
Recombination Lessons from Prokaryotes The E.
coli RecA Paradigm
6
Types of DNA Rearrangements Catalyzed by E. coli
RecA
2-strand reannealing

3-strand exchanges



4-strand exchanges


7
Properties of E. coli RecA Protein

• Protomeric m.w. 38 kDa.
• Binds cooperatively to ssDNA at neutral pH
  complex
• stabilized by (d)ATP or ATPgS, destabilized by
  ADP.
• dsDNA binding requires low pH, ATPgS, or
  transfer or
• nucleation from ssDNA.
• Forms filaments on off of DNA.
• Presynaptic filament-- RecA filament assembled
  on ssDNA in
• presence of Mg(d)ATP-- is catalytically active
  form.
• Catalyzes DNA-dependent (d)ATP hydrolysis.
• Catalyzes (d)ATP-dependent DNA rearrangements
  including
• complementary strand reannealing homologous 3-
  or
• 4-strand strand exchanges.
• Co-protease In response to DNA damage,
  facilitates auto-
• proteolytic cleavage of LexA repressor which
  induces the
• SOS response in E. coli.

8
Electron Micrograph of Relaxed Circular dsDNA
Molecule Coated with RecA Protein in Presence of
ATPgS

• Open, right-handed helical filament
• DNA is markedly extended and underwound

9
Story et al. X-ray Crystallographic Structure
of E. coli RecA-ADP Complex (Single Subunit
Shown)

• RecA crystallizes as helical polymer even w/o
  DNA
• DNA binding loops L1 L2 are disordered

Presynaptic Filaments
10
RecA Filament Structure
11
Key Residues of E. coli RecA
12
The RecA Paradigm of Homologous Strand Transfer
Presynapsis
RecA
Homologous dsDNA
ssDNA
ATP, SSB
3
Synapsis
5

ATP
ADP
ATP
ADP
Branch Migration
13
Other Factors Involved in Homologous
Recombination in E. coli
(Mediators)
14
Conservation of RecA Family in Diverse Species
15
Phylogenetic Diversity of RecA Family
RadA
Pf
hDMC1
Yp2
hRAD51
XRCC3
XRCC2
Uu
hRAD51B
Ll2
RB69
hRAD51D
Pf
Dr
hRAD51C
RadB
T4
Ec
UvsX
RecA
Os
16
Conservation of RecA Filament Structure
RecA-dsDNA (ATPgS)
T4 UvsX-dsDNA (ATP)
Yeast Rad51-dsDNA (ADP-AlF4-)
17
Sequence Alignment of E. coli RecA, Yeast Rad51,
T4 UvsX
18
Modeling of Conserved Core Regions of T4 UvsX and
Yeast Rad51 onto Known X-ray Structure of E. coli
RecA
19
Identical Residues Mapped on E. coli RecA
Structure
UvsX vs. RecA
Rad51 vs. RecA
20
Conservation of Other Recombination
Functionalities
(Mediators)
21
Crystal structure of a Rad51 filament. Conway
AB, Lynch TW, Zhang Y, Fortin GS, Fung CW,
Symington LS, Rice PA. Nat Struct Mol Biol. 2004
Aug11(8)791-6.
22
N-terminally Truncated Yeast Rad51 (the form used
for crystallization) Catalyzes Strand Exchange
Crystallized form also contained I345T mutation--
a gain-of-function mutation, enhanced
ssDNA-binding form, suppresses rad55/57 mediator
mutations
23
Rad51 filament crystallized in presence of ssDNA
oligo and ATPgS
No ssDNA density. Loops disordered. SO42-
occupies nucleotide binding site.
24
Rad51 filament crystallized in presence of ssDNA
oligo and ATPgS
Exact 3-fold but only approximate 6-fold screw
symmetry. Alternating protomers are in different
conformations! (Not seen in EcRecA structure)
25
Two Types of Protomer-Protomer Interactions at
Rad51 ATPase Site
26
H352A Mutation Destabilizes Yeast Rad51-ssDNA
Interactions Conserved His in Rad51 and RadA
branches Phe in bacterial RecAs Met in T-even
UvsXs
27
Tyrosine Phosphorylation Site at
Protomer-Protomer Interface
28
Relationship of BRCA Gene Products to Homologous
Recombination DSBR
29
Nobody Said It Would Be Simple
30
But Evidence Suggests Brca2 Plays a Direct Role
and Brca1 an Indirect Role in Promoting
Rad51-Dependent Recombinational Repair
31
Brca1 Knockout Reduces Efficiency of Rad51 Repair
Foci Following Cisplatin or IR Exposure of Mouse
ES Cells
Bishop co-workers
32
IR-Induced Rad51 Foci Formation Requires
Brca2 (Spontaneous Rad51 Foci That Occur During
S-Phase Are Brca2-Independent)
Cells contain Brca2 mutant lacking nuclear
localization signal Brca2 stays in
cytoplasm. West
33
X-ray Structure of Human Rad51 RecA Homology
Domain Complexed to Brca2 BRC Repeat Pellegrini
et al. (2002) Nature 420, 287-293
34
1.7 Å Structure of Human BRCA Repeat 4 (A.A.
1517-1551) Bound to RecA Homology Domain of Rad51
(S95 - C-Terminus) An Ingenious Trick BRC4
fused to N-terminus of truncated Rad51 via
flexible linker-- suppresses natural tendency of
Rad51 to self-aggregate!
Rad51
Rad51
BRC4
BRC4
HsRad51 vs. EcRecA
35
The Rad51-BRC4 Interface
Hydrophobic interactions via BRC4 a-helix
Hydrophobic interactions via BRC4 b-hairpin
Polar Interactions
36
Brca2 Inhibits Rad51 Filament Formation
Crystallographic EcRecA Filament
Superposition of BRC4 (from Rad51-BRC4 structure)
on a subunit of EcRecA filament shows BRCA4 at
interface between 2 EcRecA subunits.
EcRecA sequence 26-IMRL-29 mediates polymerization
by anti- parallel b-strand pairing Brca2
sequence 1524-FHTA-1527 interacts with Rad51 by
anti- parallel b-strand pairing
EcRecA interface
Rad51-BRC4 interface
37
Yeast Rad51 Interface (Conway et al.) Resembles
Brca2 Peptide Interaction with Monomeric Human
Rad51 (Pellegrini et al.)
38
Mutant GFP-Fusion Rad51 Proteins F86E A89E
Designed to Disrupt Hydrophobic Contacts in
Putative Rad51 Subunit Interface
Result WT but not mutant Rad51s can pull down
endogenous WT Rad51 in co-IP expts. Ability to
interact with Brca2 remains intact.
39

• Impacts of Rad51 Polymerization Mutants F86E
  A89E on Ability
• to Form Nuclear Foci in Dividing 293T Cells or
  Following IR Exposure
• Mutants inhibit foci formation
• So does overexpression of BRC3/4 repeat fragment

40
Brca2 Designed to Load Rad51 Onto ssDNA?
41
Multiple BRC Repeats In Brca2 Could Serve as a
Pre-Loading Assembly Site for Rad51, All Ready
for Transfer Onto ssDNA Bound to OB-folds in the
DNA Binding Domain 3HB Motif in Tower Domain
Tether Complex to Duplex Portion of Tailed
DSB??? Why Are Defects Mainly Associated With
Tumors of Breast Ovary???
