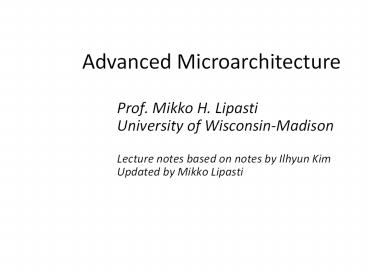

Advanced Microarchitecture

1
Advanced Microarchitecture
Prof. Mikko H. Lipasti University of
Wisconsin-Madison Lecture notes based on notes
by Ilhyun Kim Updated by Mikko Lipasti
2
Outline

• Instruction scheduling overview
• Scheduling atomicity
• Speculative scheduling
• Scheduling recovery
• Complexity-effective instruction scheduling
  techniques
• CRIB reading
• Scalable load/store handling
• NoSQ reading
• Building large instruction windows
• Runahead, CFP, iCFP
• Control Independence
• 3D die stacking

3
Readings

• Read on your own
• Shen Lipasti Chapter 10 on Advanced Register
  Data Flow skim
• I. Kim and M. Lipasti, Understanding Scheduling
  Replay Schemes, in Proceedings of the 10th
  International Symposium on High-performance
  Computer Architecture (HPCA-10), February 2004.
• Srikanth Srinivasan, Ravi Rajwar, Haitham
  Akkary, Amit Gandhi, and Mike Upton, Continual
  Flow Pipelines, in Proceedings of ASPLOS 2004,
  October 2004.
• Ahmed S. Al-Zawawi, Vimal K. Reddy, Eric
  Rotenberg, Haitham H. Akkary, Transparent
  Control Independence, in Proceedings of ISCA-34,
  2007.
• To be discussed in class
• T. Shaw, M. Martin, A. Roth, NoSQ Store-Load
  Communication without a Store Queue, in
  Proceedings of the 39th Annual IEEE/ACM
  International Symposium on Microarchitecture,
  2006.
• Erika Gunadi, Mikko Lipasti CRIB Combined
  Rename, Issue, and Bypass, ISCA 2011.
• Andrew Hilton, Amir Roth, "BOLT Energy-efficient
  Out-of-Order Latency-Tolerant execution,"
  Proceedings of HPCA 2010.
• Loh, G. H., Xie, Y., and Black, B. 2007.
  Processor Design in 3D Die-Stacking Technologies.
  IEEE Micro 27, 3 (May. 2007), 31-48.

4
Register Dataflow
5
Instruction scheduling

• A process of mapping a series of instructions
  into execution resources
• Decides when and where an instruction is executed

• Data dependence graph

• Mapped to two FUs

6
Instruction scheduling

• A set of wakeup and select operations
• Wakeup
• Broadcasts the tags of parent instructions
  selected
• Dependent instruction gets matching tags,
  determines if source operands are ready
• Resolves true data dependences
• Select
• Picks instructions to issue among a pool of ready
  instructions
• Resolves resource conflicts
• Issue bandwidth
• Limited number of functional units / memory ports

7
Scheduling loop

• Basic wakeup and select operations

broadcast the tag of the selected inst
grant 0 request 0
scheduling loop
grant 1 request 1

grant n
selected
issue to FU
request n
ready - request
Wakeup logic
Select logic
8
Wakeup and Select
9
Scheduling Atomicity

• Operations in the scheduling loop must occur
  within a single clock cycle
• For back-to-back execution of dependent
  instructions

10
Implication of scheduling atomicity

• Pipelining is a standard way to improve clock
  frequency
• Hard to pipeline instruction scheduling logic
  without losing ILP
• 10 IPC loss in 2-cycle scheduling
• 19 IPC loss in 3-cycle scheduling
• A major obstacle to building high-frequency
  microprocessors

11
Scheduler Designs

• Data-Capture Scheduler
• keep the most recent register value in
  reservation stations
• Data forwarding and wakeup are combined

12
Scheduler Designs

• Non-Data-Capture Scheduler
• keep the most recent register value in RF
  (physical registers)
• Data forwarding and wakeup are decoupled

• Complexity benefits
• simpler scheduler / data / wakeup path

13
Mapping to pipeline stages

• AMD K7 (data-capture)

Data
Data / wakeup

• Pentium 4 (non-data-capture)

wakeup
Data
14
Scheduling atomicity non-data-capture scheduler

• Multi-cycle scheduling loop
• Scheduling atomicity is not maintained
• Separated by extra pipeline stages (Disp, RF)
• Unable to issue dependent instructions
  consecutively
• ? solution speculative scheduling

15
Speculative Scheduling

• Speculatively wakeup dependent instructions even
  before the parent instruction starts execution
• Keep the scheduling loop within a single clock
  cycle
• But, nobody knows what will happen in the future
• Source of uncertainty in instruction scheduling
  loads
• Cache hit / miss
• Store-to-load aliasing
• ? eventually affects timing decisions
• Scheduler assumes that all types of instructions
  have pre-determined fixed latencies
• Load instructions are assumed to have a common
  case (over 90 in general) DL1 hit latency
• If incorrect, subsequent (dependent) instructions
  are replayed

16
Speculative Scheduling

• Overview

• Unlike the original Tomasulos algorithm
• Instructions are scheduled BEFORE actual
  execution occurs
• Assumes instructions have pre-determined fixed
  latencies
• ALU operations fixed latency
• Load operations assumes DL1 latency (common
  case)

17
Scheduling replay

• Speculation needs verification / recovery
• Theres no free lunch
• If the actual load latency is longer (i.e. cache
  miss) than what was speculated
• Best solution (disregarding complexity) replay
  data-dependent instructions issued under load
  shadow

Cache miss detected
18
Wavefront propagation

• Speculative execution wavefront
• speculative image of execution (from schedulers
  perspective)
• Both wavefront propagates along dependence edges
  at the same rate (1 level / cycle)
• the real wavefront runs behind the speculative
  wavefront
• The load resolution loop delay complicates the
  recovery process
• scheduling miss is notified a couple of clock
  cycles later after issue

19
Load resolution feedback delay in instruction
scheduling
Broadcast / wakeup
Select
N
N
Time delay between sched and feedback
Dispatch / Payload
N-4
Execution
N-1
RF
Misc.
N-3
recover instructions in this path
N-2

• Scheduling runs multiple clock cycles ahead of
  execution
• But, instructions can keep track of only one
  level of dependence at a time (using source
  operand identifiers)

20
Issues in scheduling replay
Exe
Sched / Issue
checker
cache miss signal
cycle n
cycle n1
cycle n2
cycle n3

• Cannot stop speculative wavefront propagation
• Both wavefronts propagate at the same rate
• Dependent instructions are unnecessarily issued
  under load misses

21
Requirements of scheduling replay

• Propagation of recovery status should be faster
  than speculative wavefront propagation
• Recovery should be performed on the transitive
  closure of dependent instructions

• Conditions for ideal scheduling replay
• All mis-scheduled dependent instructions are
  invalidated instantly
• Independent instructions are unaffected
• Multiple levels of dependence tracking are needed
• e.g. Am I dependent on the current cache miss?
• Longer load resolution loop delay ? tracking more
  levels

load miss
22
Scheduling replay schemes

• Alpha 21264 Non-selective replay
• Replays all dependent and independent
  instructions issued under load shadow
• Analogous to squashing recovery in branch
  misprediction
• Simple but high performance penalty
• Independent instructions are unnecessarily
  replayed

23
Position-based selective replay

• Ideal selective recovery
• replay dependent instructions only
• Dependence tracking is managed in a matrix form
• Column load issue slot, row pipeline stages

24
Low-complexity scheduling techniques

• FIFO (Palacharla, Jouppi, Smith, 1996)
• Replaces conventional scheduling logic with
  multiple FIFOs
• Steering logic puts instructions into different
  FIFOs considering dependences
• A FIFO contains a chain of dependent instructions
• Only the head instructions are considered for
  issue

25
FIFO (contd)

• Scheduling example

26
FIFO (contd)

• Performance
• Comparable performance to the conventional
  scheduling
• Reduced scheduling logic complexity
• Many related papers on clustered microarchitecture

27
CRIB Reading

• Erika Gunadi, Mikko Lipasti CRIB Combined
  Rename, Issue, and Bypass, ISCA 2011.
• Goals
• Match OOO performance per cycle
• Match OOO frequency
• Match OOO area
• Reduce power significantly
• Eliminate pipelines, latches, rename structures,
  issue logic

28
CRIB Data Movement
Front-End
ROB
RS
CRIB
PRF
ARF
Bypass
CRIB
ALU
In-place execution
Physical Register File - style
29
In-place Execution

• First proposed by Ultrascalar 1999
• Place instructions in execution stations
• Route operands to instructions
• Goal massively wide issue
• Power constraints not even on the horizon
• CRIB in-place execution as enabler
• Eliminate pipelined execution lanes, multiported
  RF, renaming, wakeup select, clock loads
• Enable efficient speculation recovery
• Enable variable execution latency tolerance

30
CRIB Concept
Next Entry
C
C
Source1
Source2
Destination
C
C
ALU
C
R0
R1
R2
R3
C
C
C
C
Previous Entry
WE

• Data values propagate combinationally (no
  latches)
• Completion bit propagates synchronously (latched)
• Instructions stay until all are finished
• When all are finished, latch data into ARF latches

31
Renaming in CRIB
C
Cyc 1
Add R2, R0, R0 Sub R3, R0, R2 Add R2, R2, R3 Add
R2, R0, R3
C
Cyc 3
Source1
Source2
Destination
C
Cyc 2
C
Cyc 1
R0
R1
R2
R3
C
C
C
C

• All the connections forms in parallel after
  dispatch
• Dependency is solved by the positional renaming
• Instructions issue subject to the readiness of
  its operands

32
Scaling Up CRIB
LQ Bank
LQ Bank
Front End
ARF
SQ
SQ
Mult/Div
ARF
ARF
LQ Bank
LQ Bank
SQ
SQ
ARF
Cache Port

• Multiple CRIB partitions maintained as circular
  queue
• Only head ARF has committed state
• Other latches are left transparent

33
Data Propagation across partitions

• Transparent latches for data
• Regular latches for complete bit
• Data values take one additional cycle to travel
  to the next partition

R0
C
R1
C
R2
C
R3
C
Cycle 3
Cycle 2
R0
C
R1
C
R2
C
R3
C
Cycle 1
Cycle 0
R0
C
R1
C
R2
C
R3
C
34
CRIB Pipeline Diagram
data linking
dependence linking
WB
Cmt
Rnm
Disp
Issue
RF
WB
OoO
dependence / data linking
Int
Disp
WB
A-Gen
Load
Load
CRIB

• Fewer pipe stages
• Remove rename stage from front-end
• Remove issue and RF from middle
• Combine dependence and data linking

35
Load-Store Ordering
LQ
ADD R2, R3, R1
Data
Addr
ADD R2, R1, R1
LD R3, R1, R2
SQ
ST R0, R1, 1
R0
R1
R2
R3

• Loads/stores are ordered aggressively
• Recovery replay in place
• No prediction needed recovery is cheap

36
Branch Misprediction
Instruction 3
NOP
Instruction 2
NOP
branch mispredict
Instruction 0
R0
R1
R2
R3

• Mispredicted branch drives a global signal up the
  CRIB
• Forces younger instructions to transform into
  NOPs
• Simpler than checkpointing or ROB unrolling

37
CRIB Findings

• CRIB proposal appears promising
• Competitive IPC and area
• Dramatic power reductions
• Over baseline1 (Bobcat)
• 45 less energy per instruction
• 20-30 better IPC
• Over baseline2 (Nehalem)
• 75 less energy per instruction
• INT IPC slightly better, FP IPC slightly worse

38
CRIB Summary

• Instructions are inserted from front end
• Instructions inside CRIB execute subject to
  readiness of operands
• Data propagates without latches
• Complete bit ensures that data propagate
  synchronously
• A CRIB retires when all instructions done
  executing
• When a CRIB retires, data are latched in the ARF

39
Memory Dataflow
40
Scalable Load/Store Queues

• Load queue/store queue
• Large instruction window many loads and stores
  have to be buffered (25/15 of mix)
• Expensive searches
• positional-associative searches in SQ,
• associative lookups in LQ
• coherence, speculative load scheduling
• Power/area/delay are prohibitive

41
Store Queue/Load Queue Scaling

• Multilevel queues
• Bloom filters (quick check for independence)
• Eliminate associative load queue via replay
• Cain 2004
• Issue loads again at commit, in order
• Check to see if same value is returned
• Filter load checks for efficiency
• Most loads dont issue out of order (no
  speculation)
• Most loads dont coincide with coherence traffic

42
SVW and NoSQ

• Store Vulnerability Window (SVW)
• Assign sequence numbers to stores
• Track writes to cache with sequence numbers
• Efficiently filter out safe loads/stores by only
  checking against writes in vulnerability window
• NoSQ
• Rely on load/store alias prediction to satisfy
  dependent pairs
• Use SVW technique to check

43
Store/Load Optimizations

• Weakness predictor still fails
• Machine should fail gracefully, not fall off a
  cliff
• Glass jaw
• Several other concurrent proposals
• DMDC, Fire-and-forget,

44
Key Challenge MLP

• Tolerate/overlap memory latency
• Once first miss is encountered, find another one
• Naïve solution
• Implement a very large ROB, IQ, LSQ
• Power/area/delay make this infeasible
• Build virtual instruction window

45
Runahead

• Use poison bits to eliminate miss-dependent load
  program slice
• Forward load slice processing is a very old idea
• Massive Memory Machine Garcia-Molina et al. 84
• Datascalar Burger, Kaxiras, Goodman 97
• Runahead proposed by Dundas, Mudge 97
• Checkpoint state, keep running
• When miss completes, return to checkpoint
• May need runahead cache for store/load
  communication

46
Waiting Instruction Buffer

• Lebeck et al. ISCA 2002
• Capture forward load slice in separate buffer
• Propagate poison bits to identify slice
• Relieve pressure on issue queue
• Reinsert instructions when load completes
• Very similar to Intel Pentium 4 replay mechanism
• But not publicly known at the time

47
Continual Flow Pipelines

• Srinivasan et al. 2004
• Slice buffer extension of WIB
• Store operands in slice buffer as well to free up
  buffer entries on OOO window
• Relieve pressure on rename/physical registers
• Applicable to
• data-capture machines (Intel P6) or
• physical register file machines (Pentium 4)
• Also extended to in-order machines (iCFP)
• Challenge how to buffer loads/stores
• Reading Hilton Roth, BOLT, HPCA 2010

48
Instruction Flow
49
Transparent Control Independence

• Control flow graph convergence
• Execution reconverges after branches
• If-then-else constructs, etc.
• Can we fetch/execute instructions beyond
  convergence point?
• How do we resolve ambiguous register and memory
  dependences
• Writes may or may not occur in branch shadow
• TCI employs CFP-like slice buffer to solve these
  problems
• Instructions with ambiguous dependences buffered
• Reinsert them the same way forward load miss
  slice is reinserted
• Best CI proposal to date, but still very
  complex and expensive, with moderate payback

50
Summary of Advanced Microarchitecture

• Instruction scheduling overview
• Scheduling atomicity
• Speculative scheduling
• Scheduling recovery
• Complexity-effective instruction scheduling
  techniques
• CRIB reading
• Scalable load/store handling
• NoSQ reading
• Building large instruction windows
• Runahead, CFP, iCFP
• Control Independence
