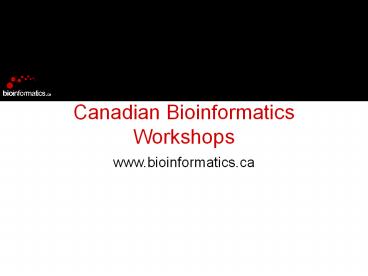

Canadian Bioinformatics Workshops

1
Canadian Bioinformatics Workshops

• www.bioinformatics.ca

2
2
Module Title of Module
3
Module 6Classification
Exploratory Data Analysis and Essential
Statistics using R Boris Steipe Toronto,
September 89 2011

The judgement of Paris. Archaic (560-550 BCE)
DEPARTMENT OF BIOCHEMISTRY DEPARTMENT OF
MOLECULAR GENETICS
Includes material originally developed by Sohrab
Shah

4
Classification

• What is classificiation?
• Supervised learning
• discriminant analysis
• Work from a set of objects with predefined
  classes
• ie basal vs luminal or good responder vs poor
  responder
• Task learn from the features of the objects
  what is the basis for discrimination?
• Statistically and mathematically heavy

5
Classification
poor response
poor response
good response
good response
6
Classification

• Input a set of measures, variables or features
• Output a discrete label for what the set of
  features most closely resemble
• Classification can be probabilistic or
  deterministic
• How is classification different from clustering?
• We know the groups or classes a priori
• Classification is a prediction on what an
  object is, not what other objects it most closely
  resembles
• Clustering is finding patterns in data
• Classification is using known patterns to predict
  an object type

7
Example DLBCL subtypes
Wright et al, PNAS (2003)
Module Title of Module
8
DLBCL subtypes
Wright et al, PNAS (2003)
9
Classification approaches

• Wright et al PNAS (2003)
• Weighted features in a linear predictor score
• aj weight of gene j determined by t-test
  statistic
• Xj expression value of gene j
• Assume there are 2 distinct distributions of LPS
  1 for ABC, 1 for GCB

10
Wright et al, DLBCL, contd

• Use Bayes rule to determine a probability that a
  sample comes from group 1
• probability density function
  that represents group 1

11
Learning the classifier, Wright et al

• Choosing the genes (feature selection)
• use cross validation
• Leave one out cross validation
• Pick a set of samples
• Use all but one of the samples as training,
  leaving one out for test
• Fit the model using the training data
• Can the classifier correctly pick the class of
  the remaining case?
• Repeat exhaustively for leaving out each sample
  in turn
• Repeat using different sets and numbers of genes
  based on t-statistic
• Pick the set of genes that give the highest
  accuracy

12
Overfitting

• In many cases in biology, the number of features
  is much larger than the number of samples
• Important features may not be represented in the
  training data
• This can result in overfitting
• when a classifier discriminates well on its
  training data, but does not generalise to
  orthogonally derived data sets
• Validation is required in at least one external
  cohort to believe the results
• example the expression subtypes for breast
  cancer have been repeatedly validated in numerous
  data sets

13
Overfitting

• To reduce the problem of overfitting, one can use
  Bayesian priors to regularize the parameter
  estimates of the model
• Some methods now integrate feature selection and
  classification in a unified analytical framework
• see Law et al IEEE (2005) Sparse Multinomial
  Logistic Regression (SMLR) http//www.cs.duke.edu
  /amink/software/smlr/
• Cross validation should always be used in
  training a classifier

14
Evaluating a classifier

• The receiver operator characteristic curve
• plots the true positive rate vs the false
  positive rate

• Given ground truth and a probabilistic classifier
• for some number of probability thresholds
• compute the TPR
• proportion of positives that were predicted as
  true
• compute the FPR
• number of false predictions over the total number
  of predictions

15
Evaluating a classifier

• Important terms
• Prediction classifier says the object is a hit
• Rejection classifier says the object is a miss
• True Positive (TP) Prediction that is a true hit
• True Negative (TN) Rejection that is a true miss
• False Positive (FP) Prediction that is a true
  miss
• False Negative (FN) Rejection that is a true hit
• False Positive Rate FPRFP/(FPTN)
• specificity 1-FPR
• True Positive Rate TPRTP/(TPFN)
• sensitivity TPR

16
Evaluating a classifier

• Use Area under the ROC curve as a single measure
• encodes the trade-off between FPR and TPR
• only possible for probabilistic outputs
• requires ground truth and probabilities as inputs
• at a fixed number of ordered probability
  thresholds, calculate FPR and TPR and plot
• for deterministic methods, it is possible to
  calculate a point in the FPRTPR space

17
Evaluating a classifier

• ROC curves are useful for comparing classifiers

ROC curves using depth thresholds of
0-7,10 Breast cancer data using Affy SNP 6.0
genotypes as truth
18
All you need to know about ROC analysis
http//www.hpl.hp.com/techreports/2003/HPL-2003-4.
pdf Tutorial by Tom Fawcett at HP (2003)
19
Practical example detecting single nucleotide
variants from next gen sequencing data
20
Aligning billions of short reads to the genome

• MAQ, BWA, SOAP, SHRiMP, Mosaik, BowTie, Rmap,
  ELAND
• Chopping, hashing and indexing the genome
  string matching with mismatch tolerance

aattcaggaccca----------------------------- aattcag
gacccacacga------------------------ aattcaggacccac
acgacgggaagacaa------------- -attcaggacaaacacgaagg
gaagacaagttcatgtacttt ----caggacccacacgacgggtagaca
agttcatgtacttt --------acccacacgacgggtagacaagttcat
gtacttt --------acccacacgacgggtagacaagttcatgtacttt
----------------gacgggaagacaagttcatgtacttt ------
---------------------------atgtacttt
21
SNVMix1 Modeling allelic counts
22
Querying SNVMix1

• Given the model parameters, what is the
  probability that genotype k gave rise to the
  observed data at each position?

SNVMix1 is a mixture of Binomial distributions
with component weights
aa
bb
ab
23
SNVMix1 obviates the need for depth-based
thresholding
Output of SNVMix1 on simulated data with
increasing depth
24
Learning parameters by model fitting cancer
genomes

• Li et al (2008) Maq and Li et al (2009) SOAP
• Use parameters of the Binomial assuming normal
  diploid genomes
• Cancer genomes
• often not diploid
• mixed in with normal cells
• exhibit intra-tumoral heterogeneity
• Need to fit the model to data in order to learn
  more representative parameters

25
Fitting the model to data using EM

• Recall are unobserved
• Use Expectation Maximization to fit the model to
  data
• E-step
• M-step

Position i
Genotype k
26
Fitting the model confers increased accuracy

• 16 ovarian transcriptomes
• 144,271 coding positions with matched Affy SNP
  6.0 data
• 10 repeats of 4 fold x-validation to estimate
  parameters
• Run EM on ¾ of the data to estimate parameters
• Compute on
  remaining positions

p lt 0.00001
27
Other methods for classification

• Support vector machines
• Linear discriminant analysis
• Logistic regression
• Random forests
• See
• Ma and Huang Briefings in Bioinformatics (2008)
• Saeys et al Bioinformatics (2007)

28
