CHAPTER 1 Transducers, Signals, and Signal Conditioning

1

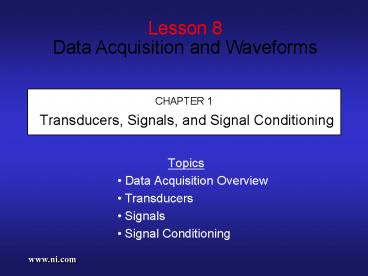

CHAPTER 1 Transducers, Signals, and Signal
Conditioning
Lesson 8Data Acquisition and Waveforms

• Topics
• Data Acquisition Overview
• Transducers
• Signals
• Signal Conditioning

2
System Overview
3
Transducer Overview

• Topics
• What is a Transducer?
• Types of Transducers

4
What is a Transducer?
A transducer converts a physical phenomena into
a measurable signal
5
Signal Overview

• Topics
• Types of Signals
• Information in a Signal
• State, Rate, Level, Shape, and Frequency

6
Signal Classification

• Your Signal

Analog
Digital
7
Digital Signals
Your Signal
Digital

• Two possible levels
• High/On (2 - 5 Volts)
• Low/Off (0 - 0.8 Volts)
• Two types of information
• State
• Rate

8
Digital Signal Information
Your Signal
Digital
9
Analog Signals

• Your Signal

Analog

• Continuous signal
• Can be at any value with respect to time
• Three types of information
• Level
• Shape
• Frequency (Analysis required)

10
Analog Signal Information

• Your Signal

Analog
Analysis Required
11
Signal Conditioning Overview

• Topics
• Purpose of Signal Conditioning
• Types of Signal Conditioning

12
Why Use Signal Conditioning?

• Signal Conditioning takes a signal that is
  difficult for your DAQ device to measure and
  makes it easier to measure
• Signal Conditioning is not always required
• Depends on the signal being measured

13
Amplification

• Used on low-level signals (i.e. thermocouples)
• Maximizes use of Analog-to-Digital Converter
  (ADC) range and increases accuracy
• Increases Signal to Noise Ratio (SNR)

14
DAQ Hardware Overview

• Topics
• Types of DAQ Hardware
• Components of a DAQ device
• Configuration Considerations

15
Data Acquisition Hardware

• DAQ Hardware turns your PC into a
• measurement and automation system

16
Terminal Block and Cable
50 pin connector

• Terminal Block and Cable route your signal to
  specific pins on your DAQ device
• Terminal Block and Cable can be a combination of
  68 pin or 50 pin

17
DAQ Device

• Most DAQ devices have
• Analog Input
• Analog Output
• Digital I/O
• Counters
• Specialty devices exist for specific applications
• High speed digital I/O
• High speed waveform generation
• Dynamic Signal Acquisition (vibration, sonar)
• Connect to the bus of your computer
• Compatible with a variety of bus protocols
• PCI, PXI/CompactPCI, ISA/AT, PCMCIA, USB,
  1394/Firewire

18
Configuration Considerations

• Analog Input
• Resolution
• Range
• Gain
• Code Width
• Mode (Differential, RSE, or NRSE)
• Analog Output
• Internal vs. External Reference Voltage
• Bipolar vs. Unipolar

19
Resolution

• Number of bits the ADC uses to represent a signal
• Resolution determines how many different voltage
  changes can be measured
• Example 12-bit resolution
• Larger resolution more precise representation
  of your signal

of levels 2resolution 212 4,096 levels
20
Resolution Example

• 3-bit resolution can represent 8 voltage levels
• 16-bit resolution can represent 65,536 voltage
  levels

21
Range

• Minimum and maximum voltages the ADC can digitize
• DAQ devices often have different available ranges
• 0 to 10 volts
• -10 to 10 volts
• Pick a range that your signal fits in
• Smaller range more precise representation of
  your signal
• Allows you to use all of your available resolution

22
Range

• Proper Range
• Using all 8 levels to represent your signal

• Improper Range
• Only using 4 levels to represent your signal

23
Gain

• Gain setting amplifies the signal for best fit in
  ADC range
• Gain settings are 0.5, 1, 2, 5, 10, 20, 50, or
  100 for most devices
• You dont choose the gain directly
• Choose the input limits of your signal in LabVIEW
• Maximum gain possible is selected
• Maximum gain possible depends on the limits of
  your signal and the chosen range of your ADC
• Proper gain more precise representation of your
  signal
• Allows you to use all of your available resolution

24
Gain Example

• Input limits of the signal 0 to 5 Volts
• Range Setting for the ADC 0 to 10 Volts
• Gain Setting applied by Instrumentation Amplifier
  2

25
Code Width

• Code Width is the smallest change in the signal
  your system can detect (determined by resolution,
  range, and gain)
• Smaller Code Width more precise representation
  of your signal
• Example 12-bit device, range 0 to 10V, gain
  1

26
Grounding Issues

• To get correct measurements you must properly
  ground your system
• How the signal is grounded will affect how we
  ground the instrumentation amplifier on the DAQ
  device
• Steps to proper grounding of your system
• Determine how your signal is grounded
• Choose a grounding mode for your Measurement
  System

27
Signal Source Categories
Signal Source
Grounded
Floating
28
Grounded Signal Source
Signal Source

• Signal is referenced to a system ground
• earth ground
• building ground
• Examples
• Power supplies
• Signal Generators
• Anything that plugs into an outlet ground

Grounded
29
Floating Signal Source
Signal Source

• Signal is NOT referenced to a system ground
• earth ground
• building ground
• Examples
• Batteries
• Thermocouples
• Transformers
• Isolation Amplifiers

Floating
30
Measurement System

• Three modes of grounding for your Measurement
  System
• Differential
• Referenced Single-Ended (RSE)
• Non-Referenced Single-Ended (NRSE)
• Mode you choose will depend on how your signal is
  grounded

31
Differential Mode

• Differential Mode
• Two channels used for each signal
• ACH 0 is paired with ACH 8, ACH 1 is paired with
  ACH 9, etc.
• Rejects common-mode voltage and common-mode noise

Measurement System
32
RSE Mode

• Referenced Single-Ended (RSE)
• Measurement made with respect to system ground
• One channel used for each signal
• Doesnt reject common mode voltage

Measurement System
33
NRSE Mode

• Non-Referenced Single-Ended (NRSE)
• Variation on RSE
• One channel used for each signal
• Measurement made with respect to AISENSE not
  system ground
• AISENSE is floating
• Doesnt reject common mode voltage

Measurement System
34
Choosing Your Measurement System
35
Options for Grounded Signal Sources
36
Options for Floating Signal Sources
BEST Rejects Common-Mode
Voltage - Cuts Channel Count in Half - Need bias
resistors
Differential
BETTER Allows use of entire
channel count Dont need bias resistors -
Doesnt reject Common-Mode Voltage
RSE
GOOD Allows use of entire
channel count - Need bias resistors - Doesnt
reject Common-Mode Voltage
NRSE
37
DAQ Software Overview

• Topics
• Levels of DAQ Software
• NI-DAQ Overview
• Measurement Automation Explorer (MAX) Overview

38
Levels of Software
User
Application Level
LabVIEW
Diagnostic Level
MAX
Driver Level
NI-DAQ
DAQ Device
39
What is NI-DAQ?

• Driver level software
• DLL that makes direct calls to your DAQ device
• Supports the following National Instruments
  software
• LabVIEW
• Measurement Studio
• Also supports the following 3rd party languages
• Microsoft C/C
• Visual Basic
• Borland C
• Borland Delphi

40
What is MAX?

• MAX stands for Measurement Automation Explorer
• MAX provides access to all your National
  Instruments DAQ, GPIB, IMAQ, IVI, Motion, VISA,
  and VXI devices
• Used for configuring and testing devices
• Functionality broken into
• Data Neighborhood
• Devices and Interfaces
• Scales
• Software

41
Data Neighborhood

• Provides access to the DAQ Channel Wizard
• Shows configured Virtual Channels
• Includes utilities for testing and reconfiguring
  Virtual Channels

42
DAQ Channel Wizard

• Interface to create Virtual Channels for
• Analog Input
• Analog Output
• Digital I/O
• Each channel has
• Name and Description
• Transducer type
• Range (determines Gain)
• Mode (Differential, RSE, NRSE)
• Scaling

43
Devices and Interfaces

• Shows currently installed and detected National
  Instruments hardware
• Includes utilities for configuring and testing
  your DAQ devices
• Properties
• Test Panels

44
Properties

• Basic Resource Test
• Base I/O Address
• Interrupts (IRQ)
• Direct Memory Access (DMA)
• Link to Test Panels
• Configuration for
• Device Number
• Range and Mode (AI)
• Polarity (AO)
• Accessories
• OPC

45
Test Panels

• Utility for testing
• Analog Input
• Analog Output
• Digital I/O
• Counters
• Great tool for troubleshooting

46
Scales

• Provides access to DAQ Custom Scales Wizard
• Shows configured scales
• Includes utility for viewing and reconfiguring
  your custom scales

47
DAQ Custom Scales Wizard

• Interface to create custom scales that can be
  used with Virtual Channels
• Each scale has its own
• Name and Description
• Choice of Scale Type (Linear, Polynomial, or
  Table)

48
Sampling Considerations

• Analog signal is continuous
• Sampled signal is series of discrete samples
  acquired at a specified sampling rate
• Faster we sample the more our sampled signal will
  look like our actual signal
• If not sampled fast enough a problem known as
  aliasing will occur

49
Aliasing
Adequately Sampled Signal
Aliased Signal
50
Nyquist Theorem

• Nyquist Theorem
• You must sample at greater than 2 times the
  maximum frequency component of your signal to
  accurately represent the FREQUENCY of your signal
• NOTE You must sample between 5 - 10 times
  greater than the maximum frequency component of
  your signal to accurately represent the SHAPE of
  your signal

51
Nyquist Example
Aliased Signal
Adequately Sampled for Frequency Only (Same of
cycles)
Adequately Sampled for Frequency and Shape
52
Data Acquisition Palette
53
DAQ Channel Name Data Type
54
Analog Input Palette
55
Single-Point AI VIs

• Perform a software-timed, non-buffered
  acquisition
• Good for battery testing, control systems
• - Not good for rapidly changing signals due
  to software timing

• AI Sample Channel
• Acquires one point on one channel
• AI Sample Channels
• Acquires one point on multiple channels

56
Multiple-Point (Buffered) AI VIs

• Perform a hardware-timed, buffered acquisition
• Highly recommended for most applications
• Allows triggering, continuous acquisition,
  different input limits for different channels,
  streaming to disk, and error handling

• AI Config
• Configures your device, channels, buffer
• AI Start
• Starts your acquisition, configure triggers
• AI Read
• Returns data from the buffer
• AI Clear
• Clears resources assigned to the acquisition

57
AI Config

• Interchannel Delay
• Determines the time (in seconds) between samples
  in a scan
• Input Limits
• Max and Min values for your signal
• Used by NI-DAQ to set gain
• Device
• Number of the device (from MAX) you are
  addressing
• Channels
• Chooses what channel(s) you are addressing

• Buffer Size
• Number of scans the buffer can hold
• A scan acquires one sample for every channel you
  specify
• 1000 scans x 2 channels 2000 total samples
• Task ID
• Passes configuration information to other VIs
• Error In/Out
• Receives/Passes any errors from/to other VIs

58
Different Gains for Different Channels

• AI Config allows different gains for different
  channels
• The first element of the input limits array
  corresponds to the first element of the channel
  array

Gain 2
Gain 20
Range 0 to 10V
59
AI Start

• Task ID In/Out
• Receives/Passes configuration information to/from
  other VIs
• Number of Scans to Acquire
• Total number of scans acquired before the
  acquisition completes
• Default value (-1) sets of Scans to Acquire
  Buffer Size (AI Config)
• A value of 0 acquires continuously
• Scan Rate
• Chooses the number of scans per second
• Error In/Out
• Receives/Passes any errors from/to other VIs

60
AI Read AI Clear

• Number of Scans to Read
• Specifies how many scans to retrieve from the
  buffer
• Default value (-1) sets of Scans to Read of
  Scans to Acquire (AI Start)
• If of Scans to Acquire (AI Start) 0, default
  for of Scans to Read is 100
• Scan Backlog
• Number of unread scans in the buffer
• Waveform Data
• Returns t0, dt (inverse of scan rate), and Y
  array for your data

• Clears resources assigned to the device

61
Error Cluster
62
Buffered Acquisition Flowchart
63
Buffered Acquisition

• AI Start begins the acquisition
• Acquisition stops when the buffer is full
• AI Read will wait until the buffer is full to
  return data
• If error input is true then Config, Start, and
  Read pass the error on but dont execute Clear
  passes AND executes

64
Continuous Acquisition Flowchart
NO
YES
65
Continuous Buffered Acquisition

• Differences from a buffered acquisition
• of scans to acquire 0
• While loop around AI Read
• Number of Scans to read does not buffer size
• Scan backlog tells how well you are keeping up

66
Analog Output Architecture
Channel 0
Channel 1

• Most E-Series DAQ devices have a
  Digital-to-Analog Converter (DAC) for each analog
  output channel
• DACs are updated at the same time
• Similar to Simultaneous Sampling for Analog Input

67
Analog Output Palette
68
Single-Point AO VIs

• Perform a software-timed, non-buffered generation
• Good for generating DC voltages, or control
  systems
• - Not good for waveform generation because
  software timing is slow

• AO Update Channel
• Generates one point on one channel
• AO Update Channels
• Generates one point on multiple channels

69
AO Update Channels

• Device
• Number of the device (from MAX) you are
  addressing
• Ignored if using virtual channel
• Channels
• Chooses what channel(s) you are addressing
• Can either be a number or a virtual channel name
• Uses the DAQ Channel Name control

• Values
• 1-D array of data
• The first element of the array corresponds to the
  first channel in your channels input

70
Multiple-Point (Buffered) AO VIs

• Perform a hardware-timed, buffered generation
• Highly recommended for most applications
• Allows continuous generation, triggering, and
  error handling

• AO Config
• Configures your device, channels, buffer
• AO Write
• Writes data to the buffer
• AO Start
• Starts your generation
• AO Wait
• Waits until the generation is complete
• AO Clear
• Clears resources assigned to the generation

71
Buffered Generation Flowchart
72
Buffered Generation

• AO Write fills the buffer with waveform data
• AO Start begins the generation
• Without AO Wait the generation would start (AO
  Start) and then end immediately after (AO Clear)
• If error input is true then Config, Write, Start,
  and Wait pass the error on but dont execute
  Clear passes AND executes

73
AO Write One Update

• Your analog output channel will continue to
  output the last value written to it until either
• The device is reset (power off, reset VI)
• A new value is written
• Use AO Write One Update at the end of your
  generation to set the channel back to 0

74
Continuous Generation Flowchart
NO
YES
75
Continuous Generation

• Differences from a buffered generation
• number of buffer iterations 0
• No AO Wait
• AO Wait would hang because the generation never
  completes
• While loop with AO Write
• The second AO Write is used for error checking
  ONLY
