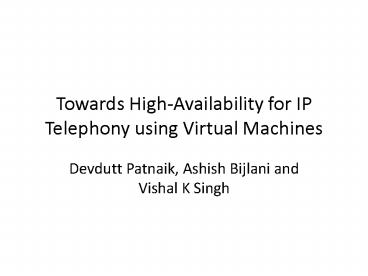

Towards High-Availability for IP Telephony using Virtual Machines

1
Towards High-Availability for IP Telephony using
Virtual Machines

• Devdutt Patnaik, Ashish Bijlani and Vishal K Singh

2
Outline

• Virtualization
• High Availability (HA) in Virtualized Platforms
• XEN and REMUS (HA solution for XEN)
• Remus applied to IP Telephony (IPT) applications
• Scalability and Reliability of IPT applications
  using Virtualization
• Experimental Results
• Conclusion

3
Virtualization and its Benefit

• Abstraction layer (Hypervisor) between the
  physical hardware and the OS.
• Single physical machine can host multiple virtual
  machines each running a different OS
  application stack
• VMMs
• Xen, VMWare, Microsoft HyperV
• Benefits
• Server consolidation
• Green computing
• Cost savings space and power
• High Availability
• Reliability solutions, ease of upgrades with near
  zero down-times

4
Virtualized hosting for IP Telephony

• Virtualized hosting for IP Telephony already
  available
• Avaya, Cisco, Asterix etc.
• IP Telephony in Cloud
• Scalability ability to elastically add/remove
  additional servers while supporting
  High-Availability for all servers
• Reliability protection against hardware and
  software failures
• HA features in virtualization platforms
• Memory state check pointing

5
Virtualization and High Availability

• Seamless fail-over, Efficient and transparent
  migration of VM to another physical machine
• Live Migration with very small down-times
• Minimal or no impact to client nodes
• Asynchronous check-pointing
• Continuously syncs the state between the primary
  and secondary host
• We use
• Remus A High Availability Solution for XEN

6
Remus on XEN

• Remus is a High Availability solution available
  on the Xen VMM
• Remus uses continuous check-pointing and keeps a
  consistent client view of network state
• The secondary machine hosts a paused replica of
  the primary VM
• Uses a heart-beat mechanism
• Failure to receive periodic heart-beat on
  secondary will un-pause the backup VM
• Heart beat time-out can be configured

Fig 1
Image http//osnet.cs.nchu.edu.tw/powpoint/semina
r/2008/Remus.pdf
7
Remus on XEN (contd.)

• Remus modes of operation
• Net Mode Highly reliable
• No-Net Mode better performance with negligible
  packet loss in case of failure
• Tunable for Reliability vs. Performance

Disk writes and Network Writes
Fig. 2

• Net Mode Buffers outgoing network packets until
  execution state is synced with the back up VM (on
  secondary host).
• reliability at cost of performance

Image http//osnet.cs.nchu.edu.tw/powpoint/semina
r/2008/Remus.pdf
8
Remus applied to IP Telephony- Scale with
Reliability

• Our work using HA in XEN extends architecture
  for fail-over and load sharing for IP Telephony
  proposed by Kundan Singh et. al.
• Challenges
• Overheads of virtualization on IP Telephony
  performance
• Co-Hosted/Co-located media server causes
  interference because of heavy I/O workload

9
Reliability and Scalability using Virtual Machines

• Scalability using load balancer (LB)
• LB can elastically add more VMs as demand grows
• Reliability using Remus in XEN

Stateless Load balancer
Reliability Architecture using Virtual machines

• For every primary Virtual Machine there is a
  back up VM in paused state.
• Since, backup VM is paused, it allows to place
  other running VMs on the same physical machine
• Provides N to M elastic/backup model (m back up
  for n primary)

10
Reliability and Scalability using Virtual
Machines (contd.)

• Reliability
• Provided by Xen Remus
• Failure of primary starts the execution of the
  secondary with IP address takeover
• Clients continue to execute un-affected
• Signaling and Media Server
• Co-located on same VM
• allows better utilization,
• no overhead of inter-vm communication
• Placed on different VM
• elastic scaling of media and signaling VMs

11
Studying Performance Implications

• Experimental setup
• Primary /Backup Servers
• Intel Core 2 Quad Processors, 2.5 Ghz, 8 GB RAM,
  4MB L2 Cache
• Hypervisor Xen 3.2.1 Remus
• Default Credit Scheduler configuration
• Guest OS Para Virtualized Linux 2.6.18
• IP Telephony Workload
• Modeled our workload using SIPStone
• Measured success of registrations during
  failover
• Used UDP and TCP as transport for registrations
• Used OpenSIPs as SIP server
• RTPProxy as Media Server
• SIPp for generating signaling and media traffic

12
Analysis and Results Signaling

• Guest VM and Domain 0 both have high CPU
  utilization with tcp_n (new tcp connection for
  each REGISTER)
• UDP and tcp_1 (1 tcp connection for all
  REGISTER) have similar overhead.

CPU utilization (in guest VM, dom0) Udp means
with udp transport, tcp_1 means same connection
for all call, tcp_n means new connection for
each call
With Remus NET mode, Registration overhead.
13
Analysis and Results Signaling

• CPU overhead increases with proportionately with
  signaling loads
• Dom0 has significant overheads due to
  check-pointing overheads.
• Net Mode gives good results for Signaling
• With 1400 regs/sec failure was induced
• with 100 completion of all by failover to the
  back up

14
Analysis and Results Media

• Media loads with Net Mode gives poor results
• Media with No-Net gives good performance even
  with 400 streams with 2 losses
• This can be further reduced by tweaking scheduler
  parameters
• 100 fail-over of all calls in progress during
  media experiments

Net Mode 100, 200, 400, 600 and 800 streams
No Net Mode 100, 200, 400, 600 and 800
streams
15
Conclusion

• Using No-Net mode for media streams gives us a
  balance between performance(loss and delay) and
  reliability(failover) while still being able to
  migrate 100 of all calls in progress (using TCP)
  which is a significant result
• Net Mode for Signaling is a good configuration
  with 100 registration completion with failover
• No-Net mode for the Media server deployment
  provides significant improvement in performance
  loss and delay reduces significantly
• While the No-Net configuration performs better
  for media, it may not provide call completion
  guarantees during the fail-over operation for
  signaling
• Migration of user registration and call setup
  operations was 100 successful

16
Contributions

• Extended load sharing and failover architecture
  using Virtualization
• Proposed use of high availability feature in
  virtualized platforms to achieve reliability in
  IP Telephony
• Proposed placement scheme of signaling and media
  applications for scale(elasticity) and efficiency
  (utilization)
• Systematic evaluation of overheads involved in
  use of virtualization for IP Telephony
  Applications
• Demonstrated that High Availability using Virtual
  Machines can be deployed for medium scale IP
  Telephony infrastructure

17
Future Work

• More detailed analysis of overheads
• Overhead because of check pointing in
  virtualization platform
• Overhead because of I/O in Domain 0
• Propose solutions to improve performance
• Improve I/O handing in XEN VMM
• Propose better VM placement algorithm for IP
  Telephony applications
• Utilizing fine grained overhead measurements for
  resource allocation
• Considering I/O (media) vs. memory (signaling
  state replication) optimizations
• Elasticity with co-location of media and
  signaling server on same VM

18
Questions

• vs2140_at_columbia.edu
