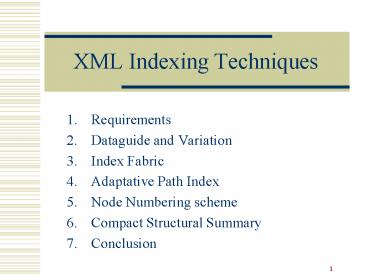

XML Indexing Techniques

1
XML Indexing Techniques

1. Requirements
2. Dataguide and Variation
3. Index Fabric
4. Adaptative Path Index
5. Node Numbering scheme
6. Compact Structural Summary
7. Conclusion

2
Requirements

• XML Queries involve navigating data using regular
  path expressions.(e.g., XPath)
• /Livre//Auteur_at_specialite"informatique")
• Accessing all elements with same name string.
• Ancestor-descendant relationship between
  elements.
• Content based access on values included in text.

3
Index Types

• Structural index
• Accessing all elements of given name
• Ancestor-descendant and parent-child relationship
  between elements
• Content index
• Accessing elements containing given keywords
• Supporting most text search functionalities

4
Classical Content Index

• Classically based on inverted lists
• For each term, gives the doc.ID localization
• Several variations allows different search types
• Offset, Relative, Proximity
• Generally stored in a B-Tree to optimize search
  for a given word
• Size is an important issue
• Memory and Disk

• (word, localization)
• Fixed entry (word repeated)
• (word, Frequency, (localization))
• Variable length entry

5
Problem with XML

• Support of element addressing
• Doc.ID should include NodeId (Xpath) Offset
• Index size becomes very large
• XPath are long
• Support of typed data
• Integer, float, simple types of XML schema
• Requires classical indexes for certain elements

• Query processing
• Structural joins
• Text search
• Exact search
• Support of updates
• Incremental updates would be a plus

6
Evaluation Criteria

• Identifiers
• Per node or per document
• Descendant/Ancestor Search
• By join algo.
• By graph traversal
• By OID comparison
• Keyword Search
• By element scan
• By B-tree traversal
• Update
• Incremental
• Index size
• Entry number
• Entry size

7
2-Dataguide and Variation

• Goldman Widom VLDB97
• Dynamic schemas
• helps in query formulation
• Concise and accurate structural summaries
• Every path in the database has one and only one
  corresponding path in the DataGuide with the same
  sequence of labels

• A legal label path
• Restaurant/Name
• Target set
• for eRestaurant/Entree is Ts(e) 6,10,11.
• DocId can be added to identifiers

8
Dataguide Principle

• To achieve conciseness
• a DataGuide describes every unique label path of
  a source exactly once.
• To ensure accuracy
• a DataGuide encodes no label path that does not
  appear in the source.
• And for convenience
• a DataGuide itself be an object (OEM or XML).

9
Dataguide Evaluation

• Identifier
• One per node
• Descendant/Ancestor Search
• By graph traversal
• Keyword Search
• By element scan
• Update
• Insertion is incremental
• Deletion is complex
• Index size
• Entry number Linear for tree can be
  exponential in number of DB nodes
• Entry size number of elements for a path

10
T-Index

• Milo Suciu, LNCS 1997
• T-index stands for Template-index
• A path template t has the form
• T1 x1 T2 x2 Tn xn
• where each Ti is either a regular path expression
  or one of the following two place holders P (any
  Path) and F (any Formula)
• //restaurant/ x P y /Address/City z F u
• A query path q is obtained from t by
  instantiating
• P by any path F by any formula

11
Principle

• T-index indexes all sequences of objects
  connected by a sequence of path expressions
  defined by a template.
• Particular cases
• 1-index indexes template any path P
• Indexes all objects reachable through an
  arbitrary path expression P from a root
• two nodes are equivalent (same entry) if the set
  of paths into them from the root is the same.
• 1-index is a non-deterministic version of the
  strong data guide
• 2-index indexes template P x P
• all pairs of objects connected by an arbitrary
  path expression P

12
Building a T-index

• Group objects into equivalence classes containing
  objects that are indistinguishable w.r.t to a
  class of paths defined by a path template
• Finer equivallence classes are more efficient to
  construct using bi-simulation
• Construct a non deterministic automaton
• states represent the equivalence classes
• transitions correspond to edges between objects
  in those classes.
• T-index can be used to answer queries of more
  general forms than the template

13
3-Adaptative Path Index (APEX)

• Adaptative Path Index for XML Chung et.al.
  SIGMOD 2002
• Summarize paths that appear frequently in query
  workload
• Maintain all paths of length 1
• Efficient for partial match paths
• Incremental update of index

14
APEX details

• Each node has an identifier (nid)
• Required paths for indexing (labelsome
  composed paths)
• APEX Graph (structural summary) hash tree
  (incoming required paths to nodes of Graph)
• Hash tree is used to find nodes of graph for
  given label path, also for incremental update
• Determine frequently used path from query
  workload using sequential pattern mining

15
APEX Example
XML data structure
APEX Hash tree and Graph
16
APEX Evaluation

• Identifiers
• One per node
• Descendant/Ancestor Search
• Hash tree access if required or graph traversal
  or join
• Keyword Search
• Not supported
• Update
• Insertion is incremental
• Index size (two structures)
• Entry number Linear in number of nodes
• Entry size number of elements for a path

17
4-Index Fabric

• Cooper et al. .A Fast Index for Semistructured
  Data.. VLDB, 2001
• Extension of dataguide for text search
• Keeps all label paths starting from the root
• Encode each label path with data value as a
  string
• Use efficient index for strings to store it
  (Patricia trie)
• Perform queries on keywords for elements as
  string search
• Does not keep information on non-terminal nodes

18
Patricia Trié

• Trié Key ? Value

• A Patricia trie is a simple form of compressed
  trie which merges single child nodes with their
  parents
• More efficient for long keys (non-common postfix
  in one node)

Trie A tree for storing strings in which there
is one node for every common prefix. The strings
are stored in extra leaf nodes.
19
Exemple

• Doc 1ltinvoicegt
• ltbuyergt
• ltnamegtABC Corplt/namegt
• ltaddressgt1 Industrial Waylt/addressgt
• lt/buyergt
• ltsellergt
• ltnamegtAcme Inclt/namegt
• ltaddressgt2 Acme Rd.lt/addressgt
• lt/sellergt
• ltitem count3gtsawlt/itemgt
• ltitem count2gtdrilllt/itemgt
• lt/invoicegt

• Doc 2 ltinvoicegt
• ltbuyergt
• ltnamegtOracle Inclt/namegt
• ltphonegt555-1212lt/phonegt
• lt/buyergt
• ltsellergt
• ltnamegtIBM Corplt/namegt
• lt/sellergt
• ltitemgt
• ltcountgt4lt/countgt
• ltnamegtnaillt/namegt
• lt/itemgt
• lt/invoicegt

20
Patricia Trie
21
Search on Paths

• Example of queries
• /invoice/buyer/name/ABC Corp
• /invoice/buyer//ABC Corp
• A key lookup operator search for the path key
  corresponding to the path expression.
• If path expands to infinite number of tags
• start by using a prefix key lookup operator,
• then navigate through children to check the rest

22
Fabric Evaluation

• Identifiers
• One per document
• Descendant/Ancestor Search
• As string search do not keep order of elements
• Keyword Search
• By Patricia trie leaves if expanded value index
  otherwise
• Update
• Insertion is incremental
• Deletion is complex
• Index size (index stored with document)
• Entry number Linear for tree
• Entry size number of elements for a path

23
5-Node Numbering Scheme

• Used for indexing elements
• Node Identifier (NID) ? element
• The NID aims at replacing structural joins by
  simple function computation
• check parent ancestor relationships
• is_parent(NID1,NID2), is_ancestor(NID1,NID2)
• determine parent children
• get_parent(NID1), get_children(NID1)

24
Virtual nodes (1)

• Lee Yoo Digital Libraries 99
• Document structure mapped on a k-ary tree
• Node identifier assigned according to the
  level-order tree traversal
• parent(i) (i-2)/k 1
• child(i,j) k(i-1) j 1

25
Virtual nodes (2)

• NID can be used to address elements in index of
  elements
• Only certain nodes (e.g., leaves) have to be
  indexed as parent nodes can be determined by
  computation
• Problems
• arity of tree may be variable and large
• determination of real existence of parent/child
• update when arity increases ?

26
XML trees node pre/post numbering

• Dietz82
• Identification of nodes
• Identifier preorder rankpostorder rank
• X ancestor of Y ltgt
• pre(X) lt pre(Y) and
• post(X) gt post(Y)
• Example
• 1lt5 and 7gt3 gt (1,7) ancestor (5,3)

(1,7)
(6,6)
(2,4)
(7,5)
(3,1)
(5,3)
(4,2)
27
Interval encoding

• LiMoon VLDB 2001
• Identify each node by a pair of numbers ltorder,
  sizegt as follows
• For a tree node y of parent x
• order(x) lt order(y)
• order(y)size(y) lt order(x) size(x)
• For two sibling nodes x and y, if x is the
  predecessor of y in preorder traversal then
• order(x) size(x) lt order(y)

(1,100)
(41,10)
(10,30)
(45,5)
(25,5)
(11,5)
(17,5)
Size keeps space for updates
28
Relative Region Coordinates (1)

• Kha Yoshikawa IEEE Data Engin. 2001
• A RRC of a node n of an XML tree is a pair
  sp-sn,sp-en of addresses in the region of
  parent, i.e., relative to parent start

Parent
Child
s
e
29
Relative Region Coordinates (2)

• Absolute region coordinate (ARC)
• Relative to root begin (from byte Nth to Mth)
• Allow to extract the XML data
• Can be derived from RRCs of parents and self
• Begin ?(parents?self)s (k-1)
• End ?(parents)s e(self)(k-1)
• Advantages
• Updates are kept local to a region
• To access parent-child efficiently
• A B-tree like structure is maintained (à la
  Natix).

30
Xyleme

• Generate a form of dataguide per cluster
• Generalized DTD
• Manage a label and value index (full index)
• Keep document ID and element ID
• Two forms of element ID
• Bit structured scheme structure position
• Prefix-postfix scheme left-deep traversal
• Stores XML DOM trees in pages
• NATIX (Mannheim Univ.) technology

31
Xyleme
32
6-Compact Structural Summary

• Bremer Gertz Tech Report 2003
• Compact addressing of words in XML doc.
• Encode XPath as reference to a path in a document
  guide (path set, DTD or schema)

33
Managing a Compact Index

• Naïve XML Indexing
• (Word,docId,(XPath))
• Example
• book/chapter2/resume/section3
• article/author/name
• Difficulties
• Index size !
• Processing time !
• Intersection of lists

• Problem
• How to memorize the location of a word inside an
  element ?
• Solution Bremer Gertz 02
• Encode the XPath as a reference to a path in a
  document guide (path sequence or schema)

34
XPath Encoding

• XPath encoded as a path ID (PID) of structure
  (N,(p1,p2, ...)
• N being a node identifier in the guide
• (p1, p2, ...) being indices for repetitive
  ancestors from root to N

PID (V, (1, 3))
/db/article1/text/sect3
35
PID Ordering and Encoding

• PID order
• IV,(1))lt(V,(1,2)) lt(V,(1,3)).
• Pre-order relationship
• X Parent Y
• ? PID(X) lt PID(Y)
• Compact PID encoding
• Path number
• Integer (short)
• Repetitive node
• log2(n) bits

• Compact PID Encoding (V, (1, 3))
  /db/article1/text/sect3

2 children 1 bit
1 child 0 bit
3 children 2 bits
Total 3 bits
36
Index Implementation
ltlivregt lttitregtLes Misérables, Tome 1
Fantinelt/titregt ltauteurgtVictor
Hugolt/auteurgt lthistoiregt 1815. Alors que tous
les aubergistes de la ville l'ont chassé, le
bagnard Jean Valjean est hébergé par Mgr Myriel (
que les pauvres ont baptisé, d'après l'un de ses
prénoms, Mgr Bienvenu). L'évêque de la ville de
Digne, l'accueille avec bienveillance, le fait
manger à sa table et lui offre un bon
lit. . lt/histoiregt lt/livregt

• Entry
• Word (stem) Address
• Address is
• PID (offset in element)
• Example
• City (V(1,3) (9, 36))

Word PID offset
Valjean (PID 15)
Ville (PID 9, 36)

37
XQuery Text Evaluator

• Normalize the query through thesaurus
• Translation
• Synonyms
• Conceptualization
• Access to the text index
• Intersection, union, difference of PIDs
• Access to the relevant elements from PIDs
• Verification of relevance

38
7-Conclusion

• Various indexing techniques for XML
• Main dimensions of variations
• Structural summary
• Dataguide, Schema guide, Generalized DTD
• Identification of nodes (NID)
• Should keep parent-child relationship
• Should be stable to updates
• Index of keywords
• Should be compact
• Should give NID and offset of instances

39
Classification
XML Indexing Methods
Numbering Scheme
Text Search
Graph Traversal
RRC
Hierarchy
T-Index
Pre/Post Order
Fabric
Dataguide
APEX
Interval Encoding
40
Index for XQuery Text

• Facilitate the retrieval of
• Non stop words
• Suffixes, prefixes
• Location of words in elements
• Relevant nodes for a search
• Entries should focus on elements
• Word (docId, NID)

41
Trreguide patterns
Book
Book
Author
Category
Author
Category
_at_speciality
Address
Company
_at_speciality
Company
Address
City
City
(b)
(a)
