A New Model for the Galactic Electron Density

1

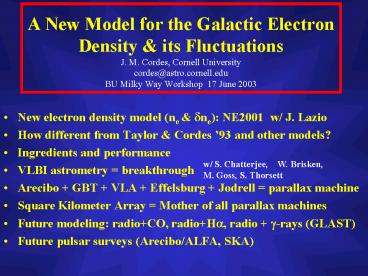

A New Model for the Galactic Electron Density
its FluctuationsJ. M. Cordes, Cornell
Universitycordes_at_astro.cornell.eduBU Milky Way
Workshop 17 June 2003

• New electron density model (ne ?ne) NE2001 w/
  J. Lazio
• How different from Taylor Cordes 93 and other
  models?
• Ingredients and performance
• VLBI astrometry breakthrough
• Arecibo GBT VLA Effelsburg Jodrell
  parallax machine
• Square Kilometer Array Mother of all parallax
  machines
• Future modeling radioCO, radioH?, radio
  ?-rays (GLAST)
• Future pulsar surveys (Arecibo/ALFA, SKA)

w/ S. Chatterjee, W. Brisken, M. Goss, S.
Thorsett
2
NE2001 (uses data through 2001)
Paper I the model (astro-ph/0207156) Paper II
methodology particular lines of sight
(astro-ph/0301598) Code driver files
papers www.astro.cornell.edu/cordes/NE2001
3
Why detailed modeling?

• Distance scale for neutron stars
• Neutron star populations (space density,
  luminosities)
• Birth/death rates
• Correlations with supernova remnants
• Designing Radio Pulsar Surveys
• Turbulence in Galactic plasma
• Galactic magnetic fields (deconstructing Faraday
  rotation measures)
• Interpreting scintillations of sources at
  cosmological distances (AGNs, GRBs)
• Baseline model for exploring the intergalactic
  medium (dispersion scattering in ISM, IGM)

4
Deficiencies of TC93

• DM too small for distant, high latitude objects
• Distances overestimated for many objects in
  the Galactic plane (10 of now-known objects have
  DMs too large to be accounted for)
• Pulse broadening over/underestimated in some
  directions
• Spiral arms incompletely defined over Galaxy
• No Galactic center component

5
Estimated Wavenumber Spectrum for ?ne
Similar to Armstrong, Rickett Spangler (1995)
Slope -11/3
Spectrum Cn2 q-? ?ne2? ?d3q Cn2 q-? SM ?ds
Cn2 (s)
6
Integrated Measures

• DM ?ds ne Dispersion Measure
• EM ?ds ne2 Emission Measure
• RM ?ds ne B Rotation Measure
• SM ?ds Cn2 Scattering Measure Spectrum Cn2
  q-?, q wavenumber
• (temporal spectrum not well constrained,
• relevant velocities 10 km/s)
• 11/3 (Kolmogorov value)
• Scales 1000 km to gt pc

7
Integrated Measures

• DM ?ds ne Dispersion Measure
• EM ?ds ne2 Emission Measure
• RM ?ds ne B Rotation Measure
• SM ?ds Cn2 Scattering Measure Spectrum Cn2
  q-?, q wavenumber
• (temporal spectrum not well constrained,
• relevant velocities 10 km/s)
• 11/3 (Kolmogorov value)
• Scales 1000 km to gt pc

8
Integrated Measures

• DM ?ds ne Dispersion Measure
• EM ?ds ne2 Emission Measure
• RM ?ds ne B Rotation Measure
• SM ?ds Cn2 Scattering Measure Spectrum Cn2
  q-?, q wavenumber
• (temporal spectrum not well constrained,
• relevant velocities 10 km/s)
• 11/3 (Kolmogorov value)
• Scales 1000 km to gt pc

9
Independent Pulsar Distances

• Parallaxes Pulse timing
  Interferometry
• Associations Supernova remnants Globular
  clusters
• HI Absorption Galactic rotation

10
Very Long Baseline Array
PSR B091906 S. Chatterjee et al. (2001) ? 88.5
? 0.13 mas/yr ? 0.83 ? 0.13 mas
D 1.2kpc V 505 km/s
11
Brisken et al. 2001 2002
12
NE2001

• Goal is to model ne(x) and Cn2(x) ? Fne2(x) in
  the Galaxy
• Input data DM, EM, SM, DL, DU distance
  ranges
• Prior input
• Galactic structure, HII regions, spiral-arm loci
• Multi-? constraints on local ISM (H?, NaI, X-ray)
• Figures of merit
• Ngt number of objects with DM gt DM? (model)
  (minimize)
• Nhits number of LOS where predicted measured
  distance d(model) ? DL, DU
  (maximize)
• L likelihood function using distances
  scattering (maximize)
• Basic procedure get distances right first, then
  get scattering (turbulence) parameters

13
NE2001

• x2 more lines of sight (D,DM,SM) 114 with
  D/DM, 471 with SM/D or DM (excludes Parkes MB
  obj.)
• Local ISM component (new) (new VLBI
  parallaxes) 12 parameters
• Thin thick disk components (as in TC93) 8
  parameters
• Spiral arms (revised from TC93) 21
  parameters
• Galactic center component (new) 3
  parameters (auxiliary VLA/VLBA data Lazio
  Cordes 1998)
• Individual clumps/voids of enhanced dDM/dSM
  (new) 3 parameters x 20 LOS
• Improved fitting method (iterative likelihood
  analysis)
• penalty if distance or SM is not predicted to
  within the errors

14
Local ISM components results
15
Model Components
16
Galactic Center Component
17
Thin disk
18
Thick disk (1 kpc)
19
Spiral arms
20
DM vs Galactic longitude for different latitude
bins
21
DM vs Galactic longitude for different latitude
bins
22
134 of 1143 TC93 distances are lower bounds
23
DM(psr)-DM(model, ?)
24
Asymptotic DM
25
Spatial fluctuations in ne

• recall dSM Cn2 ds ? F ne2 ds ? F ne dDM
• F fluctuation parameter
  varies widely over Galaxy
• F ? (dne / ne )2 / f (outer scale)2/3
• (f volume filling factor of ionized
  cloudlets)
• F varies by gt100 between outer/inner Galaxy
• ? change in ISM porosity due to change in
• star formation rate (?)
• outer scale 0.01 pc in HII shells, GC
  gt 1 pc in tenuous thin disk
• estimate dne / ne 1

26
dSM ? F ne dDM F ? (dne / ne )2 / f (outer
scale)2/3
Evidence for variations in turbulence properties
between inner outer Galaxy
large F
small F
27
Selected Applications
Galactic turbulence anisotropy of fluctuations relation to ?B and CR propn expect correlations of ?-ray emission scattering (GLAST needed) IGM in local group M33 giant pulses from Crab-like pulsars ? DM,SM
IGM on cosmological scales scattering/scintn of AGNs by intervening galaxies, Ly? clouds, turbulence in cluster gas, HII regions at EOR GRB IDV scintillations source sizes vs. t ambient medium IGM
28
New Parallax Programs

• 53 pulsars using VLBA antennas only at 1.4 GHz
  (systematics ionospheric phase)
• Chatterjee, Brisken et al. (2002-2004)
• Currently can reach 2 kpc
• 6 strong pulsars, VLBA-only at 5 GHz
• Ionosphere less important
• Chatterjee, Cordes et al. (2001-ongoing)
• VLBA Arecibo GBT
• Initial tests
• Expect to do 100 pulsars in 5 years, some to 5
  kpc
• Future SKA ? superior phase calibration,
  sensitivity, can reach gt10 kpc

29
Surveys with Parkes, Arecibo GBT. Simulated
actual pulsars shown Yield 1000 pulsars in
ALFA survey
30
SKA pulsar survey 600 s per beam 104 psrs
31
Comments Summary

• NE2001 large improvement over TC93
• Caveat HII regions, etc are grossly
  undersampled by available LOS
• Need 104 DMs to adequately model the MW from
  pulsars alone
• Large-scale structures are imposed and
  parameterized
• VLBI (esp. with Arecibo, GBT, Jodrell,
  Effelsberg, etc) will yield many new parallaxes,
  obviating the need for DM distances for 100
  pulsars in a few yr
• New pulsar surveys will double sample in 5 yr
• Next version (NE200X) will
• Use scattering measurements of Parkes Multibeam
  sample
• Define spiral arms more empirically using pulsar
  HI, H?, CO results
• Other distance approaches possible
• Radio standard candles if beaming accounted for
• Expect tighter LX , L? with better distance
  models.

32
(No Transcript)
33
Modeling the Galactic ne dne

• mean fluctuations are modelled
• dSM Cn2 ds ? F ne2 ds ? F ne dDM F
  fluctuation parameter varies widely
  over Galaxy
• ?ne Cn (outer scale)1/3
• possible/probable dne / ne 1
• not clear that dne on all scales due to same
  process

34
Electron density of TC93
Taylor Cordes (1993 ApJ, 411, 674)
35
NE2001

• x2 more lines of sight (D,DM,SM) 114 with
  D/DM, 471 with SM/D or DM (Parkes MB in next
  version)
• Local ISM component (new) 12 parameters
• Thin thick disk components (as in TC93) 8
  parameters
• Spiral arms (revised from TC93) 21
  parameters
• Galactic center component (new) 3
  parameters (auxiliary VLA/VLBA data Lazio
  Cordes 1998)
• Individual clumps of enhanced DM/SM (new) 5
  parameters per clump (Voids also)
• Improved fitting method (iterative likelihood
  analysis)
• penalty if distance or SM is not predicted to
  within the errors

36
Pulsar Velocities

• Lyne Lorimer 1994
• Proper motions TC93 ? ltVgt 500 km/s
• Unimodal distribution
• Cordes Chernoff 1997
• MSP analysis (TC93) ? ltVgt 80 km/s
• Cordes Chernoff 1998
• High-field pulsars (TC93), lt 10 Myr, 3D
  velocities (z/t)
• No correction for selection effects
• ? bimodal V, ?1 175 km/s, ?2 700 km/s (14)
• Arzoumanian, Chernoff Cordes 2002
• Full analysis (beaming, selection effects, TC93)
• ? bimodal V, ?1 90 km/s, ?2 500 km/s (40)

37
ACC 02
How might the results change using NE2001 instead
of TC93?
38
Guitar Nebula PSR B222465
Edot 1033 erg/s P0.6 sec D(TC93) 2 kpc
? V?1700 km/s D(NE2001) 1.7 kpc ?
V?1450 km/s
H? Palomar 5-m image
39
Is the DM distance Realistic?
40
Is the DM distance Realistic? Yes
Standoff radius and flux are consistent
41
Pulsar velocities using only objects with
parallax measurements
Distribution shows high-velocity tail and is not
inconsistent with ACC results on high-field
pulsars and CC97 on MSPs
42
Arecibo Multibeam Surveys
Parkes MB Feeds
43
I. Arecibo Galactic-Plane Survey

• b lt 5 deg, 32 deg lt l lt 80 deg
• 1.5 GHz total bandwidth 300 MHz
• digital correlator backend (1024 channels) (1st
  quadrant available WAPP)
• multibeam system (7 feeds)
• 300 s integrations, 3000 hours total
• Can see 2.5 to 5 times further than
  Parkes (period dependent)
• Expect 500 to 1000 new pulsars

44
II. High Galactic Latitude Survey
Search for

• Millisecond pulsars (z scale height 0.5
  kpc)
• High-velocity pulsars (50 escape) (scale
  height ?)
• NS-NS binaries (typical z 5 kpc)
• NS-BH binaries (typical z few kpc ?)

45
Electron density (log gray scale to enhance local
ISM)
NE2001 Spiral Arms
46
Differential TOA from Multipath Quenching of
pulsations for ?d gt P.
47
NE2001 New Model Cordes Lazio 2002 astro-ph
Julywww.astro.cornell.edu/cordes/NE2001

• Goal is to model ne(x) and Cn2(x) in the Galaxy
• Software to the community (cf web site)
• Supercedes earlier model (Taylor Cordes 1993,
  ApJ)
• Investigate application spinoffs
• Astronomical
• scattering degradation of pulsar surveys
• Imaging surveys at low frequencies (LOFAR, SKA)
• SETI
• Astrophysical
• Physics of interstellar turbulence
• Connection to magnetic fluctuations CR
  propagation (scales probed match CR
  gyroradii over wide energy range)

48
Deficiencies of TC93

• DM too small for distant, high latitude objects
• Distances overestimated for many objects in
  the Galactic plane (10 of now-known objects have
  DMs too large to be accounted for)
• Pulse broadening over/underestimated in some
  directions
• Spiral arms incompletely defined over Galaxy
• No Galactic center component
