Stacks Queues Introduction to Trees

1
StacksQueuesIntroduction to Trees

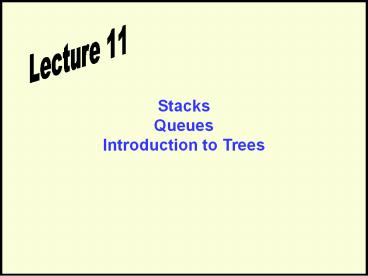

Lecture 11
2
Stacks
3
An Everyday Example

• Your boss keeps bringing you important items to
  deal with and keeps saying
• Put that last rush item I gave you on hold
  this is more important, so rush it out first.
• Well end up doing the last item first(last in,
  first out).

4
In general...
LB

• A stack can keep track of, Where was I?
• Activation Stack
• Compilers
• if
• if
• if
• endif
• endif
• if
• Cafeterias use stacks Plates, trays...

5
The Stack
Push
Pop
6
Properties

• Idea a Last In, First Out (LIFO) data
  structure
• Behaviors
• Push Add to top of stack
• Pop Remove from top of stack (and return that
  top value)
• Top Return topmost item (but leave it on the
  stack)
• Is_Full is it full?
• Is_Empty is it empty?
• Initialize empty stack

7
The Stack as a Logical Data Structure

• The stack is an idea
• It implies a set of logical behaviors
• It can be implemented various ways
• Using a linked list or a tree or an array
• In this example, well focus on dynamic
  implementations using dynamic data...

8
StacksDynamic Implementation

• A linked list with restricted set of operations
  to change its state only modified from one end

top
4
17
42
9
Defining the Node Type

• This is the simple data structure we will use in
  the following example.
• Node definesa record
• data isoftype Num
• next isoftype Ptr toa Node
• endrecord // Node

10
Complex Node Definition

• Recall that the same code (with some small
  modifications) will work with more complex data
  structures such as is shown here
• Student_Rec definesa Record
• Name isoftype String
• SSN isoftype String
• GPA isoftype Num
• endrecord // Student_Rec
• Node definesa Record
• data isoftype Student_Rec
• next isoftype Ptr toa Node
• endrecord // Node

11
Application Programmer Interface

• procedure Push (value isoftype in Num,
• top isoftype in/out Ptr toa Node)
• // Purpose push one value onto stack
• // Pre top points to NIL-terminated list
• // Post the list has one node added
• procedure Pop (value isoftype out Num,
• top isoftype in/out Ptr toa Node,
• result isoftype out Boolean)
• // Pop a value off stack if empty, result
• // contains FALSE (value will be undefined)
• // Pre top points to a NIL-terminated list
• // Post list has one fewer, value is old data


12
Push

• Create new node
• Add it to the front

top
17
42
13
Push

• Create new node
• Add it to the front

temp
top
42
4
17
?
14
Push

• Create new node
• Add it to the front

temp
top
42
4
17
15
Push

• Create new node
• Add it to the front

top
4
42
17
16
Push

• Procedure Push (value isoftype in Num,
• top isoftype in/out Ptr toa Node)
• // Push one value onto stack
• temp isoftype Ptr toa Node
• temp lt- new(Node)
• temp.data lt- value
• temp.next lt- top
• top lt- temp
• endprocedure // Push

17
Pop

• Capture the first value (to return)
• Remove the first node (move top to next)

top
4
42
17
18
Pop

• Capture the first value (to return)
• Remove the first node (move top to next)

top
4
42
17
value 4
19
Pop

• Capture the first value (to return)
• Remove the first node (move top to next)

top
4
42
value 4
17
20
Pop

• Capture the first value (to return)
• Remove the first node (move top to next)

top
42
17
value (4) is returned
21
Pop

• procedure Pop (value isoftype out Num,
• top isoftype in/out Ptr toa Node,
• result isoftype out Boolean)
• // Pop an element off the stack
• if(top NIL) then
• result lt- FALSE
• else
• result lt- TRUE
• value lt- top.data
• top lt- top.next
• endif
• endprocedure // Pop

22
Students Choice?
Do Trace
Skip Trace
23
Algorithm Fragment

• .
• top isoftype Ptr toa Node
• OK isoftype Boolean
• N isoftype Num
• top lt- NIL
• Push(42, top)
• Push(2, top)
• Pop(N, top, OK)
• if(OK) then
• print(N)
• endif
• Push(7, top)
• Pop(N, top, OK)
• Pop(N, top, OK)
• .

24
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
25
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK N
26
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK N
27
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK N
28
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
29
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
30
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
31
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
32
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
33
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
34
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
35
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK N
36
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
37
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
38
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
39
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
40
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
41
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Push (value isoftype in Num,
top isoftype in/out Ptr toa Node) temp
isoftype Ptr toa Node temp lt- new(Node)
temp.data lt- value temp.next lt- top top lt-
temp endprocedure
temp
OK N
42
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK N
43
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Pop value isoftype out Num, top
isoftype in/out Ptr toa Node, result
isoftype out Boolean) if(top NIL) then
result lt- FALSE else result lt- TRUE value lt-
top.data top lt- top.next endif endprocedure
value result
OK N
44
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Pop value isoftype out Num, top
isoftype in/out Ptr toa Node, result
isoftype out Boolean) if(top NIL) then
result lt- FALSE else result lt- TRUE value lt-
top.data top lt- top.next endif endprocedure
value result
OK N
45
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Pop value isoftype out Num, top
isoftype in/out Ptr toa Node, result
isoftype out Boolean) if(top NIL) then
result lt- FALSE else result lt- TRUE value lt-
top.data top lt- top.next endif endprocedure
value result T
OK N
46
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Pop value isoftype out Num, top
isoftype in/out Ptr toa Node, result
isoftype out Boolean) if(top NIL) then
result lt- FALSE else result lt- TRUE value lt-
top.data top lt- top.next endif endprocedure
value 2 result T
OK N
47
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Pop value isoftype out Num, top
isoftype in/out Ptr toa Node, result
isoftype out Boolean) if(top NIL) then
result lt- FALSE else result lt- TRUE value lt-
top.data top lt- top.next endif endprocedure
value 2 result T
OK N
48
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
Procedure Pop value isoftype out Num, top
isoftype in/out Ptr toa Node, result
isoftype out Boolean) if(top NIL) then
result lt- FALSE else result lt- TRUE value lt-
top.data top lt- top.next endif endprocedure
value 2 result T
OK N
49
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK T N 2
50
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK T N 2
51
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK T N 2
52
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK T N 7
53
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK T N 42
54
top
. top isoftype Ptr toa Node OK isoftype Boolean N
isoftype Num top lt- NIL Push(42, top) Push(2,
top) Pop(N, top, OK) if(OK) then
print(N) endif Push(7, top) Pop(N, top,
OK) Pop(N, top, OK) .
OK T N 42
55
Summary Stack

• Allow us to model last-in, first-out (LIFO)
  behavior
• Can be implemented using different data types
• Behavior is important (and defines a Stack)
• Push to the front
• Pop from the front
• (from the same end)

56
Questions?
57
Queues
58
Some Examples

• Waiting in line
• At the grocery store
• At the movies
• Printer queue
• Ordering items
• Bills to pay
• Making pizzas
• We can use a queue to model each of these.

LB
59
The Queue
Dequeue
Enqueue
60
Properties of Queues

• Idea a First In, First Out (FIFO) data
  structure
• Behaviors
• Enqueue Add to end of queue
• Dequeue Remove from front of queue (and return
  that front value)
• Front Return front-most item (but leave it in
  the queue)
• Is_Full is it full?
• Is_Empty is it empty?
• Initialize empty queue

61
The Queue as a Logical Data Structure

• The queue is an idea
• It implies a set of logical behaviors
• It can be implemented various ways
• Using a linked list or a tree or an array
• In this example, well focus on dynamic
  implementations using dynamic data...

62
QueuesDynamic Implementation

• A linked list with restricted set of operations
  to change its state only modified by adding to
  one end and deleting from the other.

63
Queue Record Definition

• Queue definesa record
• head,
• tail isoftype Ptr toa Node
• endrecord // Queue

64
Defining the Node Type

• This is the simple data structure we will use in
  the following example.
• Node definesa record
• data isoftype Num
• next isoftype Ptr toa Node
• endrecord // Node

65
Complex Node Definition

• Recall that the same code (with some small
  modifications) will work with more complex data
  structures such as is shown here
• Student_Rec definesa Record
• Name isoftype String
• SSN isoftype String
• GPA isoftype Num
• endrecord // Student_Rec
• Node definesa Record
• data isoftype Student_Rec
• next isoftype Ptr toa Node
• endrecord // Node

66
Application Programmer Interface

• procedure Enqueue (value isoftype in Num,
• Q isoftype in/out Queue)
• // Pre Q is initialized
• // Purpose Add a value to the tail
• // Post Q has new element at tail
• procedure Dequeue (value isoftype out Num,
• Q isoftype in/out Queue,
• result isoftype out Boolean)
• // Pre Q is initialized
• // Purpose Remove first value from Q and
• // return it via value OR indicate
• // that Q is empty via result
• // Post element that was at head has been
• // removed OR (result FALSE)

67
Enqueue

• Create a new node with data
• Add it to the end
• Update pointers as needed

head
tail
17
4
68
Enqueue

• Create a new node with data
• Add it to the end
• Update pointers as needed

temp
42
head
tail
17
4
69
Enqueue

• Create a new node with data
• Add it to the end
• Update pointers as needed

temp
42
head
tail
17
4
70
Enqueue

• Create a new node with data
• Add it to the end
• Update pointers as needed

tail
head
temp
42
17
4
71

• procedure Enqueue (value isoftype in Num,
• Q isoftype in/out Queue)
• temp isoftype Ptr toa Node
• temp lt- new(Node)
• temp.data lt- value
• temp.next lt- NIL
• if(Q.tail NIL) then // was empty
• Q.tail lt- temp
• Q.head lt- temp
• else // was not empty
• Q.tail.next lt- temp
• Q.tail lt- temp
• endif
• endprocedure // Enqueue

72
Dequeue

• Capture the first value (to return)
• Remove the first node (move head to next)

head
tail
42
17
4
73
Dequeue

• Capture the first value (to return)
• Remove the first node (move head to next)
• value 4

head
tail
42
17
4
74
Dequeue

• Capture the first value (to return)
• Remove the first node (move head to next)
• value 4

head
tail
42
17
4
75
Dequeue

• Capture the first value (to return)
• Remove the first node (move head to next)
• value (4) is returned

head
tail
42
17
76

• procedure Dequeue (value iot out Num,
• Q iot in/out Queue,
• result iot out Boolean)
• if(Q.head NIL) then
• result lt- FALSE
• else
• result lt- TRUE
• value lt- Q.head.data
• Q.head lt- Q.head.next
• if(Q.head NIL) then
• Q.tail lt- NIL
• endif
• endif
• endprocedure // Dequeue

77
Initializing the Queue

• procedure QInit (Q isoftype out Queue)
• // Initializes the Q head and tail
• // to point to nil, setting the Q to
• // be empty
• Q.head lt- NIL
• Q.tail lt- NIL
• endprocedure // QInit

78
Students Choice
Do Trace
Skip Trace
79
Algorithm Fragment

• .
• myQ isoftype Queue
• OK isoftype Boolean
• N isoftype Num
• Qinit(myQ)
• Enqueue(42, myQ)
• Enqueue(2, myQ)
• Dequeue(N, myQ, OK)
• Enqueue(7, myQ)
• Dequeue(N, myQ, OK)
• Dequeue(N, myQ, OK)
• Dequeue(N, myQ, OK)
• if(NOT OK) then
• print(myQ is empty)
• endif
• .

80
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
81
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
head
tail
82
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
83
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
84
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Qinit (Q isoftype out Queue)
Q.head lt- NIL Q.tail lt- NIL endprocedure
85
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Qinit (Q isoftype out Queue)
Q.head lt- NIL Q.tail lt- NIL endprocedure
86
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Qinit (Q isoftype out Queue)
Q.head lt- NIL Q.tail lt- NIL endprocedure
87
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
88
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num, Q
isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
89
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
90
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
91
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
92
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
93
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
94
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
95
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
96
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
97
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
98
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
99
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
100
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
101
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
102
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
103
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
104
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
105
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
106
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
107
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
108
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
109
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
110
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
111
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
112
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
Peeking back at calling program.
113
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
114
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
115
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
116
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
117
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
118
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
119
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
120
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
121
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
122
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
123
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
124
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
125
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Enqueue (value isoftype in Num,
Q isoftype in/out Queue) temp isoftype Ptr toa
Node temp lt- new(Node) temp.data lt- value
temp.next lt- NIL if(Q.tail NIL) then Q.tail
lt- temp Q.head lt- temp else Q.tail.next lt-
temp Q.tail lt- temp endif endprocedure
126
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
127
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
128
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
129
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
130
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
131
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
132
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
133
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
134
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
135
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
136
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
137
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
138
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
139
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
140
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
141
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
142
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
procedure Dequeue (value isoftype out Num, Q
isoftype in/out Queue, result isoftype out
Boolean) if(Q.head NIL) then result lt-
FALSE else result lt- TRUE value lt-
Q.head.data Q.head lt- Q.head.next if(Q.head
NIL) then Q.tail lt- NIL endif
endif endprocedure
143
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
144
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
145
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
146
. myQ isoftype Queue OK isoftype Boolean N
isoftype Num Qinit(myQ) Enqueue(42,
myQ) Enqueue(2, myQ) Dequeue(N, myQ,
OK) Enqueue(7, myQ) Dequeue(N, myQ,
OK) Dequeue(N, myQ, OK) Dequeue(N, myQ,
OK) if(NOT OK) then print(myQ is empty) endif .
147
Summary Queues

• Allow us to model first-in, first-out (FIFO)
  behavior
• Can be implemented using different data types
• Behavior is important (and defines a Queue)
• Enqueue to end
• Dequeue from front
• (or vice-versa just do at opposite ends)

148
Questions?
149
Introduction to Trees
150
Trees

• A non-linear, hierarchical collection with a one
  to many relationships

151
Visual Representation of a Tree

• Trees allow each node to have multiple successors

Parent
Child
152
Tree Terminology
Root
Parent
Child
Leaf
153
Tree Terminology

• The first node is called the root.
• Successors are called children
• A parent node points to a child node.
• Nodes with no children are called leaves.

154
Binary Trees

• Binary trees can have at most two successors.

155
Binary Tree Example

• No imposed ordering.

25
42
7
105
111
3
12
68
17
156
Structure of a Binary Tree Node

• ltType Namegt definesa Record
• data isoftype lttypegt
• left_child isoftype Ptr toa ltType Namegt
• right_child isoftype Ptr toa ltType Namegt
• endrecord

data
left_child
right_child
157
Example Definition Binary Tree Node

• Tree_No
