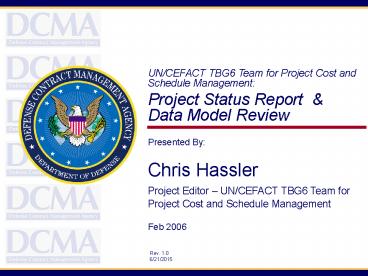

Project Cost

1
UN/CEFACT TBG6 Team for Project Cost and Schedule
Management Project Status Report Data Model
Review
Presented By Chris Hassler Project Editor
UN/CEFACT TBG6 Team for Project Cost and Schedule
Management Feb 2006
Rev. 1.0 6/21/2015
2
Contents

• UN/CEFACT Project
• Background
• Timeline
• Current Status (EVG3)
• DCMA Web Services
• Registry (coming soon)
• Security
• DCMA Web Services Compatibility Profile 1.0
• How to Get Started

3
UN/CEFACT
Background Timeline Current Status
4
UN/CEFACT Data Standardization

• Enhancement to DoD Earned Value Standards for EDI
• XML-based
• Includes ANSI X12 806 839 transaction sets
• Adds many new fields to support entire lifecycle
  of Project Cost and Schedule Management data
  (from Contract Initiation to Closeout)
• Based on Core Components Technical Specification
  (CCTS)
• First Implementation Verification 90 complete
• Must complete two additional Implementation
  Verifications by September 06.
• UN/CEFACT adoption scheduled for September 06
• Working with Earned Value software vendors

5
UN/CEFACT Timeline
March 05 - Project Proposed to UN/CEFACT Project
Cost and Schedule Management
Sept 05 - Project Proposal Accepted by
UN/CEFACT, DCMA Named Project Editor
Jan 06 - UN/CEFACT TBG6 Interim Meeting in Paris
Mar 06 - UN/CEFACT Forum in Vancouver
Implementation Verification Begins
Jun 06 - UN/CEFACT TBG6 Interim meeting
Sept 06 - UN/CEFACT Forum in New Delhi
Implementation Verification scheduled to be
complete expect UN/CEFACT to approve data
standard for international usage.
6
UN/CEFACT Implementations
First Implementation Verification 90 complete
Service Consumer (Contractor)
Service Provider (DCMA)
Transfer EV Data
Convert UN/CEFACT XML to wInsight XML
Notify DCMA User
EV Data Submission Application
Boeing User Prepares EV Data in Welcom
DCMA User Analyzes EV Data in wInsight
7
DCMA Web Services Registry Security DCMA WSCP 1.0
8
DCMA SOA Next Step Systinet Registry
SOA Maturity over Time
DCMA is here
Enablement
Register Discover
Coordinate Compose
Introduce Web Service Technology enable legacy
app integration provide data access
Scale the number of interoperable participants
Create, link and adapt business rules
and processes in a loosely coupled manner
Apps, App Servers, Legacy, MOM/EAI
UDDI, Governance
BPM composite applications
9
DCMA Web Services Security Basic Authentication
ServiceConsumer
ServiceProvider
DCMA App Server or SOA
Business Partner App Server
Internet
User Browser
DB
Web Service
Client Web Application
User Authentication Authorization
10
DCMA Web Services Security SSL
ServiceConsumer
ServiceProvider
DCMA App Server or SOA
Business Partner App Server
Internet
User Browser
DB
Web Service
Client Web Application
Client-side SSL Cert
Server-side SSL Cert
11
DCMA WS Compatibility Profile 1.0
DCMA Web Service Compatibility Profile 1.0
https//evg3.dcma.mil/docs/dcma-wscp-1.0.doc Req
uired standards for interoperability with DCMA
Web Services
DCMA SOA
DCMA WSCP 1.0
SOAP 1.1
HTTP 1.1
WSDL 1.1
UDDI 2.0
SSL 3.0
JAX RPC Client (Boeing)
12
Notional SOA Model for EV Data Service
Vendors will consume the EV publishing service to
send monthly data
Registry (.xsd .wsdl)
EV Data XML Schemas
XSD
WSDL
Discover (UDDI)
Publish (UDDI)
Web ServiceConsumer
Web ServiceProviders
Consume (SOAP)
EV Data Web Service
Web Service Client
Send (XML Data)
Govt Agencies
Contractors
13
Contact Information
14
DCMA Web Services Contacts

• Chris Hassler UN/CEFACT Project Editor - DCMA
• Chris.hassler.ctr_at_dcma.mil
• 310-900-6005
• Scott Larson Web Services Team Lead DCMA
• Scott.larson.ctr_at_dcma.mil
• 415-577-9872
• Peter Amstutz Chief of Network Design - DCMA
• Peter.amstutz_at_dcma.mil
• 310-900-6138
