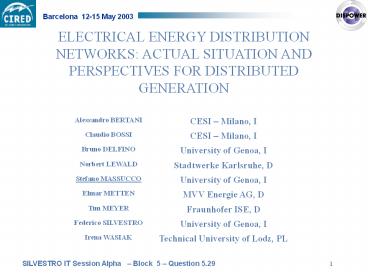

Title: ELECTRICAL ENERGY DISTRIBUTION NETWORKS: ACTUAL SITUATION AND PERSPECTIVES FOR DISTRIBUTED GENERATION
1ELECTRICAL ENERGY DISTRIBUTION NETWORKS ACTUAL
SITUATION AND PERSPECTIVES FOR DISTRIBUTED
GENERATION
Alessandro BERTANI CESI Milano, I
Claudio BOSSI CESI Milano, I
Bruno DELFINO University of Genoa, I
Norbert LEWALD Stadtwerke Karlsruhe, D
Stefano MASSUCCO University of Genoa, I
Elmar METTEN MVV Energie AG, D
Tim MEYER Fraunhofer ISE, D
Federico SILVESTRO University of Genoa, I
Irena WASIAK Technical University of Lodz, PL
2DISPOWERDistributed Generation with high
penetration of renewable energy sources project
n NNE5-2001-00075
3Work package descriptions
- WP 1 Grid stability and control
- WP 2 Power quality and safety
- WP 3 Socio-economic issues
- WP 4 Planning, training and operation tools for
regional supply systems - WP 5 Information, communication and electricity
trading - WP 6 Test facilities for grid stability and
control - WP 7 Implementation of RE technology for
regional supply systems - WP 8 Test facilities for power quality in DG
grids - WP 9 Operation and quality management tools in
low voltage grids - WP 10 Pilot installations and monitoring of
distributed power generators in low voltage grids - WP 11Overall assessment of DG in local power
supply systems
4Work Package 1 2
- Work Package 1 (Grid stability and control) is
intended to develop equipment and system models
capable of ensuring effective and economical
operation of electrical networks with high
penetration of distributed renewable energy
sources. - Work Package 2 (Power quality and safety) will
identify new standard requirements for grid
connection of decentralized power generators with
particular attention to islanding operation
problems and the development of innovative
protection methodologies and systems.
5Work Package 3 4 5
- Work Package 3 (Socio-economic issues) is
oriented to evaluate the influence of new
communication technologies and distributed
networks on the development of supply,
consumption and distribution of electricity. - Work Package 4 (Planning, training and
operational tools for regional supply systems)
aims at adapting existing tools for planning,
design, operation of distributed generation
systems. - Work Package 5 (Information, communication and
electricity trading) will develop an
internet-based information network for fast and
secure data exchange and management.
6Work Package 6 7
- Work Package 6 (Test facilities for stability and
control) The new concepts developed in the
previous work packages need to be tested in the
partners laboratories. Test sites will include
distributed generators and communication
facilities. - Work Package 7 (Implementation of renewable
energy technology for regional supply systems)
will elaborate scenarios of long term
perspectives for distributed generation in
Europe. Both interconnected grids and weak and/or
isolated networks will be considered.
7Work Package 8 9
- Work Package 8 (Test facilities for power quality
in DG grids) will realize a flexible low voltage
grid structure. The scope is to evaluate
different scenarios for the implementation of
distributed energy sources and energy storage
devices. A test facility with over 200 kW of
installed power is already under development at
CESI (Milano, Italy). - Work Package 9 (Operation and quality management
tools in low voltage grids) will develop a Power
Operation and Power Quality management system
which will be used to control energy flows and
power quality in low voltage grids with concepts
allowing for use of low cost equipment.
8Work Package 10 11
- Work Package 10 (Pilot installations and
monitoring of distributed power generators in low
voltage grids) Experimental sites will be
realized for the testing of distributed
generators at low voltage level. Actually
installed pilot sites are expected to be used at
MVV (Dannenberg, Germany), at Iberdrola (San
Agustin del Guadalix, Spain), at Stadtwerke
(Karlsruhe, Germany). - Work Package 11 (Overall assessment of DG in
local supply systems) will coordinate the
presentation and dissemination of results through
publications and workshops.
9Power Quality Operation and Management
systemPOMS
- PoMS is a communication infrastructure and
optimisation tool for low voltage grids which is
expected to perform power quality monitoring and
control and to optimize grid operation through
distributed generation control and demand side
load management - A PoMS system implementation consists of a
central PoMS unit and a communication
infrastructure, which connects DG and measurement
units to PoMS.
10Power Quality Operation and Management
systemPOMS
- collect information about topology situation and
power quality - provide local strategies for power quality and
security improvement - generates schedules for economically (cost) and
technically (power quality) optimised operation
of controllable generators and loads
11(No Transcript)
12National Grid Structures
- Within the first activities of WP 2 and WP 9 in
DISPOWER, an overview of different network
structures (Italy, Spain, UK, Germany, Poland)
and a preliminary classification has been
performed. - The aim is to find solutions and concepts that
can be applied easily to a certain class of
systems. - Thus, a detailed description of the Low Voltage
grids has been started by collecting the
following information/ parameters.
13National Grid Structure
14Operating criteria
15Equipment and automation
16Load types and characteristics
17LV network classification
18Possible networks for the DISPOWER goals 7
19Test sites
- Within DISPOWER, four test sites will be set up
in order to evaluate the performances of active
networks and the POMS strategies. - A test Facility will be installed at CESI, Milan
- MVV Energie AG will build up a solar settlement
at the location Querdeich, Dannenberg, Germany - The IBERDROLA Technology Demonstration Centre
(TDC) near Madrid - As a fourth test site, Stadtwerke Karlsruhe
Germany, SWK
20CESI test site
21Test facility structure
The topology grid and distributed resources
configuration can be changed using control
command to the transfer switches interconnection
board.
DISH STIRLING
Hybrid PV system
MCFC ?T
?T 1
?T 2
PEM
REDOX
FLY WHEEL
VARIABLE LOAD
LOADS FIELD
Der. 1
Der. 2
Der. 3
BIOMASS
VARIABLE LOAD
PoMS
Meters
LOAD BUS-BAR
Synchronism unit
BUS-BAR 2
BUS-BAR 1
LV Transfer switches board
TELE-CONTROLLED SWITCHES INTERFACE PROTECTIONS
800 kVA
800 kVA
22Test facility Solar Dish Stirling (1)
CESI Eurodish European Dish Stirling solar
generator system (3rd prototype in the
world) based on the SOLO 161 Stirling motor
parabolic concentrator, 8.5 m diameter, 56
m² 2000 suns, temperature 800C Two axis
tracking azimuth elevation 10 kWe 400 Vac 3
phase Asynchronous alternator grid connected
23Electrolyte tanks
Test facility Vanadium Redox Battery (1)
42 kW 84 kWh
Stack Nominal Voltage 125 V Maximum Current 500
A Operative Voltage 100 155 V Number of cells
100 Manufacturer SUMITOMO
24CESI Test facility Wireless communication
Wireless bridge AIRONET from Cisco up to 20 km
with special antenna, data connection speed from
1 to 11 Mb/s. Protocol is IEEE 802.11
(named Wi-Fi) Units must be provided with PCMCIA
or PCI cards Already used to interface PV hybrid
system and Solar Dish Stirling with their remote
control sites.
antenna
25 Pilot Installation MVV Solar
Settlement Querdeich
6.64 kWp thin film PV system First office
building inaugurated in July 2002 Integrated
energy concept Biomass district heating
distributed generation
- Goals of pilot installation
- Demonstrate high (premium) power quality in LV
grids with high penetration of decentralised
generation - Develop measuring concepts for pilot
installations, having future massive distributed
generation in mind - Demonstrate remote monitoring and control of
representative pilot installation sites
26 Pilot Installation MVV Current Concept
- LV grid - 400 kVA-Transformer station
20/0,4kV- open-ring/ closed ring operation - Loads- private houses - office building -
assisted living- nursing home - DG-Generators - PV-Generator 121kWp- CHP
(BHKW) approx. 50kW- Battery storage
50kW/20min. - PQ Monitoring - SimeasQ (Siemens) or Mavolog
(GM)- Topas 1000 (LEM)
Source Architektenbüro Pohlmann
27MVV Pilot Installation Configuration Design
18 x 5 kWp PV
Combined Heat and Power Unit 50 kW
CHP
PV 120 kWp
kWh
kWh
kWh
Transformer 400kVA 20 / 0,4 kV
(optional)
Distributionbox
kWh
kWh
Central energy and power quality management PoMS
Battery Storage 50 kW/20min.
30 kWp PV
Communication
28End
Thank you for your attention
29Radial 1 and radial 2
- LV Network in radial configuration
- radial 1 (rural )
- radial 2 (urban)
30Link 1 and 2
- LV Network in link configuration
- Link 1 (rural )
- Link 2 (urban)
31Ring 1 and 2
- LV Network in ring configuration
- ring 1 (rural )
- ring 2 (urban)
32Mesheable configuration
