EE359

1

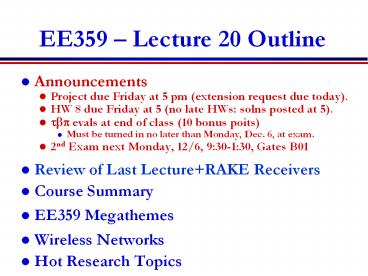

EE359 Lecture 20 Outline

• Announcements
• Project due Friday at 5 pm (extension request due
  today).
• HW 8 due Friday at 5 (no late HWs solns posted
  at 5).
• tbp evals at end of class (10 bonus poits)
• Must be turned in no later than Monday, Dec. 6,
  at exam.
• 2nd Exam next Monday, 12/6, 930-130, Gates B01
• Review of Last LectureRAKE Receivers
• Course Summary
• EE359 Megathemes
• Wireless Networks
• Hot Research Topics

2
2nd Exam Announcements

• 2nd Exam next Monday, 12/6, 930-1130, Gates B01
• Local SCPD student take in class, others contact
  Joice.
• Open book/notes
• Covers Chapters 9-13 (and related prior material)
• Similar format to first exam
• Practice finals posted (10 bonus points)
• Exam review session Thursday 5-6 pm TCSEQ 102
• Extra OHs
• My OHs Th 7-8, F 4-5 and by appt (none today).
• Rajiv T 6-7, W 5-7, F 11-12, Sa 3-4, Email TWTh
  10-11pm.

3
Review of Last Lecture

• Introduction to Spread Spectrum
• Direct Sequence Spread Spectrum
• ISI rejection by code autocorrelation
• Maximal linear codes
• Good properties
• Long versus short codes

Interference Rejection
ISI Rejection
1
1
-1 N
Tc
NTc
-Tc
4
RAKE Receiver

• Multibranch receiver
• Assume h(t)?a1d(t)a2d(t-Tc)aNd(t-MTc)
• Branches synchronized to different MP components
• ISI with delay jTc on ith branch reduced by
  rsc((j-i)Tc)
• Diversity combiner can use SC, MRC, or EGC

a1dkISI1n1
Demod
sc(t)
y(t)

dk
aidkISIini
Diversity Combiner
Demod
sc(t-iTc)
aMdkISINnM
Demod
sc(t-MTc)
5
Course Summary

• Signal Propagation and Channel Models
• Modulation and Performance Metrics
• Impact of Channel on Performance
• Fundamental Capacity Limits
• Flat Fading Mitigation
• Diversity
• Adaptive Modulation
• ISI Mitigation
• Equalization
• Multicarrier Modulation
• Spread Spectrum

6
Future Wireless Networks
Ubiquitous Communication Among People and Devices
Wireless Internet access Nth generation
Cellular Wireless Ad Hoc Networks Sensor Networks
Wireless Entertainment Smart Homes/Spaces Automat
ed Highways All this and more

• Hard Delay/Energy Constraints

• Hard Rate Requirements

7
Design Challenges

• Wireless channels are a difficult and
  capacity-limited broadcast communications medium
• Traffic patterns, user locations, and network
  conditions are constantly changing
• Applications are heterogeneous with hard
  constraints that must be met by the network
• Energy, delay, and rate constraints change design
  principles across all layers of the protocol stack

8
Signal Propagation

• Path Loss
• Shadowing
• Multipath

9
Statistical Multipath Model

• Random of multipath components, each with
  varying amplitude, phase, doppler, and delay
• Narrowband channel
• Signal amplitude varies randomly (complex
  Gaussian).
• 2nd order statistics (Bessel function), Fade
  duration, etc.
• Wideband channel
• Characterized by channel scattering function
  (Bc,Bd)

10
Modulation Considerations

• Want high rates, high spectral efficiency, high
  power efficiency, robust to channel, cheap.
• Linear Modulation (MPAM,MPSK,MQAM)
• Information encoded in amplitude/phase
• More spectrally efficient than nonlinear
• Easier to adapt.
• Issues differential encoding, pulse shaping, bit
  mapping.
• Nonlinear modulation (FSK)
• Information encoded in frequency
• More robust to channel and amplifier
  nonlinearities

11
Linear Modulation in AWGN

• ML detection induces decision regions
• Example 8PSK
• Ps depends on
• of nearest neighbors
• Minimum distance dmin (depends on gs)
• Approximate expression

12
Linear Modulation in Fading

• In fading gs and therefore Ps random
• Metrics outage, average Ps , combined outage and
  average.

Ts
Ps
Outage
Ps(target)
13
Moment Generating Function Approach

• Simplifies average Ps calculation
• Uses alternate Q function representation
• Ps reduces to MGF of gs distribution
• Closed form or simple numerical calculation for
  general fading distributions
• Fading greatly increases average Ps .

14
Doppler Effects

• High doppler causes channel phase to decorrelate
  between symbols
• Leads to an irreducible error floor for
  differential modulation
• Increasing power does not reduce error
• Error floor depends on BdTs

15
ISI Effects

• Delay spread exceeding a symbol time causes ISI
  (self interference).
• ISI leads to irreducible error floor
• Increasing signal power increases ISI power
• ISI requires that TsgtgtTm (RsltltBc)

Tm
0
16
Capacity of Flat Fading Channels

• Three cases
• Fading statistics known
• Fade value known at receiver
• Fade value known at receiver and transmitter
• Optimal Adaptation
• Vary rate and power relative to channel
• Optimal power adaptation is water-filling
• Exceeds AWGN channel capacity at low SNRs
• Suboptimal techniques come close to capacity

17
Variable-Rate Variable-Power MQAM
Goal Optimize S(g) and M(g) to maximize EM(g)
18
Optimal Adaptive Scheme

• Power Water-Filling
• Spectral Efficiency

g
Equals Shannon capacity with an effective power
loss of K.
19
Practical Constraints

• Constellation restriction
• Constant power restriction
• Constellation updates.
• Estimation error.
• Estimation delay.

20
Diversity

• Send bits over independent fading paths
• Combine paths to mitigate fading effects.
• Independent fading paths
• Space, time, frequency, polarization diversity.
• Combining techniques
• Selection combining (SC)
• Equal gain combining (EGC)
• Maximal ratio combining (MRC)

21
Diversity Performance

• Maximal Ratio Combining (MRC)
• Optimal technique (maximizes output SNR)
• Combiner SNR is the sum of the branch SNRs.
• Distribution of SNR hard to obtain.
• Can use MGF approach for simplified analysis.
• Exhibits 10-40 dB gains in Rayleigh fading.
• Selection Combining (SC)
• Combiner SNR is the maximum of the branch SNRs.
• Diminishing returns with of antennas.
• CDF easy to obtain, pdf found by differentiating.
• Can get up to about 20 dB of gain.

22
Multiple Input Multiple Output (MIMO)Systems

• MIMO systems have multiple (M) transmit and
  receiver antennas
• With perfect channel estimates at TX and RX,
  decomposes to M indep. channels
• M-fold capacity increase over SISO system
• Demodulation complexity reduction
• Beamforming alternative
• Send same symbol on each antenna (diversity gain)
• Diversity versus capacity tradeoff

23
Digital Equalizers

• Equalizer mitigates ISI
• Typically implemented as FIR filter.
• Criterion for coefficient choice
• Minimize Pb (Hard to solve for)
• Eliminate ISI (Zero forcing, enhances noise)
• Minimize MSE (balances noise increase with ISI
  removal)
• Channel must be learned through training and
  tracked during data transmission.

24
Multicarrier Modulation

• Divides bit stream into N substreams
• Modulates substream with bandwidth B/N
• Separate subcarriers
• B/NltBc flat fading (no ISI)
• FDM has substreams completely separated
• OFDM overlaps substreams
• More spectrally efficient
• Substreams separated in receiver
• Efficient FFT Implementation
• One modulator and demodulator
• FFT performs frequency translation
• Cyclic prefix eliminates ISI between blocks

25
Fading Across Subcarriers

• Compensation techniques
• Frequency equalization (noise enhancement)
• Precoding (channel inversion)
• Coding across subcarriers
• Adaptive loading (power and rate)
• Practical Issues for OFDM
• Peak-to-average power ration
• System imperfections

26
Direct Sequence Spread Spectrum

• Bit sequence modulated by chip sequence
• Spreads bandwidth by large factor (K)
• Despread by multiplying by sc(t) again (sc(t)1)
• Mitigates ISI and narrowband interference
• ISI mitigation a function of code autocorrelation
• Must synchronize to incoming signal

S(f)
s(t)
sc(t)
Sc(f)
S(f)Sc(f)
1/Tb
1/Tc
TbKTc
2
27
RAKE Receiver

• Multibranch receiver
• Branches synchronized to different MP components
• These components can be coherently combined
• Use SC, MRC, or EGC

Demod
sc(t)
y(t)

dk
Diversity Combiner
Demod
sc(t-iTc)
Demod
sc(t-NTc)
28
Megathemes of EE359

• The wireless vision poses great technical
  challenges
• The wireless channel greatly impedes performance
• Low fundamental capacity.
• Channel is randomly time-varying.
• ISI must be compensated for.
• Hard to provide performance guarantees (needed
  for multimedia).
• We can compensate for flat fading using diversity
  or adapting.
• MIMO channels promise a great capacity increase.
• A plethora of ISI compensation techniques exist
• Various tradeoffs in performance, complexity, and
  implementation.

29
Wireless Network Design

• Broadcast and Multiple Access Channels
• Spectral Reuse
• Cellular System Design
• Ad-Hoc Network Design
• Networking Issues

30
Broadcast and Multiple Access Channels
R3
R2
R1
31
Bandwidth Sharing

• Dedicated channel assignment
• Frequency Division
• Time Division
• Code Division
• Hybrid Schemes

7C29822.033-Cimini-9/97
32
Multiple Access SS

• Interference between users mitigated by code
  cross correlation
• In downlink, signal and interference have same
  received power
• In uplink, close users drown out far users
  (near-far problem)

a
a
33
Multiuser Detection

• In all CDMA systems and in TD/FD/CD cellular
  systems, users interfere with each other.
• In most of these systems the interference is
  treated as noise.
• Systems become interference-limited
• Often uses complex mechanisms to minimize impact
  of interference (power control, smart antennas,
  etc.)
• Multiuser detection exploits the fact that the
  structure of the interference is known
• Interference can be detected and subtracted out
• Better have a darn good estimate of the
  interference

34
Random Access
RANDOM ACCESS TECHNIQUES

• Dedicated channels wasteful for data
• use statistical multiplexing
• Techniques
• Aloha
• Carrier sensing
• Collision detection or avoidance
• Reservation protocols
• PRMA
• Retransmissions used for corrupted data
• Poor throughput and delay characteristics under
  heavy loading
• Hybrid methods

7C29822.038-Cimini-9/97
35
Cellular System Design

• Frequencies, timeslots, or codes reused at
  spatially-separate locations
• Efficient system design is interference-limited
• Base stations perform centralized control
  functions
• Call setup, handoff, routing, adaptive schemes,
  etc.

36
Design Issues

• Reuse distance
• Cell size
• Channel assignment strategy
• Interference management
• Power adaptation
• Smart antennas
• Multiuser detection
• Dynamic resource allocation

8C32810.44-Cimini-7/98
37
Dynamic Resource AllocationAllocate resources as
user and network conditions change

• Resources
• Channels
• Bandwidth
• Power
• Rate
• Base stations
• Access
• Optimization criteria
• Minimize blocking (voice only systems)
• Maximize number of users (multiple classes)
• Maximize revenue
• Subject to some minimum performance for each user

38
Ad-Hoc Networks

• Peer-to-peer communications
• No backbone infrastructure or centralized control
• Routing can be multihop.
• Topology is dynamic.
• Fully connected with different link SINRs
• Open questions
• Fundamental capacity
• Optimal routing
• Resource allocation (power, rate, spectrum, etc.)
  to meet QoS

39
Power Control

• Assume each node has an SIR constraint
• Write the set of constraints in matrix form
• If rFlt1 ? a unique solution
• Power control algorithms
• Centralized or distributed

Power control for random channels more complicated
40
Wireless Networks with Energy-Constrained Nodes

• Limited node processing/communication
  capabilities
• Nodes can cooperate in transmission and
  reception.
• Intelligence must be in the network
• Data flows to centralized location.
• Low per-node rates but 10s to 1000s of nodes
• Data highly correlated in time and space.

41
Energy-Constrained Nodes

• Each node can only send a finite number of bits.
• Energy minimized by sending each bit very slowly.
• Introduces a delay versus energy tradeoff for
  each bit.
• Short-range networks must consider both transmit
  and processing energy.
• Sophisticated techniques not necessarily
  energy-efficient.
• Sleep modes save energy but complicate
  networking.
• Changes everything about the network design
• Bit allocation must be optimized across all
  protocols.
• Delay vs. throughput vs. node/network lifetime
  tradeoffs.
• Optimization of node cooperation.

42
Higher LayerNetworking Issues
NETWORK ISSUES

• Architecture
• Mobility Management
• Identification/authentication
• Routing
• Handoff
• Control
• Reliability and Quality-of-Service

8C32810.53-Cimini-7/98
43
Wireless Applications and QoS
Wireless Internet access Nth generation
Cellular Wireless Ad Hoc Networks Sensor Networks
Wireless Entertainment Smart Homes/Spaces Automat
ed Highways All this and more
Applications have hard delay constraints, rate
requirements, and energy constraints that must be
met
These requirements are collectively called QoS
44
Challenges to meeting QoS

• Wireless channels are a difficult and
  capacity-limited broadcast communications medium
• Traffic patterns, user locations, and network
  conditions are constantly changing
• No single layer in the protocol stack can
  guarantee QoS cross-layer design needed
• It is impossible to guarantee that hard
  constraints are always met, and average
  constraints arent necessarily good metrics.

45
Crosslayer Design

• Application
• Network
• Access
• Link
• Hardware

Delay Constraints Rate Requirements Energy
Constraints Mobility
Optimize and adapt across design layers Provide
robustness to uncertainty Schedule dedicated
resources
46
4G

• Is 4G an evolution, an alternative, or a
  supplement to 3G, or something more?
• What services should 4G support?
• Research challenges associated with 4G
• Air interface
• Flexible QoS
• Support for heterogeneous services
• Cross-layer design

47
Promising Research Areas

• Link Layer
• Wideband air interfaces and dynamic spectrum
  management
• Practical MIMO techniques (modulation, coding,
  imperfect CSI)
• Cellular Systems
• How to use multiple antennas
• Multihop routing
• Variable QoS
• Ad Hoc Networks
• How to use multiple antennas
• Cross-layer design
• Sensor networks
• Energy-constrained communication
• Cooperative techniques
• Information Theory
• Capacity of ad hoc networks
• Imperfect CSI
• Incorporating delay Rate distortion theory for
  networks

48
The End

• Thanks!!!
• Have a great winter break
