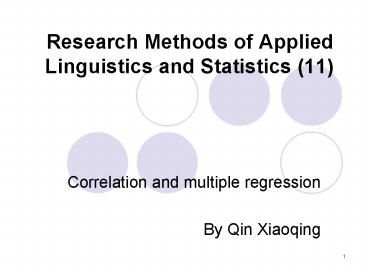

Research Methods of Applied Linguistics and Statistics (11)

1
Research Methods of Applied Linguistics and
Statistics (11)

• Correlation and multiple regression
• By Qin Xiaoqing

2
Pearson Correlation

• The Pearson correlation allows us to establish
  the strength of relationships between continuous
  variables.
• To show the relationship, the first step is to
  draw a scatterplot or scattergram, which can
  help us to obtain a preliminary understanding of
  this relationship.
• The scatterplot can be described in terms of
  direction, strength and linearity.

3
Correlation and SPSS

• Pearson product-moment coefficient is designed
  for interval level (continuous) variables. It can
  also be used if you have one continuous variable
  (e.g., scores on a measure of self-esteem) and
  one dichotomous variable (e.g., sex M/F).
• Spearman rank order correlation is designed for
  use with ordinal level or ranked data.
• SPSS will calculate two types of correlation.
  First, it will give a simple bivariate
  correlation (which just means between two
  variables), also known as zero-order correlation.
  SPSS will also explore the relationship between
  two variables, while controlling for another
  variable. This is known as partial correlation.

4
Direction

• Positive relationships represent relationships in
  which an increase in one variable is associated
  with an increase in a second.
• Negative relationships represent relationships in
  which an increase in one variable is associated
  with decrease in a second.

5
Strength

• Strong relationships appear as those in which the
  dots are very close to a straight line
• Weak relationships appear as those in which the
  dots are more scattered about a straight line, or
  farther away from that line.

6
Linearity

• Linear relationships are indicated when the
  pattern of dots on the scatter diagram appears to
  be straight, or if the points could be
  represented by drawing a straight line through
  them.

7
Steps for computation

1. List the score for each S in parallel columns on
   a data sheet.
2. Square each score and enter these values in the
   columns labeled X2 and Y2.
3. Multiply the scores and enter this value in the
   XY column.
4. Add the values in each column.
5. Insert the values in the formula of correlation
   coefficient.

8
Example
S X Y X2 Y2 XY
1 12 8 144 64 96
2 10 12 100 144 120
3 11 5 121 25 556
4 9 8 181 64 72
5 8 4 64 16 32
6 7 13 49 169 91
7 7 7 49 49 49
8 5 3 25 9 15
9 4 8 16 64 32
10 3 5 9 25 15
Total 76 73 658 629 577
9
Scatterplot
10
Interpretation of scatterplot

• Checking for outliers
• Inspecting the distribution of data points
• Are the data points spread all over the place?
  This suggests a very low correlation.
• Are all the points neatly arranged in a narrow
  cigar shape? This suggests quite a strong
  correlation.
• Could you draw a straight line through the main
  cluster of points, or would a curved line better
  represent the points? If a curved line is evident
  (suggesting a curvilinear relationship), then
  Pearson correlation should not be used.
• What is the shape of the cluster? Is it even from
  one end to the other? Or does it start off narrow
  and then get fatter. If this is the case, the
  data may be violating the assumption of variance
  homogeneity.
• Determining the direction of the relationship
  between the variables

11
Formula of r for raw score
X Y X2 Y2 XY
Total 76 73 658 629 577
12
Assumptions underlying Pearson correlation

1. The data are measured as scores or ordinal scales
   that are truly continuous.
2. The scores on the two variables, X and Y, are
   independent.
3. The data should be normally distributed through
   their range.
4. The relationship between X and Y must be linear.

13
Interpreting the correlation coefficient

1. When r.60, the variance overlap between the 2
   measures is .36.
2. The overlap tells that the 2 measures provide
   similar information. Or the magnitude of r2
   indicates the amount of variances in X which is
   accounted for by Y or vice versa.

14
Correlation coefficient

• If you hope 2 tests measure basically the same
  thing, .71 isnt very strong .80 or .90 may be
  desirable.
• A correlation of .30 or lower may appear weak,
  but in educational research such a correlation
  might be very important.
• Significant level plt.05, .01, dfN-2

15

• r.10 to .29 or r.10 to .29 small
• r.30 to .49 or r.30 to .49 medium
• r.50 to 1.0 or r.50 to 1.0 large

16
Presenting the results from correlation
17
Comparing the correlation coefficients for two
groups

• Sometimes when doing correlational research you
  may want to compare the strength of the
  correlation coefficients for two separate groups.

18
Factors affecting correlation

• If you have a restricted range of scores on
  either of the variables, this will reduce the
  value of r, eg. Age (18-20) and success on an
  exam.
• The existence of scores with extreme outliers in
  the data.
• The presence of extremely high and extremely low
  scores on a variable with little in the middle.
• Reliability of the data.
• Non-linear relationship. Always check the
  scatterplot, particularly if you obtain low
  values of r.

19
Correlation versus causality

• Correlation provides an indication that there is
  a relationship between two variables It does not
  however indicate that one variable causes the
  other. The correlation between two variables (A
  and B) could be due to the fact that A causes B,
  that B causes A, or (just to complicate matters)
  that an additional variable (C) causes both A and
  B. The possibility of a third variable that
  influences both of your observed variables should
  always be considered.

20
Statistical vs practical significance

• Dont get too excited if your correlation
  coefficients are significant. With large
  samples, even quite small correlation
  coefficients can reach statistical significance.
  Although statistically significant, the practical
  significance of a correlation of .2 is very
  limited. You should focus on the actual size of
  Pearsons r and the amount of shared variance
  between the two variables. To interpret the
  strength of your correlation coefficient you
  should also take into account other research that
  has been conducted in your particular topic area.
  If other researchers in your area have only been
  able to predict 9 per cent of the variance (a
  correlation of .3) in a particular outcome (e.g.,
  anxiety), then your study that explains 25 per
  cent would be impressive in comparison. In other
  topic areas, 25 per cent of the variance
  explained may seem small and irrelevant.

21
Linear regressionMultiple regression
22
Understanding regression

• Regression is a way of predicting performance on
  the dependent variable via one or more
  independent variables.
• In simple regression, we predict scores on one
  variable on the basis of scores on a second.
• In multiple regression, we expand the possible
  sources of prediction and test to see which of
  many variables and which combination of variables
  allow us to make the best prediction.

23
Linear regression

• Regression and correlation are related
  procedures. The correlation coefficient is
  central to simple linear regression. While we
  cant make causal claims on the basis of
  correlation, we can use correlation to predict
  one variable from another.
• We cant just throw variables into a multiple
  regression and hope that, magically, answers will
  appear.
• We should have a sound thoretical or conceptual
  reason for the analysis and, in particular, the
  order of variables entering the equation.

24
Uses of multiple regression

• how well a set of variables is able to predict a
  particular outcome
• which variable in a set of variables is the best
  predictor of an outcome and
• whether a particular predictor variable is still
  able to predict an outcome when the effects of
  another variable are controlled for.

25
Assumptions of multiple regression

• Sample size
• Stevens (1996) recommends that for social
  science research, about 15 subjects per predictor
  are needed for a reliable equation.
• Tabachnick and Fidell (1996, p. 132) give a
  formula for calculating sample size requirements,
  taking into account the number of independent
  variables that you wish to use N gt 50 8m
  (where m number of independent variables). If
  you have five independent variables you would
  need 90 cases.
• More cases are needed if the dependent variable
  is skewed.
• For stepwise regression there should be a ratio
  of forty cases for every independent variable.

26

• Multicollinearity. It exists when the independent
  variables are highly correlated (r.9 and above).
  Multiple regression doesnt like
  multicollinearity, and it certainly doesnt
  contribute to a good regression model, so always
  check for this problem before you start.
• Outliers. Multiple regression is very sensitive
  to outliers (very high or very low scores).
• Normality, linearity

27
MLAT and language learning
The closer r is to 1 the smaller the error will
be in predicting performance on one variable to
that of the second. The smaller, the greater the
error.
28
Predicting scores using regression

• 4 pieces of information are needed They are
• the mean for scores on one variable
• The mean for scores on the second variable
• The Ss score on X, and
• The slope of the best-fitting straight line of
  the joint distribution.
• With this information, we can predict the Ss
  score on Y from X on a mathematical basis. By
  regressing Y on X, predicting Y from X will be
  possible.

29
Regression line

• Lines drawn to the straight line in the
  scatterplot show the amount of error. Suppose we
  square each of these errors and then find the
  mean of the sum of these squared errors. This
  best-fitting straight line is called regression
  line and is technically defined as the line that
  results in the smallest mean of the sum of the
  squared errors.
• We can think of the regression line as being
  that which is closest to all the dots but, more
  precisely, it is the one that results in a mean
  of the squared errors that is less than any other
  line we might produce.

30
Determining the slope

• Turn MLAT and language learning to z score for
  comparability.
• Then plot the intersection of each Ss z score on
  the MLAT and on the test. As the z scores on the
  MLAT increase they form a run. The horizontal
  line of a triangle. At the same time, the z
  scores on the test increase to form a rise, the
  vertical line.
• The slope (b) of the regression line is shown as
  we connect these 2 lines to form the third side
  of the triangle.

31
Regression coefficient with known r and SD

• In the diagram, an increase of say 6 units on the
  run (MLAT) would equal 2 units of increase on the
  rise.
• The slope is the rise divided by the run. The
  result is a fraction. That fraction is the
  correlation coefficient.
• The correlation coefficient is the same as the
  slope of the best-fitting line in a z-score
  scatterplot. In the triangle, the slope of the
  regression line was 26, and so r for the two is
  .33. suppose SDs are 8 and 10 respectively for Y
  and X.
• To obtain the slope, we multiply the correlation
  coefficient by the standard deviation of Y over
  the standard deviation of X.

32
Regression coefficient with raw data

• With r and SD, it is very easy to find the slope.
  With raw data, the formula for slope follows

33
Example using TSE to predict TOEFL

• Mean on TOEFL540, SD40. Mean on TSE30, SD4.
  r.80, b8.0
• A student achieved 36 on the TSE, 6 higher than
  the mean. Multiplying that by the slope, we get
  8648. So our prediction of TOEFL is mean Y
  (540) 48588. The formula follows
• Another regression equation is

34
Standard error of estimate

• There is some overlap in the variance of the two
  variables. When we square the value of r, we find
  the degree of shared variance.
• Of the original 100 of the variance, with an
  r.50, we have accurately accounted for 25 of
  the variance using the straight line as the bass
  for prediction. The error variance now is reduced
  to 75.
• In regression, standard error of estimate (SEE)
  shows the dispersion of scores away from the
  straight line. If all the data are tightly
  clustered on the line, little error is made in
  prediction.
• SEE tells us how much error is likely to occur in
  prediction.

35
Error variance

• To compute SEE, we need to know the error
  variance, which is the sum of squares of actual
  scores minus predicted scores divided by N-2.
• The square root of this variance is referred to
  as the SEE (1.35)

Mean for X8, SD4.47 mean for Y10.8, SD2.96
r.89
36
Confidence interval

• 68 confidence interval 1 SEE (eg. 1.35) 68
  of actual Y scores would fall within . 1.35 of
  the predicted Y score.
• 95 confidence interval 1.96SEE
• 99 confidence interval 2.58SEE
• Suppose estimated score is 11.98, then
• 95 confidence interval between 9.33
  (11.98-1.351.96) and 14.63 (11.981.351.96)
• 99 confidence interval?
• 8.5(11.98-3.48) - 15.46 (11.983.48)

37
Estimated L2 scores predicted from class hours
38
Goodness of fit for regression model R2

• R2, also called multiple correlation or the
  coefficient of multiple determination, is the
  percent of the variance in the dependent
  explained uniquely or jointly by the
  independents.
• Adjusted R2 is an adjustment for the fact that
  when one has a large number of independents, it
  is possible that R2 will become artificially high
  simply because some independents' chance
  variations "explain" small parts of the variance
  of the dependent.
• The greater the number of independents, the more
  the researcher is expected to report the adjusted
  coefficient.

39
T-test

• t-tests are used to assess the significance of
  individual b coefficients. specifically testing
  the null hypothesis that the regression
  coefficient is zero.

40
F test

• F test is used to test the significance of R,
  which is the same as testing the significance of
  R2, which is the same as testing the significance
  of the regression model as a whole.
• If prob(F) lt .05, then the model is considered
  significantly better than would be expected by
  chance and we reject the null hypothesis of no
  linear relationship of y to the independents.

41
Multicollinearity

• Multicollinearity is the intercorrelation of
  independent variables. R2's near 1 violate the
  assumption of no perfect collinearity, while high
  R2's increase the standard error of the beta
  coefficients and make assessment of the unique
  role of each independent difficult or impossible.

42
tolerance or VIF

• To assess multivariate multicollinearity, one
  uses tolerance or VIF, which build in the
  regressing of each independent on all the others.
• As a rule of thumb, if tolerance is less than
  .20, a problem with multicollinearity is
  indicated.
• When tolerance is close to 0 there is high
  multicollinearity of that variable with other
  independents and the b and beta coefficients will
  be unstable.
• The more the multicollinearity, the lower the
  tolerance, the more the standard error of the
  regression coefficients.

43
Selecting method for predicting variables
Forward selection

• This method starts with a model containing none
  of the explanatory variables. In the first step,
  the procedure considers variables one by one for
  inclusion and selects the variable that results
  in the largest increase in R2. In the second
  step, the procedures considers variables for
  inclusion in a model that only contains the
  variable selected in the first step. In each
  step, the variable with the largest increase in
  R2 is selected until, according to an F-test,
  further additions are judged to not improve the
  model.

44
Backward selection

• This method starts with a model containing all
  the variables and eliminates variables one by
  one, at each step choosing the variable for
  exclusion as that leading to the smallest
  decrease in R2. Again, the procedure is repeated
  until, according to an F-test, further exclusions
  would represent a deterioration of the model.

45
Stepwise selection

• This method is, essentially, a combination of the
  previous two approaches. Starting with no
  variables in the model, variables are added as
  with the forward selection method. In addition,
  after each inclusion step, a backward elimination
  process is carried out to remove variables that
  are no longer judged to improve the model.

46
Interpretation of the results from multiple
regression

• Checking the assumptions
• Evaluating the model
• Evaluating each of the independent variables

47
Presenting the results of multiple regression

• It would be a good idea to look for examples of
  the presentation of different statistical
  analysis in the journals relevant to your topic
  area. Different journals have different
  requirements and expectations. Given the severe
  space limitations in journals these days, often
  only a brief summary of the results is presented
  and readers are encouraged to contact the author
  for a copy of the full results.
