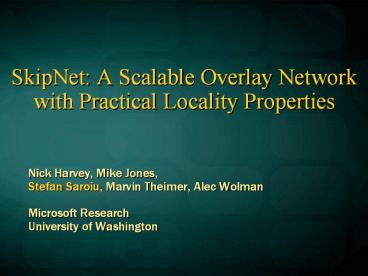

SkipNet A Scalable Overlay Network with
Practical Locality Properties
  • Nick Harvey, Mike Jones,
  • Stefan Saroiu, Marvin Theimer, Alec Wolman
  • Microsoft Research
  • University of Washington

2
Overlay Networks
  • Overlays have achieved several goals
  • Scalable and decentralized infrastructure
  • Uniform and random load and data distribution
  • But, at the price of data controllability
  • Data may be stored far from its users
  • Data may be stored outside its domain
  • Local accesses leave local organization
  • Basic trade-off data controllability vs. data
    uniformity
  • SkipNet
  • Traditional overlay functionality
  • Provides an abstraction to control this
    trade-off
  • Constrained load balancing (CLB)

3
Talk Outline
  • Practical data locality requirements
  • Basic SkipNet design
  • SkipNet locality properties
  • Performance evaluation
  • Conclusions

4
Talk Outline
  • Practical data locality requirements
  • Basic SkipNet design
  • SkipNet locality properties
  • Performance evaluation
  • Conclusions

5
Key Locality Properties and Abstraction
  • In practice, two properties are important
  • Content Locality ability to explicitly place
    data
  • Placement on a single node or on a set of nodes
  • Path Locality ability to guarantee that local
    traffic remains local
  • One abstraction is important CLB
  • SkipNet abstraction to control the trade-off
  • Multiple DHT scopes within one single overlay

6
Practical Requirements
  • Data Controllability
  • Organizations want control over their own data
  • Even if local data is globally available
  • Manageability
  • Data control allows for data administration,
    provisioning and manageability
  • Data center/cluster constrained set of nodes
  • CLB ensures load balance across data
    center/cluster

7
Practical Requirements (contd)
  • Security
  • Content and path locality are key building blocks
    for dealing with certain external attacks
  • Data availability
  • Local data survives network partitions
  • Performance
  • Data can be stored near clients that use it

8
Talk Outline
  • Practical data locality requirements
  • Basic SkipNet design
  • SkipNet locality properties
  • Performance evaluation
  • Conclusions

9
SkipNet
  • Key property two address spaces
  • Name ID space nodes are sorted by their names
    (e.g. DNS names)
  • Numeric ID space nodes are randomly distributed
  • Combining both spaces achieves
  • Content Path locality
  • Other uses could emerge range queries AS 03
  • Scalable peer-to-peer overlay network
  • O(log N) routing performance in both spaces
  • O(log N) routing state per node

10
SkipNet Ring
  • Pointers at level h skip over 2h nodes
  • Nodes are ordered by names

11
SkipNet Ring
  • Pointers at level h skip over 2h nodes
  • Nodes are ordered by names

12
SkipNet Ring
  • Pointers at level h skip over 2h nodes
  • Nodes are ordered by names

13
SkipNet Global View
L 3
L 2
L 1
M
D
O
Root Ring
Level L 0
T
A
V
Z
X
14
SkipNet Global View
L 3
L 2
L 1
M
D
O
Root Ring
Level L 0
T
A
V
Z
X
15
Two Address Spaces
  • SkipNet can route efficiently in both address
    spaces
  • Name ID space (e.g. DNS names)
  • Numeric ID space

16
Routing by Name ID
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
X
Z
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Example route from A to V
  • Simple Rule Forward the message to node that is
    closest to dest, without going too far.

17
Routing by Name ID
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
X
Z
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Example route from A to V
  • Simple Rule Forward the message to node that is
    closest to dest, without going too far.

18
Routing by Name ID
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
X
Z
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Example route from A to V
  • Simple Rule Forward the message to node that is
    closest to dest, without going too far.

19
Routing by Name ID
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
X
Z
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Example route from A to V
  • Simple Rule Forward the message to node that is
    closest to dest, without going too far.

20
Routing by Name ID
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
X
Z
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Example route from A to V
  • Simple Rule Forward the message to node that is
    closest to dest, without going too far.

21
Routing by Name ID
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
X
Z
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Example route from A to V
  • Simple Rule Forward the message to node that is
    closest to dest, without going too far.

22
Routing by Numeric ID
  • Provides the basic DHT primitive
  • To store file Foo.c
  • Hash(Foo.c) ? a random numeric ID
  • Find highest ring matching that numeric ID
  • Store file on node in that ring
  • Log N routing efficiency

23
DHT Example
Ring 000
Ring 001
Ring 010
Ring 011
Ring 100
Ring 101
Ring 110
Ring 111
M
O
D
L 3
T
A
V
Z
X
M
D
Ring 01
Ring 00
Ring 10
Ring 11
A
T
L 2
O
V
Z
X
M
O
D
Ring 1
Ring 0
T
L 1
A
Z
V
X
M
D
O
Root Ring
T
A
Level L 0
V
Z
X
  • Store file Foo.c from node A
  • Hash(Foo.c) 101
  • Route from A to V in numeric space

24
Talk Outline
  • Practical data locality requirements
  • Basic SkipNet design
  • SkipNet locality properties
  • Performance evaluation
  • Conclusions

25
Constrained Load Balancing (CLB)
  • Multiple DHTs with differing scopes using a
    single SkipNet structure
  • A result of the ability to route in both address
    spaces
  • Divide data object names into 2 partsusing the
    ! special character
  • CLB Domain
    CLB Suffix
  • microsoft.com!skipnet.htm
    l

26
CLB Example
com.microsoft
com.sun
gov.irs
edu.ucb
  • To read file com.microsoft!skipnet.html
  • Route by name ID to com.microsoft
  • Route by numeric ID to Hash(skipnet.html)within
    the com.microsoft constraint

27
SkipNet Path Locality
com.microsoft
com.sun
gov.irs
edu.ucb
  • Organizations correspond to contiguous SkipNet
    segments
  • Internal routing by NameID remains internal
  • Nodes have left / right pointers

28
Fault Tolerance
  • Many failures occur along organizational
    boundaries
  • Gateway/firewall failure, BGP misconfig, physical
    network cut,
  • SkipNet handles organizational disconnect
    gracefully
  • Results in two well-connected, partitioned
    SkipNets
  • Efficient remerging algorithms
  • Node independent failures
  • Same resiliency as systems such as Chord and
    Pastry
  • Similar approach to repair (Leaf Set)

29
Primary Security Benefit Weakness
  • SkipNet name access control mechanism
  • Content locality ensures that content stays
    within organization
  • Path locality prevents
  • malicious forwarders
  • analysis of internal traffic
  • external tampering
  • Easier to target organizations
  • Someone creates one million nodes with name
    prefixes microsofa.com and microsort.com
  • Most traffic to/from Microsoft will go through a
    microsofa / microsort intermediate node

30
Talk Outline
  • Practical data locality requirements
  • Basic SkipNet design
  • SkipNet locality properties
  • Performance evaluation
  • Conclusions

31
Methodology
  • Packet-level, event-driven simulator
  • SkipNet implementation
  • Basic SkipNet
  • Full SkipNet Basic SkipNet network proximity
  • Pastry and Chord implementation
  • Uses Mercator and GT-ITM network topologies
  • Experimentally evaluated
  • Name ID routing performance
  • Tolerance to organizational disconnect

32
Methodology
  • Packet-level, event-driven simulator
  • SkipNet implementation
  • Basic SkipNet
  • Full SkipNet Basic SkipNet network proximity
  • Pastry and Chord implementation
  • Uses Mercator and GT-ITM network topologies
  • Experimentally evaluated
  • Name ID routing performance
  • Tolerance to organizational disconnect
  • Numeric ID routing performance
  • Effectiveness of network proximity optimizations
  • Effectiveness of CLB routing optimizations

33
Routing by Name ID Performance
Benefits come at no extra cost
34
Surviving Organizational Disconnect
Disconnected Org Size 15 of all nodes
35
Conclusions
  • SkipNet
  • Traditional overlay functionality
  • Explicit control of data placement
  • Constrained load balancing
  • Content Path Locality are basic ingredients to
  • Data controllability
  • Manageability
  • Security
  • Data availability
  • Performance

36
Questions?
http//research.microsoft.com/sn/Herald/
