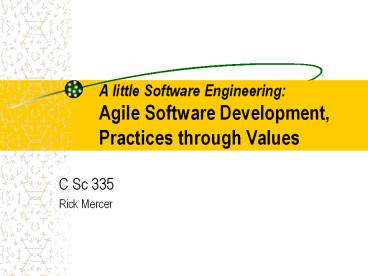

A little Software Engineering: Agile Software Development, Practices through Values

1
A little Software EngineeringAgile Software
Development,Practices through Values

• C Sc 335
• Rick Mercer

2
Goal and Outline

• Main Goal
• Suggest practices, values, and some process for
  completing a final project on time that is better
  than any one person could do it in in four times
  the time
• Outline
• Distinguish Waterfall (plan driven) from Agile
• 11 Practices of quality software development
• Four values of Extreme Programming (XP)

3
Waterfall Model

• Waterfall was described by 1970
• Understood as
• finish each phase
• dont proceed
• till done
• W. W. Roycecriticized this
• proposed an
• iterative approach

4
Became Popular

• Management (usually software ignorant) like
  phases
• to easily set deadlines
• Customers provide all requirements
• Analysts translate requirements into
  specification
• Coders implement the specification
• Reviews ensure the specification is met
• Testing is performed by testers (not the devs)
  (QA)
• Maintenance means modifying as little as possible

• old code is good code
• Change is hard (and costly)

5
A Spiral Approach

• Dr Barry Boehm proposed a spiral approach

6
To waterfall or not

• It became popular
• This process is still is used a lot
• Craig Larman's book 1 provides proof that
  waterfall is a terrible way to develop software
• In his study, 87 of all projects failed
• The waterfall process was the "single largest
  contributing factor for failure, being cited in
  81 of the projects as the number one problem."
• 1 Agile and Iterative Development
• a Manager's Guide, Addison-Wesley Professional,
  2003

7
Agile Software Development

• Set of practices to produce high-quality software
• a disciplined approach to software development
• successful because it emphasizes customer
  involvement and promotes team work
• not a solution looking for a problem
• 59 of 2013 survey respondents use Agile,
• 83 planned to use agile in the upcoming year

8
The Agile Manifestoa statement of values
Source www.agilemanifesto.org
9
Essence of XP

• Values
• Communication, Simplicity, Feedback, Courage
• Principles
• Provide feedback, assume simplicity, make
  incremental changes, embrace change, quality work
• Practices
• Planning game, small releases, simple designs,
  automated testing, continuous integration,
  refactoring, pair programming, collective
  ownership, continuous integration, on-site
  customer, coding standard

10
Cost of change
Waterfall
Cost of change
Agile
time
11
Cost of the Project

• Paraphrasing from two companies I've talked to
  (probably many more)
• When we bid projects, we charge X for doing it
  Waterfall and X/2 for doing it Agile

12
Other Agile Practices The Planning Game

• The planning game involves user stories
• Short descriptions of desired features
• Provide value to customer
• Testable (do we have that feature 2 weeks in?)
• Clients write stories and prioritize them
• In 335, SLs wrote the requirements, you
  prioritize
• Developers estimate how long a story takes
• If you are so inclined, estimate each requirement

13
Practices The planning game

• Business decisions (customer)
• Scope which stories should be developed
• Priority of stories (requirements)
• Release dates
• Technical decisions (developers)
• Time estimates for features/stories
• Elaborate consequences of business decisions
• Team organization and process
• Scheduling
• You do the organization and schedule

14
Practices Estimation

• Based on similar stories from the past
• Team effort
• We get good at estimation simply by just doing it
• Ideal Engineering Time (IET)
• could be points
• We have used person hours to estimate,
• Agile teams use points
• Velocity IET/Calendar Time
• Say we can do 20 points each week
• Which 20 points should we this week

15
Practices Small Releases

• Releases should be as small as possible
• Should make sense as a whole
• Put system into production ASAP
• Fast feedback
• Deliver valuable features first
• Short cycle time
• Planning 1-2 months rather than 6-12 months
• Or in our case, 2/3 week rather than 5 weeks
• We have one "release"
• The last day of lecture at 300 pm

16
Practices Simple design

• The right design
• Runs all tests
• No code duplication, No code duplication
• Fewest possible classes
• Short methods
• Fulfills all current requirements
• Design for today not the future
• But design so the system can change
• Design patterns help

17
Practices Testing

• Software should be tested, but it is often spotty
  or overlooked
• Automatic testing (JUnit, for example) helps us
  know that a feature works and it will work after
  refactoring, additional code, and other changes
• Provides confidence in the program

18
Testing

• Write tests at the same time as production code
• Unit tests ? developer
• Feature/acceptance tests ? customer (not in 335)
• Don't need a test for every method (but why not)
• Testing can be used to drive development and
  design of code
• But it help to have an overall architecture first
  (see you UML class diagram, which is subject to
  change
• Allows for regression testing
• Did my change break previously working code?
• If well-tested, you see the red bar

19
SIM/SQS http//www.simgroup.com/Consultancy/regres
sion.html

• Regression Testing
• re-testing of a previously tested program
  following modification to ensure that faults have
  not been introduced or uncovered as a result of
  changes.
• Regression tests are designed for repeatability,
  and are often used when testing a second or later
  version of the system under test
• Regression testing can be carried out on all
  applications, including e-Commerce and web-based
  systems

20
Testing

• Strong emphasis on regression testing
• Unit tests need to execute all the time
• Unit tests pass 100
• Acceptance tests (we haven't seen these) show
  progress on which user stories are working
• Other testing frameworks include
• SUnit, JMeter, HttpUnit, JProbe, OptimizeIt,
  CPPUnit, PyUnit, CPPUnit

21
Can't unit test always

• Wont have unit tests for
• GUIs There are testing frameworks to simulate
  and test user interaction, but not this course
• Just added to WebCat
• Network, use visual inspection while running
• Views, animation, drawing visually inspect
• this is system verification too
• Randomness Some strategies might have some
  randomness, which can be hard to work with
• Could have tournaments to see which AI wins

22
Practices Refactoring

• Restructure code without changing the
  functionality
• Goal Keep design simple
• Change bad design when you find it
• Remove dead code
• Examples at Martin Fowler's Web site
• http//www.refactoring.com/ see
  online catalog

23
Practices Pair programming

• Write production code with 2 people on one
  machine
• Person 1 Implements the method
• Person 2 Thinks strategically about potential
  improvements, test cases, issues
• Pairs change all the time. Has advantages such as
• No single expert on any part of the system
• Continuous code reviews, fewer defects
• Cheaper in the long run, and more fun
• Can you form a team of 4 and have everyone see
  all code?
• Problems
• Not all people like it
• Pairs need to be able to work together, requires
  tolarance

24
Practices Collective ownership

• All code can be changed by anybody on the team
• Everybody is required to improve any portion of
  bad code s/he sees
• Everyone has responsibility for the system
• Individual code ownership tends to create
  "experts", the "experts" tend to create difficult
  team situations
• Every year in 335...

25
Practices Continuous integration

• Integration happens after a few hours of
  development
• Checkout build with your changes, Make sure all
  tests pass (green bar)
• In case of errors
• Do not put changes into the build
• Fix problems
• Check in the system to the common repository
• Repeat
• You could be using CVS, Subversion, Mercurial,
  Git to store a common repository of your code

26
Continuous Integration

• Find problems early
• Can see if a change breaks the system more
  quickly -- while you remember the details
• Add to the build in small increments

27
Practices Coding standards

• Coding Standard
• Naming conventions and style
• Least amount of work possible Code should exist
  once and only once
• Team has to adopt a coding standard
• Makes it easier to understand other peoples code
• Avoids code changes due to syntactic preferences
• You get to fight over curly brace placement

28
Coding Standard with Eclipse (a demo)
29
Practices On-site customer

• Many software projects fail because they do not
  deliver software that meets needs
• Real client should be part of the team
• Defines / decides the needs
• Answers questions and resolves issues
• Prioritizes features
• Helps prevents devs from making decisions like
  "They probably wanted us to ....
• We will simulate this at the end of lecture
• Get together by teams

30
Values Communication

• Communication
• Clients centric (write "Stories")
• Pair programming
• Task estimation
• Iteration planning
• What to do in the next cycle
• Design sessions

31
Values Simplicity

• Simplicity
• Choose the simplest thing that will work
• Choose the simplest design, technology,
  algorithm, technique

32
Values Feedback

• Feedback very important
• Small Iterations
• Frequent deliveries
• Pair programming
• Constant code review
• Continuous integration (add often to the
  buildsync your code with the system)
• Check out, run all test including your new tests
  and code, if all pass, check in the updated
  system
• automated unit tests (JUnit, for example)

33
Values Feedback

• Compiler feedback seconds
• Pair programming feedback half minutes
• Unit test feedback few minutes
• Acceptance testing half hours
• Customers write these, we are not doing this in
  335
• Customer feedback daily (or several times/week
  in our case)
• Iteration feedback weekly
• Project manager meetings weekly
