Title: Net Analyte Signal Based Multivariate Calibration Methods


1

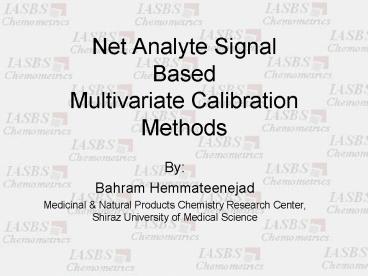

Net Analyte Signal BasedMultivariate
Calibration Methods
  • By
  • Bahram Hemmateenejad
  • Medicinal Natural Products Chemistry Research
    Center, Shiraz University of Medical Science

2
Multivariate Calibration
  • CLS A C S
  • ILS c A S
  • PCR A T P, c T s
  • PLS A T P, C Q U Q T b

3
Main Problems
  • Definition of figures of merit
  • Optimization of conditions
  • Optimum number of factors

4
Figure of merit
  • Sensitivity
  • Selectivity
  • Detection Limit
  • Univariate Calibration

5
Optimization of conditions
  • Effect of pH
  • Effect of Temperature
  • Effect of Ionic Strength
  • Effect of Concentration

6
Optimum number of factors
Cross Validation External Validation Minimum
PRESS F-Ratio Over-fitting Under-Fitting
7
Net Analyte Signal(NAS)
  • A. Lorber, Anal. Chem. 58 (1986) 1167
  • The part of mixture spectrum that is useful for
    model building
  • NAS is unique for the analyte of interest
  • NAS is a part of mixture spectrum which is
    orthogonal to the spectrum of all existing
    components except analyte
  • A part of mixture spectra which is directly
    related to the concentration of analyte

8
Net analyte signal, references
  • 1986 Proposed by Lorber.
  • Spectra of pure compounds available (CLS model).
  • 1997-2000 Extensions.
  • Inverse calibration (Lorber,Faber,Kowalski)
  • Figures of merit (sensitivity, selectivity,
    limit of detection) (Faber)
  • 1998-2002 Applications, Software.
  • Outlier detection. (Faber, Xu, Ferre)
  • Biomedical Pharmaceutical. (Goicoechea,
    Skibsted)
  • Spectral preprocessing. (Faber, Brown, Wentzell)
  • Wavelength selection. (Goicoechea, Xu)
  • Preprocessing and wavelength selection (Skibsted,
    Boelens)

9
M1
M2
M3
y
x
2x
3x
3y
M3
2y
M2
y
M1
x
10
  • R (ixj) matrix of mixture spectra
  • Rk (ixj) matrix of analyte k spectra
  • R-k (ixj) matrix of background (other analytes
    interferences
  • R C S
  • Rk sk ck
  • R Rk R-k
  • F R F Rk F R-k, F R-k 0
  • F R F Rk R F sk ck sk ck

11
  • F I R-k R-k
  • R (I R-k R-k)R R - R-k R-k R
  • (I R-k R-k)R-k 0
  • Key Step R-k
  • Rank Annihilation Factor Analysis
  • (RAFA)

12
  • CLS approach
  • Rk sk ck
  • R-k R Rk
  • ILS approach
  • R-k R - ? r ck
  • r is a linear combination of the rows of R
  • ck R R-1 ck
  • ? 1/ rT R ck

13
  • Another approach
  • R-k I ck(ckT ck)-1 ckTR
  • Other approaches
  • Xu Schechter Anal. Chem. 69 (1997) 3722
  • Faber Anal. Chem. 70(1998) 5108

14
Review of NAS calculation
  • Determining No. of analytes (p)
  • Preparing mixture standard solutions (j)
  • Recording absorbance spectra of solutions at (i)
    sensors (R matrix)
  • Recording absorbance spectrum of unknown (run
    vector)
  • Calculation of R-k

15
  • Calculation of calibration NAS
  • R (I R-k R-k)R
  • Calculation of the NAS for unknown
  • run (I R-k R-k)run
  • Calculation of the pure NAS
  • sk (I R-k R-k)sk

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
Effect of added noise
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
NAS-Multivariate calibration
  • In some case,
  • Nonlinearity
  • Interaction between components
  • Other source of variables
  • The rank of NAS will become greater than 1
  • Simple NAS method dose not give perfect results
  • MLR, PCR, PLS and help to enhance the results
    of NAS calculation

66
  • R is used as input for multivariate models
  • R c s
    MLR
  • R T P c T b
    PCR
  • R T P c u q u T b PLS
  • R can be used as input for ANN

  • In Progress

67
Figure of merits
68
  • Sensitivity ri / ci or s
  • Selectivity ri / ri or s /
    s
  • LOD 3Sc / m, 3 ? bk /
    m
  • LOQ 10Sc / m, 10 ? bk / m

69
Applications
  • Wavelength region selection

Net Analyte Signal Regression Plot (NASRP)
70
  • Error Indicator (EI)
  • Goicoechea and Olivieri, Analyst 124 (1999) 725
  • EI s2 1(N2s2) / 4 r )0.5 / r
  • s standard deviation of the best fitted line
  • N Number of point in the best fitted line

71
  • Temperature insensitive determination of proteins
    in electrolyte solutions
  • Anal. Chem. 72 (2000) 4985
  • Determination of Tetracycline in blood serum
  • Anal. Chem. 71 (1999) 4361.
  • Determination of drugs in pharmaceutics
  • Determination of drugs in serum
  • Determination of sorbic and benzoic acids in
    fruit juices

72
Multivariate Standard Addition Method (MSAM)
  • ck cu cs
  • R R-k Rk
  • R-k R - ? r ck R - ? r (cu cs)
  • R-k I ck(ckT ck)-1 ckTR

73
(No Transcript)
74
  • Thanks for you attention
