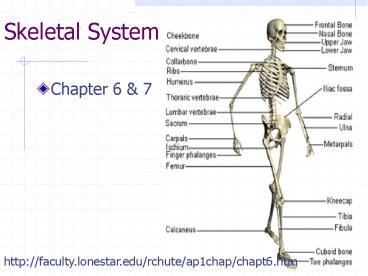

Skeletal System

1
Skeletal System

• Chapter 6 7

http//faculty.lonestar.edu/rchute/ap1chap/chapt6.
htm
2
Skeletal System Cartilage

• Skeletal cartilage consists primarily of water.
  (80)
• Cartilage contains no nerves or blood vessels.
• Chondroblasts new cell growth cells
• Chondrocytes mature cells
• Lacunae groups of cavities that contain the
  chondrocytes

3
Three types of cartilage
Fibrocartilage Tensile strength with the ability
to absorb compressive shock

• Elastic cartilage
• Maintains shape while allowing great flexibility

• Hyaline Cartilage
• Most abundant

4
Skeletal System

• Organization of the skeletal system
• Axial skeleton revolves around the vertical axis
  of the skeleton
• Appendicular skeleton make up the limbs that
  have been appended to the axial skeleton

5
Skeleton

• Consists of
• bones
• Cartilage
• Membranes that
• Line the bones.

6
(No Transcript)
7
(No Transcript)
8

• Types of Bones
• 1.Long bones are longer than they are wide.
• 2. Short bones are cubelike, about as long as
  they are wide.
• 3. Flat bones, such as ribs and skull bones, are
  thin or flattened.
• 4. Irregular bones, such as vertebra, facial
  bones, have specific shapes unlike the other
  types of bones.

9
Functions of bones

• Support bones provide a framework for the
  attachment of muscles and other tissue
• Protection bones such as the skull and rib cage
  protect internal organs from injury
• Movement bones enable body movements by acting
  as levers and points of attachment for muscles.
• Mineral storage. Bones serve as a reservoir for
  calcium and phosphorus, essential minerals for
  various cellular activities throughout the body.
• Blood cell production the production of blood
  cells (hematopoietic) occurs in the red marrow
  found within the cavities of certain bones.
• Energy storage lipids(fats) stored in adipose
  cells of the yellow marrow serve as an energy
  reservoir

10
Bone

• Bone is an organ that includes
• Connective tissue(bone, blood, cartilage,
  adipose, and fibrous connective tissue)
• Nervous tissue
• Muscle and epithelial tissues (within the blood
  vessels)

11
Bone Structure Gross Anatomy
12
Two types of bone tissue

• Compact bone is the hard material that makes up
  the shaft of long bones and the outside surfaces
  of other bones.

13
Two types of bone tissue

• Spongy bone consists of thin, irregularly shaped
  plates called trabeculae, arranged in a
  latticework network.

14
(No Transcript)
15
(No Transcript)
16
Long bone structure

• Location of Hematopoietic tissue in bones
• Red marrow located within cavities of spongy bone
  of long bones and in the diploe of flat bones
• Infants all areas of spongy bone contain red
  blood cells
• Adults in the head of the femur and humerus, flat
  bone of sternum, and irregular bone of the
  pelvis

Epiphyseal line
17
(No Transcript)
18
Microscopic Structure of Bone
19
Chemical Composition of Bone

• Bone consists of organic and inorganic components
• Organic components include the cells
  (osteoblasts, osteocytes, and osteoclasts) and
  Osteoids
• Inorganic components include hydroxyapatites
  (mineral salts) largely calcium phosphates

20
Organic bone cells

• Osteoblasts - bone-forming cells
• Osteocytes - mature bone cells
• Osteoclasts - large cells that resorb or break
  down bone matrix
• Osteoid - unmineralized bone matrix composed of
  proteoglycans, glycoproteins, and collagen

21
(No Transcript)
22
Bone Markings

• The external surface of bones are rarely smooth
  and featureless.
• These marking are named in many different was.
• http//www.studystack.com/menu-210122

http//www.studystack.com/studytable-210122
23
Bone Development

• Osteogenesis and ossification are synonyms
  indicating the process of bone tissue formation
• Occurs when?
• Embryos leads to formation of the bony skeleton
• Bone growth until early adulthood to increase
  in size (bones are capable of growing in
  thickness throughout life.)
• Ossification in adults serves mainly for
  remodeling and repair of bones

24
Formation of the Bony Skeleton

• Begins at week 8 of embryo development
• 1.Intramembranous ossification bones develops
  from a fibrous membrane
• Formation of most flat bones of the skull and the
  clavicles
• 2.Endochondral Ossification bone formation that
  occurs by replacing hyaline cartilage
• Begins in the second month of development
• Uses hyaline cartilage bones as models for bone
  construction
• Requires breakdown of hyaline cartilage prior to
  ossification

25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Postnatal Bone GrowthBone Growth in length

• 1. Epiphyseal plate or cartilage growth plate
• cartilage cells are produced by mitosis on
  epiphyseal side of plate
• cartilage cells are destroyed and replaced by
  bone on diaphyseal side of plate
• Between ages 18 to 25, epiphyseal plates close.
• cartilage cells stop dividing and bone replaces
  the cartilage (epiphyseal line)
• Growth in length stops at age 25

29
Growth in length of long bones
30
Hormonal Regulation of bone growth during youth

• Initially promote adolescent growth spurts
• Cause masculinization and feminization of
  specific parts of the skeleton
• Later induce epiphyseal plate closure, ending
  longitudinal bone growth

• Initially promote adolescent growth spurts
• Cause masculinization and feminization of
  specific parts of the skeleton
• Later induce epiphyseal plate closure, ending
  longitudinal bone growth

31
Bone Remodeling

• In adult skeletons, bone remodeling is balanced
  bone deposit and removal, bone deposit occurs at
  a greater rate when bone is injured, and bone
  resorption allows minerals of degraded bone
  matrix to move into the blood.

32
Control of Remodeling

• The hormonal mechanism is mostly used to maintain
  blood calcium homeostasis, and balances activity
  of parathyroid hormone and calcitonin.
• Nutrition - Ca, P, Mg, vitamins, A, C and D.
• In response to mechanical stress and gravity,
  bone grows or remodels in ways that allow it to
  withstand the stresses it experiences

33
Calcium

• The human body contains some 1200-1400 g of
  calcium
• Over 99 of which is present as bone minerals
• Normal range is narrow 9-11 mg per 100ml of
  blood by the hormonal control loop
• Calcium is absorbed from the intestine under the
  control of vit. D metabolism
• Daily req birth to 10yrs 400-800 mg 11 to 24
  yrs 1200-1500 mg

34
Wolff's law - a bone grows or remodels in
response to the forces or demands placed upon it
35
Comparing Skeletons

• Adult 206
• Child 275
• Adult Higher of yellow marrow and lower of
  red marrow(sternum, pelvis, femur)
• Child Higher of red marrow and lower of
  yellow marrow
• Adult higher of bone and lower of cartilage
• Child higher of cartilage and lower of bone

36
Fractures
37
Stages in the healing of a bone fracture
38
(No Transcript)
39
(No Transcript)
40
Homeostatic imbalances of Bone

• 1. Osteomalacia
• 2. Rickets
• 3. Osteoporosis
• 4. Pagets disease
• 5. achondroplasia
• 6. bony spur
• 7. ostealgia

• 8. osteitis
• 9. osteomyelitis
• 10. osteosarcoma
• 11. Pathologic fracture
• 12. traction

41
Osteomalacia and Rickets
42
osteoporosis
43
Pagets disease
44
achondroplasia
45
Bony spur
46
osteitis
47
osteomyelitis
48
osteosarcoma
49
Joints (articulations) site where two or more
bones meet

• Function to give the body mobility and to hold
  bones together
• Joints are the weakest parts of the skeleton
• Functional Classification
• Synarthroses immovable joints
• Amphiarthroses movable joints
• Diarthroses freely moveable joints

50
Classifying joints based on structure (PAGE 251)

• Fibrous Sutures

51

• Cartilaginous

52
Synovial joint (page259-260)

• Plane
• Hinge
• Pivot
• Condyloid
• Pivot
• Saddle
• Ball and socket

53
Diseases of the bone and/or skeletal sys.

• 5 conditions and/or diseases
• Symptoms
• Causes
• Treatments
• http//training.seer.cancer.gov/module_anatomy/uni
  t3_4_bone_classification.html
