Finite difference method

1
Finite difference method

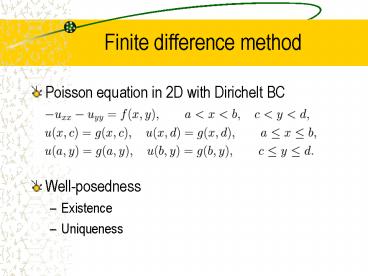

• Poisson equation in 2D with Dirichelt BC
• Well-posedness
• Existence
• Uniqueness

2
Finite difference method
3
Finite difference method

• Finite difference approximation
  Dimension-by-dimension
• Computation error analysis
• Solve the linear system efficiently
• Error bound???

4
Local truncation error
5
Finite difference method

• Order of accuracy second order
• Error analysis -- maximum principle
• Proof Exercise!!
• Efficient solver
• Iterative solvers CG, PCG, Gauss-Seidel, SOR,
  ..
• Direct Poisson solver

6
Linear system
7
Linear system
8
Matrix form
9
Matrix form
10
Matrix form

• Linear system
• Iterative solvers Rewrite the difference
  equations as

11
SOR method An example
12
Fast Poisson solver via DST

• For Poisson equation in 1D with Dirichlet BC
• Finite difference discretization
• Linear system

13
Fast Poisson solver

• Homogeneous BC
• In PDE level sine transform

14
Fast Poisson solver

• Exact solution

15
Fast Poisson solver

• In discrtization level Discrete since transform
  (DST)

16
Fast Poisson solver
17
Algorithm for fast Poisson solver via DST
18
Fast Poisson solver

• Inhomogeneous BC --- Homogenizing the BC
• Introducing
• Plugging into the difference equations
• With

19
Algorithm for fast Poisson solver via DST
20
Fast Poisson solver in 2D

• The equation
• The finite difference discretization

21
Fast Poisson solver in 2D

• Discrete sine transform in 2D
• Plugging into the finite difference equations

22
Algorithm for Fast Poisson solver in 2D
23
Algorithm for Fast Poisson solver in 2D
24
Comments on fast Poisson solver

• Advantages
• Direct solver give exact solution to the linear
  system
• Memory cost O(M) no extra memory is needed!!
• Computational cost O(M ln M)
• Very efficient in 2D 3D due to FST!!!
• Can be extended to Neumann BC or periodic BC
• Disadvantages
• The domain should be a rectangle in 2D box in
  3D
• Uniform mesh in each direction is needed!!
• The coefficients of the PDE must be constant!!
• BC much be the same type in opposite edges!!!

25
Extension to Neumann BC

• The problem

26
Extension to Neumann BC

• Discretization at shifted grids points by half
  grid
• Direct Poisson solver via discrete cosine
  transform (DCT)
• Exercise!!
• Extension to periodic BC discrete Fourier
  transform (DFT)

27
Poisson equation in 2D on a disk or shell

• The problem
• The ideas Domain mapping or variable transform

28
The discretization
29
The discretization for a shell
30
The discretization for a disk
31
The discretization

• Local truncation error
• Order of accuracy second order
• Error estimate -- maximum principle
• Solution of the linear system
• Fast Poisson solver
• Discrete Fourier transform in transverse
  direction
• Solve a linear system with tri-diagonal
  coefficient matrix in r-direction

32
Extension

• 3D Poisson equation
• In a box, sphere, shell, cylindrical cylinder,
  etc.
• General linear elliptic equation
• Elliptic system
• Navier system,

33
More topics

• Compact scheme --- high order methods with less
  grid points
• 4th (6th ,) order methods need 5 (7, ) grid
  points in 1D
• Need use ghost points near boundary
• Question Can we design high order methods using
  less grid points???
• An example in 1D
• Extension to 2D 3D Exercise!!!!

34
More topics

• General geometry in 2D 3D
• FEM or FVM or Boundary integral method
• Adaptive mesh refinement (AMR)
• Solution has sharp change locally
• Refine the mesh adaptively based on the
  approximation
• Nonlinear problem
• Discretization, solve nonlinear system
• ..
