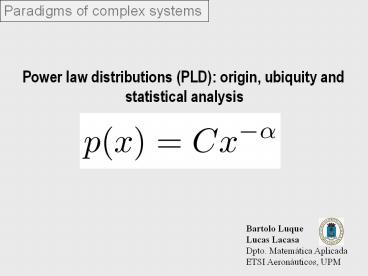

Power law distributions (PLD): origin, ubiquity and statistical analysis

1
Paradigms of complex systems
Power law distributions (PLD) origin, ubiquity
and statistical analysis
Bartolo Luque Lucas Lacasa Dpto. Matemática
Aplicada ETSI Aeronáuticos, UPM
2

• Critical phenomena
• Phase transitions
• Edge of chaos
• ? Domain of power laws

3
Index

• Introduction to PLD typical scale range.
• Mechanisms by which PLD can arise.
• Other broad dynamic range distributions.
• Detecting and describing PLD tricky task.
• Appendix stable laws

4

• Introduction
• 1.1 What is a power law distribution (PLD) ?
• 1.2 Where do we find PLDs ?

5
Typical scale Many of the things that scientists
measure have a typical size or scale.
For instance, the heights of human beings vary,
but have a typical size between 50 cm and 272 cm,
the ratio being around 4. The mean is around 180
cm.
In complex networks random graphs
6
In complex networks scale free networks
Not all the things we measure are peaked around a
typical value, or have a typical size. Some vary
over an enormous dynamic range.
The distribution of city sizes
Log-log plot
The system shows an unexpected symmetry
NO typical value or a typical scale (all sizes,
all scales).
7
Distributions of that form are called
Power Law Distributions (PLD), and have the
following functional shape where a is the so
called exponent and C can be obtained by
normalization.
Pure PLD
PLD with finite size effects
8
WHERE ?

• statistical physics critical phenomena, edge of
  chaos, fractals, SOC, scale-free networks,...
• geophysics sizes of earthquakes, hurricanes,
  volcanic eruptions...
• astrophysics solar flares, meteorite sizes,
  diameter of moon craters,...
• sociology city populations, language words,
  notes in musical performance, citations of
  scientific papers...
• computer science frequency of access to web
  pages, folder sizes, ...
• economics distributions of losses and incomes,
  wealth of richest people,...
• a huge etc.
• What (universal?) mechanisms give rise to this
  specific distribution?
• How can we know with rigor when a phenomenon
  shows PLD behavior?

9
(No Transcript)
10
(No Transcript)
11
2. Mechanisms by which PLD can arise 3.1
Combinations of exponentials. 3.2 Random
walks (self-similar motion, fractals). 3.3 The
Yule process rich gets richer 3.4 Phase
transitions and critical phenomena.
3.5 Self-organized criticality (SOC). 3.6
Random multiplicative processes with
constraints. 3.7 Maximization of
generalized Tsallis Entropy
(correlated /edge of chaos systems). Others
Coherent-noise mechanism, highly
optimized tolerant (HOT) systems, etc
12
2.1 Combinations of exponentials.

• Exponential distribution is more common than PLD,
  for instance
• Survival times for decaying atomic nuclei
• Boltzmann distribution of energies in
  statistical mechanics
• etc...
• - Suppose some quantity y has an exponential
  distribution
• - Suppose that the quantity we are interested in
  is x, exponentially related to y
• Where a, b are constants. Then the probability
  distribution of x is a PLD

13
2.1 Combinations of exponentials example
biologically motivated

• Process where a set of items grow exponentially
  in time
• (population or organisms reproducing without
  constraints) .
• In this process a death process takes place, the
  probability of an item to die increasing
  exponentially (in other words, the probability of
  still living decreases exponentially with time) .
• Thus, the still living items distribution will
  follow a power law
• APPLICATIONS
• - Sizes of biological data
• - Incomes
• - Cities
• - Population dynamics
• - etc

14

• Also known as
• The gibrat principle (Biometrics)
• Matthew effect
• Cumulative advantage (bibliometrics)
• Preferential attachment (complex networks)

2.3 The Yule process (rich gets richer)

• Initial population
• With t, a new item is added to the population
• how?? With probability p, to the most relevant
  one!
• with probability 1-p, randomly.

Initial population
Time (more nodes)
15
(No Transcript)
16
2.4 Critical phenomena Phase transitions.
Global magnetization
1. T0 well ordered
2. 0ltTltTc ordered
3. TgtTc disordered
17
2.5 Critical phenomena Self-organized
criticality (SOC).
2.5 Self-organized criticality (SOC).
SELF ORGANIZED CRITICALITY
18
Sandpile model celular automata sandpile applet

• A grain of sand is added at a randomly selected
  site z(x,y) -gt z(x,y)1
• 2. Sand column with a height z(x,y)gtzc3 becomes
  unstable and collapses by distributing one grain
  of sand to each of it's four neighbors.
• This in turn may cause some of them to
  become unstable and collapse (topple) at
• the next time step.
• Sand is lost from the pile at the
  boundaries. That is why any avalanche of
  topplings eventually dies out and sandpile
  "freezes" in a stable configuration with
  z(x,y)ltz everywhere. At this point it is time to
  add another grain of sand.

19
Critical Properties Phase transition (Ising) SOC (Sandpile)
Stability of critical state Repulsive Attractive
Characteristic size Clusters of all sizes, distribution follows PLD Avalanches of all sizes, distribution follows PLD
20

• Los modelos SOC se pueden entender como primeras
  aproximaciones a modelos de turbulencia, donde la
  energía (avalanchas, arena) es disipada a todas
  las escalas, con correlaciones espaciales
  descritas por un exponente de Kolmogorov
  generalizado (exponente crítico).
• Otras descripciones matemáticas de turbulencia
  multifractales (también aparecen PLDs).

21

• Resumen dos mecanismos fundamentales
• Proceso de Yule proceso evolutivo por el que se
  generan distribuciones espaciales de tipo ley de
  potencias. Rich gets richer.
• Fenómenos críticos y SOC escalas o tamaños
  típicos de un sistema divergen
• - si acercamos el sistema a un punto crítico
  transiciones de fase.
• - si el sistema evoluciona de forma natural a
  ese punto crítico SOC.

22
3. Other broad dynamic range distributions
3.1 Log-normal distributions multiplicative
process 3.2 Stretched exponential
distributions. 3.3 PLD with exponential
cutoff.
23
3.1 Log-normal distributions multiplicative
process

• At every time step, a variable N is multiplied by
  a random variable.
• If we represent this process in logarithmic
  space, we get a brownian motion, as long as
  log(?) can be redefined as a random variable.
• log(N(t)) has a normal (time dependent)
  distribution (due to the Central Limit Theorem)
• N(t) is thus a (time dependent) log-normal
  distribution.
• Now, a log-normal distribution looks like a PLD
  (the tail) when we look at a small portion on log
  scales (this is related to the fact that any
  quadratic curve looks straight if we view a
  sufficient small portion of it).

24
A log-normal distribution has a PL tail that gets
wider the higher variance it has.
25

• Example wealth generation by investment.
• A person invests money in the stock market
• Getting a percentage return on his investsments
  that varies over time.
• In each period of time, its investment is
  multiplied by some factor which fluctuates
  (random and uncorrelatedly) from one period to
  another.
• ? Distribution of wealth log-normal

26

• 4. Detecting and describing PL tricky task.
• 4.1 Logarithmic binning.
• 4.2 Cumulative distribution function.
• 4.3 Extracting the exponent MLE vs. graphical
  methods.
• 4.4 Estimation of errors goodness-of-fit tests.

27

• 4.1 Logarithmic binning

• first insight a histogram of a quantity with
  PLD appears a straight line when plotted on log
  scales.

Noise (fluctuations)

• Generation of 106 random numbers drawn from a PLD
  with exponent 2.5
• noise is due to sample errors there are too few
  data in many intervals, which give rise to
• fluctuations.
• however, we cant throw out the data in the
  tail, because many distributions follow PL in
• the tail ? we need to avoid those fluctuations.

28
4.1 Logarithmic binning

• In order to avoid these tail fluctuations, we
  have to bin wider in the tail (in order to take
  into account more data in each bin) a way to
  make a varying binning (the most common) is the
  logarithmic binning.
• note we have to normalize each binning by its
  size, in order to get a count per unit interval.

Less fluctuations. Some noise is still present.
Why? of samples falling in the kth bin
decreases with the exponent of the PLD if this
exponent is greater than one. ? Every PLD with
exponent greater than 1 is expected to have noisy
tails.
29
4.2 Cumulative distribution function

• Another method of plotting the data (in order to
  avoid fluctuations) instead of plotting the
  histogram, we plot the cumulative distribution
  function probability that x has a value greater
  or equal to X

Its intuitive that fluctuations are absorbed, so
that binning is no more a problem.
If p(x) follows a PLD, P(x) too But with a
different exponent
Histogram
Logarithmic binning
Cumulative
30
NOTATION

• Distributions plots are called histograms.
• Histograms that follow PLD are called power
  laws.
• Cumulative distributions are called
  rank/frequency plots.
• Rank/frequency plot which follow a PLD are
  called Zipf laws (if the plot is P(x) vs. x) or
  Pareto ditributions (if the plot is x vs. P(x)).

31
4.3 Exponent estimation of the PLD

• The first attempt is to simply fit the slope of
  the straight line in the log-log plot (least
  squares, for instance).
• ? In our example, this leads to wrong results

Fitted . . . . . . Expected . . .
slope
32
Why a simple fitting of the slope doesnt
usually work?

• Fitting to a PLD by using graphical methods based
  on linear fit on log-log is
• inaccurated
• Biased extreme data .
• Sometimes, the fitted exponent is not accurate,
  some others, the underlying process does not
  generate PLD data, and the shape is due to
  outside influences, such as biased data
  collection techniques or random bipartite
  structures.

• Example

Generation of 104 random numbers drawn from a PLD
with exponent 2.5 (50 runs)
Graphical methods
33
Maximum likelihood estimate of exponents (MLE)
Given a PLD, applying normalization, we get
Given a set of n values xi, the probability that
those values where generated from a PLD with
exponent a is proportional to the likelihood of
the data set

and the probability that
a is the correct exponent is related through
Bayes theorem Applying the usual MLE (
searching the extrema of ln( ) ) we
find Where xmin in practice is not the
smallest value but the smallest one for which the
PL behavior holds. Now, which is the
goodness-of-fit of MLE ?

34
4.4 Estimation of errors Kolmogorov-Smirnov test
(KS)

• KS test is based on the following test statistic
• where is the hypothesized cumulative
  distribution function, is
  the empirical distribution function (based on
  sample data).
• Method KS seeks to reject the PLD hypothesis

• Estimate, using MLE, the power law exponent.
• Look for the maximum distance between the
  hypothesized cumulative distribution and the
  empirical (cumulative) distribution.
• Taking into account the of samples, check the
  quantile Q.
• The Observed Significance Level OSL (1-Q)
• When OSL gt 10, there is insufficient evidence
  to reject the hypothesis that the distribution is
  PLD

35
4.4 Estimation of errors Pearsons c2
where Oi an observed frequency Ei an
expected (theoretical) frequency, asserted by the
null hypothesis
Now you compare your result with the specific
table, in order to reject or not the null
hypothesis (hyp the observed data dont come
from the expected theoretical- distribution).
36
APPENDIX_____________
Stable Laws and their relation to Power law
distributions
37
Stable Laws GAUSSIAN and LEVY LAWS
Def Summing N i.i.d random variables with pdf
P1, one obtains a random variable which Is in
general a different pdf Pn given by N
convolutions of P1. Distributions such that Pn
has the same form that P1 are said to be
stable. This property must hold, up to
translations and dilations (affine
transformations). Pn(x)dx
P1(x)dx , where x anx bn Note A stable
law correspond to a fixed point in a
Renormalization Group process. Fixed Points of
RG usually play a very special role attractive
fixed points (as this case) describe the
macroscopic behavior observed in the large N
limit. The introduction of correlations may lead
to repulsive fixed points, which are the
hallmark of a phase transition, i.e. the
existence of a global change of regime at
the macroscopic level under a variation of a
control parameter quantifying the strength of the
correlations.
38
Stable Laws GAUSSIAN and LEVY LAWS
Gaussian law
The best-known example of a stable law is the
Gaussian law, also called the normal law or the
Laplace-Gauss law. For instance, the Binomial and
Poisson distributions tend to the Gaussian law
under the operation of addition of a large number
of random variable (the central limit theorem is
an explanation to this fact).

where ? is the mean Gaussian
law ? is the variance
Log-Normal law A variable X is distributed
according a log-normal pdf if lnX is distributed
according a gaussian pdf. The log-normal
distribution is stable, not under addition but
under multiplication (i.e., addition in the log
space) ? not stable in rigor! But interesting to
talk about.
This pdf can be mistaken with a PLD, over a
relatively large interval (up to 3 decades,
depending of the value of ?). In fact, we can
express this pdf as a PLD with exponent that goes
like -1-ln(x)/?2 (when ? is big, the exponent
looks constant).
39
Stable Laws GAUSSIAN and LEVY LAWS

• The Lévy laws
• Paul Lévy discovered that in addition to the
  Gaussian law, there exists a large
• number of stable pdfs. One of their most
  interesting properties is their asymptotic
• Power law behavior. Asymptotically, a symmetric
  Lévy law stands for
• P(x) C / x1 for x ? infinity
• C is called the tail or scale parameter
• ? is positive for the pdf to be normalizable,
  and we also have ?lt2 because for higher
• values, the pdf would have finite variance, thus,
  according to the Central Limit
• theorem, it wouldnt be stable (convergence to
  the gaussian law). At this point a
• generalized central limit theorem can be
  outlined.
• There are not simple analytic expressions of the
  symmetric Lévy stable laws, denoted
• by L ?(x), except for a few special cases
• ?1 - Cauchy (Lorentz) law - L1(x) 1/(x2
  p2)

?
40
Stable Laws GAUSSIAN and LEVY LAWS

• Lévy versus gaussian

Properties of each basin of attraction Gaussian Lévy
Tail decay ??2 ?lt2
Characteristic fluctuation scale N1/2 N1/
Scale parameter ?2 C
Composition rule for the sum of N variables ?2N N ? 2 CN NC
?
41

• Bibliography
• Power laws, Pareto distributions and Zipfs law,
  M.E.J. Newman
• Critical phenomena in natural sciences,
  D. Sornette
• Problems with Fitting to the PLD
  M. Goldstein, S. Morris,
  G.G. Yen
• Logarithmic distributions in reliability analysis
  B.K. Jones
• A Brief History of Generative Models for Power
  Law and Lognormal Distributions
  M. Mitzenmacher

42

• Also known as
• The gibrat principle (Biometrics)
• Matthew effect
• Cumulative advantage (bibliometrics)
• Preferential attachment (complex networks)

2.3 The Yule process (rich gets richer)
Suppose a system composed of a collection of
objects (cities, papers, etc). What we wish to
explain is why a certain property of these these
collection of objects (number of citizens, number
of citations, etc) is distributed following a
very precise kind of distribution PLD.

• The variable under study is k (number of
  citations of papers, size of cities, etc) the
  unity
• New objects appear once in a while, as people
  publish new papers for instance.
• Newly appearing objects have some initial k0.
• In between the appearance of a new object (a new
  city, a new paper), m new people/citations/etc
  are added to the entire system, in proportion to
  the number of people/citation that the city/paper
  already has, for every object. (rich gets richer)
• Note to overcome the problem when k00, we can
  assign new citations not in proportion simply to
  k, but to kc, where c is some constant.
• PARAMETERS OF THE MODEL
• k0 , c , m

Evolutive argument
43
Let pk,n be the fraction of objects that have k
unities when the total number of objects is n.
Thus the number of such unities is npk,n. It can
be shown that the master equation of this process
is
With stationary solution
, where and Now, the
beta-function follows a power law distribution in
its tail, with exponent a, thus we can conclude
that the Yule process generates a power law
distribution pk with exponent a related to the
three parameters of the process.
44
Susceptible to small changes
2.5 Self-organized criticality (SOC).
Certain extended dissipative dynamical systems
naturally evolve into a critical state, with no
characteristic time or length scales. The
temporal fingerprint of the welf-organized
critical state is the present of 1/f noise, its
spatial signature is the emergence of scale-free
(fractal) structures. Per Bak et al., Phys. Rev.
A 38 (1988)

• Example Sandpile (BTW) cellular automata model
• The system drives itself towards its attractor
  by generating
• avalanches of all sizes. Moreover, the
  attractor is the critical state!! (In phase
• transitions, the critical state is
  unstable).
• As long as the system reaches the critical
  state, it will maintain there generating
• avalanches of all sizes (no characteristic
  length).
• (Distribution of avalanches follow PLD for
  instance).
• Applications
• Geophysics, Economics, Ecology, Evolutionary
  biology, Cosmology, Quantum gravity,
• Astrophysics, Sociology, etc.

Critical Properties Phase transition (Ising) SOC (Sandpile)
Stability of critical state Repulsive Attractive
Characteristic size Clusters of all sizes, distribution follows PLD Avalanches of all sizes, distribution follows PLD
45

• Starting with an arbitrary configuration and
  repeating the above procedure brings the system
  to a stationary state, where for every grain of
  sand added to the system on average precisely one
  grain of sand is lost at the boundary.
• It is clear that the system in this state must
  have large avalanches. Indeed, addition of  a
  grain of sand at one of the central sites would
  not cause the loss of sand (which is required by
  stationarity) unless the chain reaction of
  topplings isn't able to propagate all the way to
  the boundary, which is exactly the definition of
  large (system-wide) avalanche.
• It turns out that in this delicately balanced
  steady state the distribution of avalanche sizes
  (measured as total number of topplings in the
  avalanche) follows a scale-free power law
  distribution P(S) S-1.2 .
• ? In other words, the system operates in a
  critical state (in the sense of equilibrium
  physics of second order phase transitions).
  Notice that this critical state is a unique
  attractor of the dynamical rules, conserving sand
  everywhere except for the boundaries. Hence
  the name Self-Organized Criticality.
