Lecture 4: A Case for RAID (Part 2)

1

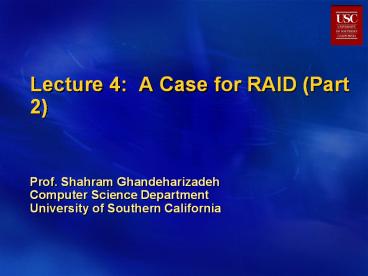

Lecture 4 A Case for RAID (Part 2)

• Prof. Shahram Ghandeharizadeh
• Computer Science Department
• University of Southern California

2
Smaller Inexpensive Disks

• 25 annual reduction in size 40 annual drop in
  price

1 GB, Year 2008 IBM Microdrive _at_ 125
1 GB, Year 1980 IBM 3380 _at_ 40,000
1 inch in height, weighs 1 ounce (16 grams)
Size of a refrigerator, 550 pounds (250 Kg)
3
Inexpensive Disks

• Less than 9 Cents / Gigabyte of storage

4
Challenge Managing Data is Expensive

• Cost of Managing Data is 100K/TB/Year
• High availability Down time is estimated at
  thousands of dollars per minute.
• Data loss results in lost productivity
• 20 Megabytes of accounting data requires 21 days
  and costs 19K to reproduce.
• 50 of companies that lose their data due to a
  disaster never re-open 90 go out of business in
  2 years!

5
Challenge Managing Data is Expensive

• Cost of Managing Data is 100K/TB/Year
• High availability Down time is estimated at
  thousands of dollars per minute.
• Data loss results in lost productivity
• 20 Megabytes of accounting data requires 21 days
  and costs 19K to reproduce.
• 50 of companies that lose their data due to a
  disaster never re-open 90 go out of business in
  2 years!

RAID
6
MTTF, MTBF, MTTR, AFR

• MTBF Mean Time Between Failures
• Designed for repairable devices
• Number of hours since the system was started
  until its failure.
• MTTF Mean Time To Failures
• Designed for non-repairable devices such as
  magnetic disk drives
• Disks of 2008 are more than 40 times more
  reliable than disks of 1988.
• MTTR Mean Time To Repair
• Number of hours required to replace a disk drive,
  AND
• Reconstruct the data stored on the failed disk
  drive.
• AFR Annualized Failure Rate
• Computed by assuming a temperature for the case
  (40 degrees centigrade), power-on-hours per year
  (say 8,760, 24x7), and 250 average motor
  start/stop cycles per year.

7
Focus on MTTF MTTR

• MTTF Mean Time To Failures
• Designed for non-repairable devices such as
  magnetic disk drives
• Disks of 2008 are more than 40 times more
  reliable than disks of 1988.
• MTTR Mean Time To Repair
• Number of hours required to replace a disk drive,
  AND
• Reconstruct the data stored on the failed disk
  drive.

8
Assumptions

• MTTF of a disk is independent of other disks in a
  RAID.
• Assume
• The MTTF of a disk is once every 100 years, and
• An array of 1000 such disks.
• The MTTF of any single disk in the array is once
  every 37 days.

9
RAID

• RAID organizes D disks into nG groups where each
  group consists of G disks and C parity disks.
  Example
• D 8
• G 4
• C 1
• nG 8/4 2

Disk 1
Disk 2
Disk 3
Disk 4
Parity 1
Disk 5
Disk 6
Parity 2
Disk 7
Disk 8
Parity Group 1
Parity Group 2
10
RAID

• RAID organizes D disks into nG groups where each
  group consists of G disks and C parity disks.
  Example
• D 8
• G 4
• C 1
• nG 8/4 2

Disk 1
Disk 2
Disk 3
Disk 4
Parity 1
Disk 5
Disk 6
Parity 2
Disk 7
Disk 8
Parity Group 1
Parity Group 2
11
RAID With 1 Group

• With G disks in a group and C check disks, a
  failure is encountered when
• A disk in the group fails, AND
• A second disk fails before the failed disk of
  step 1 is repaired.
• MTTF of a group of disks with RAID is

12
RAID With 1 Group (Cont)

• Probability of another failure
• MTTR includes the time required to
• Replace the failed disk drive,
• Reconstruct the content of the failed disk.
• Performing step 2 in a lazy manner increases
  duration of MTTR.
• And the probability of another failure.
• What happens if we increase the number of data
  disks in a group?

13
RAID with nG Groups

• With nG groups, the Mean Time To Failure of the
  RAID is computed in a similar manner

14
Review

• RAID 1 and 3 were presented in the previous
  lecture.
• Here is a quick review.

15
RAID 1 Disk Mirroring

• Contents of disks 1 and 2 are identical.
• Redundant paths keep data available in the
  presence of either a controller or disk failure.
• A write operation by a CPU is directed to both
  disks.
• A read operation is directed to one of the disks.
• Each disk might be reading different sectors
  simultaneously.

• Tandems architecture

CPU 1
Controller 1
Controller 2
Disk 1
Disk 2
16
RAID 3 Small Blocks Reads

• Bit-interleaved.
• Bad news Small reads of less than the group
  size, requires reading the whole group.
• E.g., read of one sector, requires read of 4
  sectors.
• One parity group has the read rate identical to
  one disk.

01011110101010000001101001111
Disk 1
Disk 2
Disk 3
Disk 4
Parity
0 1
0 1
1 1
0 1
1 0
17
RAID 3 Small Block Reads

• Given a large number of disks, say D12, enhance
  performance by constructing several parity
  groups, say 3.
• With G (4) disks per group and D (say 8), the
  number of read requests supported by RAID 3 when
  compared with one disks is the number of groups
  (2). Number of groups is D/G.

Disk 1
Disk 2
Disk 3
Disk 4
Parity 1
Disk 5
Disk 6
Parity 2
Disk 7
Disk 8
Parity Group 1
Parity Group 2
18
Any Questions?
19
A Few Questions?

• Assume one instance of RAID-1 organization. What
  are the values for
• D
• G
• C
• nG

20
A Few Questions?

• Assume one instance of RAID-1 organization. What
  are the values for
• D1
• G1
• C1
• nG1

21
A Few Questions?

• Assume one instance of RAID-1 organization. What
  are the values for
• D1
• G1
• C1
• nG1
• Is the availability characteristics of the
  following Level 3 RAID better than RAID 1?

Disk 1
Disk 2
Disk 3
Disk 4
Parity 1
Parity Group
22
RAID 4

• Enhances performance of small reads/writes/read-mo
  dify-write. How?
• Interleave data across disks at the granularity
  of a transfer unit. Minimum size is a sector.
• Parity block ECC1 is an exclusive or of the bits
  in blocks a, b, c, and d.

Disk 1
Disk 2
Disk 3
Disk 4
Parity
Block a
Block b
Block c
Block d
ECC 1
23
RAID 4

• Small read retrieves its block from one disk.
• Now, 4 requests referencing blocks on different
  data disks may proceed in parallel.
• When compared with 1 disk, throughput of a D disk
  system is D times higher.

Disk 1
Disk 2
Disk 3
Disk 4
Parity
Block a
Block b
Block c
Block d
ECC 1
24
RAID 4 Failures (Cont)

• If Disk 2 fails, a small read for Block b
  retrieves blocks a, c, d, and ECC 1 from disks 1,
  3, 4, and Parity disks to compute the missing
  block. What is throughput relative to one disk
  now?
• Once Disk 2 is replaced with a new one, its
  content is constructed either eagerly or in a
  lazy manner. System cannot be too lazy because
  we want to minimize MTTR.

Disk 1
Disk 2
Disk 3
Disk 4
Parity
Block a
Block b
Block c
Block d
ECC 1
25
RAID 4 Failures (Cont)

• If the Parity disk fails, read of data blocks may
  proceed as in normal mode of operation.
• Once the Parity disk is replaced, content of new
  Parity disk is constructed either eagerly or
  lazily.

Disk 1
Disk 2
Disk 3
Disk 4
Parity
Block a
Block b
Block c
Block d
ECC 1
26
RAID 4 Small Writes

• Performance of small writes is improved.
• To write Block b
• Read the old Block b and old parity block ECC1,
• Compute the new parity using the old Block b, new
  Block b, and the old parity
• New parity (old block xor new block) xor old
  parity ECC1
• A write requires 4 accesses 2 reads and 2
  writes.

Disk 1
Disk 2
Disk 3
Disk 4
Parity
Block a
Block b
Block c
Block d
ECC 1
27
RAID 4 Bottlenecks

• For writes, parity disk is a bottleneck.
• Two different writes to Block b and g must read
  ECC1 and ECC2 from the Parity disk. A queue will
  form on the Parity disk.
• Performance of small writes is same as RAID 3,
  D/2G.

Disk 1
Disk 2
Disk 3
Disk 4
Parity
Block a
Block b
Block c
Block d
ECC 1
Block e
Block f
Block g
Block h
ECC 2
28
RAID 4 Summary
29
RAID 5 Resolve the Bottleneck

• Distribute data and check blocks across all disks.

Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
Block a
Block b
Block c
Block d
ECC 1
Block h
Block e
Block f
Block g
ECC 2
Block i
Block j
ECC 3
Block k
Block l
Block p
Block m
ECC 4
Block n
Block o
Block t
ECC 5
Block q
Block r
Block s
30
RAID 5 Resolve the Bottleneck

• Write of Blocks a and j may proceed in parallel
  now.

Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
Block a
Block b
Block c
Block d
ECC 1
Block h
Block e
Block f
Block g
ECC 2
Block i
Block j
ECC 3
Block k
Block l
Block p
Block m
ECC 4
Block n
Block o
Block t
ECC 5
Block q
Block r
Block s
31
RAID 5 Read Performance

• Check disks service read requests.
• With D disks broken into nG groups, number of
  parity disks is nGC. nG D/G.
• When compared with one disk, the throughput of a
  D disk system is D CD/G times higher.

Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
Block a
Block b
Block c
Block d
ECC 1
Block h
Block e
Block f
Block g
ECC 2
Block i
Block j
ECC 3
Block k
Block l
32
RAID 5 Write Performance

• For writes, read the referenced block and its
  parity block. Compute the new parity block.
  Write the new data block and its parity block.
• Continue to use the parity disk.
• With D disks broken into nG groups, number of
  parity disks is nGC. nG D/G.
• When compared with one disk, the throughput of a
  D disk system is D/4 (CD/G)/4 times higher.

Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
Block a
Block b
Block c
Block d
ECC 1
Block h
Block e
Block f
Block g
ECC 2
Block i
Block j
ECC 3
Block k
Block l
33
RAID 5 R-M-W Performance

• For R-M-W, read and write of the data block comes
  for free.
• the referenced block is already retrieved. Must
  perform one extra disk I/O to read they parity
  block. Compute the new parity block. Write the
  new data block and its parity block.
• Continue to use the parity disk.
• With D disks broken into nG groups, number of
  parity disks is nGC. nG D/G.
• When compared with one disk, the throughput of a
  D disk system is D/2 (CD/G)/2 times higher.

Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
Block a
Block b
Block c
Block d
ECC 1
Block h
Block e
Block f
Block g
ECC 2
Block i
Block j
ECC 3
Block k
Block l
34
RAID 5 Summary
35
RAID 5 Summary

• Significant improvement in the performance of
  small writes/R-M-W

36
RAID Summary

• If your workload consists of small R-M-W
  operations, which RAID would you choose?
