Gamma Ray Bursts

1

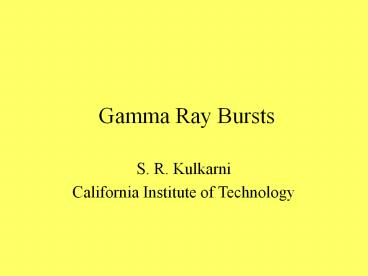

Gamma Ray Bursts

• S. R. Kulkarni
• California Institute of Technology

2
Acknowledgements

• Alicia Soderberg
• Caltech/NRAO/Carnegie gang
• Berger, Cenko, Fox, Frail, Harrison, Price,
  Schmidt
• T. Sakamoto R. Yamazaki

3
Quasars A Historical Analogy, I

• Astonished Impressed The immense power and
  energy of quasars resulting from Schmidts
  discovery of redshift.
• Amused and Educated Relativistic effects such as
  super-luminal motion were anticipated by Rees.
• Ruthless Exploitation Ask not why quasars quase
  but simply use them as light beacons to study the
  IGM.

4
Quasars A Historical Analogy, II

• Scintillation Interplanetary Scintillation
  showed that quasars were compact
• The Central Engine After three decades we have a
  working model involving black holes
• The Pesky Jets Questions remain
• FRI and FRII
• What is the difference between radio quiet and
  radio loud AGN?
• Unification The desire to unify various classes
  of quasars drove much of quasar research.

5
Unification Working Model
Jet
BLR
Torus
NLR
6
AGN Empirical Classification

• Radio Luminosity
• Radio Loud
• Radio Quiet
• Optical Emission Lines
• Broad Emission Lines (Type 1)
• Narrow Emission Lines (Type 2)
• Roughy speaking these two may map to the type of
  host galaxy and the type of black hole
• What are the equivalent physical parameters for
  GRBs?

7
Outline

• GRB Phenomenon
• Long Duration GRBs
• Jets
• Energetics
• SN Connection
• Jets in nearby SNe?
• Where do we stand at unification?

8
Two classes of GRBs
Short - Hard
Long - Soft
9
Jets

• Decrease Total Energy (by beaming fraction)
• Increase the event rate (by inverse beaming
  fraction)

10
Light Curves provide Evidence for Collimation
t lt tjet high ?
log f
tjet
log t
t gt tjet low ?
log f
log t
tjet
Rhoads
11
GRB Energetics Tiger becomes Lamb
Before the beaming correction
(isotropic)
After the beaming correction
(Frail et al.)
12
Radio Light Curves at 8.5 GHz
Radio Afterglows Angular Size and Calorimetry
13
and the latest .

• GRB 030329, 24 days after the burst
• VLBABonn at 22 GHz
• Marginally resolved at 0.08 milliarcsec
• In line with expectations from the fireball model
• superluminal expansion (5c)

0.45 x 0.18 mas
Taylor et al.
14
GRB 980703 Non-relativistic Transition
15
Complications

• Evidence for continued or additional injection of
  energy
• Evidence for additional components in the jet
  (wide angle, low Gamma)

16
Early Light Curves
Fox
17
The second nearest GRB 030329 is peculiar
Puzzle A single fireball does not account for
radio X-ray emission

• A possible solution
• a narrow, ultra-relativistic jet with low energy
  which produces X-ray optical
• a wide, mildly relativistic jet carrying the bulk
  of the energy and powering the radio

Berger et al in prep.
Berger et al. 2003
18
Long Duration GRB-SN Connection
19
SN 1998bw/GRB 980425, a severely underluminous
GRB
E?1048 erg (isotropic)
Galama et al.
20
Mildly Relativistic Ejecta in SN 1998bw
E?1048 erg
Kulkarni et al
Mildly relativistic ejecta vastly exceeds
gamma-ray energy relese
21
Direct Spectroscopic Evidence
MMT (Stanek et al)
VLT (Hjorth et al)
22
X-ray Flashes
Heise
23
XRF 020903 First redshift is low (z0.25)
Soderberg et al
Energy in the Explosion (Prompt) 1049 erg (low
compared to GRBs)
No evidence for off-axis model (optical flux
declines) However, evidence for mildly
relativistic ejecta from radio afterglow
24
Collapsar Model
Woosley, Heger, MacFadyen
25
GRB-SN Grand Unification

• All core collapse events are the same.
• GRBs are explosions viewed on axis
• XRFs are explosions viewed off axis
• GRB 980425 is an off-axis GRB
• In all cases, underlying SNe
•
  Lamb,
  Nakamura, Yamazaki
• In favor
• Simplicity
• Peak energy-luminosity correlation

26
SN-GRB Meek Diversity

• GRBs are not standard explosions (energy, opening
  angle)
• XRFs are not GRBs viewed sideways and likely
  lower energy explosions
• SN 1998bw is an engine driven SN but with a weak
  engine
• In most core collapses the influence of engines
  is likely to be small or subtle.
• In favor
• The existence of sub-energetic events (e.g.
  031203, SN 1998bw).
• No evidence for early rise in the afterglow

Kulkarni, Soderberg, Sakamoto
27
Putting it altogether Engine
Soderberg
28
SUMMARY Peak SN magnitudes
(Soderberg et al. 2005b)
29
Do nearby core collapse SNe have strong jets that
materially affect the explosion?
30
VLA ATCA Program

• Radio emission traces both relativistic and
  mildly relativistic ejecta (cf SN 1998bw)
• Relativistic aberration is less of an issue for
  mildly relativistic ejecta
• Motivated by 1998bw we began a program of
  monitoring all known nearby Ib/c
• Monitored SNe from day to a year

Soderberg thesis
31
Radio Light-curves of Cosmic Explosions Ibc
Survey 11 detections 73 upper limits No GRBs or
98bws lt 1.2 GRB/SN
c.f. 1 beaming fraction for GRBs 5
hypernova rate
32
Explosion Energies of Local Ibc GRBs
2003L 2003bg
Conclusion SN 1998bw-like events are rare
33
Was GRB 980425 an off-axis event?

• Six years of radio monitoring No evidence for
  off-axis jet.
• Off-axis jet (if present) requires a very low
  mass rate A 0.03, not consistent with
  inferred density

(Soderberg, Frail, Wieringa 2004)
34
Progenitors of Ibc SNe A Hot Result
35
(No Transcript)
36
Progenitor of SN 2004gt (Ic SN)
Mv gt -5.5
Gal-Yam
37
Summary Cosmological GRBs

• Long duration GRBs are highly collimated
  explosions and possess central engines which
  drive the explosion
• Searches with good sensitivity have almost always
  found associated SNe of type Ib/c (or at least
  not of Type II)
• Not all associated SNe are bright (-19 mag)
• XRFs are likely simply low energy explosions
  (relative to cosmological GRBs but comparble to
  low energy GRBs)

38
Summary Nearest Events

• There is growing evidence of underenergetic GRBs
  (e.g. 980425, 030329, 031203) with engines
  releasing a mix of ejecta
• ultra-relativistic (? gt100),
• relativistic(? gt10)
• mildly relativistic (? gt2) ejecta
• Some of these events are dominated by mildly
  relativistic ejecta (GRB 030329). Some are X-ray
  Flashes (I.e. dominated by X-ray and not
  gamma-ray emission).

39
GRBs as 2-parameter Explosions

• GRBs clearly manifest an essentially spherical
  explosions (supernova) and narrow jets (few to
  tens of degrees)
• There is wide variation in properties of both
  components.
• There is little evidence for universal jet or
  universal supernova model.

40
Nearest Ib/c SNe

• Other than SN 1998bw we have not identified a
  single similar example
• No strong emission (indicative) is seen in any of
  the nearly one hundred local Ib/c SNe on
  timescales of days to years.
• Significant variation in peak optical emission as
  well as spectro-velocity peculiarities (e.g
  2003jd, Mazzali et al)

41
Open Issues

• What accounts for the variation in opening angles
  of GRB jets?
• Do jets play a significant role in exploding
  typical core collapse events?
• Attractive hypothesis but little evidence (so
  far)
• Alternate explanations must be sought for
  variation in optical diversity.
• Are short hard bursts strongly jetted?

42
(No Transcript)
43
GRB050509b Short Hard Burst

• Rapidly fading X-ray afterglow (Gehrels et al)
• No optical/radio afterglow
• Seen against z0.22 cluster

44
GRB 050509b Constraining an associated moderate
nova
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
