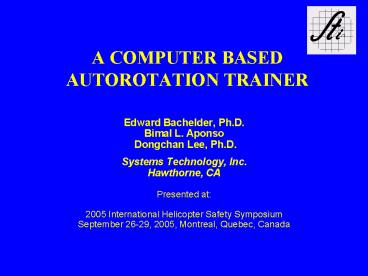

A COMPUTER BASED AUTOROTATION TRAINER

• Edward Bachelder, Ph.D.
• Bimal L. Aponso
• Dongchan Lee, Ph.D.
• Systems Technology, Inc.
• Hawthorne, CA
• Presented at
• 2005 International Helicopter Safety Symposium
• September 26-29, 2005, Montreal, Quebec, Canada

2
OVERVIEW

• Motivation and concept
• Technical approach
• Testing and validation
• Example autorotations
• Computer Based Autorotation Trainer concept

3
MOTIVATION

• For a safe outcome, helicopter autorotation
  requires precise and time-critical maneuvering in
  multiple axes.
• Consequences of inappropriate timing and
  magnitude of control inputs can be fatal.
• An autorotation trainer that could demonstrate
  proper control technique would be beneficial for
  pilot training and safety.
• An autorotation trainer should allow pilots to
  preview and rehearse autorotations from entry
  conditions throughout the flight envelope.

4
AUTOROTATION SEQUENCE(Entry from Hover)
a.) Entry b.) Stabilization c.) Maximum Flare
d.) Touchdown.
a.
b.
c.
d.
5
THE HUMAN ELEMENT

• Humans prefer to operate linear, decoupled
  systems to nonlinear, coupled systems
• Human improvisation to unfamiliar conditions is
  relatively easy
• Human response is
• More repeatable
• Less prone to operator noise

6
THE HUMAN ELEMENT

• Helicopter dynamics during autorotation are
  highly nonlinear and coupled
• Nonlinear examples
• Lift vs rotor speed
• Lift vs airspeed
• Coupling examples
• Rotor speed and airspeed both affect lift
• Collective affects rotor speed, cyclic both
  airspeed and rotorspeed
• Scanning technique critical for coordinating
  proper controls sequence
• During glide Airspeed, Nr, ball, radalt
• In flare Nr, pitch, radalt

7
AUTOROTATIONITS LIKE HERDING CATS
8
TECHNICAL APPROACHTHE OPTIMAL PILOT CONCEPT

• Apply optimal control theory to compute optimal
  trajectories and control inputs required for safe
  autorotation or one-engine inoperative (OEI)
  situations the Optimal Pilot.
• The Optimal Pilot will demonstrate autorotation
  trajectories over a broad range of initial and
  final conditions and rotorcraft configurations.
• Visually integrate and display optimal inputs
  with the helicopters critical states and outside
  (OTW) view to provide a sight picture.
• Preview and practice autorotations in a flight
  simulator using a Flight Director type display to
  advise the pilot of the optimal control inputs.

9
TECHNICAL APPROACHOPTIMIZATION METHOD

• Two-point boundary value problem minimize
  objective (cost) function.
• Transformation to parameter optimization problem
  using Direct-Collocation.
• Continuous solution discretized in time using
  nodes.
• Rotorcraft equations-of-motion and other
  non-linear constraints applied at each node.
• Parameter optimization problem was solved using a
  commercially available Sequential Quadratic
  Programming (SQP) algorithm -- SNOPT
• SNOPT is very well suited for near real-time
  generation of control commands, exhibiting stable
  and robust behavior for numerous entry conditions
  and roughly-estimated starting trajectories.

10
TECHNICAL APPROACHPROBLEM FORMULATION

• Cost function includes
• Sink-rate and forward speed at touchdown
• Desired touchdown distance or flight time
  minimization (for OEI situation only)
• Weightings on penalty terms were tuned to provide
  robust solutions across a wide range of
  autorotation entry conditions.
• Longitudinal only, controls were collective and
  pitch attitude.
• Constraints
• Rotorcraft equations-of-motion (represented by
  non-linear point-mass model).
• Rotor speed overspeed and droop limits.
• Pitch and collective control limits.
• Maximum achievable sink rate.
• Maximum pitch rate
• Touchdown pitch attitude (to prevent tail strike)

11
TECHNICAL APPROACHINTEGRATED DISPLAY FLIGHT
DIRECTOR
12
TRAINING METHOD

• Compensatory tracking
• Compensatory tracking with feedforward cues
• Precognitive

13
TESTING VALIDATIONREAL-TIME IMPLEMENTATION
14
TESTING VALIDATIONFLIGHT TRAINING DEVICE

• Testing performed on a fixed-base FTD by Frasca
  International.
• Wide field-of-view visual display.
• High-fidelity cockpit controls and instrument
  panel.
• Simulated helicopter was a Bell-206L-4.
• Rotorcraft mathematical model with adequate
  fidelity for pilot training throughout the flight
  envelope including autorotation.
• FAA approved under 14 CFR Parts 61 and 141.

15
TESTING VALIDATIONDEVELOPMENT PROCESS

• Point-mass model parameters were identified to
  match the flight simulation model during
  autorotation.
• Primarily scaling of pitch and collective from
  optimal solution to longitudinal cyclic and
  collective on the simulator.
• Validated using fully-coupled autorotations
• A flare law was added to take over from optimal
  guidance during final flare and landing.
• Simple lateral feedback control system was
  implemented to maintain heading and roll attitude.

16
TESTING VALIDATIONEVALUATION METHOD

• Optimizer continuously updates optimal solution
  based on rotorcraft states obtained from
  simulator.
• Update is stopped when engine is failed.
• Procedure
• Fly to required entry condition.
• Stabilize and wait for a stable optimal solution.
• Fail engine and enter automated autorotation.
• Autorotation trajectory flown is based on the
  solution just prior to engine failure.
• Safe or crash landing determined by the FTD
  simulation model.

17
TESTING VALIDATIONEVALUATED ENTRY CONDITIONS
18
TESTING VALIDATIONFULLY-COUPLED
AUTOROTATIONS(400 Ft and 100 Ft Hover Entry)
19
TESTING VALIDATIONCONCLUSIONS

• Optimal pilot concept was validated on the Frasca
  FTD.
• Optimal guidance allowed safe autorotation from
  well within the avoid regions of the
  Height-Velocity envelope.
• Ability to train a pilot on autorotation
  technique using the flight director display was
  also demonstrated (results presented at AHS Forum
  61, Grapevine, TX).
• Incorporate Optimal Pilot concept in a CBT to
  allow pilots to preview autorotations.

20
COMPUTER BASED AUTOROTATION TRAINEREXAMPLE
AUTOROTATIONS

• Autorotations flown by the optimal pilot (optimal
  commands are coupled to rotorcraft controls).
• Show extreme entry conditions to illustrate the
  effectiveness of the concept.
• Time history data altitude (H, ft), airspeed (V,
  kts), pitch attitude (?, degrees), vertical
  velocity (w, fpm), rotor speed (?, ), collective
  (?c, ).
• Bell 206 Model Power failure at time 0.
• Video clips show OTW sight picture and optimal
  pitch attitude/collective commands.

21
AUTOROTATION CBTCONTROL INPUT PREVIEW

• Example cueing display for an autorotation from a
  200ft hover entry
• Pitch attitude preview on right, collective on
  left.
• Tick marks show 1 second time intervals.
• Pitch attitude cue indicates immediate pitch down
  followed by a steep pitch up with a final
  nose-over to avoid tail strike.
• Collective cueing indicates immediate lowering of
  collective with collective pull at the end of the
  maneuver.

22
EXAMPLE AUTOROTATIONSENTRY CONDITIONS

• H-V flight envelope shows avoid regions for
  Bell 206L-4.
• Example autorotations shown for
• Heavy weight (4500 lbs), 400 ft hover entry
  (within avoid region).
• Heavy weight (4500 lbs), 80 ft/60 kts entry (knee
  point of avoid region).
• Medium weight (3600 lbs), 200 ft hover entry
  (within avoid region).
• Medium weight (3600 lbs), 20 ft/40 kts entry
  (outside avoid region).

23
EXAMPLE AUTOROTATION TIME HISTORY(HEAVY WEIGHT,
400 FT HOVER ENTRY)(Touchdown 18 kts, 248 fpm)
24
EXAMPLE AUTOROTATION VIDEO(HEAVY WEIGHT, 400 FT
HOVER ENTRY)(Touchdown 18 kts, 248 fpm)
25
EXAMPLE AUTOROTATION TIME HISTORY(HEAVY WEIGHT,
80 FT/60 KT ENTRY)(Touchdown 19 kts, 221 fpm)
26
EXAMPLE AUTOROTATION VIDEO (HEAVY WEIGHT,
80FT/60KT ENTRY)(Touchdown 19 kts, 221 fpm)
27
EXAMPLE AUTOROTATION TIME HISTORY(MEDIUM WEIGHT,
200 FT HOVER ENTRY)(Touchdown 20 kts, 369 fpm)
28
EXAMPLE AUTOROTATION VIDEO (MEDIUM WEIGHT, 200
FT HOVER ENTRY)(Touchdown 20 kts, 369 fpm)
29
EXAMPLE AUTOROTATION TIME HISTORY(MEDIUM WEIGHT,
20FT/40KT ENTRY)(Touchdown 20 kts, 211 fpm)
30
EXAMPLE AUTOROTATION VIDEO (MEDIUM WEIGHT,
20FT/40KT ENTRY)(Touchdown 20 kts, 211 fpm)
31
AUTOROTATION CBT CONCEPT

• Objectives
• Provide pilots with a preview of the control
  inputs and trajectory required for safe
  autorotation from entry conditions across the
  flight envelope.
• Provide pilots with an OTW sight picture of the
  autorotation.
• Allow pilots to rehearse autorotations in an
  interactive environment.
• CBT configuration
• Preset rotorcraft model parameters (for specific
  rotorcraft) or allow user to setup the rotorcraft
  model.
• User sets up entry flight condition (speed,
  altitude, weight, wind, etc).
• Allow user to adjust cost and constraint
  parameters (allowable rotor droop, for example)?
• CBT Output
• OTW scene with or without superimposed optimal
  trajectory information.
• Other external views to demonstrate trajectory
  and rotorcraft state information
• Time history information

32
AUTOROTATION CBTNEXT STEPS

• Evaluate Industry interest and required
  functionality and features for
• PC based CBT (preview autorotations on the
  desktop).
• PC based flight simulation training aid (provide
  cueing during flight simulation).
• Refine optimal pilot algorithm
• Automatic point mass parameter estimation
• Winds
• Develop a graphical user interface.
• Validate further using high-fidelity moving-base
  flight simulator.
