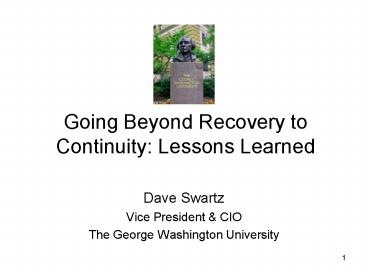

Going Beyond Recovery to Continuity: Lessons Learned

1
Going Beyond Recovery to Continuity Lessons
Learned

• Dave Swartz
• Vice President CIO
• The George Washington University

2
Brief Background on GW

• Main campus
• Washington, DC
• 100 buildings
• Blocks from the White House, IMF/World Bank,
  State Dept.
• 27,000 people
• 20K students (50 UG and 50 graduate and
  professional students)
• 7K faculty and staff
• Of the 20K there are 8K resident students
• Major medical center the ER for the leadership
  of our government
• Two other smaller campuses in region
• 2.5 Gb into Internet and Internet-2
• 15K voice connections and 17K data connections
• Two major data centers 34 miles apart

GW
White House
IMF/WB, State Dept.
Pentagon
3
Some Drivers for Business Continuity at GW

• Explosions in Man Holes in Street
• Recurring unexplained accumulations of flammable
  liquids in the storm drains explodes shutting
  power off a few buildings for days.
• Flood hits Academic Center with Data Center
• A backed up city sewer system causes a flood in a
  building not designed for a data center.
• Change Management Issues
• Our Facilities group is prone to taking
  significant actions without much notice,
  including cutting off power or cooling to a
  building.
• Email Systems Failure
• Lost the SAN and was down for 24 hours for basic
  email and it was 3 days until the archive could
  be restored.
• Cybersecurity Incidents
• After a major worm infestation and also a hack on
  a trusted host in 2000, GW creates its
  Information Security Program.
• 9/11
• The tragic events of Sept. 11 and their
  aftermath have resulted in changes in the way all
  of us conduct our lives, said President Stephen
  Joel Trachtenberg. Just as GW strives for
  academic excellence, we also want to take all
  appropriate steps to ensure the safety and well
  being of our community and the continued
  operation of the university.
• GW was close to ground zero that day and all
  land-based phones and cell phones were congested
  for much of the day.
• Sarbanes-Oxley
• A risk conscious Board of Trustees has lead to a
  number of initiatives to address BC at GW.

4
Who Owns BC at GW?

• John Petrie, AVP for Public Safety Emergency
  Mgmt., holds the AB degree from Villanova
  University and a masters and doctorate from The
  Fletcher School of Law and Diplomacy.
• A career Naval officer, he was the head of the
  Naval Station at Norfolk, the worlds largest
  Naval complex, and also professor and head of
  research at the War College.
• The AVP position was created after 9/11 and was
  designed to broaden, coordinate, and execute the
  Universitys crisis management, business
  continuity, emergency preparedness and public
  safety plans and activities.
• We need to have people at the local level
  comfortable with whats expected of them and what
  they have the authority to do, Petrie says. If
  they are confident and comfortable, then the
  chances of their being able to prepare, respond,
  or recover are easier.
• Johns number one priority is the safety and
  welfare of people.
• He sits on regional and national emergency
  management response groups and represents the
  regional universities in exercises.
• References
• BC Plan - http//www.gwu.edu/response/contents.cf
  m
• Advisories and Alerts - http//www.gwu.edu/gwaler
  t/

John Petrie, AVP for Public Safety Emergency Mgt
John has help to lead the development and
administration of BC plans and testing, and an
integrated system of advisories, alerts
and real-time communications.
5
Role of IT in Campus BC

• Address the risks of IT failures
• IT has helped to coordinate and fund the
  development of the main 19 core office
  departmental plans
• Many core departments had to be assisted to get
  their BC plans done since they felt IT had things
  under control, so why do they have to plan?
• They also had difficulty freeing themselves from
  other priorities needed their VP to make BC a
  priority!
• IT has also helped to deliver
• Campus Alerts (web page, portal, email, 3rd party
  call service)
• Back up web site
• Redundant email system and broadcast server
  (reflector and Listserv)
• Alternate routing to different area code for our
  main incoming and outgoing phone lines
• Emergency intercom broadcasts over speaker phones

• A network of Blackberries and support for
  management
• Online directories and BC response plans
• A fully configured and supported command center.

6
The Planning Process

• Identify sources of risks and plan accordingly
• Provide assistance
• Standard templates and questions to facilitate
  preparation of plans (available on request)
• Expert assistance to develop plan
• Review of plans
• Enlist support
• Of senior management, the Board and all core
  offices
• Prioritize efforts
• Not every department needs a comprehensive plan.
  At GW we identified 19 core offices that needed
  detailed plans.
• Make the plan easily available
• Test the plan and the ability to think on your
  feet regularly
• Keep plans current
• All plans require periodic review, validation and
  update.

The online plan for GW is called the Incident
Planning, Response, and Recovery Manual,
included are individual BC Plans.
7
The GW IT Recovery Profile

• Rebuild Replace Disaster Recovery
• Tape backup and priority shipment of equipment
• Weeks to recovery
• Hot-Site Disaster Recovery
• Off site arrangements with a hot-site provider
• Several days to recovery
• High Availability Operations
• Redundant data centers, networks and telecom
• Less than one day and ideally less than a couple
  of hours to recovery.

Hours to Recovery
420 (projected)
Rebuild Replace
Hot-Site
84
High-Availability
12
lt 2
8
Dealing with Risk Continuity rather than
Recovery

• Common areas of IT risk were addressed with a
  focus on major risks and points of failure
• Data Center
• Telecommunications
• Network and ISP
• Data
• Security
• Power and Cooling
• Change and Service Management
• Classrooms

1. Continuity of operations needs to be built into
   the architecture and culture from the bottom up.
2. If you live and use it day to day then it is less
   of a big deal when a disaster hits.
3. BC at a comprehensive local level is essential to
   enable IT to deliver the sustainability of data
   and information services.

9
Data Center Redundancy

• We have created dual data centers
• separated by 34 miles
• connected by a DWDM link over a redundant dark
  fiber ring
• We split Test/Dev from the Prod instances.
• We also deploy VMware and virtualize servers
  across centers.
• Not all of production is at one site, but split
  on a 35-65 basis.
• We mirror data between data centers.
• We have staff split between centers.
• We routinely test failover during maintenance and
  upgrades.
• This design enables continuity of operations
  without the need to recover from most disasters.

10
Telecommunications Redundancy

• We have several PBX switches (Avaya S8700s)
  interconnected, load balanced, and spatially
  distributed.
• Two are on the main campus and separated. The
  third is on a remote campus 34 miles away in a
  different area code.
• We have the ability to re-route incoming and
  outgoing calls through different campuses and
  area codes.
• There are redundant emergency 911 and analog
  lines as a back up to our main trunks.
• Some specific phone numbers are protected and
  given regional priority for accessibility and
  sustainability during a major incident.
• We maintain copper connections for voice to
  permit inline power off of diesel generators to
  15,000 phones.

11
Data Redundancy

• All enterprise data is mirrored between data
  centers, including ERP, data marts, email,
  one-card, portal, and web systems.
• The main campus file servers are automatically
  backed up. Legacy departmental systems are slowly
  transitioning to central support and
  sustainability a difficult political process.
• Desktops in many core offices have a standard
  image and automatically store to a central suite
  of file servers.
• Critical documents are being stored online in an
  enterprise document management system and
  archived to tape.
• We regularly test data backups to make sure we
  can restore from them.
• One of the most critical aspects of continuity is
  rapid access to the data!

On-site fire rated vault in addition to off-site
storage
12
Information Security

• Protecting the university from security risks
  that can interrupt operations and cost millions
  of dollars in lost productivity and liability is
  an important priority in BC.
• Like an onion, the best approach is defense in
  depth.
• One of our newest efforts after securing campus
  file servers is our desktop initiatitive.
• We now use Novell Patchlinks, Cisco Clean Access
  and IPS to automate updates, verify conformance
  to standards and non-infection.
• As a result, desktop infection problems have
  declined to a trickle.
• Creating a focused Information Security program,
  setting standards, and centralizing services, are
  critical to success.

Rounding Up Rogue Servers, article in July 2005
Chronicle.
13
Power and Cooling

• Power Redundancy
• Conditioned Commercial Power
• 450KW Diesel Generator w/Maintenance Tap
• Automatic Transfer Switch
• Uninterruptible Power Supplies (UPS)
• Multiple Power supplies in each computer system
• 48 hours supply diesel (going to 96 hrs) with
  priority shipments from three regional vendors
  possible
• Redundant Air Conditioning Systems
• Chilled Water Plant Two 60 Ton Dry Coolers
• Glycol Chilled Water Air Handlers

14
Change Service Management
App. Change Control
Prob Tickets Service Orders
Remedy
Kintana
Work Requests C3
Asset Management
S/W License Mgmt
Remedy
TBD
Upside
Aperture
Change Control via Integration
Adoption of integrated change control is one of
the major factors to improvement and reliability
of operations.
15
Classrooms

• What happens if we lose some classroom space?
  How could we continue to conduct classes?
• Using R25i (Resource25 3.3) to complement
  Schedule25 we can identify and reallocate any
  available university space to classrooms
• Using Bb and Elluminate we can conduct classes
  virtually from home.
• We are piloting this approach now for snow days
  and other unscheduled ad hoc gatherings such as
  study sessions.
• We are also suggesting that faculty teach one
  virtual class every month so they have practice.
• Podcasting Apreso iPods
• GW is supporting Podcasting of its non-credit
  lecture series to provide access to recorded
  presentations.
• Could this be expanded for credit classes?
  Depends on support from faculty.

16
Selling BCnot the WHAT, but the HOW

• Rational Approach
• The risk or probability of the event multiplied
  by the potential loss provides a suggested
  magnitude to the investment for protecting a
  university from disaster. Not many use this
  approach.
• Peer Group Benchmarks
• A very common and accepted approach is to
  compare the university against the market basket
  of peer institutions to see what they are doing.
• Leverage the Crisis
• The emotional side of living through a crisis
  tends to ease the flow of funds, so capture the
  opportunity when it arises.
• Partnering with the Board and Audit Team
• The Board has the ability to drive
  improvements. The External and Internal Audit
  Teams are agents of the Board and should be
  viewed as a partner, not a threat, as they are
  often viewed.

17
Risks of Complexity
Virtualization, distant centers, and split
operations add complexity, which has its own
attendant risks.
Standardization, documentation, and tight change
control help to reduce risks from complexity.
18
Factors Related to Distance

• How far away is far enough for a second center?
• GW has selected 34 miles
• USC has designated a bunker just a few miles
  away
• Others are saying 70 miles.
• It really depends
• You need to consider the types of risks in your
  region.
• The greater the distance
• The greater the cost or lesser the functionality
  and immediacy of response.
• You may want to
• Have a secondary high-availability or hot-site
  nearby and a tertiary cold-site much farther
  away.
• You need to consider
• The impacts on your staff and their ability to
  make it to the different sites both for routine
  maintenance as well as during a disaster
• Some types of clustering do not work at a
  distance
• Real-time mirroring is also adversely affected by
  distance.

19
Support those Blackberries

• A critical element of the GW BC program is a
  network of Blackberries. All senior management
  at GW have them and use them everyday.
• Blackberries are more like a laptop than a phone
  and require expert assistance
• They have cell phone and radio capability
• They can send and receive email and instant text
  messages
• They have the ability to surf the web and access
  calendars, directories and online documents that
  can be used to support BC
• We have a dedicated expert with backup to provide
  support to the Blackberries and the command
  centers.

20
Doesnt it cost a great deal?
Cost

• GW had a hot-site,
• Costing several hundred thousand dollars per
  year.
• Went to a high-availability 2nd site.
• One-time cost about 1 million
• The ongoing costs were not more than the previous
  base budget due to the reallocation of the funds
  from the hot-site contract.
• Increase in base needed was
• 136K/yr 1 million loaned at 6 over 10 years
• To offset costs we are leasing excess space
• We are recovering the incremental operating costs
  of the 2nd site.
• More reliable service without large additional
  costs - A NO-BRAINER!

Expected Cost Curve
GW Cost Curve
Time to Restoration of Operations
A myth propagated by hot-site vendors is that the
cost of customer owned high-availability is
prohibitive
21
Partnerships

• National Capital Regional Emergency Response
  Partnership
• Emergency Response groups across the region
  coordinate efforts and share experiences
• First Responder Access Card (FRAC)
• Regional exercises
• Information sharing with key groups
• University Partnerships
• Cost and resource sharing or exchange programs
• Georgetown University GW back one another up
• MAX (Mid-Atlantic Crossroads gigapop)
• Vendor Partnerships
• Have helped GW identify best practices and
  utilize new technology useful to BC.
• Their support in a disaster can be critical

The FRAC helps to get approved personnel across
road-blocks and barriers.
22
Questions?
Dave Swartz
