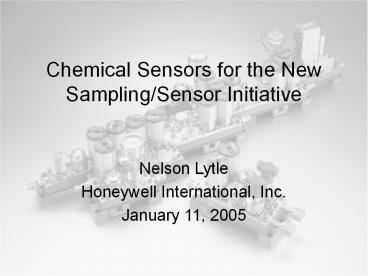

Chemical Sensors for the New Sampling/Sensor Initiative

1
Chemical Sensors for the NewSampling/Sensor
Initiative

• Nelson Lytle
• Honeywell International, Inc.
• January 11, 2005

2
Objectives

• Illustrate sensor/composition/property
  measurement concept with examples
• Discuss potential NeSSI sensor cluster
  applications
• Invite sensor developers to participate
• Increase the applicability of NeSSI as a sensor
  platform
• Get tools into chemists and engineers hands

3
The Ten NeedsChemical/Composition/Property

• Bio Assay
• Chemical Composition
• Cleaning Validation
• Coating Consistency
• Mixing Efficiency

• Moisture Concentration
• Particle Sizing
• Vapor Characterization
• Viscosity/Rheology
• Waste Minimization

Mel Koch, CPAC
4
Major Goals of NeSSI

• Modular, miniature, smart sample system
• Based on ISA SP76 standard
• Field mounted
• Open connectivity for communications
• Integration of sample system with
  physical/chemical sensors
• Technology bridge to process for micro-analytical
  devices

5
NeSSI Enabler for Micro Analytical(the rail
concept)
Standard connectivity
Standard Electrical (Digital) Interface Rail
SAM
Standard hockey- puck PC
Anyones Actuator
Anyones Sensor
Standard Mechanical Interface Rail
Sensor/Actuator Manager
6
Desirable Properties Sensor Wish List

• Global electrical (hazardous) certifications
• Plug Play (self-identifies)
• Robust (gt 99.9 uptime)
• Self checking/calibrating/correcting
• Low cost (lt5K)
• Suitable for operating as a Functional Clusters
• Gas and/or Liquid Service
• Fast (continuous) Response (lt 10 seconds)
• Physically small in size
• Low Power (for intrinsic safe operation)
• Low/No Utility or Reagent Usage

7
Simple Sensors - The Dirty Dozen

• Density
• Refractive Index
• Viscosity
• Optical Absorbance
• Dielectric
• Conductivity

• pH/ISE/ORP
• Turbidity
• Thermal Conductivity
• Ultrasonic
• Moisture
• Gas Specific

Characteristics simple, dedicated, robust,
commonly used.
8
Deacon Reaction
2HCl 1/2 O2 Cl2 H2O
Step 1 HCl(g) reacts with metal oxide (MO)
catalyst to produce MCl and H2O(g) Step 2 O2(g)
reacts with MCl to produce MO and Cl2(g)
Thermal Conductivity He 222.3 N2 38.3 O2
41.0 Cl2 18.0 HCl 24.0 H2O 35.7
UV Absorbance Cl2 _at_ 350 nm
This process can be controlled using thermal
conductivity and a UV-Vis absorbance sensor.
9
Polymerization Control
Monitor molecular weight via density, RI, and
viscosity.
Use density or RI for low Mw and viscosity for
high Mw.
10
Unsaturation in Edible Oils
NIR absorbance can be used to monitor
unsaturation in edible oils. But so can density
and RI.
11
Edible Oil Classification
Simple sensors can monitor blending and determine
quality of edible oils.
Use density, RI, viscosity, optical absorbance to
classify oils.
12
NeSSI Sensor Clusters
Water Monitoring

• Boiler Water
• Conductivity
• pH
• pNa

• Waste water
• pH
• TOC
• O2

Sensors include pH, ISE, ORP, conductivity, UV
absorbance.
13
NeSSI Sensor Clusters
Continuous Emission Monitors

• NOx
• SOx
• O2
• CO

Use NeSSI advantages of P,T,F control and
filtration.
Potential sensors include specific gas sensors,
UV-Vis, and IR.
14
Jet Fuel Properties
NeSSI Sensor Clusters

• Density
• Flash point
• Freezing point
• Fuel system icing inhibitor
• Aromatics

Sensors include density, RI, turbidity, NIR/IR
absorbance.
15
What am I proposing?

• Simple sensors provide a way to perform analyses
  that are useful for process control and
  optimization
• These are measurements that are being used today
• Simply adapt them to the NeSSI standard

16
Conclusion

• I hope that I have made you aware of the
  opportunity to use simple, robust sensors to make
  chemical and property measurements.
• I hope to motivate sensor developers to make
  sensors available that meet the NeSSI standard.

17

• Everything is in place to make it happen.

Come on in the waters fine.
18
FIN
