Title: Chapter One


1

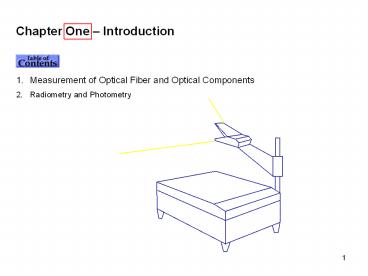

  • Chapter One Introduction
  • Contents
  • Measurement of Optical Fiber and Optical
    Components
  • Radiometry and Photometry

2
Optical Measurements Introduction Early fiber
optic systems need only modest test. Now the
industry is evolving, thus optical fibre systems
and measurement technology need to be
improved. Narrow wavelength spacing WDM
systems with 100 GHz E.g. power, signal-to-noise
ratio, wavelength High data rates gt 10 Gb/s
requires compatible components characteristic E.g.
spectrum width, dispersion, bandwidth
response Optical amplifier Enabling WDM
systems E.g. gain, noise figure
Question Why need accurate and reliable optical
test measurement techniques?
3
Optical Measurements Introduction Expansion of
optical communication systems Replacing copper
cables everywhere, towards access area Complex
fibre optic systems All optical networks
passive and active Self-review of the basic
features of a fiber-optic communication link are
necessary. Fibre optic link measurements
determine if the system meets its end design
goals. All of the components contained within the
link must be characterized and specified to
guarantee system performance.
Question What are the things to know before
proceeding with fiber optic test measurement?
4
Optical Measurements Introduction Optical
fibres Singlemode fibres Standard fibre,
Dispersion-shifted fibre, Non-zero
Dispersion-shifted fibre, Polarization
Maintaining fibre, Erbium-doped fibre Multimode
fibres Step index, Graded-Index Optical
components Two-port optical components have
optical input and optical output. E.g. WDM
coupler, Bandpass filter, Isolator Single-port
components. E.g. Transmitter, Receiver This
chapter will briefly introduce the types of
measurements that can be made to the fibre optic
and optical components. The details of each
measurement will be discussed in the dedicated
chapters.
Question What are the parameters to measure?
5
Measurement of Optical Fibre and Two-port
Components Insertion Loss Both a source and
receiver are necessary Source a wavelength
tunable laser or a broadband source Receiver
an optical power meter (OPM) or an optical
spectrum analyzer (OSA) The figure below shows a
typical measurement set-up for an insertion loss
measurement.
Question What are the principal differences
between the two sources?
6
Measurement of Optical Fibre and Two-port
Components Insertion Loss Optical power
meter Calibrated optical to electrical
converter No wavelength information Optical
spectrum analyzer Tunable bandpass filter power
meter
Questions Does an optical spectrum analyzer
provide wavelength information and why? How to
use an OPM but still getting the wavelength
information?
7
Measurement of Optical Fibre and Two-port
Components Insertion Loss TLS OPM Large
measurement range, but lt 200nm Fine wavelength
resolution Major limitation broadband noise
from TLS
Questions What is the noise referring to? How to
improve the measurement using the TLS?
8
Measurement of Optical Fibre and Two-port
Components Insertion Loss TLS OSA Highest
performance solution TLS provides narrow spectral
width OSA provides additional filtering of the
broadband noise emission
Questions What is the direct effect on the
measured spectrum by using the above
configuration?
9
Measurement of Optical Fibre and Two-port
Components Insertion Loss Broadband emission
source OSA Wide wavelength range
coverage Moderate measurement range Fast
measurement speed Tungsten lamp emitters entire
fibre-optic communication wavelength
range Optical amplifiers narrower wavelength
ranges, but with much higher power
Question What is the disadvantage of a tungsten
lamp source?
10
Measurement of Optical Fibre and Two-port
Components Amplifier Gain and Noise Figure Gain
measurements Often done in large signal
conditions gain saturation Requires a
high-power excitation source Characterization of
noise Optical domain measure the level of ASE
coming from the amplifier Electrical domain use
a photodetector and an electrical spectrum
analyser to characterize the total amount of
detected noise produced by the system
Question What is the potential error in the
measurement of the amplifier noise?
11
Measurement of Optical Fibre and Two-port
Components Amplifier Gain and Noise Figure The
figure below shows a test configuration used to
measure gain and noise figure of optical
amplifier For WDM systems characterization
needs the same signal-loading conditions as in
the actual application
Question Why is there a difference in the optical
amplifier characterization between single- and
multi-channel systems?
12
Measurement of Optical Fibre and Two-port
Components Chromatic Dispersion Measurement is
accomplished by analyzing the group delay through
the fiber/components as function of
wavelength Procedure A wavelength tunable optical
source is intensity modulated The phase of the
detected modulation signal is compared to that of
the transmitted modulation The wavelength of the
tunable source is then incremented and the phase
comparison is made again The phase delay is
converted into the group delay
Question What is the waveform shape of the
modulation signal?
13
Measurement of Optical Fibre and Two-port
Components Chromatic Dispersion The figure shows
the result for the measurement of the group delay
with wavelength
Question How can the group delay be calculated
from the phase delay?
14
Measurement of Optical Fibre and Two-port
Components Chromatic Dispersion The figure shows
the chromatic dispersion measurement set-up for
two-port optical devices Accurate
characterization of the minimum fibre dispersion
wavelength is important in the design of
high-speed TDM and WDM communication
systems Dispersion compensation components
also require accurate measurement of dispersion
Question Why is it important to characterize
chromatic dispersion of fibre?
15
Measurement of Optical Fibre and Two-port
Components Polarization Polarization of the
lightwave signal refers to the orientation of the
electric field in space E.g. insertion loss and
group delay of a two-port optical component vary
as a function of the input polarization Polariz
ation transfer function characterization Polarizat
ion analyzer measures the polarization state The
polarization state is represented by a Jones
polarization-state vector Jones state vector
contains two complex numbers that quantify the
amplitude and phase of the vertical and
horizontal components of the optical field
Question How does the polarization state of a
linearly polarized light evolve in a fibre?
16
Measurement of Optical Fibre and Two-port
Components Polarization The Jones matrix
measurement Apply three well-known polarization
states at the input Characterize the resulting
output polarization state in the polarization
analyzer The Jones matrix of the polarization
transfer function will predict the output
polarization state for any input polarization
state The figure below illustrates a measurement
technique to characterize the polarization
transfer function of optical fibre and components.
17
Measurement of Optical Fibre and Two-port
Components Reflection Optical time-domain
reflectometry (OTDR) can measure reflection from
the surfaces of components or fibres (thus fibre
breaks) The figure shows an OTDR measurement
block diagram OTDR injects a pulsed signal
onto the fibre optic cable A small amount of the
pulsed signal is continuously reflected back in
the opposite direction by the irregularities in
the optical fibre structure Raleigh
backscatter
Question Why is a pulsed signal necessary?
18
Measurement of Optical Fibre and Two-port
Components Reflection The figure shows an example
OTDR display The locations and
magnitudes of faults Determined by measuring the
arrival time of the returning light Reduction in
Raleigh scattering and occurrence of Fresnel
reflection
Question How to determine the locations and
magnitudes of faults?
19
Measurement of Transmitter and Receiver Power The
figure illustrates a basic power-meter instrument
diagram Process Source optical fibre
photodetector electrical current Responsivity Th
e conversion efficiency between the input power
and the output current Units of Amps/Watt A
function of wavelength for all photodetectors Must
be calibrated in order to make optical power
measurements
20
Measurement of Transmitter and Receiver Power Ther
mal-detector heads Measure the temperature rise
caused by optical signal absorption Very accurate
and are wavelength-independent Suffer from poor
sensitivity Thermal detectors are used to
calibrate photodetectors Upper power
limit Determined by saturation effects Responsivit
y decreases beyond this point Lower power
limit Limited by the averaging time of the
measurement and the dark current Design
considerations Power meters have to be
independent of the input polarization The
reflectivity of the optical head has to be
eliminated
21
Measurement of Transmitter and Receiver Polarizati
on Light sources Laser sources are predominantly
linear polarized sources LEDs have no preferred
direction of polarization and are predominantly
unpolarized Polarization effects Polarization-depe
ndent loss, gain, or velocity These are
influenced by the ambient conditions, e.g.
stress, temperature Thus, a polarized input will
perform unpredictably Polarization
measurement To determine the fraction of the
total light power that is polarized To determine
the orientation of the polarized component
Question Gives the names for the polarization
effects?
22
Measurement of Transmitter and Receiver Polarizati
on The figure illustrates a polarization analyzer
instrument Polarization analyzer Four power
meters with polarization characterizing optical
components It measures the Stokes parameters S0,
S1, S2, S3 S0 total power of the signal S1
power difference between vertical and horizontal
polarization components S2 power difference
between 45 and -45 degrees linear
polarization S3 power difference between
right-hand and left-hand circular polarization S1
and S2 are measured with polarizers in front of
detectors S3 is measured with a waveplate in
front of a detector
23
Measurement of Transmitter and Receiver Polarizati
on The polarization state of a source is
conveniently visualized using a Poincaré
sphere Poincaré sphere The axes are the Stokes
parameters normalized to S0 values are between
0 and 1 Polarization state is represented by the
three-dimensional coordinates (S1, S2, S3)
Questions What is the state the outer surface of
the sphere represents? What is the polarization
state along the equator? What is the polarization
state between the equator and the poles?
24
Measurement of Transmitter and Receiver Polarizati
on The degree of polarization (DOP) is used to
indicate the extent of polarization in a
source. DOP 100 is found on the outer surface 0
is found in the centre The polarization of an
optical signal is constantly changing, thus all
optical components should be polarization
independent
Questions Why does the polarization of an optical
signal constantly changing? What is the benefit
of having polarization-independent components?
25
Measurement of Transmitter and Receiver Optical
Spectrum Analysis An optical spectrum analyzer
(OSA) is used to measure the power versus
wavelength The figure shows an OSA that uses a
diffraction grating
Question What is a diffraction grating?
26
Measurement of Transmitter and Receiver Optical
Spectrum Analysis OSA Consists of a tunable
bandpass filter and an optical power meter The
light from the input fibre is collimated and
applied to the diffraction grating The
diffraction grating separates the input light
into different angles depending on wavelength The
light from the grating is then focused onto an
output slit The grating is rotated to select the
wavelength that reaches the optical detector
Question What are the components in the OSA that
constitute to the tunable bandpass filter?
27
Measurement of Transmitter and Receiver Optical
Spectrum Analysis The filter bandwidth is
determined by the diameter of the optical beam
that is incident on the diffraction grating the
aperture size at the input and output of the
optical system Fabry-Perot (FP) filters Can also
be used as the bandpass filter Offer the
possibility of very narrow wavelength
resolution The disadvantage is that these filters
have multiple passbands
Question What are the consequence of having a
bandpass filter with multiple passbands in an OSA?
28
Measurement of Transmitter and Receiver Optical
Spectrum Analysis The figure below shows a
spectral plot for a DFB laser that is modulated
with 2.5 Gb/s digital data Accurate spectral
measurement The OSA must have a very narrow
passband and steep skirts A filter stopband
should be 50 dB down to measure the smaller
sidelobes. OSAs do not have sufficient
resolution to look at the detailed structure of a
laser longitudinal mode
Question What determines the value of the
stopband?
29
Measurement of Transmitter and Receiver Accurate
Wavelength Measurement The figure below
illustrates a method by which very accurate
wavelength measurements can be made Michel
son interferometer configuration The light from
the unknown source is split into two paths Both
are then recombined at a photodetector One of the
path lengths is variable and the other is fixed
in length
30
Measurement of Transmitter and Receiver Accurate
Wavelength Measurement As the variable arm is
moved, the photodetector current
varies To accurately measure the
wavelength of the unknown signal, a reference
laser with a known wavelength is introduced into
the interferometer
Question Why does the photodetector current vary?
31
Measurement of Transmitter and Receiver Accurate
Wavelength Measurement The wavelength meter
compares the interference pattern from both
lasers to determine the wavelength This
procedure makes the measurement method less
sensitive to environmental changes Reference
lasers Helium-neon (HeNe) lasers emitting at
632.9907 nm are often used as wavelength
references HeNe lasers have a well-known
wavelength that is relatively insensitive to
temperature Wavelength meters have limited
dynamic range compared to grating-based OSAs
Question Why does the use of reference laser make
the wavelength meter less sensitive to
environmental changes?
32
Measurement of Transmitter and Receiver Linewidth
and Chirp Measurement Heterodyne and homodyne
analysis tools are used to examine the fine
structure of optical signals These analysis
methods allow the measurement of modulated and
unmodulated spectral shapes of the longitudinal
modes in laser transmitter Heterodyne The figure
illustrates a heterodyne measurement
setup The unknown signal is combined with a
stable, narrow-linewidth local oscillator (LO)
laser The LO signal is adjusted to be within 50
GHz of the unknown signal to be detected by
conventional electronic instrumentation
33
Measurement of Transmitter and Receiver Linewidth
and Chirp Measurement Heterodyne The LO must have
the same polarization for best conversion
efficiency The two signals mix in the
photodetector to produce a difference frequency
(IF signal) in the 0 to 50 GHz region The IF
signal is analyzed with an electronic signal
analyzer (e.g. a spectrum analyzer) The figure
shows the measurement of a laser under sinusoidal
modulation at 500 MHz The major limitation
is the availability of very stable LO signals
34
Measurement of Transmitter and Receiver Linewidth
and Chirp Measurement Homodyne Limited
information on the optical spectrum Much easier
to perform LO is a time-delayed version of itself
(more than the inverse of the source spectral
width (in Hz)) phase independent The
intermediate frequency is centred around 0
Hz Limitations Asymmetries of the optical
spectrum can not be seen No information about the
centre wavelength of a laser
Question Why is the intermediate frequency for
the homodyne technique centred around 0 Hz?
35
Measurement of Transmitter and Receiver Linewidth
and Chirp Measurement The figure shows a homodyne
measurement of an unmodulated DFB laser
Question What is the measured linewidth of the
DFB laser?
36
Measurement of Transmitter and Receiver Modulation
Analysis Frequency Domain This characterization
methods display information as a function of the
modulation frequency The figure shows a diagram
of a lightwave signal analyzer It consists of
a photodetector followed by a preamplifier and an
electrical spectrum analyzer The modulation
frequency response of these components must be
accurately calibrated as a unit This modulation
domain signal analyzer measures the following
modulation characteristics Depth of optical
modulation Intensity noise Distortion
37
Measurement of Transmitter and Receiver Modulation
Analysis Frequency Domain The figure shows the
power of the modulation signal as a function of
the modulation frequency a DFB laser modulated
at 6 GHz The relative intensity noise
(RIN) is characterized by ratioing the noise
level at a particular modulation frequency to the
average power of the signal RIN measurements are
normalize to a 1 Hz bandwidth A DFB laser without
modulation may have a RIN level of -145 dB/Hz
38
Measurement of Transmitter and Receiver Modulation
Analysis Stimulus-Response Measurement The
figure shows the instrument for measuring the
modulation response of optical receivers,
transmitters and optical links Electrical vector
analyzer Its electrical source is connected to
the optical transmitter An optical receiver is
connected to the input Compares both the
magnitude and phase of the electrical signals
entering and leaving the analyzer
39
Measurement of Transmitter and Receiver Modulation
Analysis Stimulus-Response Measurement The
figure shows measurements of a DFB laser
transmitter and an optical receiver Major
challenges calibration of the O/E and E/O
converters in both magnitude and phase response
40
Measurement of Transmitter and Receiver Modulation
Analysis Time Domain The shape of the
modulation waveform as it progress through a link
is of great interest An oscilloscope displays the
optical power versus time, as shown in the figure
below High speed sampling oscilloscope
Often used in both telecommunication and data
communication systems Due to the gigabit per
second data rates involved
41
Measurement of Transmitter and Receiver Modulation
Analysis Time Domain The figures below
illustrate eye diagram measurement Eye
diagram The clock waveform is applied to the
trigger of the oscilloscope The laser output is
applied to the input of the oscilloscope through
a calibrated optical receiver The display shows
all of the digital transitions overlaid in
time It can be used to troubleshoot links that
have poor bit-error ratio performance
42
Measurement of Transmitter and Receiver Modulation
Analysis Time Domain International standards
such as SONET (Synchronous Optical NETwork), and
SDH (Synchronous Digital Hierarchy) Specify
acceptable waveform distortion and time jitter
Specify an optical receiver with a tightly
controlled modulation response that is filtered
at ¾ of the bit rate The figure shows an
example of an eye-diagram measurement using a
standardized receivers as specified by SONET and
SDH
Question What is the basic requirement for the
measuring equipment to produce an overlay of data
transitions?
43
Measurement of Transmitter and Receiver Optical
Reflection Measurements The figure shows the
apparatus to measure the total optical
return-loss Optical return-loss
measurement An optical source is applied to a
device under test through a directional
coupler The reflected signal is separated from
the incident signal in the directional coupler By
comparing the forward and reverse signal levels,
the total optical return-loss is measured
Question Where are the possible reflections?
44
Measurement of Transmitter and Receiver Optical
Reflection Measurements The figure shows the
return-loss versus wavelength for a packaged
laser using a tunable laser source for
excitation Large total return-loss The
locations of the reflecting surfaces become
important Requires optical time-domain
reflectometry (OTDR) techniques
Question Why is the return-loss
wavelength-dependent?
45
Measurement of Transmitter and Receiver Optical
Reflection Measurements Optical component
characterization requires very fine distance
resolution in the milimeter to micron range The
figure illustrates a high resolution OTDR
measurement based on broadband source
interferometry
46
Measurement of Transmitter and Receiver Optical
Reflection Measurements High resolution OTDR Uses
a Michelson interferometer and a broadband light
source to locate reflections with 20µm
accuracy Constructive interference occurs only
when the movable mirror to the directional
coupler distance equals the distance from the
device under test reflection to the directional
coupler The resolution of the measurement is
determined by the spectral width of the broadband
light source
47
Radiometry and Photometry

Radiometry The science of measuring light in any portion of the electromagnetic spectrum, in terms of absolute power In practice, the term is usually limited to the measurement of infrared, visible, and ultraviolet light using optical instruments
48
Radiometry and Photometry

Photometry The science of measuring visible light in units that are weighted according to the sensitivity of the human eye It is a quantitative science based on a statistical model of the human visual response to light - that is, our perception of light - under carefully controlled conditions. The standardized model of the eye's response to light as a function of wavelength is given by the luminosity function. The eye has different responses as a function of wavelength when it is adapted to light conditions (photopic vision) and dark conditions (scotopic vision). Photometry is based on the eye's photopic response, and so photometric measurements will not accurately indicate the perceived brightness of sources in dim lighting conditions.
49
Radiometry and Photometry

Difference Radiometry includes the entire optical radiation spectrum, while photometry is limited to the visible spectrum as defined by the response of the eye. Quantities There are two parallel systems of quantities known as photometric and radiometric quantities. Every quantity in one system has an analogous quantity in the other system. This table gives the radiometric and photometric quantities, their usual symbols and their metric unit definitions. J joule, W watt, lm lumen, m meter, s second, sr steradian
50
Radiometry and Photometry

Projected area is defined as the rectilinear projection of a surface of any shape onto a plane normal to the unit vector where ß is the angle between the local surface normal and the line of sight The radian is the plane angle between two radii of a circle that cuts off on the circumference an arc equal in length to the radius
Question Derive the projected area for the shapes
of flat rectangular, circular disc and sphere?
51
Radiometry and Photometry

One steradian (sr) is the solid angle that, having its vertex in the center of a sphere, cuts off an area on the surface of the sphere equal to that of a square with sides of length equal to the radius of the sphere
Question Find the conversion between degrees and
radians?
Questions How many steradians in one
hemisphere? What are the dimensions for plane
angles and solid angles?
52
Radiometry and Photometry

Quantities and Units Used in Radiometry Radiometric units can be divided into two conceptual areas Those having to do with power or energy, and Those that are geometric in nature. Energy It is an International System of Units (SI) derived unit, measured in joules (J). The recommended symbol for energy is Q. An acceptable alternate is W. Power (radiant flux) It is another SI derived unit. It is the rate of flow (derivative) of energy with respect to time, dQ/dt, and the unit is the watt (W). The recommended symbol for power is F (the uppercase Greek letter phi). An acceptable alternate is P.
Question How to express energy in terms of power?
53
Radiometry and Photometry

Now, incorporating power with the geometric quantities area and solid angle. Irradiance (flux density) It is another SI derived unit and is measured in W/m2. It is power per unit area, dF/dA incident from all directions in a hemisphere onto a surface that coincides with the base of that hemisphere. The symbol for irradiance is E Radiant exitance It is power per unit area, dF/dA leaving a surface into a hemisphere whose base is that surface. The symbol for radiant exitance is M.
Question How to express power in terms of
irradiance (or radiant exitance) ?
54
Radiometry and Photometry

Radiant intensity It is another SI derived unit and is measured in W/sr. Intensity is power per unit solid angle, dF/d?. The symbol is I. Radiance It is the last SI derived unit we need and is measured in W/m2sr. It is power per unit projected area per unit solid angle, dF/d? dA cos(?), where ? is the angle between the surface normal and the specified direction. The symbol is L.
Questions How to express power in terms of
radiant intensity? How to express power in terms
of radiance?
55
Radiometry and Photometry

Quantities and Units Used in Photometry They are basically the same as the radiometric units except that they are weighted for the spectral response of the human eye The symbols used are identical to those radiometric units, except that a subscript v is added to denote visual. Candela It is the luminous intensity, in a given direction, of a source that emits monochromatic radiation of frequency 5401012 hertz and that has a radiant intensity in that direction of 1/683 watt per steradian. The candela is abbreviated as cd and its symbol is Iv.
56
Radiometry and Photometry

Lumen The lumen is an SI derived unit for luminous flux. The abbreviation is lm and the symbol is Fv. The lumen is derived from the candela and is the luminous flux emitted into unit solid angle (1 sr) by an isotropic point source having a luminous intensity of 1 candela. The lumen is the product of luminous intensity and solid angle, cd-sr. It is analogous to the unit of radiant flux (watt), differing only in the eye response weighting. If a source is not isotropic, the relationship between candelas and lumens is empirical. A fundamental method used to determine the total flux (lumens) is to measure the luminous intensity (candelas) in many directions using a goniophotometer, and then numerically integrate over the entire sphere. Isotropic implies a spherical source that radiates the same in all directions, i.e., the intensity (W/sr) is the same in all directions.
Question How much lumens are emitted by an
isotropic source having a luminous intensity of 1
candela?
57
Radiometry and Photometry

Illuminance It is another SI derived unit which denotes luminous flux density. The unit has a special name, the lux, which is lumens per square metre, or lm/m2. The symbol is Ev Luminance It is not included on the official list of derived SI units. It is analogous to radiance, differentiating the lumen with respect to both area and direction. This unit also has a special name, the nit, which is cd/m2 or lm/m2sr if you prefer. The symbol is Lv. It is most often used to characterize the brightness of flat emitting or reflecting surfaces.
58
Radiometry and Photometry

Properties Of The Eye The eye has two general classes of photosensors, cones and rods. Cones The cones are responsible for light-adapted vision they respond to color and have high resolution in the central foveal region The light-adapted relative spectral response of the eye is called the spectral luminous efficiency function for photopic vision, V(?) This empirical curve, first adopted by the International Commission on Illumination (CIE) in 1924, has a peak of unity at 555 nm, and decreases to levels below 105 at about 370 and 785 nm The 50 points are near 510 nm and 610 nm, indicating that the curve is slightly skewed. The V(?) curve looks very much like a Gaussian function Using a non-linear regression technique gives the following equation
59
Radiometry and Photometry

Rods The rods are responsible for dark-adapted vision, with no color information and poor resolution when compared to the foveal cones. The dark-adapted relative spectral response of the eye is called the spectral luminous efficiency function for scotopic vision, V(?). It is defined between 380 nm and 780 nm. The V(?) curve has a peak of unity at 507 nm, and decreases to levels below 103 at about 380 and 645 nm. The 50 points are near 455 nm and 550 nm. This scotopic curve can also be fit with a Gaussian, although the fit is not quite as good as the photopic curve. The best fit is
60
Radiometry and Photometry

Photopic (light adapted cone) vision is active for luminances greater than 3 cd/m2. Scotopic (dark-adapted rod) vision is active for luminances lower than 0.01 cd/m2. In between, both rods and cones contribute in varying amounts, and in this range the vision is called mesopic.
61
Radiometry and Photometry

Conversion Between Radiometric and Photometric Units We know from the definition of the candela that there are 683 lumens per watt at a frequency of 540THz, which is 555 nm (in vacuum or air). This is the wavelength that corresponds to the maximum spectral responsivity of the human eye. The conversion from watts to lumens at any other wavelength involves the product of the power (watts) and the V(?) value at the wavelength of interest. Example At 670 nm, V(?) is 0.032 and a 5 mW laser has 0.005W 0.032 683 lm/W 0.11 lumens
Question Calculate the lumens for a 5 mW laser at
635 nm. V(?) is 0.217 at this wavelength.
62
Radiometry and Photometry

In order to convert a source with non-monochromatic spectral distribution to a luminous quantity, the spectral nature of the source is required. The equation used is in a form of where Xv is a luminous term, X? is the corresponding spectral radiant term, and V(?) is the photopic spectral luminous efficiency function. For X, we can pair luminous flux (lm) and spectral power (W/nm), luminous intensity (cd) and spectral radiant intensity (W/sr-nm), illuminance (lux) and spectral irradiance (W/m2-nm), or luminance (cd/m2) and spectral radiance (W/m2-sr-nm). The constant Km is a scaling factor, the maximum spectral luminous efficiency for photopic vision, 683 lm/W. Since this V(?) function is defined by a table of empirical values, it is best to do the integration numerically. This equation represents a weighting, wavelength by wavelength, of the radiant spectral term by the visual response at that wavelength.
Write a Comment
User Comments (0)
About PowerShow.com
