Title: Chapter 1: Computer networks and the Internet


1

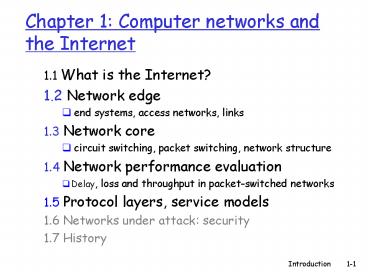

Chapter 1 Computer networks and the Internet
  • 1.1 What is the Internet?
  • 1.2 Network edge
  • end systems, access networks, links
  • 1.3 Network core
  • circuit switching, packet switching, network
    structure
  • 1.4 Network performance evaluation
  • Delay, loss and throughput in packet-switched
    networks
  • 1.5 Protocol layers, service models
  • 1.6 Networks under attack security
  • 1.7 History

2
Whats the Internet nuts and bolts view
  • millions of connected computing devices hosts
    end systems
  • running network apps
  • communication links
  • fiber, copper, radio, satellite
  • transmission rate bandwidth
  • routers forward packets (chunks of data)

3
Packet switching versus circuit switching
  • Is packet switching a slam dunk winner?
  • great for bursty data
  • resource sharing
  • simpler, no call setup
  • excessive congestion packet delay and loss
  • protocols needed for reliable data transfer,
    congestion control
  • Q How to provide circuit-like behavior?
  • bandwidth guarantees needed for audio/video apps
  • still an unsolved problem (chapter 7)

Q human analogies of reserved resources
(circuit switching) versus on-demand allocation
(packet-switching)?
4
Internet structure network of networks
  • Tier-2 ISPs smaller (often regional) ISPs
  • Connect to one or more tier-1 ISPs, possibly
    other tier-2 ISPs

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
5
Internet structure network of networks
  • Tier-3 ISPs and local ISPs
  • last hop (access) network (closest to end
    systems)

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
6
Internet structure network of networks
  • a packet passes through many networks!

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
7
How do loss and delay occur?
  • packets queue in router buffers
  • packet arrival rate to link exceeds output link
    capacity
  • packets queue, wait for turn

A
B
8
Delay in packet-switched networks
  • 4. Propagation delay
  • d length of physical link
  • s propagation speed in medium (2x108 m/sec)
  • propagation delay d/s
  • 3. Transmission delay
  • Rlink bandwidth (bps)
  • Lpacket length (bits)
  • time to send bits into link L/R

Note s and R are very different quantities!
9
Nodal delay
  • dproc processing delay
  • typically a few microsecs or less
  • dqueue queuing delay
  • depends on congestion
  • dtrans transmission delay
  • L/R, significant for low-speed links
  • dprop propagation delay
  • a few microsecs to hundreds of msecs

10
Queueing delay (revisited)
  • Rlink bandwidth (bps)
  • Lpacket length (bits)
  • aaverage packet arrival rate

traffic intensity La/R
  • La/R 0 average queueing delay small
  • La/R -gt 1 delays become large
  • La/R gt 1 more work arriving than can be
    serviced, average delay infinite!

11
Packet loss
  • queue (aka buffer) preceding link in buffer has
    finite capacity
  • packet arriving to full queue dropped (aka lost)
  • lost packet may be retransmitted by previous
    node, by source end system, or not at all

buffer (waiting area)
packet being transmitted
A
B
packet arriving to full buffer is lost
12
Throughput
  • throughput rate (bits/time unit) at which bits
    transferred between sender/receiver
  • instantaneous rate at given point in time
  • average rate over longer period of time

link capacity Rs bits/sec
link capacity Rc bits/sec
server, with file of F bits to send to client
server sends bits (fluid) into pipe
13
Throughput (more)
  • Rs lt Rc What is average end-end throughput?

Rs bits/sec
14
Why layering?
  • Dealing with complex systems
  • explicit structure allows identification,
    relationship of complex systems pieces
  • layered reference model for discussion
  • modularization eases maintenance, updating of
    system
  • change of implementation of layers service
    transparent to rest of system
  • e.g., change in gate procedure doesnt affect
    rest of system
  • layering considered harmful?

15
Internet protocol stack
  • application supporting network applications
  • FTP, SMTP, HTTP
  • transport process-process data transfer
  • TCP, UDP
  • network routing of datagrams from source to
    destination
  • IP, routing protocols
  • link data transfer between neighboring network
    elements
  • PPP, Ethernet
  • physical bits on the wire

16
ISO/OSI reference model
  • presentation allow applications to interpret
    meaning of data, e.g., encryption, compression,
    machine-specific conventions
  • session synchronization, checkpointing, recovery
    of data exchange
  • Internet stack missing these layers!
  • these services, if needed, must be implemented in
    application
  • needed?

17
Destination
Source
18
Encapsulation
source
message
application transport network link physical
segment
datagram
frame
switch
destination
application transport network link physical
router
19
A day in the life scenario
DNS server
Comcast network 68.80.0.0/13
school network 68.80.2.0/24
web page
web server
Googles network 64.233.160.0/19
64.233.169.105
5 DataLink Layer
5-19
20
A day in the life connecting to the Internet
  • connecting laptop needs to get its own IP
    address, addr of first-hop router, addr of DNS
    server use DHCP
  • DHCP request encapsulated in UDP, encapsulated in
    IP, encapsulated in 802.1 Ethernet

router (runs DHCP)
  • Ethernet frame broadcast (dest FFFFFFFFFFFF) on
    LAN, received at router running DHCP server
  • Ethernet demuxed to IP demuxed, UDP demuxed to
    DHCP

5 DataLink Layer
5-20
21
A day in the life connecting to the Internet
  • DHCP server formulates DHCP ACK containing
    clients IP address, IP address of first-hop
    router for client, name IP address of DNS
    server
  • encapsulation at DHCP server, frame forwarded
    (switch learning) through LAN, demultiplexing at
    client

router (runs DHCP)
  • DHCP client receives DHCP ACK reply

Client now has IP address, knows name addr of
DNS server, IP address of its first-hop router
5 DataLink Layer
5-21
22
A day in the life ARP (before DNS, before HTTP)
  • before sending HTTP request, need IP address of
    www.google.com DNS
  • DNS query created, encapsulated in UDP,
    encapsulated in IP, encasulated in Eth. In order
    to send frame to router, need MAC address of
    router interface ARP
  • ARP query broadcast, received by router, which
    replies with ARP reply giving MAC address of
    router interface
  • client now knows MAC address of first hop router,
    so can now send frame containing DNS query

5 DataLink Layer
5-22
23
A day in the life using DNS
DNS server
Comcast network 68.80.0.0/13
  • IP datagram forwarded from campus network into
    comcast network, routed (tables created by RIP,
    OSPF, IS-IS and/or BGP routing protocols) to DNS
    server
  • IP datagram containing DNS query forwarded via
    LAN switch from client to 1st hop router
  • demuxed to DNS server
  • DNS server replies to client with IP address of
    www.google.com

5 DataLink Layer
5-23
24
A day in the life TCP connection carrying HTTP
  • to send HTTP request, client first opens TCP
    socket to web server
  • TCP SYN segment (step 1 in 3-way handshake)
    inter-domain routed to web server
  • web server responds with TCP SYNACK (step 2 in
    3-way handshake)

web server
64.233.169.105
  • TCP connection established!

5 DataLink Layer
5-24
25
A day in the life HTTP request/reply
  • web page finally (!!!) displayed
  • HTTP request sent into TCP socket
  • IP datagram containing HTTP request routed to
    www.google.com
  • web server responds with HTTP reply (containing
    web page)

web server
  • IP datgram containing HTTP reply routed back to
    client

64.233.169.105
5 DataLink Layer
5-25
26
Addressing routing to another LAN
  • walkthrough send datagram from A to B via R
  • assume A knows Bs IP
    address
  • two ARP tables in router R, one for each IP
    network (LAN)

5 DataLink Layer
5-26
27
  • A creates IP datagram with source A, destination
    B
  • A uses ARP to get Rs MAC address for
    111.111.111.110
  • A creates link-layer frame with R's MAC address
    as dest, frame contains A-to-B IP datagram
  • As NIC sends frame
  • Rs NIC receives frame
  • R removes IP datagram from Ethernet frame, sees
    its destined to B
  • R uses ARP to get Bs MAC address
  • R creates frame containing A-to-B IP datagram
    sends to B

S.IP 111.111.111.111 D.IP222.222.222.222 S.MAC
1A-23-F9-CD-06-9B D.MAC 49-BD-D2-C7-56-2A
S.IP 111.111.111.111 D.IP222.222.222.222 S.MAC
74-29-9C-E8-FF-55 D.MAC E6-E9-00-17-BB-4B
5 DataLink Layer
5-27
28
Chapter 2 Application layer
  • 2.1 Principles of network applications
  • 2.2 Web and HTTP
  • HTTP protocol design and performance evaluation
  • 2.3 FTP
  • 2.4 Electronic Mail
  • SMTP, POP3, IMAP
  • 2.5 DNS
  • 2.6 P2P applications
  • 2.7 Socket programming with TCP
  • 2.8 Socket programming with UDP

2 Application Layer
28
29
Chapter 3 Transport Layer
  • 3.1 Transport-layer services
  • 3.2 Multiplexing and demultiplexing
  • 3.3 Connectionless transport UDP
  • 3.4 Principles of reliable data transfer
  • 3.5 Connection-oriented transport TCP
  • segment structure
  • reliable data transfer
  • flow control
  • connection management
  • 3.6 Principles of congestion control
  • 3.7 TCP congestion control

Transport Layer
3-29
30
Chapter 4 Network Layer
  • 4. 1 Introduction
  • 4.2 Virtual circuit and datagram networks
  • 4.3 Whats inside a router
  • 4.4 IP Internet Protocol
  • Datagram format
  • IPv4 addressing
  • ICMP
  • IPv6
  • 4.5 Routing algorithms
  • Link state
  • Distance Vector
  • Hierarchical routing
  • 4.6 Routing in the Internet
  • RIP
  • OSPF
  • BGP
  • 4.7 Broadcast and multicast routing

Network Layer
4-30
31
Chapter 5 The Data Link Layer
  • 5.1 Introduction and services
  • 5.2 Error detection and correction
  • 5.3Multiple access protocols
  • Channel Partitioning
  • Random access
  • CSMA/CD
  • ALOHA, Sloted ALOHA
  • Taking turns
  • 5.4 Link-layer Addressing
  • 5.5 Ethernet
  • 5.6 Link-layer switches
  • 5.7 PPP
  • 5.8 Link virtualization MPLS
  • 5.9 A day in the life of a web request

5 DataLink Layer
5-31
32
Chapter 6 Wireless and Mobile Networks
  • 6.1 Introduction
  • Wireless
  • 6.2 Wireless links, characteristics
  • CDMA
  • 6.3 IEEE 802.11 wireless LANs (wi-fi)
  • CSMA/CA
  • 6.4 Cellular Internet Access
  • architecture
  • standards (e.g., GSM)
  • Mobility
  • 6.5 Principles addressing and routing to mobile
    users
  • 6.6 Mobile IP
  • 6.7 Handling mobility in cellular networks
  • 6.8 Mobility and higher-layer protocols
  • 6.9 Summary

6 Wireless and Mobile Networks
6-32
33
Chapter 7 Multimedia Networking
  • 7.1 multimedia networking applications
  • 7.2 streaming stored audio and video
  • 7.3 making the best out of best effort service
  • 7.4 protocols for real-time interactive
    applications
  • RTP,RTCP,SIP
  • 7.5 providing multiple classes of service
  • 7.6 providing QoS guarantees

7 Multimedia Networking
7-33
34
Chapter 8 Network Security
  • 8.1 What is network security?
  • 8.2 Principles of cryptography
  • 8.3 Message integrity
  • 8.5 Securing TCP connections SSL
  • 8.6 Network layer security IPsec
  • 8.8 Operational security firewalls and IDS
Write a Comment
User Comments (0)
About PowerShow.com
