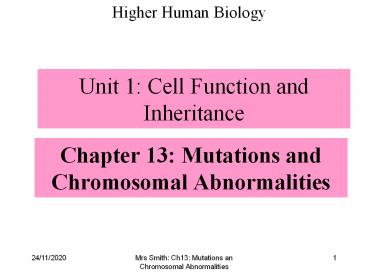

Chapter 13: Mutations and Chromosomal Abnormalities

1
Chapter 13 Mutations and Chromosomal
Abnormalities
Higher Human Biology
Unit 1 Cell Function and Inheritance
2
Learning Intentions

• To investigate mutations and chromosome
  abnormalities, specifically ....
• Alteration of base type or sequence.
• Non-disjunction and its effects on human
• You should be able to examine photographs of
  karyotypes of individuals and recognise
  conditions such as
• Downs Syndrome
• Turners Syndrome
• Kleinfelters Syndrome

3
You need to know these words
Klinefelters Syndrome
Insertion
Nucleotide
Mutant
Deletion
Gene Mutation
Substitution
Chromosomal Abnormality
Point mutation
Inversion
Frequency of mutation
Albinism
Frameshift
Cystic fibrosis
Non-disjunction
Mutagenic Agents
Phenylketonuria
Downs Syndrome
Turners Syndrome
4
Mutations

• A mutation is a change in the structure or amount
  of an organisms genetic material.
• This mutation can by a tiny change in DNA
  structure or can be a large scale change in
  chromosome structure or number
• When a change in genotype produces a change in
  phenotype, the individual is called a mutant

5
Gene Mutations Alteration of the base or
sequence

• Here there is a change in one or more of the
  nucleotides in a strand of DNA
• There are four main types of mutation
• POINT MUTATIONS
• Substitution Mutations
• Inversion Mutations
• FRAMESHIFT MUTATIONS
• Insertion Mutations
• Deletion Mutations
• More specifically each of the has had an
  alteration in one or more codons for one or more
  specific amino acids leading to a change in the
  protein that is synthesised.

6
Point mutations (substitution and inversion)

• For a protein to work properly it must have the
  correct sequence of amino acids.
• If there is a substitution or inversion mutation
  it usually brings about a minor change (i.e. one
  different amino acid).Here organism is affected
  only slightly or not at all.
• However if the substituted amino acid occurs at a
  critical point in the amino acid a major defect
  may arise
• (e.g. Formation of haemoglobin S in sickle cell
  anaemia.

7
Substitution one base is swapped for another
e.g. U for C
8
Inversion

• Inversion of two or more nucleotides, i.e.
  Positions become back to front (inverted)!

9
Frameshift Mutations -(Insertions or deletions)

• Here a there is a major change, since it leads to
  a large portion of the genes DNA to be misread,
• This results in the produced protein differing
  from the normal protein by many amino acids which
  is usually non-functional.
• e.g. If a protein is an enzyme which ctalyses an
  essential step in a metabolic pathway, then the
  pathway becomes disrupted, for example
  PHENYLKETONURIA.

10
Insertion
11
Insertion
12
Deletion
13
PhenylketonuriaBackground to
Phenylketonuria

• Phenylalanine and tyrosine are two amino acids
  that humans obtain from protein in their diet.
  During normal metabolism, excess phenylalanine is
  acted upon by an enzyme (phenylalanine hydroxide).

14
Phenylketonuria aka - PKU

• PKU is a hereditary disorder caused by a genetic
  defect which disrupts this metabolic pathway.
• An affected person lacks the normal allele of the
  gene required to make the enzyme Phenylalanine
  Hydroxide

15
Phenylketonuria Continued

• Owing to this inborn error in metabolism,
  phenylalanine is no longer converted to tyrosine.
• Instead it undergoes alternative pathways which
  produces toxins which affect the metabolism of
  brain cells and severely limit mental development.

16
Screening for PKU More in chapter 14

• In Britain, newborn babies are screened for PKU,
  and sufferers are put on a diet containing
  minimum phenylalanine.
• As a result the worst effects of PKU can be kept
  to a minimum.

17
Albinism

• Albinism results from a mutation which prevents
  the formation of enzyme 3 (Melanocyte
  Tyrosinase). As a result albinos fail to
  synthesise melanin.

18
Albinism the symptoms

• Due to the total lack of the pigment melanin
  Albinos have characteristic
• Very pale skin which fails to tan.
• White hair
• The colour of the iris is usually blue/gray or
  light brown with some people having a reddish or
  violet hue reflected through the iris.
• In some cases there is vision problems.
• They must avoid ultraviolet radiation and may
  require to ware tinted glasses to assist with
  photophobia.

19
Albinism
20
Cystic Fibrosis

• Mucus is a slimy substance secreted by the inner
  lining of the wind pipe and intestine.
• Mucus is made of a glycoprotein which makes it
  thick, slimy and perfect for protection and
  lubrication.
• The genetic information for coding this
  glycoprotein is on chromosome 7.

21
Cystic fibrosis due to gene mutation

• If the info on the gene for the glycoprotein is
  altered.... Two outcomes.....
• Homozygous for the mutant allele Make abnormally
  thick and sticky mucous leading to lung
  congestion and blockage of the pancreatic duct
  CYSTIC FIBROSIS.
• 12500 births in Britain
• Heterozygous for the mutant allele they carry
  the mutant allele masked in their genotype

22
Cystic fibrosis
23
Frequency of mutation

• In the absence of outside influences, gene
  mutations arise spontaneously and at random but
  occur rarely.
• Mutation rate varies from species to species,
  allele to allele.
• Most mutant alleles are recessive expressing
  themselves when two recessive alleles meet in
  future generations.
• However a few mutant alleles are expressed by the
  first generation to inherit them because they
  are either dominant (e.g. Huntington's Chorea) or
  sex linked (e.g. haemophilia).

24
Mutagenic agents Increases mutation rate.

• These include
• A variety of chemicals act as mutagens. E.g.
• Bromouracil, are structurally similar to DNA
  bases, and are inserted in place of normal bases.

• Ethidium bromide has a structure that allows it
  to wedge within the DNA double helix
• Peroxides and mustard gas, chemically modify DNA.
• Exposure to high-energy radiation (bombardment by
  alpha, beta, or gamma particles) or ultraviolet
  light can have a similar effect.

25
Example of chemical mutations
26
The Chernobyl Babies Radiation causes birth
defects
27
Task Torrance pg 97 Qus 1-4
28
Chromosomal Abnormalities

• Chromosomes can be affected by mutations which
  bring about large scale changes to the genetic
  material.
• One type happens during meiosis in humans when
  unusual gametes can be formed which contain 22 or
  24 chromosomes instead of the normal 23
• This leads to the formation of zygotes with
  abnormal chromosome complements.
• This is called non-disjunction

29
Non-disjunction during meiosis.

• These abnormal gametes are formed when a spindle
  fibre fails and one of the pair of homologous
  chromosomes fail to become separated

Extra copy
Extra copy
Lack a chromosome
Lack a chromosome
30
Downs Syndrome

• Due to non-disjunction of chromosome 21.
• Abnormal egg (n24) normal sperm (n23)
  abnormal zygote (n47).
• An extra copy of chromosome 21 is seen in the
  karyotype of someone with Downs syndrome
• The affected individual is characterised by
  mental retardation and distinctive physical
  features
• Egg mother cells of older women (80 due to
  maternal age) tend to be more prone to
  non-disjunction at meiosis.

31
Downs Syndrome (aka 21) Karyotype
32
Symptoms of Downs
33
Non-disjunction of Sex Chromosomes

• If human sex chromosomes are affected by
  non-disjunction during meiosis then unusual
  gametes are formed.

44 XX
44 XX
44 XY
44 XY
34
Turners Syndrome female only

• If a gamete which possesses no sex chromosomes
  meets and fuses with a normal X gamete, the
  zygote formed has the following chromosome
  complement - 2n 44 XO
• Individuals are always female and short in
  stature
• Their ovaries do not develop so they are
  infertile and fail to develop secondary sexual
  characteristics e.g. breast development and
  menstruation.
• Happens 12500 live births

35
Turners Syndrome
36
Turners Syndrome
Webbed neck, unusual fingers, short stature, low
neckline are all features of the condition.
Heart, hearing and visual problems can also occur
37
Klinefelters Syndrome Male only

• Happens when
• An XX egg is fertilised by a normal Y sperm
• OR an normal X egg is fertilised by an XY sperm
• Resulting with chromosome complement 2n 44
  XXY
• Individuals are always male and possess male sex
  organs
• However they are infertile since their testes
  only develop to half the normal size and fail to
  produce sperm
• Testes produce low levels of testosterone so
  facial hair, deepening of voice are only weakly
  expressed. Some sufferers develop small breasts.
• Occurs in 11000 live male births

38
Klinefelters Syndrome
39
Klinefelters Syndrome
40
Task Torrance pg 100 Qus 1-3
41
Essay Question Guide to H-Grade essays pg 62

• Discuss how genetic abnormalities can result in
  certain human conditions. (15)
