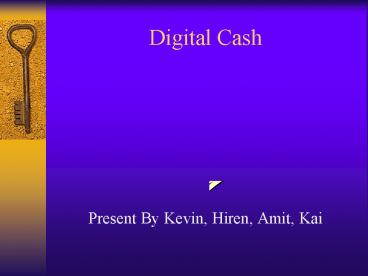

Digital Cash

1
Digital Cash

• Present By Kevin, Hiren, Amit, Kai

2
What is Digital Cash?

• A payment message bearing a digital signature
  which functions as a medium of exchange or store
  of value
• Need to be backed by a trusted third party,
  usually the government and the banking industry.

3
Key Properties

• Secure
• Anonymous
• Portable
• Reusable
• User-friendly

4
Digital Cash vs Credit Card
Anonymous Identified
Online or Off-line Online
Store money in digital wallet Money is in the Bank
5
The Online Model

• Structure Overview

6
Pros and Cons of the online scheme

• Pros
• Provides fully anonymous and untraceable digital
  cash.
• No double spending problems.
• Don't require additional secure hardware
  cheaper to implement.
• Cons
• Communications overhead between merchant and the
  bank.
• Huge database of coin records.
• Difficult to scale, need synchronization between
  bank servers.
• Coins are not reusable

7
The Offline Model

• Structure Overview

Bank
Others
T.R.D.
Temper-resistant device
Merchant
User
8
Pros and Cons of the offline model

• Advantages
• Off-line scheme
• User is fully anonymous unless double spend
• Bank can detect double spender
• Banks dont need to synchronize database in each
  transaction.
• Coins could be reusable
• Reduced the size of the coin database.
• Disadvantages
• Might not prevent double spending immediately
• More expensive to implement

9
Traceable Signature Protocol
m message m amount, serial no
(m)d d is secret key of the Bank
10
Blind Signatures

• Add a blinding factor b

• r (m)be

• rd (mbe)d

• Bank could keep a record of r

• Remove blinding factor

• (mbe)d (m)dbed

• b-1 ? md

11
Untraceable Digital Cash

• Create k items of m

m1 (, amount, serial number)
mk (, amount, serial number)
12
Untraceable Digital Cash

• Create blinding factorsb1e,, bke
• Blind the units - m1b1e, , mk bke

• Send to bank for signing

13
Untraceable Digital Cash

• Bank chooses k 1 to check
• Customer gives all blinding factors except for
  unit i
• Bank checks they are correct

14
Untraceable Digital Cash

• Bank signs the remaining one and sends it back
  (mibei)d midbi

• The customer removes the blind using bi-1 ? mid

15
Problem!

• When the merchant receives the coin, it still has
  to be verified
• The merchant has to have a connection with the
  bank at the time of sale
• This protocol is anonymous but not portable

16
How to make it off-line
17
Secret Splitting

• A method that splits the user ID in to n parts
• Each part on its own is useless but when combined
  will reveal the user ID
• Each user ID is XOR with a one time Pad, R

18
Cont

• E.g. User ID 2510, R 1500
• 2510 XOR 1500 3090
• The user ID can now be split into 2 parts, I.e.
  1500 and 3090
• On their own they are useless but when XOR will
  reveal the user ID
• I.e 1500 XOR 3090 2510

19
A Typical Coin

• Header Information
• Serial number
• Transaction Item pairs of user IDs

• User ID
• 1500 3090
• 4545 6159
• 5878 7992

20
A Typical Coin

• Header Information
• Serial number
• Transaction Item pairs of user IDs

• User ID
• 1500 XOR 3090 2510
• 4545 XOR 6159 2510
• 5878 XOR 7992 2510

User ID
21
Blanking
Randomly blank one side of each identity pair

• User ID
• 0 3090
• 4545 6159
• 5878 7992

22
Blanking
Randomly blank one side of each identity pair

• User ID
• 0 3090
• 4545 0
• 5878 7992

23
The coin is now spent
You can no longer tell who owns the coin

• User ID
• 0 3090
• 4545 0
• 5878 0

• Merchant would now deposit this coin into the bank

24
The coin is copied and spent at another merchant

• Before the user spent the coin the first time,
  the user made a copy of it

• User ID
• 1500 0
• 4545 0
• 0 7992

• Merchant would now deposit this coin into the bank

25
How can we catch the user?
This is what is in the bank

• Original Coin
• User ID
• 0 3090
• 4545 0
• 5878 0

• Duplicate Coin
• User ID
• 1500 0
• 4545 0
• 0 7992

26
How can we catch the user?
This is what is in the bank

• Original Coin
• User ID
• 0 3090
• 4545 0
• 5878 0

• Duplicate Coin
• User ID
• 1500 0
• 4545 0
• 0 7992

27
Probability of catching the culprit

• Depends on the number of the identity strings
  used
• Probability of catching a user is
• 1 - ½n , where n is the number of identity
  strings
• E.g. n 5, the probability of catching a user
  is 0.97

28
Reusability

• Once the coin has been spent the merchant has to
  deposit it to the bank
• Therefore, coin can only be spent once
• Convenience, ability to give change, unnecessary
  transactions between bank and merchant
• Banks database size less serial numbers
• Solution Add the new User ID to the coin

29
Setup
IDHIREN
IDAMIT
IDKEVIN
30
Coins

• Users Coin
• User ID
• A MIT
• AM IT
• AMI T

31
Amit spends his coin at Hirens shop
The coin will now look like this
User ID A 0 0 IT AMI
0 HI REN HIR EN H IREN
Amit no longer owns the coin, it is bounded to
Hiren
32
Hiren can now go and spend his coin at Kevin's
shop
The coin looks like this
User ID A 0 0 IT AMI 0 HI REN HIR EN
H IREN
33
Hiren can now go and spend his coin at Kevin's
shop
The coin will now look like this
User ID A 0 0 IT AMI 0 0 REN 0 EN
H 0 KE VIN K EVIN KEV IN
34
Size Matters!

• Coin m (Serial num, denomination, Transaction
  list (transactions user ID), Other Header info)

• Limit size by Validity Period and/or max
  Transactions

35
Other proposals

• What if you what buy something that costs 4.99
  and you have 5 coin?
• Would have a file for every coin

36
Fair Blind Signatures

• Possible solution to undetectable money
  laundering or ransom demands

37
Conclusion

• Feasible from a purely technological perspective
• Anonymous is at the heart of the government's
  attack
• Cannot attract funding

38
Advantages

• Convenience
• Secure
• Handling costs
• Time saving
• Transaction Costs

39
Global Disadvantages

• Safety Issue
• Physical Securities
• Users Issue
• Legal problems

40
Questions?
